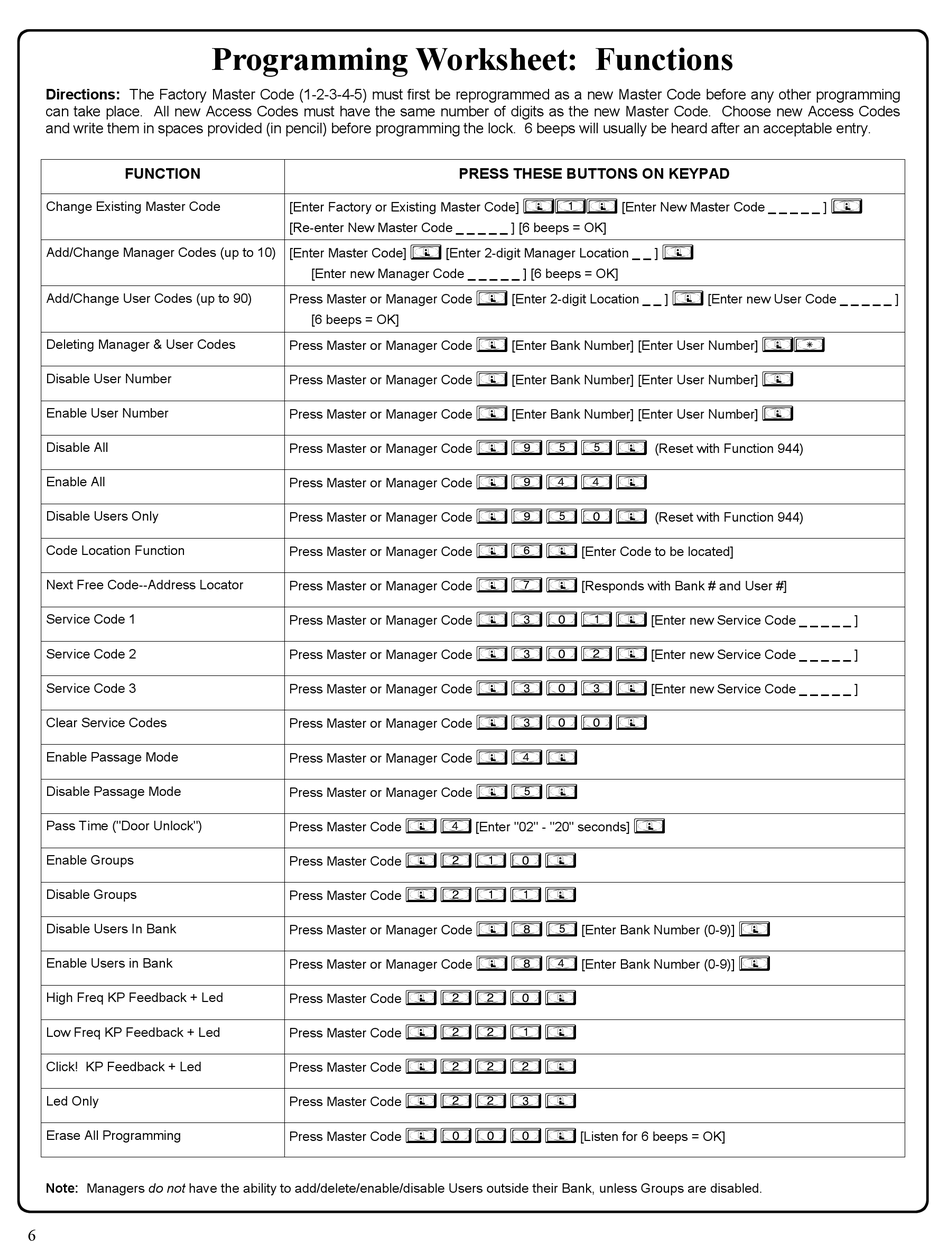

Programming Worksheet: Functions - Alarm Lock Trilogy DL1200 Programming Instructions Manual

Directions: The Factory Master Code (1-2-3-4-5) must first be reprogrammed as a new Master Code before any other programming
can take place. All new Access Codes must have the same number of digits as the new Master Code. Choose new Access Codes
and write them in spaces provided (in pencil) before programming the lock. 6 beeps will usually be heard after an acceptable entry.
FUNCTION
Change Existing Master Code
Add/Change Manager Codes (up to 10) [Enter Master Code] ; [Enter 2-digit Manager Location _ _ ] ;
Add/Change User Codes (up to 90)
Deleting Manager & User Codes
Disable User Number
Enable User Number
Disable All
Enable All
Disable Users Only
Code Location Function
Next Free Code--Address Locator
Service Code 1
Service Code 2
Service Code 3
Clear Service Codes
Enable Passage Mode
Disable Passage Mode
Pass Time ("Door Unlock")
Enable Groups
Disable Groups
Disable Users In Bank
Enable Users in Bank
High Freq KP Feedback + Led
Low Freq KP Feedback + Led
Click! KP Feedback + Led
Led Only
Erase All Programming
Note: Managers do not have the ability to add/delete/enable/disable Users outside their Bank, unless Groups are disabled.
6

Programming Worksheet: Functions

[Enter Factory or Existing Master Code] ;1; [Enter New Master Code _ _ _ _ _ ] ;
[Re-enter New Master Code _ _ _ _ _ ] [6 beeps = OK]
[Enter new Manager Code _ _ _ _ _ ] [6 beeps = OK]
Press Master or Manager Code ; [Enter 2-digit Location _ _ ] ; [Enter new User Code _ _ _ _ _ ]
[6 beeps = OK]
Press Master or Manager Code ; [Enter Bank Number] [Enter User Number] ;:
Press Master or Manager Code ; [Enter Bank Number] [Enter User Number] ;
Press Master or Manager Code ; [Enter Bank Number] [Enter User Number] ;
Press Master or Manager Code ; 9 5 5 ; (Reset with Function 944)
Press Master or Manager Code ; 9 4 4 ;
Press Master or Manager Code ; 9 5 0 ; (Reset with Function 944)
Press Master or Manager Code ; 6 ; [Enter Code to be located]
Press Master or Manager Code ; 7 ; [Responds with Bank # and User #]
Press Master or Manager Code ; 3 0 1 ; [Enter new Service Code _ _ _ _ _ ]
Press Master or Manager Code ; 3 0 2 ; [Enter new Service Code _ _ _ _ _ ]
Press Master or Manager Code ; 3 0 3 ; [Enter new Service Code _ _ _ _ _ ]
Press Master or Manager Code ; 3 0 0 ;
Press Master or Manager Code ; 4 ;
Press Master or Manager Code ; 5 ;
Press Master Code ; 4 [Enter "02" - "20" seconds] ;
Press Master Code ; 2 1 0 ;
Press Master Code ; 2 1 1 ;
Press Master or Manager Code ; 8 5 [Enter Bank Number (0-9)] ;
Press Master or Manager Code ; 8 4 [Enter Bank Number (0-9)] ;
Press Master Code ; 2 2 0 ;
Press Master Code ; 2 2 1 ;
Press Master Code ; 2 2 2 ;
Press Master Code ; 2 2 3 ;
Press Master Code ; 0 0 0 ; [Listen for 6 beeps = OK]
PRESS THESE BUTTONS ON KEYPAD
