DESCRIPTION

This addendum is intended to ensure that the
face of the interface cylinder is parallel with the
surface of the door. Use this addendum with

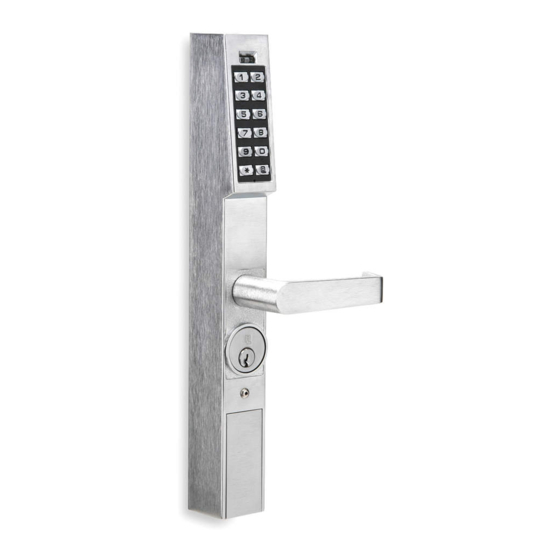

the "DL1200 - DL1300 - PDL1300 Narrow Stile
Mounting
and
WI1458, pages 4-5, steps 5-5e:

PROCEDURE

Locate the heading entitled "Insert the Inter-
face Cylinder" on page 4 (step 5). After per-
forming step 5e (installing the latch face plate
on page 5), the following additional step is rec-
ommended before installing the lock in step 6:
5f. Verify the face of the interface cylinder
("HW1299") is positioned parallel to the
surface of the door.

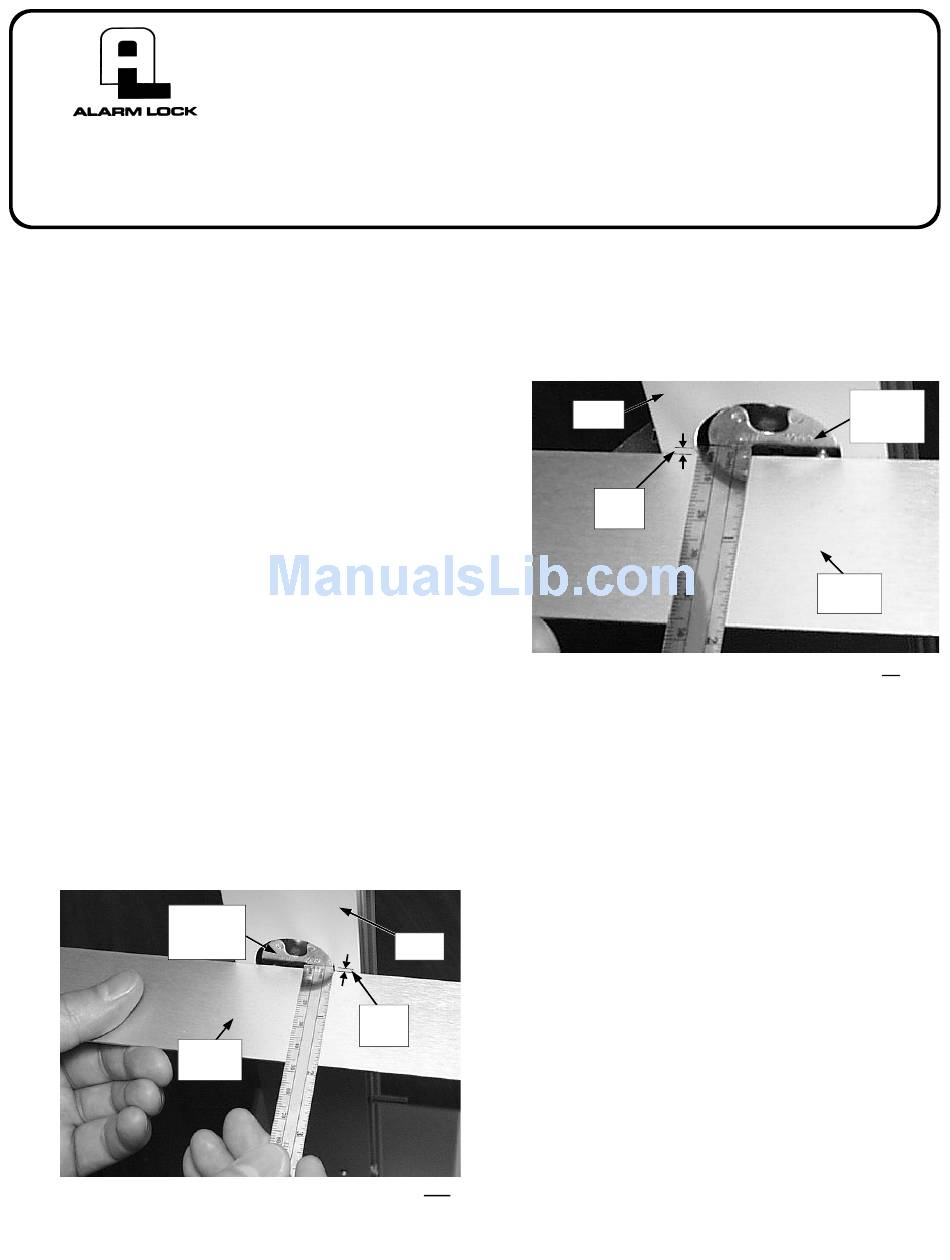

With a straight edge flush against the sur-
face of the door as shown in the image be-
low, place a small ruler on the right face of
the interface cylinder to measure the dis-
tance between the face of the interface cyl-
inder and the surface of the door (the right
"gap"). See Fig. 7c below.
Interface
Cylinder
(HW1299)
Straight
Fig. 7c: Measure right "gap": Place a small ruler against the right
side of the interface cylinder.
DL1200 - DL1300 - PDL1300
Installation
Instructions"
Right
"Gap"
Edge
NARROW STILE ACCESS LOCKS
ADDENDUM
5g. Measure the left "gap" with the ruler on the
left face of the interface cylinder, as shown
in Fig 7d, below:
Fig. 7d: Measure left "gap": Place a small ruler against the left side of
The difference between the right and the
left "gap" distances must not exceed
1/32".
If face of the lock body is not parallel to the
surface of the door and the difference be-
tween the left and right "gap" measure-
ments exceeds 1/32", adjust the position of
the Adams Rite
Door
the interface cylinder is parallel with the face
of the door.
Door
Left
"Gap"
the interface cylinder.
®
lock body until the face of
WI1626 6/07
Interface
Cylinder
(HW1299)
Straight
Edge
