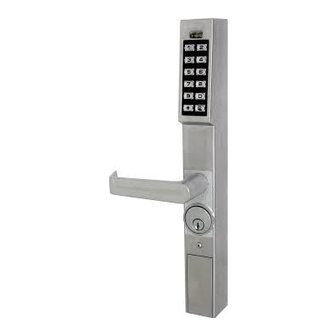

Alarm Lock DL1200 Mounting And Installation Instructions Manual

Narrow stile access locks

Hide thumbs Also See for DL1200:

Programming instructions manual (12 pages)

Mounting and installation instructions manual (8 pages)

Datasheet (2 pages)

Table of Contents

Quick Links

345 Bayview Avenue

Amityville, New York 11701

For Sales and Repairs 1-800-ALA-LOCK

For Technical Service 1-800-645-9440

or visit us at

http://tech.napcosecurity.com/

(Note: Technical Service is for security professionals only)

Publicly traded on NASDAQ

Symbol: NSSC

GENERAL DESCRIPTION

The DL1200, DL1300 and PDL1300 are manually programma-

ble narrow stile entry trim for Adams Rite

deadlatch locks, and 1850, 1950, 4070, MS1850S and

MS1950S series deadbolts for narrow stile aluminum doors*.

The DL1200, DL1300 and PDL1300 will retract the existing Ad-

ams Rite

latch when an access code is entered (or a credential

is presented) and the lever is pressed down (or the turnpiece

turned). The trim is designed to operate with any Adams Rite

interior device such as a "pushpaddle" or lever. Because Ad-

ams Rite

trim exists on the inside, the "hold-back feature re-

mains operational for a continuous unlatched function (see Ad-

ams Rite

instructions).

code activates latched passage mode (device is unlocked but

the lever or turnpiece is engaged continuously) until another

passage mode function code is entered, re-locking the trim. All

locks are equipped with a mechanical metal key override. See

OI310, OI311 or OI312 for programming information.

MECHANICAL FEATURES

The overall enclosure housing is 14 3/8" inches high, 1 5/8"

inches deep and 1¾" inches wide. The trim is through-bolted to

the stile of the door (using four #10 screws) and are secured on

the interior side of the door. Supported stile thickness is 1¾".

 DL1200 Series supports 100 users, fingertip/keypad pro-

grammable

 DL1300 Series supports 2000 users and includes 40,000

event audit trail and 500 event schedule. Keypad or PC

programmable

 PDL1300 Series supports 2000 PIN or Proximity users and

includes 40,000-event audit trail and 500 event schedule.

Keypad or PC programmable

 Aluminum door retrofit outside trim for Adams Rite

1950, 4710, 4070, 4730, 4900, MS1850S and MS1950S

Series locks

 Familiar Trilogy

programming & electronics

 All-metal, vandal-resistant 12-button keypad supports 3-6

digit PIN codes (3-5 digits on the DL1200), and multilevel

user hierarchy (master, manager, supervisor and basic

users)

 Keypad or PC programmable (see model information).

Quickly and easily add or delete users and enter "passage

mode", service codes, group lock-out & group-enable

DL1200 - DL1300 - PDL1300

4710, 4730 and 4900

Entering a passage mode function

NARROW STILE ACCESS LOCKS

MOUNTING AND INSTALLATION

INSTRUCTIONS

 HID Proximity ID cards, keyfobs and proximity tags sup-

ported in PDL1300 series which features built-in Proximity

reader (High security applications can require use of both

PIN code plus Proximity ID card for access)

 Real time clock and PC programmable automatic lock/

unlock scheduling for 500 events (1300 Series models)

 Wide weatherproof operating range from -31 to 151ºF (-35

to 66C)

 Provides 100,000 operations using off-the-shelf long life

DL123A lithium batteries, and includes audible and visual

low battery alert

 Non-handed; fully field-reversible

 Mechanical key override; interchangeable cores supported

(Corbin/Russwin, Yale, Schlage, Medeco)

 Mortise Cylinder, 1¼" supplied (supports 1-1/8", 1¼", 1-

3/8" and 1½"

 Compact styling 14-3/8"H x 1-5/8"D x 1¾"W

 Backsets 31/32",1-1/8" and 1½"; stile thickness 1¾"

GENERAL DESCRIPTION ..................................... 1

MECHANICAL FEATURES .................................... 1

MOUNTING AND INSTALLATION ........................ 2

INSTALL CYLINDER ......................................... 3

1850,

VERIFY HAND ................................................... 3

INSTALL LEVER ................................................ 4

INSERT INTERFACE CYLINDER ............... 4

INSTALL LOCK ............................................. 5

INSTALL BATTERIES ................................... 6

TEST OPERATION ................................................. 7

NAPCO LIMITED WARRANTY.............................. 8

*Adams Rite Manufacturing Co., Pomona, CA. www.adamsrite.com. All products, product names and services

described in this manual are for identification purposes only and may be trademarks of their respective companies.

WI1458F 05/15

Table of Contents

Need help?

Do you have a question about the DL1200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alarm Lock DL1200

Page 1: Table Of Contents
 Real time clock and PC programmable automatic lock/ MS1950S series deadbolts for narrow stile aluminum doors*. unlock scheduling for 500 events (1300 Series models) The DL1200, DL1300 and PDL1300 will retract the existing Ad-  Wide weatherproof operating range from -31 to 151ºF (-35 ®...
Page 2: Mounting And Installation
HW1331 1-½ HW1342 Cylinder Collars: The DL1200 and DL/PDL1300 can use a 1-⅛" & 1¼" mor- tise cylinder without the use of a collar (1¼" requires two plastic spacers, supplied). For cylinders longer than 1¼" a collar is required. Order collars from an Alarm Lock distributor.
Page 3: Install Cylinder
REVERSE REVERSE Note: The trim is manufactured to use a 1-1/8" or 1¼" Alarm Lock mortise cylinder with a HW-1302 cam. (Keys) (Keys) If the cylinder that will be used is longer than 1¼", a col- (Hinges) lar must be utilized.
Page 4: Install Lever
Install the Lever (factory installed) 3. Install the lever with proper orientation for the lock/door hand used. "arm" "arm" Tighten the set screw us- ing a 1/8" hex wrench "anchor" "anchor" (see Fig. 3). IMPORTANT! The top of the set screw must be at Fig.
Page 5: Install Lock
5a. Push in latch and hold latch in all the way. rectly could cause lock binding or improper operation of the lock mechanism. Push in latch during interface cylinder installation Interface cylinder Fig. 5d: Tighten the interface cylinder set screw 5e.
Page 6: Install Batteries
mounting screws before final tightening. Do not over- wiring inside the compartment. Holding battery in tighten. place, slide cover back on. Secure the battery cover by tightening the #8-32 Phillips pan head screw located on the rear side of the base plate (access this screw from the 7/16"...
Page 7: Test Operation
5. While pressing the default access code on the lock key- Test Step 1 pad (press "1 2 3 4 5" on the DL1200 and press "1 2 3 4 5 6" on the DL/PDL1300), note the following: 2. Release lever. Insert key and turn key fully counter- ...
Page 8: Napco Limited Warranty
This warranty shall not apply to any equipment, or any part In no event shall ALARM LOCK be liable for an amount in thereof, which has been repaired by others, improperly excess of ALARM LOCK's original selling price of the...
