345 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs 1-800-ALA-LOCK
For Technical Service 1-800-645-9440
Publicly traded on NASDAQ
Symbol: NSSC
© ALARM LOCK 2006

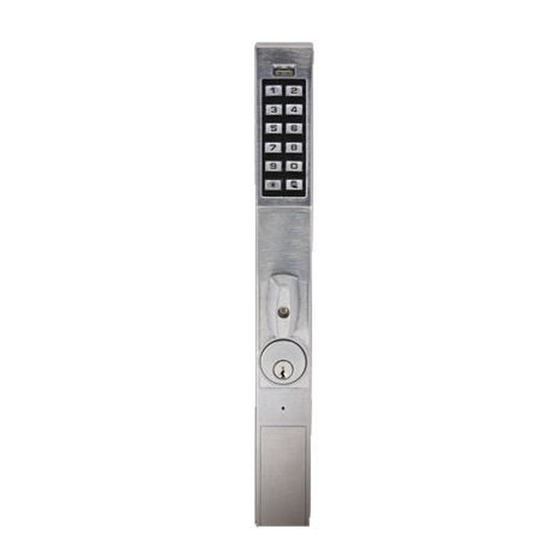

GENERAL DESCRIPTION
The DL1225/26D2 and DL1250/26D2 are manually program-
mable narrow stile entry trim for Adams Rite
4070, MS1850S and MS1950S series deadbolts for narrow
stile aluminum doors*.
The DL1225/26D2 and DL1250/26D2 will retract the existing
®
Adams Rite
bolt when an access code is entered (or a cre-
dential is presented) and the turnpiece turned. All locks are
equipped with a mechanical metal key override. See OI310,
OI311 or OI312 for programming information.
MECHANICAL FEATURES
The overall enclosure housing is 14 3/8" inches high, 1 5/8"
inches deep and 1¾" inches wide. An optional credential
reader can be added to the front of the housing by the factory.
The trim is through-bolted to the stile of the door (using four
#10 screws) and are secured on the interior side of the door.
Supported stile thickness is 1¾".
• DL1200/1225/1250 Series supports 100 users, fingertip/
keypad programmable
• DL1300 Series supports 2000 users and includes 40,000
event audit trail and 500 event schedule. Keypad or PC
programmable
• PDL1300 Series supports 2000 PIN or Prox users and
includes 40,000-event audit trail and 500 event schedule.
Keypad or PC programmable
• Aluminum door retrofit outside trim for Adams Rite
1850, 1950, 4070, MS1850S and MS1950S Series locks
®
• Familiar Trilogy
programming & electronics
• All-metal, vandal-resistant 12-button keypad supports 3-6
digit PIN codes (3-5 digits on the DL1225/1250), and
multilevel user hierarchy (master, manager, supervisor
and basic users)
• Keypad or PC programmable (see model information).
Quickly and easily add or delete users and enter
"passage mode", service codes, group lock-out & group-
enable
• HID Prox ID cards, keyfobs and prox tags supported in
PDL1300 series which features built-in Prox reader (High
security applications can require use of both PIN code
plus Prox ID card for access)
• Real time clock and PC programmable automatic lock/
NARROW STILE ACCESS LOCKS
MOUNTING AND INSTALLATION
INSTRUCTIONS
®
1850, 1950,
®
unlock scheduling for 500 events (1300 Series models)
• Wide weatherproof operating range from -31 to 151ºF
(-35 to 66C)
• Provides 100,000 operations using off-the-shelf long
life DL123A lithium batteries, and includes audible and
visual low battery alert
• Non-handed; fully field-reversible
• Mechanical key override; interchangeable cores sup-
ported (Corbin/Russwin, Yale, Schlage, Medeco)
• Mortise Cylinder, 1¼" supplied (supports 1-1/8", 1¼",
1-3/8" and 1½"
• Compact styling 14-3/8"H x 1-5/8"D x 1¾"W
• Backsets 31/32",1-1/8" and 1½"; stile thickness 1¾"
TABLE OF CONTENTS
GENERAL DESCRIPTION .............................................1
MECHANICAL FEATURES ............................................1
MOUNTING AND INSTALLATION .................................2
INSTALL CYLINDER .................................................3
INSTALL INTERFACE CYLINDER ......................3
INSTALL LOCK ....................................................4
INSTALL BATTERIES ..........................................5
TEST OPERATION .........................................................7
NAPCO LIMITED WARRANTY ......................................8
*Adams Rite Manufacturing Co., Pomona, CA. www.adamsrite.com. All products, product
names and services described in this manual are for identification purposes only and may be
trademarks of their respective companies.
WI1479B 8/06
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alarm Lock NARROW STILE ACCESS LOCKS
Summary of Contents for Alarm Lock NARROW STILE ACCESS LOCKS
-
Page 1: Table Of Contents
Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440 Publicly traded on NASDAQ Symbol: NSSC © ALARM LOCK 2006 WI1479B 8/06 GENERAL DESCRIPTION unlock scheduling for 500 events (1300 Series models) The DL1225/26D2 and DL1250/26D2 are manually program- •... -
Page 2: Mounting And Installation
The DL1225/1250 can use a 1-1/8" & 1¼" mortise cylinder without the use of a collar (1¼" requires two plastic spacers, supplied). For cylinders longer than 1¼" a collar is required. Order collars from an Alarm Lock distributor. Cam for Mechanical Override Cylinder... -
Page 3: Install Cylinder
Note: The trim is manufactured to use a 1-1/8" or 1¼" Alarm Lock mortise cylinder with a Fig. 1c: Use 1/16" hex wrench to screw in the cylinder back stop screw HW-1302 cam. -
Page 4: Install Lock
Install Lock 4c. Secure interface cylinder to lock by tightening the set screw. 4. Install the DL lock onto the door by aligning the four tapped mounting holes in the back of the DL lock with the four "through-bolting" holes that were drilled in the door in step two. -
Page 5: Install Batteries
Install Batteries 5b. Install battery pack into the battery compartment. Neatly push all wiring inside the compartment. Hold- 5. Insert key in cylinder and turn counterclockwise. This ing battery in place, slide cover back on. will allow access to the battery compartment screw. See Fig. -
Page 7: Test Operation
4. Retract deadbolt. Turn key clockwise and remove TEST LOCK OPERATION key. Before testing, be sure the lock has been powered- The turnpiece must not retract or extend the dead- up using the specific instructions in the OI310, bolt when turned. OI311 or OI312 manuals. -
Page 8: Napco Limited Warranty
ALARM LOCK will, In no event shall ALARM LOCK be liable for an within said period, at its option, repair or replace any amount in excess of ALARM LOCK's original selling...
