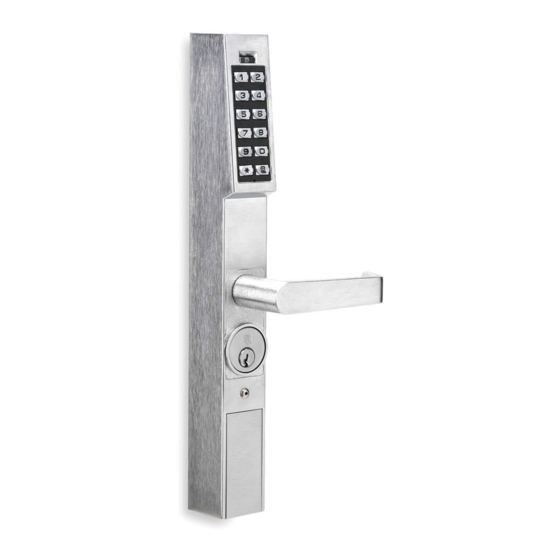

Alarm Lock DL1200 Datasheet

Trilogy: Narrow Stile Access Locks
DL1200, DL1300, PDL1300 PIN and PIN/prox
aluminum door retrofit outside trim
Aluminum door retrofit outsid
•
MS1850S and MS1950S Series latch locks.
Field-proven, familiar Trilogy
• ®
PIN code and PIN/Prox Models support 100 to 2000 users (see model info.)
•
• 40,000 event audit trail in 1300 Series models, provides door usage activity reports at wireless handheld
printer, laptop or PC.
All-metal, vandal-resistant 12-button keypad supports 3-6 digit PIN codes, and multilevel user hierarchy
•
(master, manager, supervisor, basic users)
Keypad or PC programmable (see model info.). Quickly and easily add or delete users and enter "passage
•
mode", service codes, group lock-out & group-enable
HID Prox ID cards, keyfobs and prox tags supported in PDL-1300 Series models featuring built in Prox
•
reader. (High security applications can require use of both PIN code plus Prox ID for access.)
Real time clock and PC programmable automatic lock/unlock scheduling for 500 events (1300 Series
•
models).
Wide weatherproof operating range from -31 to 151ºF (-35 to 66C)
•
• Wireless standalone locks: Long-life, battery- operated; Includes audible and visual low battery alert. (Uses
standard off-the-shelf batteries.)
• Non-handed; fully field-reversible
Key override; interchangeable cores supported (Corbin/Russwin, Yale, Schlage, Medeco.)
•
Mortise Cylinder, 1-1/4" supplied. (Supports 1-1/8, 1-1/4 and 1-3/8")
•
• Compact styling 14-3/8"H x 1-5/8"D x 1-3/4"W
• Backsets 31/32",1-1/8" and 1-1/2" ; Stile thickness 1-3/4"
Four attractive standard finishes US26D Satin Chrome, US10B Duronodic, MS Metallic Silver and MB
•
Metallic Bronze
Narrow Stile Trilogy
• DL1200 Series supports 100 users, fingertip/keypad programmable. (Includes 2 Lithium 3V batteries).
DL1300 Series supports 2000 users and includes 40,000 event audit trail and 500 event schedule.
•
Keypad or PC programmable. (Includes 2 Lithium 3V batteries) (See accessories below.)
• PDL1300 Series supports 2000 PIN or Prox users and includes 40,000 event audit trail and 500 event
schedule. Keypad or PC programmable. (Includes 2 Lithium 3V batteries) (See accessories below.)
• KIT ALSO AVAILABLE: Complete electronic and mechanical access retrofit kit including Trilogy electronic
narrow stile trim and mechanical Adams Rite 4900 Series dead latch lock (specify either 1 1/8" or 1 1/2"
backset for mechanical lock required).
Model Type
PDL – Prox/PIN
DL – Digital PIN
Trilogy Series
12 – 2700 Series
13 – 3000 Series
Trim
00 = Lever
25 = Turnpiece
50 = Knob
75 = Regal lever
Finish
/26D Satin Chrome
/10B Duronodic
/MS Metallic Silver
/MB Metallic Bronze
®
e trim for Adams Rite
1850, 1950, 4710, 4070, 4730, 4900 Series and
programming & electronics
®
Lock models:
ORDERING: DL1200/26D1
U L
®
Mechanical Dead Latch
1 – Supports Adams Rite:
4710, 4730, 4900 Series
2 – Supports Adams Rite:
4070, MS1850S,
MS1850S-050, MS1950,
MS1950-050
3 – KIT Includes Adams Rite 4900 with
1-1/8" backset, 628 &313 faceplate
4 – KIT Includes Adams Rite 4900 with
1-1/2" backset, 628 & 313 faceplate
