Narrow stile access locks

Advertisement

345 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs 1-800-ALA-LOCK
For Technical Service 1-800-645-9440
Publicly traded on NASDAQ
Symbol: NSSC
© ALARM LOCK 2011

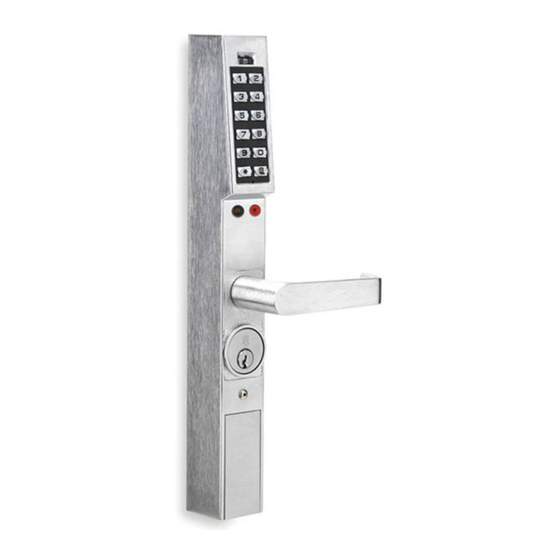

GENERAL DESCRIPTION

The DL1200ET, DL1300ET and PDL1300ET are
manually programmable narrow stile entry trim for nar-
row stile aluminum doors. The following specialized
templates are designed to utilize existing panic exit de-
vice mounting holes:
• Arrow
S1200/S1250 series (WI1758)
• Corbin Russwin
®
ED8200/ED8400 series (WI1759)
• DCI 1200/1300 series (WI1760)
• Dorma 5300 series (WI1761)
®
• Dor-O-Matic
2090 series (WI1762)
®
• Jackson
1095 series (WI1763)
• Von Duprin
®
22 series (WI1764)
• Von Duprin
®
33/35 series (WI1765)
All mounting hole locations shown on the above instal-
lation templates are referenced from the existing
mounting holes of the previously installed panic exit
device hardware.
When a valid User Code is entered, the DL1200ET,
DL1300ET or PDL1300ET retracts a tailpiece, allowing
the tailpiece to unlock the device when the lever is
pressed down. PDL (proximity) models allow either a
User Code or the presentation of a proximity card to
unlock the device.
A User Code can be programmed to enable Passage
Mode to allow unrestricted passage until another ac-
cess code is entered, re-locking the trim. All locks are
equipped with a mechanical metal key override. See
WI1686, WI1687 or WI1688 to enable Passage Mode
and other programming features.

MECHANICAL FEATURES

The overall enclosure housing is 14 3/8" inches high, 1
5/8" inches deep and 1¾" inches wide. The trim is
through-bolted to the stile of the door (using four #10
screws) and is secured on the interior side of the door.
Supported stile thickness is 1¾".
• The DL1200ET series supports 100 User Codes,
fingertip keypad programmable.
• The DL1300ET series supports 2000 User Codes
and includes a 40,000 event audit trail and a 500
event schedule. Keypad or PC programmable.
• The PDL1300ET series supports 2000 User Code
or proximity card users and includes a 40,000 event
audit trail and a 500 event schedule. Keypad or PC
programmable.
• Aluminum door retrofit outside trim for Arrow
S1200/S1250 series, DCI 1200/1300 series, Corbin
®
Russwin
ED8200/ED8400 series, 33/35 and 22
series, Dor-O-Matic
DL1200ET - DL1300ET - PDL1300ET
MOUNTING AND INSTALLATION
®
2090 series, Jackson
NARROW STILE ACCESS LOCKS
INSTRUCTIONS
series and Dorma 5300 series locks.
• Familiar Trilogy
• All-metal, vandal-resistant 12-button keypad sup-
ports 3-6 digit PIN codes (3-5 digits on the
DL1200ET), and multilevel user hierarchy (master,
manager, supervisor and basic users).
• Keypad or PC programmable (see model informa-
tion). Quickly and easily add or delete users and
enter "passage mode", service codes, group lock-
out & group enable.
• HID proximity Prox ID cards, keyfobs and tags sup-
ported in PDL1300 series which features a built-in
proximity reader (high security applications can re-
quire the use of both User PIN Code plus proximity
ID card for access).
• Real time clock and PC programmable automatic
lock / unlock scheduling for 500 events (1300 Series
models).
• Wide weatherproof operating range from -31ºF to
151ºF (-35ºC to 66ºC).
• Provides 100,000 operations using off-the-shelf long
life DL123A lithium batteries, and includes audible
and visual low battery alert.
• Non-handed; fully field-reversible.
• Mechanical key override; interchangeable cores
supported
Medeco).
• Mortise Cylinder, 1¼" supplied (supports 1-1/8",
1¼", 1-3/8" and 1½".
• Stile thickness 1¾".
GENERAL DESCRIPTION ............................................................. 1
MECHANICAL FEATURES ............................................................ 1
MECHANICAL OVERRIDE CYLINDER CAMS ....................... 2
CYLINDER COLLARS ............................................................ 2
MOUNTING AND INSTALLATION ................................................. 3
INSTALL CYLINDER ................................................................ 3
INSTALL THE LEVER ............................................................... 4
INSTALL TAILPIECE ON LOCK ........................................ 4
CONNECT BATTERIES .................................................... 4
INSTALL LOCK ON DOOR ................................................ 5
PROGRAMMING THE LOCK ......................................................... 5
AFTER INSTALLATION ................................................................ 6
®
1095
NAPCO LIMITED WARRANTY ...................................................... 8
®
programming & electronics.
(Corbin/Russwin,

TABLE OF CONTENTS

WI1684A 10/11
Yale,
Schlage,
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL1200ET and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alarm Lock DL1200ET

  • Page 1: Table Of Contents

    • Wide weatherproof operating range from -31ºF to device hardware. 151ºF (-35ºC to 66ºC). When a valid User Code is entered, the DL1200ET, • Provides 100,000 operations using off-the-shelf long DL1300ET or PDL1300ET retracts a tailpiece, allowing life DL123A lithium batteries, and includes audible the tailpiece to unlock the device when the lever is and visual low battery alert.
  • Page 2: Mechanical Override Cylinder Cams

    MECHANICAL OVERRIDE CYLINDER CAMS The DL1200E and DL/PDL1300E trim requires the use of an oval Alarm Lock cam (supplied with cylinder). For other manufacturers, please see the charts below. Cams for Standard Mortise Cylinders Corbin-Russwin HW1344 Marks HW1346 Arrow HW1348...
  • Page 3: Mounting And Installation

    Note: The trim is manufactured to use a 1-1/8" or 1¼" Alarm Lock mortise cylinder with a HW-1302 cam. If the cylin- der that will be used is longer than 1¼", a collar must be utilized.
  • Page 4: Install Tailpiece On Lock

    fit in the lock. THIS IS ESSENTIAL--drill slowly and STRAIGHT through the door. 4c. Insert the Tailpiece shank into the Hub, aligning the Tailpiece cross hole with the Roll Pin. Install Tailpiece on Lock Cross Hole This lock operates a variety of exit device models; each exit device model requires a matching tailpiece be in- stalled on the back of the lock.
  • Page 5: Install Lock On Door

    6b. At the lock keypad, enter a valid User Code. For new locks, enter the default Master Code (use "12345" for the DL1200ET; use "123456" for the DL1300ET and PDL1300ET). Entering the Code engages the lock mechanism and draws the Hub into DL lock housing about 5/32".
  • Page 6: Test Dl Lock Operation After Installation

    2. At the keypad, enter a valid the User Code. For new 4. Turn the key clockwise and remove. Verify the latch locks, enter the default Master Code ("12345" for the does NOT retract when the lever or turnpiece is ro- DL1200ET; "123456" DL1300ET tated.
  • Page 7 NOTES...
  • Page 8: Napco Limited Warranty

    ALARM LOCK will, In no event shall ALARM LOCK be liable for an within said period, at its option, repair or replace any amount in excess of ALARM LOCK's original selling...
