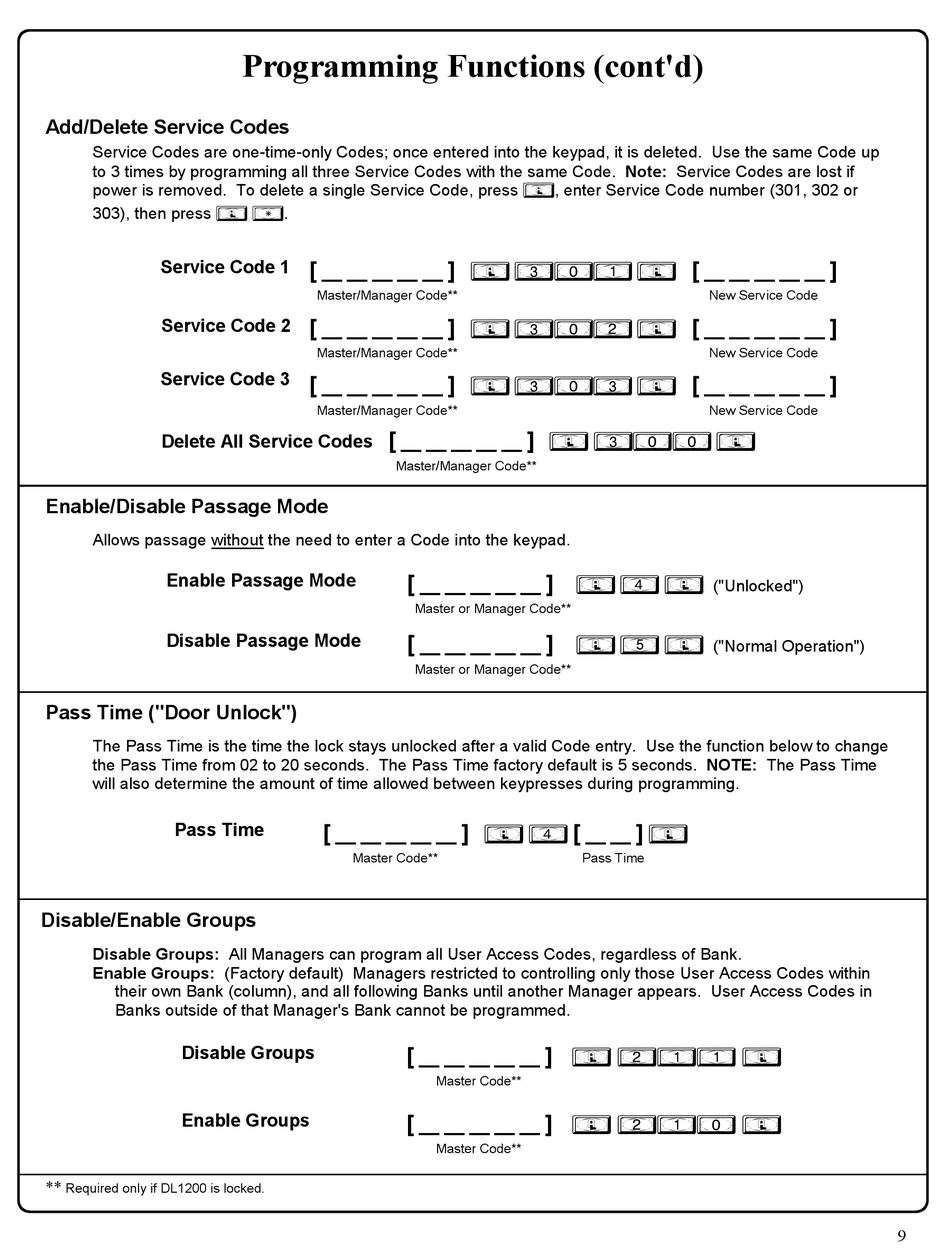

Add/Delete Service Codes; Enable/Disable Passage Mode; Pass Time ("Door Unlock"); Disable/Enable Groups - Alarm Lock Trilogy DL1200 Programming Instructions Manual

Add/Delete Service Codes

Service Codes are one-time-only Codes; once entered into the keypad, it is deleted. Use the same Code up
to 3 times by programming all three Service Codes with the same Code. Note: Service Codes are lost if
power is removed. To delete a single Service Code, press
303), then press
; :
Service Code 1
Service Code 2
Service Code 3
Delete All Service Codes

Enable/Disable Passage Mode

Allows passage without the need to enter a Code into the keypad.
Enable Passage Mode
Disable Passage Mode

Pass Time ("Door Unlock")

The Pass Time is the time the lock stays unlocked after a valid Code entry. Use the function below to change
the Pass Time from 02 to 20 seconds. The Pass Time factory default is 5 seconds. NOTE: The Pass Time
will also determine the amount of time allowed between keypresses during programming.
Pass Time

Disable/Enable Groups

Disable Groups: All Managers can program all User Access Codes, regardless of Bank.
Enable Groups: (Factory default) Managers restricted to controlling only those User Access Codes within
their own Bank (column), and all following Banks until another Manager appears. User Access Codes in
Banks outside of that Manager's Bank cannot be programmed.
Disable Groups
Enable Groups
**
Required only if DL1200 is locked.
Programming Functions (cont'd)
.
[
__ __ __ __ __
Master/Manager Code**
[
__ __ __ __ __
Master/Manager Code**
[
__ __ __ __ __
Master/Manager Code**
[
__ __ __ __ __
Master/Manager Code**
[
__ __ __ __ __
Master or Manager Code**
[
__ __ __ __ __
Master or Manager Code**
[
__ __ __ __ __
Master Code**
[
__ __ __ __ __
[
__ __ __ __ __
, enter Service Code number (301, 302 or
;
]
; 301 ;
]
; 302 ;
]
; 303 ;
]
; 300 ;
]
; 4 ; ("Unlocked")
]
; 5 ; ("Normal Operation")
] [
; 4 __ __
Pass Time
]
; 211 ;
Master Code**
]
; 210 ;
Master Code**
[
__ __ __ __ __
New Service Code
[
__ __ __ __ __
New Service Code
[
__ __ __ __ __
New Service Code
]
;
]
]
]
9
