Advantech SPC-57 User Manual page 19

2.1 Quick Starting
Step1: Unpack the SPC-57 from its packing. Please check the packing list at the
beginning of this manual.
Step2: Connect the power connector to 10 ~ 28 Vdc power source. The power source
can either be from a power adapter or an in-house power source.
Step3: Connect the power source to the system power supply.

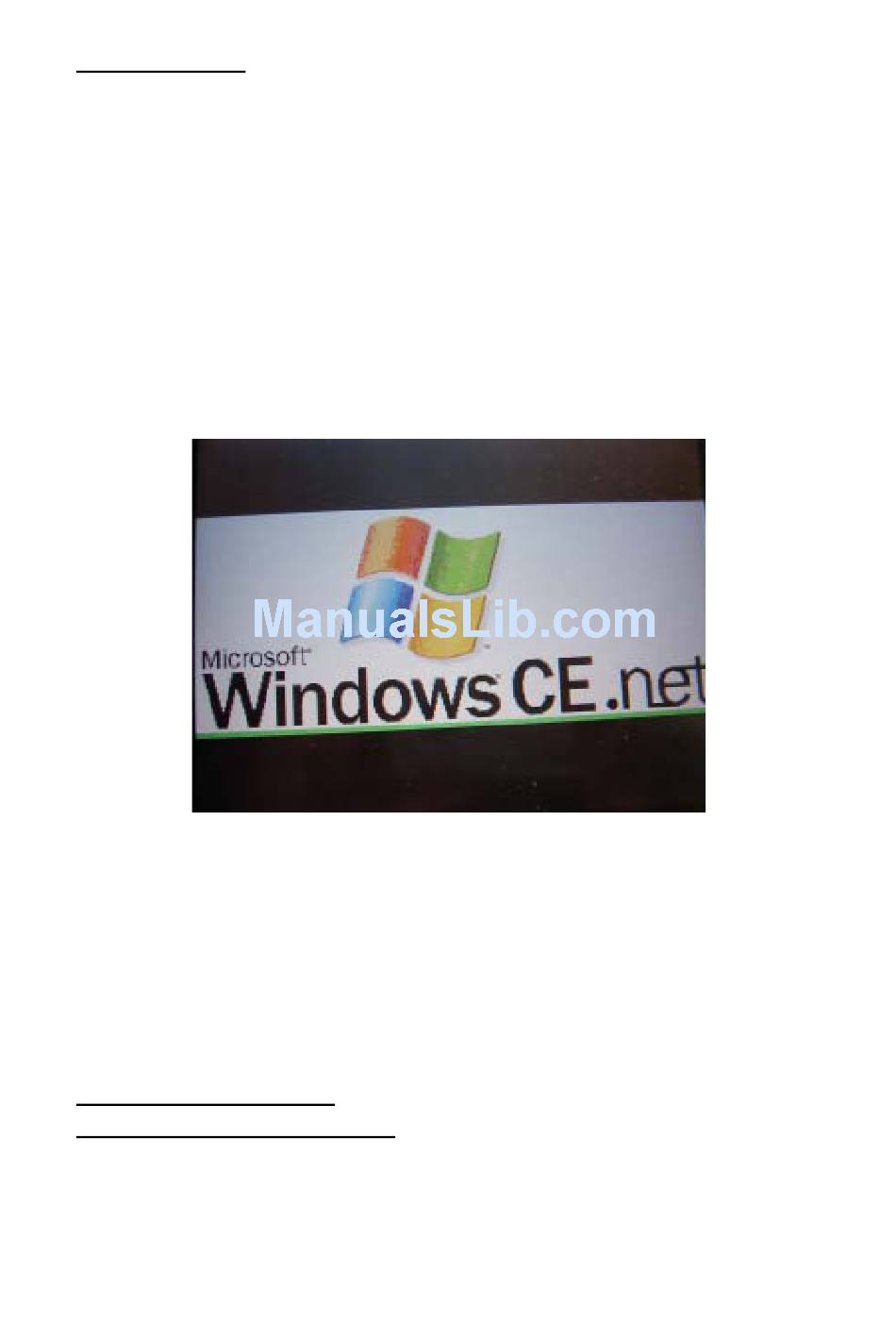

Step4: Plug in the power lines and turn on the system power switch, you will see the
Welcome screen of Windows
Step5: Turn on the power switch.
Step6: Calibrate the touchscreen.
2.2 Supplying Power to SPC
2.1.1 Supplying Power to SPC-57C
1. SPC accepts only DC power, not AC power
2. The DC input range for SPC is 10V ~ 28V.
3. Install the Vcc cable and GND cable into the male power connector (male power
connector is in the package of SPC)
®
CE.NET. Then you can start to use SPC-57.
