- Page 1 User Manual PPC-312S/312SW 12.1" Fanless Panel PC with 13th Gen Intel® Core™ i7/i5/i3 Processor 製造商: 研華股份有限公司 地址: 台北市內湖區陽光街365巷33號 電話: 02-27927818...
- Page 2 The documentation and the software included with this product are copyrighted 2025 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.
-
Page 3: Product Warranty (2 Years)
Product Warranty (2 years) Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. -
Page 4: Technical Support And Assistance
! Warning! Avoid exposing PPC-312S(W) to direct sunlight for long periods of time. Direct sunlight hitting the LCD screen can cause it to become very hot. This may dam- age the LCD as the components are not designed to tolerate high heat. -
Page 5: Safety Instructions
22. This product is intended to be supplied by a UL listed (Certificate) power supply with a mating connector, output rated 24Vdc, 4A, Tma 50 degree C minimum and alti- tude 2000m. If need further assistance, please contact manufacture or UL File owner or brand owner for additional information. PPC-312S(W) RPL User Manual... - Page 6 Don't touch any components on the CPU card or other cards while the PC is on. ◼ Disconnect power before making any configuration changes. The sudden rush of power as you connect a jumper or install a card may damage sensitive electronic components. PPC-312S(W) RPL User Manual...
-
Page 7: Table Of Contents
EMC and Safety ............... 4 1.2.8 Power ..................4 1.2.9 External I/O ................4 Dimensions and Cutout ................5 1.3.1 PPC-312S RPL ................ 5 1.3.2 PPC-312SW RPL ..............6 Chapter 2 System Setup ........7 Transport and Unpacking ................ 8 2.1.1 Transport .................. - Page 8 Figure A.1 Board Layout - Top View ........49 Table A.1: Board Placement ..........49 Jumper Settings and Descriptions ............50 A.2.1 CMOS Clear Function (JCMOS1) .......... 50 Table A.2: CMOS Clear Function ........... 50 A.2.2 COM1 Signal Select (JP6) ............. 50 viii PPC-312S(W) RPL User Manual...
- Page 9 PCI / PCIe .......... 54 Load Current of PCIe Slot ..............55 Table B.1: Total Load Current of PCIe Slot ......55 Load Current of PCI Slot ............... 55 Table B.2: Total Load Current of PCI Slot ......55 PPC-312S(W) RPL User Manual...
-
Page 11: Chapter 1 General Information
Chapter General Information PPC-312S(W) RPL User Manual... -
Page 12: Introduction

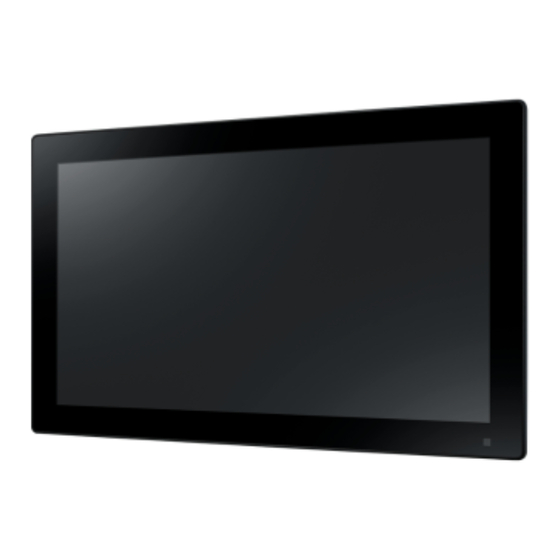

Introduction The PPC-312S(W) RPL panel PC features 13th Gen Intel® Core™ i7, i5, or i3 processors, delivering exceptional computing power in a slim, compact design. Its robust aluminum alloy enclosure ensures durability and a sleek appearance. ◼ True-flat touchscreen with industrial-grade LCD panel ◼... -
Page 13: Communication Interface
400 cd/m Contrast Ratio 1000 1200 Backlight Lifetime 30,000 hrs (min.) 50,000 hrs (min.) 1.2.5 Touchscreen ◼ Type: PPC-312S: 5-wire resistive touch PPC-312SW: Projected capacitive (P-CAP) multi-touch ◼ Light Transmission: PPC-312S: 80±5% PPC-312SW: >86% ◼ Controller: USB interface 1.2.6 Environment ◼... -
Page 14: Emc And Safety
External I/O The arrangement of I/O ports is shown below. A. COM1: RS-232/422/485 E. 3 x USB 3.2 B. COM2: RS-232/422/485 F. 1 x USB 2.0 C. 2 x LAN G. DC-in D. DP H. Power button PPC-312S(W) RPL User Manual... -
Page 15: Dimensions And Cutout
Dimensions and Cutout 1.3.1 PPC-312S RPL ◼ Dimensions (W x H x D): 295.3 x 233.8 x 49.9 mm (11.6 x 9.2 x 2.0 inch) ◼ Cutout Dimensions: 286.20 x 224.7 mm (11.27 x 8.85 inch) Corner=R6mm (±0.5mm) PPC-312S(W) RPL User Manual... -
Page 16: Ppc-312Sw Rpl
1.3.2 PPC-312SW RPL ◼ Dimensions (W x H x D): 312.6 x 214.7 x 49.9mm (12.3 x 8.5 x 2.0 inch) ◼ Cutout Dimensions: 303.5 x 205.6 mm (11.95 x 8.09 inch) Corner=R6mm (±0.5mm) PPC-312S(W) RPL User Manual... -
Page 17: Chapter 2 System Setup
Chapter System Setup PPC-312S(W) RPL User Manual... -
Page 18: Transport And Unpacking
PPC is switched on. 2.1.2 Unpacking and Setup Follow these steps to setup the PPC-312S(W) RPL device: Unbox the PPC-312S(W) RPL device. Adjust the power mode if necessary (default: AT mode), refer to Section 2.2.2 for details. -
Page 19: System Configuration
After removing all screws, carefully lift the rear cover and set it aside, taking care not to cause any damage to the system or the cover in the process. Figure 2.3 Rear Cover Removal PPC-312S(W) RPL User Manual... -
Page 20: At/Atx Jumper Setting (Jp5)
2.2.2 AT/ATX Jumper Setting (JP5) This jumper on the PPC-312S(W) RPL motherboard, as indicated below, allows for the adjustment of the power mode Table 2.1: AT/ATX Function Description This jumper is used to select Power ON mode Default (2-3) (2-3) -
Page 21: Installation Of Ssd / Idoor Module
Figure 2.4 Blank Cover Removal Reattach the rear cover to the chassis, securing it with four screws. Take care not to damage the I/O cable during this process. Figure 2.5 Re-installing Rear Cover PPC-312S(W) RPL User Manual... - Page 22 Ensure the preparation procedure outlined in Section 2.2.3.1 is fully com- pleted before proceeding with the installation. Secure the SSD onto the bracket using four M3x4L screws. Install the SSD and its bracket into the system. Figure 2.7 SSD Installation PPC-312S(W) RPL User Manual...
- Page 23 Ensure the preparation procedure outlined in Section 2.2.3.1 is fully com- pleted before proceeding with the installation. Install an iDoor module, and tighten the two screws to secure the module in place. Figure 2.9 iDoor Module Installation PPC-312S(W) RPL User Manual...
-
Page 24: Installation Of Pcie Expansion Cards
Remove the rear cover. See Section 2.2.1. Remove the blank cover as shown below. Figure 2.10 Blank Cover Removal Secure the rear cover back to the chassis using four screws. Figure 2.11 Installing the Rear Cover PPC-312S(W) RPL User Manual... - Page 25 I/O cable hole are properly aligned. Secure the box by fastening it with four screws. Figure 2.12 PCI/PCIe Add-on Box Installation Insert the riser card into the PCIe slot, and secure the riser card using two screws. Figure 2.13 Installing a Riser Card PPC-312S(W) RPL User Manual...
-
Page 26: Installation Of Wi-Fi Kit
NOTE! An add-on box for PCI or PCIe expansion (98R1P312S00, includ- ing PCI / PCIe riser card) is required for PCIe card installation. The PCIe riser card supports PCIe x1 signal, but the slot is PCIe x4 (PCIe x1 compatible). 2.2.5 Installation of Wi-Fi Kit PPC-312S(W) RPL User Manual... - Page 27 Wi-Fi module. Route the antenna cables to prevent interference with other components. Figure 2.17 Wi-Fi Kit Installation Attach the rear cover to the chassis using the previously removed screws. Install the external Wi-Fi antennas as shown below. Figure 2.18 External Antenna Installation PPC-312S(W) RPL User Manual...
-
Page 28: Installation Of Rfid Reader
Secure the RFID reader to the chassis with one screw. Figure 2.19 RFID Reader Installation Panel Mount Before installing the PPC-312S(W) RPL panel computer into the panel opening, ensure that the adhesive waterproof gasket on the front bezel is correctly posi- tioned. - Page 29 Figure 2.21 Panel Mounting (1) Fasten the screws with a torque of 2 kgf-cm. These screws will push the mounting panel, ensuring a secure and stable unit.0. Figure 2.22 Panel Mounting (2) PPC-312S(W) RPL User Manual...
-
Page 30: Vesa Mount
VESA Mount The rear cover of the PPC-312S(W) RPL includes four VESA mounting (75 x 75 mm) holes. If you install the stand kit / wall mount kit / arm mount Kit of different specifications, choose the appropriate screw length according to the different plate thickness at the VESA. -
Page 31: System Wiring
Connect the PPC-312S(W) RPL system's ground pin to the cabinet. If necessary, connect I/O to the controller. Connect the power supply's V+ and V- to the PPC-312S(W) RPL system. Proceed step by step through steps 1 to 6, then power on the PPC- 312S(W) RPL system. -
Page 32: Bios Setup
Chapter BIOS Setup PPC-312S(W) RPL User Manual... -
Page 33: Bios Setup
BIOS supports your CPU. If there is no num- ber assigned to the patch code, contact an Advantech application engineer to obtain an up-to-date patch code file. This will ensure that the CPU status is valid. -
Page 34: Main Setup
System Date using the <Arrow> keys. Enter new values through the key- board. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format. The time must be entered in HH:MM:SS format. PPC-312S(W) RPL User Manual... -
Page 35: Advanced Bios Features Setup
You can display an Advanced BIOS Setup option by highlighting it using the <Arrow> keys. All Advanced BIOS Setup options are described in this section. The Advanced BIOS Setup screen is shown below. The sub menus are described on the following pages. PPC-312S(W) RPL User Manual... - Page 36 This item allows users to enable or disable Hyper-Threading Technology ◼ Intel Trusted Execution Technology This item allows users to enable utilization of additional hardware capabili- ties provided by Intel® Trusted Execution Technology. Changes require a full power cycle to take effect. PPC-312S(W) RPL User Manual...
-
Page 37: Power & Performance
This item allows more than two frequency ranges to be supported. ◼ Intel(R) Speed Shift Technology This item allows users to enable/disable Intel® Speed Shift Technology sup- port. Enabling it will expose the CPPC v2 interface to allow for hardware controlled Pstates. PPC-312S(W) RPL User Manual... - Page 38 This item allows users to enable/disable CPU power management. This will enable the CPU to go to C states when not 100% utilized. 3.2.2.3 PCH-FW Configuration ◼ Firmware Update Configuration This item allows users to configure the management engine technology pa- rameters. PPC-312S(W) RPL User Manual...
-
Page 39: Trusted Computing
TPM 1.2: select this to restrict support to TPM 1.2 devices. TPM 2.0: select this to restrict support to TPM 2.0 devices Auto: select this to support both; TPM 2.0 devices by default; if not found, TPM 1.2 devices will be enumerated PPC-312S(W) RPL User Manual... -
Page 40: Acpi Settings
(OS/S4 sleep state). This option may be not effective with some OS. ◼ ACPI Sleep State This item allows users to select the ACPI sleep state. The system will enter when the SUSPEND button is pressed. PPC-312S(W) RPL User Manual... - Page 41 3.2.2.6 NCT6126D Super I/O Configuration ◼ Serial Port 1 Configuration Set Parameters of Serial Port 1. ◼ Serial Port 2 Configuration Set Parameters of Serial Port 2. PPC-312S(W) RPL User Manual...
-
Page 42: Hw Monitor Configuration
3.2.2.7 H/W Monitor Configuration PPC-312S(W) RPL User Manual... - Page 43 This item allows users to enable or disable system wake on alarm event. Select FixedTime, the system will wake on the hr:min:sec specified. Select DynamicTime, the system will wake on the current time + increased mi- nute(s). PPC-312S(W) RPL User Manual...
-
Page 44: Usb Configuration
This item allows users to Set the maximum time the device will take before reporting itself to the Host Controller. The Auto option uses the default value, which is 100 ms for a Root port. For a Hub port, the delay time is ob- tained from the Hub descriptor. PPC-312S(W) RPL User Manual... - Page 45 3.2.2.10 Network Stack Configuration ◼ Network Stack This item allows users to enable or disable the UEFI network stack. PPC-312S(W) RPL User Manual...
- Page 46 3.2.2.11 CSM Configuration ◼ CSM Support Enable/Disable CSM Support. 3.2.2.12 NVMe Configuration PPC-312S(W) RPL User Manual...
-
Page 47: Chipset Configuration
Memory Configuration This submenu allows users to view the memory parameters. ◼ Graphics Configuration This submenu allows users to set graphics configuration parameters ◼ VMD Setup Menu This submenu allows users to set VMD configuration parameters PPC-312S(W) RPL User Manual... -
Page 48: Pch-Io Configuration
This item allows users to enable or disable the PCIe device to wake up the system from S3/S4/S5 state. ◼ Wake on Ring This item allows users to enable or disable the Wake on Ring function. PPC-312S(W) RPL User Manual... - Page 49 3.2.3.3 RAID Setting In the BIOS, select Chipset → System Agent (SA) Configuration Select VMD setup menu PPC-312S(W) RPL User Manual...
- Page 50 Enable these two options: Enable VMD controller and Enable VMD Global Mapping. Ensure the Map this Root Port under VMD option is enabled. Press F4 to save and exit, then press Del to enter BIOS. Select Advanced → lntel(R) Rapid Storage Technology PPC-312S(W) RPL User Manual...
- Page 51 Select Create RAID Volume Define the name of the group RAID. PPC-312S(W) RPL User Manual...
- Page 52 Select RAID Level: RAID0 or RAID1 Select the disks to create RAID. Select Disks: [ X ] PPC-312S(W) RPL User Manual...
- Page 53 Select Create Volume 10. RAID parameter settings completed. 11. If you want to remove RAID, you can select Delete. PPC-312S(W) RPL User Manual...
-
Page 54: Security
3.2.4 Security Administrator Password ◼ Set Administrator Password ◼ Secure Boot This item allows users to access a submenu to configure secure boot set- tings. PPC-312S(W) RPL User Manual... -
Page 55: Boot
This item allows users to set the number of seconds to wait for setup activa- tion key. 65535 (oxFFFF) means indefinite waiting. ◼ Bootup NumLock State This item allows users to select the keyboard NumLock state. Quiet Boot ◼ This item allows users to enable/disable quiet boot option. PPC-312S(W) RPL User Manual... -
Page 56: Save & Exit
◼ Save as User Defaults This item allows you to save the changes done so far as user defaults. ◼ Restore User Defaults This item allows you to restore the user defaults to all the options. PPC-312S(W) RPL User Manual... -
Page 57: Mebx
3.2.7 MEBx ◼ Intel(R) ME Password This item allows you to login MEBx by entering a password. PPC-312S(W) RPL User Manual... -
Page 58: Appendix A Connectors
Appendix Connectors PPC-312S(W) RPL User Manual... -
Page 59: Jumper And Connector Location
Touchscreen type select jumper ATX/AT mode select jumper CN26 Remote power button connector COM1 COM1 RS-232/422/485 connector COM2 COM2 RS-232/422/485 connector M2B1 M.2 B-key 3042/3052 slot M2E1 M.2 E-key 2230 slot M2M1 M.2 M-key 2280/2242 slot PPC-312S(W) RPL User Manual... -
Page 60: Jumper Settings And Descriptions
(3-4) Clear CMOS A.2.2 COM1 Signal Select (JP6) Table A.3: COM1 Signal Select Description This switch is used to select COM1 signal Default (1-2) (1-2) COM1 RI (2-3) COM1 Pin 9 5V (4-5) COM1 Pin 9 12V PPC-312S(W) RPL User Manual... -
Page 61: Touchscreen Type Select (Jp3)
JP3 jumper should be set to "short" for resistive Description touchscreen and left "open" for projected capacitive touchscreen. Open Projected capacitive type Short Resistive type Connector Pin Definition A.3.1 Remote Power Button Connector (CN26) Table A.5: Remote Power Button Connector (CN26) Signal ATX_PWRBTN# PPC-312S(W) RPL User Manual... -
Page 62: Rs-232/422/485 Connector (Com1)
*Pin 9 is set as “RI” by default. This setting can be changed to 5V or 12V output using the JP6 jumper A.3.3 RS-232/422/485 Connector (COM2) Table A.7: RS-232/422/485 Connector (COM2) RS232 RS422 RS485 Data- Data+ Ring PPC-312S(W) RPL User Manual... -
Page 63: Ethernet Connector Leds
A.3.4 Ethernet Connector LEDs Table A.8: 2.5G Ethernet Connector (LAN) LEDs Speed LED Activity/Link LED 10 Mbps No link 100 Mbps Green Data activity & linked Orange 1000 Mbps Green 2500 Mbps PPC-312S(W) RPL User Manual... -
Page 64: Pci / Pcie
Appendix PCI / PCIe PPC-312S(W) RPL User Manual... -
Page 65: Load Current Of Pcie Slot
Table B.2: Total Load Current of PCI Slot Voltage Current 12 V 0.2 A 0.4 A 3.3 V 3.3 VSB 0.2 A -12 V 0.25 A The total output power for 12V, 5V, 3.3V, 3.3VSB and -12V should not exceed 10W. PPC-312S(W) RPL User Manual... - Page 66 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2025 PPC-312S(W) RPL User Manual...
