Intellinet 524681 User Manual

Wireless n 3g router
Hide thumbs Also See for 524681:
Table of Contents

Advertisement

Quick Links

Download this manual

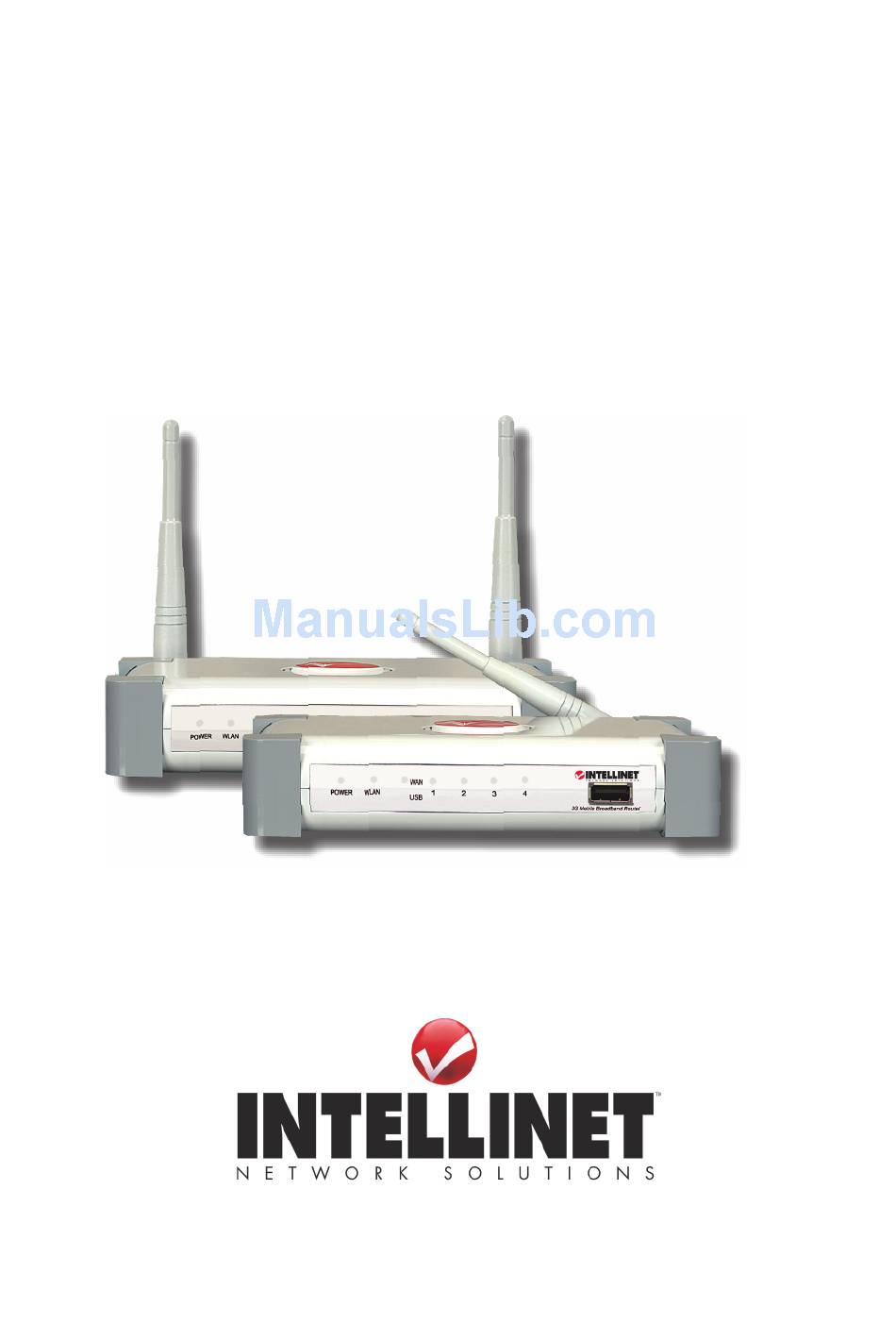

WIRELESS N
3G ROUTER

USER MANUAL

MODELS 524681 & 524940
INT-524681/524940-UM-0809-03

Advertisement

Table of Contents
loading

Related Manuals for Intellinet 524681

Summary of Contents for Intellinet 524681

  • Page 1: User Manual

    WIRELESS N 3G ROUTER USER MANUAL MODELS 524681 & 524940 INT-524681/524940-UM-0809-03...

  • Page 2: Federal Communications Commission

    Federal Communications Commission Interference Statement FCC Part 15 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate the equipment. Federal Communications Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure set forth for...
  • Page 4 R&TTE Compliance Statement This equipment complies with all the requirements of Directive 1999/5/EC of the European Parliament and the Council of March 9, 1999, on radio equipment and telecommunication terminal equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) as of April 8, 2000.

  • Page 5: Table Of Contents

    Table of Contents CHAPTER I: PRODUCT INFORMATION 1-1 Introduction ................1 1-2 Safety Information ..............2 1-3 System Requirements............3 1-4 Package Contents..............3 1-5 Connections and Indicators........... 4 CHAPTER II: SYSTEM AND NETWORK SETUP 2-1 Network Connections ............6 2-2 Connecting to the Router via Web Browser ......
  • Page 6 2-5-7 Setup Procedure for Telstra Big Pond ......54 2-5-8 Setup Procedure for DNS ..........55 2-5-9 Setup Procedure for DDNS..........57 2-6 Wired LAN Configurations........... 59 2-6-1 LAN IP................61 2-6-2 DHCP Server ..............62 2-6-3 Static DHCP Leases Table ..........63 2-7 Wireless LAN Configurations ..........
  • Page 7 3-4 Fail Over................113 3-5 System Status ..............115 3-5-1 System Information and Firmware Version....115 3-5-2 Internet Connection Status ..........115 3-5-3 Device Status..............116 3-5-4 System Log ..............117 3-5-5 Security Log ..............117 3-5-6 Active DHCP Client List ..........118 3-5-7 Statistics.................

  • Page 8: Chapter I: Product Information

    • QoS (Quality of Service) bandwidth management • VPN Passthrough (PPTP/IPSec) • Integrated USB 2.0 port for UMTS/HSDPA and EVDO 3G modems • Easy installation through Web-based user interface * For a complete list of compatible 3G USB modems, visit www.intellinet-network.com.

  • Page 9: Safety Information

    1-2 Safety Information To maintain the safety of users and property, follow these safety instructions: 1. This device is designed for indoor use only; DO NOT place this device outdoors. 2. DO NOT put this device in or near hot or humid places, like a kitchen or bathroom.

  • Page 10: System Requirements

    1-3 System Requirements • Internet connection, provided by xDSL or cable modem or 3G modem. • Computer or network devices with wired or wireless network interface card. • Web browser (Firefox, Microsoft Internet Explorer 4.0 or above, Netscape Navigator 4.7 or above, Opera Web browser or Safari Web browser) •...

  • Page 11: Connections And Indicators

    1-5 Connections and Indicators Front Panel LED Name Light Description Status Router is switched on and correctly POWER powered. Wireless WPS function is enabled. Wireless network is switched off. WLAN Flashing Wireless LAN activity (transferring or receiving data). WAN port is connected. WAN port is not connected.

  • Page 12: Back Panel

    Back Panel Antenna A Antenna B Item Name Description Antenna A/B* These antennas are 3dBi dipole antennas. Radio Switch the button to activate or deactivate the wireless ON/OFF functions. Reset / WPS Reset the router to factory default settings (clear all settings) or start WPS function.

  • Page 13: Chapter Ii: System And Network Setup

    Chapter II: System and Network Setup 2-1 Network Connections 1. Connect your USB modem to the USB port located on the front panel of the router. 2. Connect your xDSL / cable modem to the WAN port of router by Ethernet cable.
  • Page 14 3. Connect all your computers, network devices (network-enabled consumer devices other than computers, like game consoles or switches/hubs) to the LAN port of the router. 4. Connect the AC power adapter to the wall socket, then connect it to the Power socket of the router.
  • Page 15 5. Check all LEDs on the front panel. The Power LED should be on; the WAN, LAN and USB LEDs should be on if the computer / network device connected to the respective ports of the router are powered on and correctly connected. If the Power LED is not on, or if any LED you expected to be on isn’t, re-check the cabling or refer to 4-2 Troubleshooting for possible causes and solutions.

  • Page 16: Connecting To The Router Via Web Browser

    2-2 Connecting to the Router via Web Browser After the network connection is established, the next step is to set up the router with proper network parameters so it can work properly in your network environment. Before you can connect to the router and start the configuration procedures, your computer must be able to obtain an IP address automatically (use dynamic IP address).
  • Page 17 2. Select “Obtain an IP address from a DHCP server” and then click “OK.”...

  • Page 18: Windows 2000 Ip Address Setup

    2-2-2 Windows 2000 IP Address Setup 1. Click Start (at the lower-left corner of your desktop), then click Control Panel. Double-click the Network and Dial-up Connections icon; click Local Area Connection; the Local Area Connection Properties window will appear. Select “Internet Protocol (TCP/IP)”...
  • Page 19 2. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically,” then click “OK.”...

  • Page 20: Windows Xp Ip Address Setup

    2-2-3 Windows XP IP Address Setup 1. Click Start (at the lower-left corner of your desktop), then click Control Panel. Double-click the Network and Internet Connections icon, click Network Connections, then double-click Local Area Connection; the Local Area Connection Status window will appear. Click “Properties.”...
  • Page 21 2. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically,” then click “OK.”...

  • Page 22: Windows Vista Ip Address Setup

    2-2-4 Windows Vista/7 IP Address Setup 1. Click Start (at the lower-left corner of your desktop), then click Control Panel. Click View Network Status and Tasks, and then click Manage Network Connections. Right-click Local Area Network, then select “Properties.” The Local Area Connection Properties window will appear.
  • Page 23 2. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically,” then click “OK.”...

  • Page 25: Router Ip Address Lookup

    2-2-5 Router IP Address Lookup After the IP address setup is complete, go to Start, then Run at the bottom-lower corner of your desktop: Input “cmd,” then click “OK.”...
  • Page 26 Input “ipconfig,” then press <Enter>. Check the IP address followed by the default gateway (in this example, the IP address of the router is 192.168.2.1). NOTE: If the IP address of the default gateway is not displayed, or if the address following “IP Address”...
  • Page 27 Enter a user name and password in their respective fields (default user name is “admin”; default password is “1234”). Click “OK” band you can see the Web management interface of the router. NOTE: If you can’t see the Web management interface and you’re being prompted to input the user name and password again, it means you didn’t input the user name and password correctly: Re-enter the user name and password.

  • Page 28: Using Quick Setup

    2-3 Using Quick Setup Quick Setup lets you complete all the required settings you need in order to access the Internet very quickly. Click “Quick Setup” on the left-hand navigation panel. The following message will be displayed: 1. Set Time Zone Below are descriptions of each option: Set Time Click...
  • Page 29 Time Server Input the IP address / host name of time server Address (2): here. Daylight If the country you live in uses Daylight Saving, Savings (3): check “Enable Function” and choose the duration of Daylight Saving. After you finish the settings, click “Next” (4). NOTE: There are several time servers available on the Internet: 129.6.15.28 (time-a.nist.gov) 132.163.4.101 (time-a.timefreq.bldrdoc.gov)
  • Page 30 2. Broadband Type Choose the broadband (Internet connection) type you’re using. There are seven types of Internet connections: 3G/3.5G - go to section 2-3-1 Cable Modem - go to section 2-3-2 Fixed-IP xDSL - go to section 2-3-3 PPPoE xDSL - go to section 2-3-4 PPTP xDSL - go to section 2-3-5...
  • Page 31 NOTE: Some service providers use DHCP (Dynamic Host Configuration Protocol) to assign an IP address to you. In this case, you can choose Cable Modem as the Internet connection type even you’re using another connection type, like xDSL. Also, some cable modems use PPPoE, so you can choose PPPoE xDSL for such a connection even if you’re using a cable modem.
  • Page 32 (maximum 32 characters). SSID is used to identify your own wireless router from others when there are other wireless routers in the area. Default SSID is “INTELLINET”; it’s recommended to change the default SSID name to one that is easily recognizable, such as “my home,”...

  • Page 33: Setup Procedure For 3G/3.5G

    4. Security Settings Choose the Encryption type you’re using from the drop-down list. There are three types of Encryption: - go to section 2-7-3-2 WPA pre-shared key - go to section 2-7-3-3 WPA RADIUS - go to section 2-7-3-4 To go back to a previous step, click “Back” at the bottom of the page.
  • Page 34 Below are descriptions of each option: PIN Code (1): Enter a Pin Code for your UMTS or HSDPA or EVDO connection. This is optional, and is only required if your service provider asks you to do APN (2): Enter the APN code assigned by your Internet service provider here.

  • Page 35: Setup Procedure For Cable Modem

    2-3-2 Setup Procedure for Cable Modem Below are descriptions of each option: Host Name (1): Enter the host name of your computer This is optional, and is only required if your service provider asks you to do so. MAC Address (2): Enter the MAC address of your computer here if your service provider only permits computers with a certain MAC address to access the Internet.

  • Page 36: Setup Procedure For Fixed-Ip Xdsl

    2-3-3 Setup Procedure for Fixed-IP xDSL Below are descriptions of the options: IP address (1): Enter the IP address assigned by your service provider. Subnet Mask (2): Enter the subnet mask assigned by your service provider. DNS Address (3): Enter the IP address of the DNS server provided by your service provider.
  • Page 37 Below are descriptions of each option: User Name (1): Enter the user name assigned by your Internet service provider here. Password (2): Enter the password assigned by your Internet service provider here. Service Name (3): Assign a name to this Internet service (optional).

  • Page 38: Setup Procedure For Pptp Xdsl

    When you finish the settings, click “Next” (7); to go back to a previous menu, click “Back.” MTU - If you don’t know what it is, ask your service provider for a proper value. Connection Type - There are 3 options: “Continuous” keeps the Internet connection alive (doesn’t disconnect);...
  • Page 39 Internet connection will fail even if the PPTP settings are correct. Contact your Internet service provider if you don’t know how you should fill in these fields. Next, PPTP Settings: Below are descriptions of each option: User Name (1): Enter the user name assigned by your Internet service provider here.

  • Page 40: Setup Procedure For L2Tp Xdsl

    Connection Type: Select the connection type of Internet connection you want to use (refer to the last section for detailed descriptions). Idle Time Out (8): Enter the idle time out of the Internet connection you want to use (refer to the last section for detailed descriptions).
  • Page 41 Next, L2TP Settings: Below are descriptions of each option: User Name (1): Enter the user name assigned by your Internet service provider here. Password (2): Enter the password assigned by your Internet service provider here. L2TP Gateway (3): Enter the IP address of PPTP gateway assigned by your Internet service provider here.

  • Page 42: Setup Procedure For Telstra Bigpond

    2-3-7 Setup Procedure for Telstra BigPond This setting only works when you’re using Telstra BigPond’s network service in Australia. User Name (1): Enter the user name assigned by Telstra. Password (2): Enter the password assigned by Telstra. Assign login Check this box to choose a login server by server manually yourself.
  • Page 43 Click “Apply” to prepare to restart the router, and you’ll see this message: Wait for about 30 seconds, then click “OK!” You’ll be back to the router management interface, and the router is ready with new settings.

  • Page 44: Basic Setup

    2-4 Basic Setup In this chapter, you’ll see how to change the time zone, password and remote management settings. Start your Web browser and log on to the router’s Web management interface, then click “General Setup” on the left (or click the “General Setup” link at the upper-right corner of the screen).
  • Page 45 Below are descriptions of each option: Time Zone (1): Select a time zone from the drop-down list. Time Server Enter the IP address or host name of the time Address (2): server here. Daylight Check the “Enable” box and set the duration Saving (3): of Daylight Saving.

  • Page 46: Changing The Management Password

    2-4-2 Changing the Management Password The default password of this router is 1234, and it’s displayed on the login prompt when accessed from the Web browser. There’s a security risk if you don’t change the default password, since everyone can see it. This is very important when you have the wireless function enabled.
  • Page 47 Re-enter the new password if you see above message. If you see the following message, the content in the “Current Password” field is wrong. Click “OK” to go back to the previous menu, and try to enter the current password again. If the current and new passwords are correctly entered, after you click “Apply”...

  • Page 48: Remote Management

    2-4-3 Remote Management This router does not allow management access from the Internet to prevent possible security risks (as when a too-simple password is used or when the default password isn’t changed). However, you can still management this router from a specific IP address by enabling the Remote Management function.
  • Page 49 Click “Continue” to save the settings and go back to the Web management interface; click “Apply” to save the settings and restart the router so the settings will take effect after it reboots. NOTE: When you want to manage this router from another computer on the Internet, you need to input the IP address and port number of this router.

  • Page 50: Set Up The Internet Connection (Wan Setup)

    2-5 Setting Up the Internet Connection (WAN) Internet connection setup can be done by using Quick Setup as described in Section 2-3. However, you can also set up WAN connections up by using the WAN configuration menu. You can also set advanced functions like DDNS (Dynamic DNS) here. Click “WAN”...

  • Page 51: Setup Procedure For 3G/3.5G

    PPTP - go to section 2-5-5 L2TP - go to section 2-5-6 Telstra BigPond - go to section 2-5-7 - go to section 2-5-8 DDNS - go to section 2-5-9 2-5-1 Setup Procedure for 3G / 3.5G Below are descriptions of each option: PIN Code (1): Enter the Pin Code for your UMTS or HSDPA connection.
  • Page 52 Verify Password (5): Enter the password again for confirmation. Service (6): Select your card type from the drop-down menu. AT Dial Script (7): Enter the dialed number for your UMTS or HSDPA connection. The default is *99#. This field should not be altered except when required by your service provider.

  • Page 53: Setup Procedure For Dynamic Ip

    2-5-2 Setup Procedure for Dynamic IP Below are descriptions of each option: Host Name (1): Enter the host name of your computer. This is optional, and is only required if your service provider asks you to do so. MAC Address (2): Enter the MAC address of your computer if your service provider only permits computers with certain MAC addresses Internet access.

  • Page 54: Setup Procedure For Static Ip

    Click “Continue” to go back and continue with the router setup, or click “Apply” to reboot the router so the settings will take effect. (Wait for about 30 seconds while the router is rebooting.) 2-5-3 Setup Procedure for Static IP Below are descriptions of each option: IP address (1): Enter the IP address assigned by your...

  • Page 55: Setup Procedure For Pppoe

    message will be displayed on your Web browser: Click “Continue” to go back and continue with the router setup, or click “Apply” to reboot the router so the settings will take effect. (Wait for about 30 seconds while the router is rebooting.) If you want to reset all settings on this page back to previously saved values, click “Cancel.”...
  • Page 56 Password (2): Enter the password assigned by your Internet service provider here. Service Name (3): Enter a name for this Internet service. (This is optional.) MTU (4): Enter the MTU value of your network connection here. If you don’t know it, contact your ISP.

  • Page 57: Setup Procedure For Pptp

    Click “Continue” to go back and continue with the router setup procedure, or click “Apply” to reboot the router so the settings will take effect. (Wait for about 30 seconds while the router is rebooting.) If you want to reset all settings on this page back to previously saved values, click “Cancel.”...
  • Page 58 your Internet service provider if you don’t know how you should fill in these fields. Next, PPTP Settings: Below are descriptions of each option: User Name (1): Enter the user name assigned by your Internet service provider here. Password (2): Enter the password assigned by your Internet service provider here.

  • Page 59: Setup Procedure For L2Tp

    Connection Select the connection type of the Internet Type (7): connection you want to use. (Refer to section 2-5-3 for detailed descriptions.) Idle Time Out (8): Enter the idle time out of the Internet connection you want to use. (Refer to section 2-5-3 for detailed descriptions.) When you finish the settings, click “Apply”...
  • Page 60 Below are descriptions of each option: User Name (1): Enter the user name assigned by your Internet service provider here. Password (2): Enter the password assigned by your Internet service provider here. L2TP Gateway (3): Enter the IP address of the PPTP gateway assigned by your Internet service provider here.

  • Page 61: Setup Procedure For Telstra Bigpond

    If you want to reset all settings on this page back to previously saved values, click “Cancel.” 2-5-7 Setup Procedure for Telstra BigPond These settings only work when you’re using Telstra BigPond’s network service in Australia. User Name (1): Enter the user name assigned by Telstra. Password (2): Enter the password assigned by Telstra.

  • Page 62: Setup Procedure For Dns

    Click “Continue” to go back and continue with the router setup procedure, or click “Apply” to reboot the router so the settings will take effect. (Wait for about 30 seconds while the router is rebooting.) If you want to reset all settings on this page back to previously saved values, click “Cancel.”...
  • Page 63 Below are descriptions of each option: Primary DNS (1): Enter the IP address of the DNS server provided by your service provider. Secondary DNS Enter the IP address of another DNS server (2): provided by your service provider (this is optional).

  • Page 64: Setup Procedure For Ddns

    Click “Continue” to go back and continue with the router setup procedure, or click “Apply” to reboot the router so the settings will take effect. (Wait for about 30 seconds while the router is rebooting.) If you want to reset all settings on this page back to previously saved values, click “Cancel.”...
  • Page 65 Below are descriptions of each option: Dynamic DNS (1): If you want to enable the DDNS function, select “Enabled”; otherwise, select “Disabled.” Provider (2): Select your DDNS service provider here. Domain Name (3): Enter the domain name you’ve obtained from the DDNS service provider.

  • Page 66: Wired Lan Configurations

    procedure, or click “Apply” to reboot the router so the settings will take effect. (Wait for about 30 seconds while the router is rebooting.) If you want to reset all settings on this page back to previously saved values, click “Cancel.” 2-6 Wired LAN Configurations Before all computers using wired Ethernet connections (i.e., those computers connect to this router’s LAN ports 1 to 4 by Ethernet...
  • Page 67 Suggestions for a IP address numbering plan: If you have no idea how to define an IP address plan for your network, here are some suggestions. 1. A valid IP address has 4 fields: a.b.c.d. For most home and company users, it’s suggested to use 192.168.c.d, where c is an integer between 0 and 254, and d is an integer between 1 and 254.

  • Page 68: Lan Ip

    Click LAN on the left side of the Web management interface. There are three setup groups here: “LAN IP,” “DHCP Server” and “Static DHCP Leases Table.” 2-6-1 LAN IP Below are descriptions of the options: IP address (1): Enter the IP address of this router. Subnet Mask (2): Enter the subnet mask for this network.

  • Page 69: Dhcp Server

    2-6-2 DHCP Server These settings are only available when “DHCP Server” in “LAN IP” is enabled. Below are descriptions of the options: Lease Time (1): Choose a lease time (the duration that every computer can keep a specific IP address) of every IP address assigned by this router from the drop-down menu.

  • Page 70: Static Dhcp Leases Table

    2-6-3 Static DHCP Leases Table This function allows you to assign a static IP address to a specific computer forever, so you don’t have to set the IP address for a computer, but can still enjoy the benefit of using DHCP server. A maximum of 16 static IP addresses can be assigned here.
  • Page 71 After you click “Add,” the MAC address and IP address mapping will be added to the Static DHCP Leases Table section. If you want to delete a specific item, check the “Select” box of a MAC address and IP address mapping (1), then click “Delete” (2); if you want to delete all mappings, click “Delete All”...

  • Page 72: Wireless Lan Configurations

    2-7 Wireless LAN Configurations If your computer, PDA, game console or other network device is equipped with a wireless network interface, you can use the wireless function of this router to let them connect to the Internet and share resources with other computers with a wired LAN connection.

  • Page 73: Basic Wireless Settings

    Click “Continue” to go back and continue with the router setup procedure, or click “Apply” to reboot the router so the settings will take effect. (Wait for about 30 seconds while the router is rebooting.) 2-7-1 Basic Wireless Settings Click Wireless on the left side of the Web management interface, then click “Basic Settings.”...
  • Page 74 This is the name of the wireless router. You can type any alphanumerical characters here (maximum of 32 characters). ESSID is used to identify your own wireless router from others when there are other wireless routers in the same area. The default SSID is “INTELLINET”;...
  • Page 75 it’s recommended to change default ESSID name to one that is meaningful to you, such as “myhome,” “office_room1,” etc. Channel Number Select a channel from the drop-down list. (3): Available channel numbers are 1 to 13 for European countries; 1 to 11 for the U.S. You can choose any channel number you want to use, and almost all wireless clients can locate the channel you’re using automatically without...

  • Page 76: Advanced Wireless Settings

    Click “Continue” to go back and continue with the router setup procedure, or click “Apply” to reboot the router so the settings will take effect. (Wait for about 30 seconds while the router is rebooting.) 2-7-2 Advanced Wireless Settings This router provides some advanced control of wireless parameters. Click Wireless on the left side of the Web management interface, then click “Advanced Settings”...
  • Page 77 Below are descriptions of the options: Fragment Set the threshold of the wireless radio. Threshold (1): Do not modify the default value if you don’t know what it does (default value is 2346). RTS Threshold (2): Set the RTS threshold of the wireless radio. Do not modify the default value if you don’t know what it does (default value is 2347).
  • Page 78 your wireless router (set the option to “Disable”) so only those who know the ESSID of your wireless router can connect. CTS Protect (10): Enabling this setting will reduce the chance of radio signal collisions between 802.11b and 802.11g/n wireless access points. It’s recommended to set this option to “Auto”...

  • Page 79: Wireless Security

    2-7-3 Wireless Security It’s very important to set wireless security settings properly! If you don’t, hackers and malicious users can reach your network and valuable data without your consent, causing a serious security problem. Click Wireless on the left side of the Web management interface, then click “Security Settings.”...
  • Page 80 Below are descriptions of the options: Key Length (2): There are two types of WEP key length: 64-bit and 128-bit. “128-bit” is safer than “64-bit” but will reduce some data transfer performance. Key Format (3): There are two types of key format: ASCII and Hex.
  • Page 81 key here; if you enter multiple WEP keys, they should all be different. Enable 802.1x IEEE 802.1x is an authentication protocol. Authentication (9): Every user must use a valid account to log in to this wireless router before accessing the wireless LAN.

  • Page 82: Wi-Fi Protected Access (Wpa)

    After you finish the WEP settings, click “Apply” (10) and the following will be displayed on your Web browser: Click “Continue” to go back and continue with the router setup procedure, or click “Apply” to reboot the router so the settings will take effect.

  • Page 83: Wpa Radius

    Pre-shared Select the type of pre-shared key. You Key Format (3): can select Passphrase (8 or more alphanumerical characters, up to 63), or Hex (64 characters of 0-9 and a-f). Pre-shared Enter the WPA passphrase here. Key (4): It’s not recommended to use a word that can be found in a dictionary due to security reasons.
  • Page 84 Below are descriptions of the options: WPA Unicast Select a type of WPA cipher suite. Options are Cipher Suite (2): “WPA (TKIP),” “WPA2 (AES)” and “WPA2 Mixed.” You can select any one of them, but you have to make sure your wireless client supports the cipher you selected.

  • Page 85: Wireless Access Control

    2-7-4 Wireless Access Control This function will help you to prevent unauthorized users from connecting to your wireless router; only those wireless devices who have the MAC address you assigned here can gain access to your wireless router. You can use this function with other security measures described in previous section, to create a safer wireless environment.
  • Page 86 Enable Wireless To enforce MAC address filtering, check Access Control (4): “Enable Wireless Access Control.” When this item is unchecked, the router will not enforce MAC address filtering of wireless clients. MAC Address (5): Input the MAC address of your wireless devices here.

  • Page 87: Wi-Fi Protected Setup (Wps)

    2-7-5 Wi-Fi Protected Setup (WPS) Wi-Fi Protected Setup (WPS) is the simplest way to build a connection between wireless network clients and this wireless router. You don’t have to select an encryption mode or input a long encryption passphrase every time you need to set up a wireless client: You only need to press a button on the wireless client and this wireless router, and the WPS will do the rest for you.
  • Page 88 Below are descriptions of the options: Enable WPS (1): Check this box to enable WPS function; uncheck it to disable WPS. Wi-Fi Protected WPS-related system information will be Setup Information displayed here: (2): WPS Status: If the wireless security (encryption) function of this wireless router is properly set, you’ll see “Configured”...

  • Page 89: Security Tips For Wireless Network

    Configure Click “Start PBC" to start Push Button-style by Push Button WPS setup procedure. This wireless router will (4): wait for WPS requests from wireless clients for 2 minutes. The WLAN LED on the wireless router will be lit for 2 minutes when this wireless router is waiting for incoming WPS requests.

  • Page 90: Chapter Iii Advanced Functions

    Chapter III Advanced Functions 3-1 Quality of Service (QoS) Quality of service provides an efficient way for computers on the network to share the Internet bandwidth with a promised quality of Internet service. Without QoS, all computers and devices on the network will compete with each other to get Internet bandwidth, and some applications which require guaranteed bandwidth (like video streaming and network telephone) will be affected, possibly...

  • Page 91: Add A New Qos Rule

    Enable QoS (1): Check this box to enable the QoS function; de-select this box if you don’t want to enforce QoS bandwidth limitations. Total Download You can set the limit of total download Bandwidth (2): bandwidth in kbits. To disable the download bandwidth limitation, enter “0”...

  • Page 92: Add A New Qos Rule

    selected by clicking this button. Move Down (10): You can lower the priority of the QoS rule you selected by clicking this button. After you finish the settings, click “Apply” (11) and the following message will be displayed on your Web browser: Click “Continue”...
  • Page 93 Below are descriptions of the options: Rule Name (a): Enter a name for this QoS rule (up to 15 alphanumerical characters). Bandwidth (b): Set the bandwidth limitation of this QoS rule. You need to select the data direction of this rule (Upload or Download), and the speed of bandwidth limitation in kbps, then select the type of QoS: “Guarantee”...
  • Page 94 Remote IP Specify the remote (destination) IP address Address: (e): that will be affected by this rule. Input the starting IP address in the left field and input the end IP address in the right field to define a range of IP addresses, or just input the IP address in the left field to define a single IP address.

  • Page 95: Network Address Translation (Nat)

    3-2 Network Address Translation (NAT) Network address translations solve the problem of sharing a single IP address on multiple computers. Without NAT, all computers must be assigned a valid Internet IP address to get connected to the Internet, but Internet service providers provide only a very few IP addresses to each user.

  • Page 96: Port Forwarding

    Click “Continue” to go back and continue with the router setup procedure, or click “Apply” to reboot the router so the settings will take effect. (Wait for about 30 seconds while the router reboots.) 3-2-2 Port Forwarding This function allows you to redirect a single port or consecutive ports of an Internet IP address to the same port of the IP address on a local network.
  • Page 97 Below are descriptions of the options: Enable Port Check this box to enable port mapping; Forwarding (1): uncheck this box to disable port mapping. Private IP (2): Input the IP address of the computer on the local network that provides Internet service. Computer Name Pull down the menu and all the computers (3):...

  • Page 98: Virtual Server

    Reset (12): Unselect all mappings. After you finish the settings, click “Apply” (13) and the following message will be displayed on your Web browser: Click “Continue” to go back and continue with the router setup procedure, or click “Apply” to reboot the router so the settings will take effect.
  • Page 99 Below are descriptions of the options: Enable Virtual Check this box to enable the virtual server; Server (1): uncheck this box to disable it. Private IP (2): Input the IP address of the computer which provides Internet service. Computer Name Pull down the menu and all the computers (3): connected to the router will be listed here.
  • Page 100 Reset (9): Remove all entered values. Virtual Server All existing virtual server mappings will be Table (10): displayed here. Delete (11): Select a virtual server mapping by clicking the “Select” box of the mapping, then click “Delete Selected” to remove the mapping. If there’s no existing mapping, this button will be grayed out.

  • Page 101: Port Mapping For Special Applications

    3-2-4 Port Mapping for Special Applications Some applications require more than one connection a time; these applications won’t work with simple NAT rules. In order to make these applications work, you can use this function. Below are descriptions of the options: Enable (1): Check this box to enable special applications;...
  • Page 102 Popular This section lists the more popular applications Applications (7): that require multiple connections. Select an application from the “Popular Applications” section and click “Add” to save the setting to “Current Trigger-Port Table.” Add (8): Add the setting to the “Current Trigger-Port Table.”...

  • Page 103: Upnp Setting

    Click “Continue” to go back and continue with the router setup procedure, or click “Apply” to reboot the router so the settings will take effect. (Wait for about 30 seconds while the router reboots.) If you want to reset all settings on this page back to previously saved values, click “Cancel.”...

  • Page 104: Alg Settings

    Click “Continue” to go back and continue with the router setup procedure, or click “Apply” to reboot the router so the settings will take effect. (Wait for about 30 seconds while the router reboots.) If you want to reset all settings on this page back to previously saved values, click “Cancel.”...
  • Page 105 There are many applications listed here. Check the box of the special support for applications you need, then click “Apply.” The following message will be displayed on your Web browser: Click “Continue” to go back and continue with the router setup procedure, or click “Apply”...

  • Page 106: Firewall

    3-3 Firewall In addition to NAT, this router provides firewall functions to block malicious intruders from accessing your computers on your local network. These functions include inbound attack prevention and blocking of outbound traffic, such as blocking URLs that have pre-defined keywords.

  • Page 107: Access Control

    3-3-1 Access Control This function allows or denies computers with specific MAC addresses access to the network; it can also allow or deny computers with a specific IP address, protocol or port. Click “Firewall” on the left side of the Web management interface, then click “Access Control.”...
  • Page 108 “aa:bb:cc:dd:ee:ff,” just input “aabbccddeeff.” Computer Name Pull down the menu and all the computers (3): connected to the router will be listed here. You can select the computer name without checking the IP address of the computer. Comment (4): You can input any text here as a comment about this MAC address, such as “ROOM 2A Computer.”...
  • Page 109 the network; if you select “Allow,” only IP addresses listed in the filtering table will be able to connect to the network, and all other network devices will be rejected. IP Filtering All existing IP addresses in the filtering table will Table (12): be listed here.

  • Page 110: Add Pc

    3-3-1-1 Add PC After this button is clicked, the following message will be displayed on your Web browser: Below are descriptions of the options: Client PC Enter any text to describe this IP address. (Up Description (a): to 16 alphanumerical characters.) Client PC IP Input the starting IP address in the left...

  • Page 111: Url Blocking

    address (b): field and input the end IP address in the right field to define a range of IP addresses, or just input the IP address in the left field to define a single IP address. Client PC Check all the services you want to allow or Service (c): deny this IP address to use.
  • Page 112 Below are descriptions of the options: Enable URL Check this box to enforce URL Blocking; Blocking (1): uncheck it to disable URL Blocking. URL/Keyword (2): Input the URL (host name or IP address of the Web site, like http://www.blocked-site.com or http://11.22.33.44), or the keyword that is contained in the URL (like pornography, cartoon, stock or anything).

  • Page 113: Dos Attack Prevention

    Delete All (7): If you want to delete all URL/Keyword entries listed here, click “Delete All.” Reset (8): You can also click “Reset” to unselect all URL/Keyword entries. After you finish the settings, click “Apply” (9) and the following message will be displayed on your Web browser: Click “Continue”...
  • Page 114 Below are descriptions of the options: Ping of Death (1): Ping of Death is a special packet, and it will cause certain computers to stop responding. Check this box and the router will filter this kind of packet out. Discard Ping Ping is a common and useful tool for learning from WAN (2): the connection status of a specified remote...

  • Page 115: Dos - Advanced Settings

    server become unusable. Check this box and the router will filter this kind of traffic out. Advanced Click this button and you can set advanced Settings (5): settings of the DoS prevention method listed above (see section 3-3-3-1 DoS – Advanced Settings below).
  • Page 116 Below are descriptions of the options: Ping of Death (a): Set the threshold for when this DoS prevention mechanism will be activated. Check the box of Ping of Death, and input the frequency of the threshold (how many packets per second, minute or hour).

  • Page 117: Demilitarized Zone (Dmz)

    Click “Continue” to go back and continue with the router setup procedure, or click “Apply” to reboot the router so the settings will take effect. (Wait for about 30 seconds while the router reboots.) If you want to reset all settings on this page back to previously saved values, click “Cancel.”...
  • Page 118 Below are descriptions of the options: Enable DMZ (1): Check this box to enable the DMZ function; uncheck this box to disable the DMZ function. Public IP You can select “Dynamic IP” or “Static IP” here. address (2): If you select “Dynamic IP,” you need to select an Internet connection session from the drop-down menu;...
  • Page 119 Reset (10): You can also click “Reset” to unselect all DMZ entries. After you finish the settings, click “Apply” (11) and the following message will be displayed on your Web browser: Click “Continue” to go back and continue with the router setup procedure, or click “Apply”...

  • Page 120: Failover

    3-4 FailOver WAN failure detection works by detecting the presence of traffic on the 3G modem link. If the link is idle for too long, the router will attempt to ping a target IP address. If the ping does not reply, the router assumes the link is down and attempts to fail over to an Ethernet WAN link.
  • Page 121 Ping Target IP (4): Input the target IP address you want to ping out. If the major Internet connection is idle for too long, the router will attempt to ping the target IP address. E-Mail If you enable the E-Mail Notification function, Notification (5): when the WAN connection fails the router will automatically attempt to connect to the second-...

  • Page 122: System Status

    3-5 System Status The functions described here will provide you with system-related information. To enter the System Status menu, either click the “Status” link in the upper-right corner of the Web management interface or click “Status” in the main menu. 3-5-1 System Information and Firmware Version Click “Status,”...

  • Page 123: Device Status

    This information will vary depending on the connection status. 3-5-3 Device Status Click “Device Status” on the left side of the Web management interface, and the following message will be displayed on your Web browser:...

  • Page 124: System Log

    This information will vary depending on the device status. 3-5-4 System Log All important system events are logged. You can use this function to check the event log of your router. Click “System Log” on the left side of the Web management interface, and the following message will be displayed on your Web browser: Below are descriptions of the options:...

  • Page 125: Active Dhcp Client List

    Click “Security Log” on the left side of the Web management interface, and the following message will be displayed on your Web browser: Below are descriptions of the options: Save (1): Save the current event log to a text file. Clear (2): Delete all event logs displayed here.

  • Page 126: Statistics

    All information about active DHCP leases issued by this router will be displayed here. Click “Refresh’ to display the latest information. 3-5-7 Statistics You can use this function to check the statistics of the wireless, LAN and WAN interfaces of this router. Click “Statistics”...

  • Page 127: Configuration Backup And Restore

    3-6 Configuration Backup and Restore You can back up all configurations of this router to a file so you can make several copies of the router configuration for security reasons. Click “Tools” at the upper-right corner of the Web management interface, then click “Configuration Tools”...

  • Page 128: Firmware Upgrade

    configuration will be replaced by the file you just uploaded. Restore to Click to remove all settings you made and Factory Default restore the configuration of this router back to (3): factory default settings. 3-7 Firmware Upgrade The system software used by the router is referred to as “firmware,” just like applications on your computer.

  • Page 129: System Reset

    Click “Browse” first and you’ll be prompted to provide the filename of the firmware upgrade file. Download the latest firmware file from www.intellinet-network.com and use it to upgrade your router. After a firmware upgrade file is selected, click “Apply” and the router will start the firmware upgrade procedure automatically.
  • Page 130 Click “Apply” to reset your router. It will be available again after a few minutes.

  • Page 131: Chapter Iv: Appendix

    • Flash: 4 MB • Memory: 16 MB SDRAM • Certifications: FCC Class B, CE • For a complete list of compatible 3G USB modems, visit www.intellinet-network.com Router • Supported WAN connection types: - 3G / 3.5G - Dynamic IP...
  • Page 132 - ICMP - PPPoE - NTP - NAT - DHCP - DNS • NAT: - Virtual server - Port forwarding - Special applications (port trigger) • Firewall: - Access control based on MAC address - URL filter - DMZ (demilitarized zone) •...
  • Page 133 - IEEE 802.11n (MCS0-15: up to 300 Mbps) • Output power: - OFDM: 15 dBm +/- 1 dBm (300 Mbps, 40 mW max.) - OFDM: 15 dBm +/- 1 dBm (54 Mbps, 40 mW max.) - CCK: 17 dBm +/- 1 dBm (11 Mbps, 63 mW max.) •...
  • Page 134 Power • External power adapter: 12 V DC, 1.0 A • Power consumption: 5 W max., Model 524681; 3.5 W max., Model 524940 Package Contents • Wireless 3G Router (150N or 300N) • User manual on CD, plus quick install guide •...

  • Page 135: Troubleshooting

    4-2 Troubleshooting If you find the router is working improperly or has stopped responding, see if a possible solution appears in this section before you contact your dealer of purchase for help. Scenario Solution Router is not a. Check the router’s power cord and responding when I network cable connections.
  • Page 136 connected to the Internet with your computer directly attached to the device provided by your Internet service provider. d. Check the PPPoE / L2TP / PPTP user ID and password again. e. Call your Internet service provider and check if there’s something wrong with their service.
  • Page 137 d. If this never happened before, call your Internet service provider to see if there is something wrong with their network. I can’t log on to the a. Make sure you’re connecting to the Web management correct IP address of the router. interface;...

  • Page 138: Glossary

    4-3 Glossary Default Gateway (Router): Every non-router IP device needs to configure a default gateway’s IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it out toward the destination.
  • Page 139 computer host in an IP network. Example: 192.168.2.1. It consists of 2 portions: the IP network address, and the host identifier. The IP address is a 32-bit binary pattern, which can be represented as four cascaded decimal numbers separated by “.”: aaa.aaa.aaa.aaa, where each “aaa”...
  • Page 140 MAC Address: MAC stands for Media Access Control. A MAC address is the hardware address of a device connected to a network. The MAC address is a unique identifier for a device with an Ethernet interface. It is comprised of two parts: 3 bytes of data that corresponds to the Manufacturer ID (unique for each manufacturer), plus 3 bytes that are often used as the product’s serial number.
  • Page 141 transmitting information over Ethernet between different manufacturers. Protocol: A protocol is a set of rules for interaction agreed upon between multiple parties so that when they interface with each other based on such a protocol, the interpretation of their behavior is well defined and can be made objectively, without confusion or misunderstanding.

This manual is also suitable for:

524940

Table of Contents
