- Page 1 4-Port BroadBand router user manual Model 524537 INT-524537-UM-0309-02...

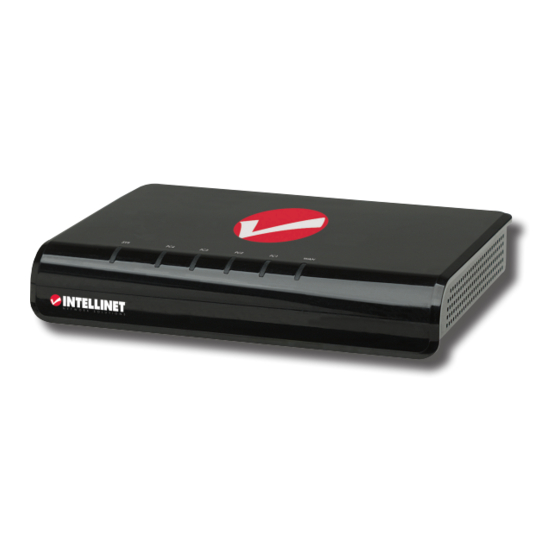

- Page 3 Thank you for purchasing the INTellINeT NeTWoRK SolUTIoNS 4-Port Broadband Router, ™ Model 524537. Combining a router, firewall and four-port Fast Ethernet switch, this handy device lets you experience fast speeds as you surf the Web, download music or photos, and play online games.
-
Page 4: Table Of Contents
taBle of contents section page Hardware Installation ....................5 Rear Panel Ports & Jacks ................... 5 1.2 Front/Top Panel LEDs ..................5 Network Settings ......................6 IP Address Setup ....................6 2.2 Browser Login ..................... 9 Configuration ......................10 Status ........................ 10 3.1.1 Status ...................... -
Page 5: Hardware Installation
1 hardware installation Using the included RJ45 Ethernet cable (and more, as needed), make your 4-Port Broadband Router network connections by following the steps below and referring to the Port and LED descriptions (presented from left to right). 1. Turn off all devices to be incorporated into the network, including any PCs, switches/hubs, the modem and the router. -
Page 6: Network Settings
“Settings,” then go to the Control Panel. 2. Double-click the “Network and Dial-up Connections” icon. INTellINeT NeTWoRK SolUTIoNS 4-Port Broadband Router 3. Right-click on the “Local Area Connections” icon to display the pop-up menu, then click Properties.” 4. Highlight “Internet Protocol (TCP/P)”... - Page 7 Control Panel. 2. Double-click the “Network and Internet Connections” icon, then click “Network Connections” and double-click “Local INTellINeT 4-Port Broadband Router Area Connection.” 3. On the subsequent Local Area Connection Properties screen (right), select “Internet Protocol (TCP/IP)”...
-
Page 8: Windows Vista
1. On your PC’s desktop, click “Start” and go to the Control Panel. 2. Click “View Network Status and Tasks”; then click “Manage Network INTellINeT NeTWoRK SolUTIoNS 4-Port Broadband Router Connections.” 3. Right-click Local Area Network, then click “Properties.” 4. on the local Area Connection Properties screen, select “Internet Protocol Version 4... -
Page 9: Browser Login
5. On the Internet Protocol Version 4 (TCP/IPv4) Properties screen, select “Obtain an IP address automatically” and “Obtain DNS server address automatically”; then click “OK.” 2.2 Browser login Now that you’ve obtained an IP address, there’s just one more step before you can begin to configure your router. -
Page 10: Configuration
3 configuration This 4-Port Broadband Router provides a Web-browser management mode that uses the Web- based user interface presented in this section. Once you’ve logged in (Section 2.2 above), the Configuration homepage will display, from which you can navigate through the utility as needed to enter or change settings. -
Page 11: Wan Setup
3.2 wan setup The 4-Port Broadband Router allows one of four Internet-LAN connection types, which can be selected on this screen: Dynamic IP, PPPoE, Static IP and PPTP. Select the preferred — or, depending on the Internet service provider (ISP), the required — option to display the corresponding configuration screen. -
Page 12: Pppoe
MAC address on the router. It is recommended that you not change the default MAC address unless it’s required by your ISP. MTU — Enter a value for the largest packet size to be permitted for network transmission. The default value of 1496 is recommended. Primary DNS —... -
Page 13: Pptp
Default Physical Address — The default MAC address is set to the WAN’s physical interface MAC address on the router. It is recommended that you not change the default MAC address unless it’s required by your ISP. MTU — Enter a value for the largest packet size to be permitted for network transmission. The default value of 1496 is recommended. -
Page 14: Lan Setup
Server IP Address — Enter the PPTP server address provided by your ISP. WAN Connection Type: The two options are “DHCP” or “Static IP.” Select “Static” if your ISP assigned you the IP address, and enter it here. Primary DNS — Enter as directed by your Internet service provider. Secondary DNS —... -
Page 15: Routing
DHCP Lease Time — Specify how long (in seconds) an IP address is valid for a computer before a new IP address is issued. Normally, there is no need to change this value. In the DHCP IP Address Reserving panel, you can reserve IPs for a specific computer. Auto Setup —... -
Page 16: Virtual Server Setup
Apply — Click “Apply,” then “Save” to set and save any changes. 3.5.3 Virtual Server Setup This screen lets you specify some services to be visible by outside users. The router can detect an incoming service request and forward it to the specific local computer to handle it. For example, a user can assign a PC in the LAN to act as a Web server inside and expose it to the outside network. -
Page 17: Firewall
Forward Protocol — Enter the incoming (inbound) port or port range for this type of application (e.g., 2300-2400, 47624). NOTE: Individual port numbers are separated by a comma (e.g., 47824, 5776). Forward Port — Select the inbound port protocol type: “TCP” or “UDP.” Add —... -
Page 18: Connection Filtering Configuration
the Internet (by selecting “Permit” or “Deny” from the drop-down menu. NOTE: enter the 12-digit MAC address in this format: XX-XX-XX-XX-XX-XX (with the hyphens). Add — Click after filling in the fields to add the rule and display the Current MAC Filtering Table, which shows the valid MAC filtering rules in the router. -
Page 19: Url Filtering Configuration
3.6.3 URL Filtering Configuration This screen lets you enter keywords specific to the site in these fields. The router will block access to sites that use these keywords. Input Filtering Keyword — Enter whatever keyword you want to block access to. You can even use asterisks and question marks, which act as “wild card”... -
Page 20: Login Id & Password Setup
3.8.1 Login ID & Password Setup The factory-set default password is “guest.” You can change the default password to ensure that someone can’t adjust your settings without your permission. Every time you change your password, record it and keep it in a safe place: If you forget it, you’ll need to reset the router to the factory defaults. -
Page 21: Wan Link Status & Setup
3.8.5 WAN Link Status & Setup WAN Link Setup — Select the desired mode from the drop-down menu, which will then dis- play to the right of “WAN Link Status.” The default setting is “Auto.” Apply — Click “Apply,” then “Save” to set and save any changes. 3.8.6 Restore Default / Restart System Restore Default —... -
Page 22: Specifications
4 sPecifications Standards • Firewall: • IEEE 802.3 (10Base-T Ethernet) - URL filter • IEEE 802.3u (100Base-TX Fast Ethernet) - MAC address filter - Connection filtering: limits access to the General Internet of PCs in the lAN based on a •... - Page 24 INTELLINET NETWORK SOLUTIONS ™ offers a complete line of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com. Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
