- Page 1 Wireless G 4-Port VPN router quick iNstall Guide Model 524582 INT-524582-QIG-0309-01...
- Page 2 IMPORTANT NOTICE: It has recently been discovered that the WAN Idle Time Out auto-disconnect function may not work due to abnormal activities of some network application software, computer viruses or hacker attacks from the Internet. For example, some software sends network packets to the Internet in the background, even when you are not using the Internet.
-
Page 3: Regulatory Statements

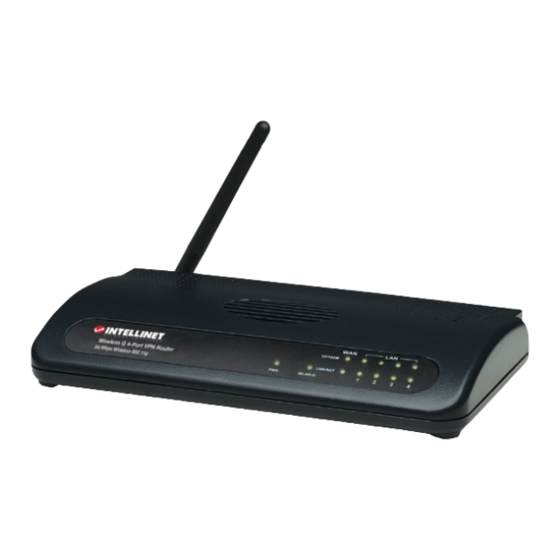

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS ™ Wireless G 4-Port VPN Router, Model 524582. This quick install guide presents the rudimentary steps required to set up and operate this device. For more detailed instructions and specifications, refer to the user manual 1) on the CD enclosed with this product; 2) on the Web site listed below;... - Page 4 extremities of hands, wrists and feet) during wireless modes of operation. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 5: Initial Setup
iNitial setuP 1. Set up your network as shown in the diagram. NOTE: The four LAN connections are examples only. 2. Your LAN PC clients need to be set so that an IP address can be obtained automatically. By default, the router’s DHCP server is enabled so that this doesn’t require any extra steps here. -
Page 6: Quick Setup
reasons, it’s recommended that you change the password as soon as possible (see General Setup / System / Password in the user manual). Once logged in, you can navigate through the Web-based management user interface by selecting the options at the top-right. To HOME General Setup Status Tools... -
Page 7: Broadband Type
Set Time Zone — Select the time zone of the country or region you’re in. The router will set its time based on your selection. Time Server Address — In case the default time server isn’t working, you can manually assign a time server address in this field. Daylight Saving —... - Page 8 Broadband Type: Cable Modem Select if your ISP will automatically give you an IP address. Some ISPs require that you provide additional information, such as host name and MAC address (as shown below). Host Name — If your ISP requires a host name, enter the host name it provides;...
- Page 9 Enter the IP Address, Subnet Mask, Gateway IP Address and DNS IP Address provided to you by your ISP in the appropriate fields. Click “OK” to finish the Fixed IP xDSL configuration; then you can start using the router. PPPoE Select if your ISP requires the PPPoE protocol to connect you to the Internet.
- Page 10 Enter the Username and Password required by your ISP in the appropriate fields. If your ISP has provided you with a Service Name, enter it in that field; otherwise, leave the field blank. time period of Internet non-use exceeds the Idle Time setting. •...
- Page 11 Point-to-Point Tunneling Protocol is a common connection method used in xDSL connections. Use the following IP address — When this is selected, the ISP gives you a static IP to be used to connect to the PPTP server. MAC Address — Enter the PC’s MAC address originally assigned by your ISP.
- Page 12 Subnet Mask — Enter the subnet mask provided by your ISP (for example, 255.255.255.0). Default Gateway — Enter the IP address of the ISP gateway. User ID — Enter the username provided by your ISP for the PPTP connection. Password — Enter the password provided by your ISP for the PPTP connection.
- Page 13 L2TP Layer Two Tunneling Protocol is a common connection method used in xDSL connections. L2TP L2TP connect you to the Internet. Your ISP should provide all the information required in this section. Obtain an IP address automatically — When this is selected, you obtain an IP address via the DHCP before connecting to the L2TP server.
- Page 14 IP Address — This is the IP address your ISP has given you to establish an L2TP connection. Subnet Mask — Enter the subnet mask provided by your ISP (for example, 255.255.255.0). Default Gateway — Enter the IP address of the ISP gateway. User ID —...
- Page 15 If your Internet service is provided ty Telstra BigPond in Australia, you will need to enter your information below. This information is provided by Telstra BigPond. User Name — Enter the username provided by your ISP for the Telstra BigPond connection Password —...
- Page 16 INTellINeT NeTWoRK SolUTIoNS offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
