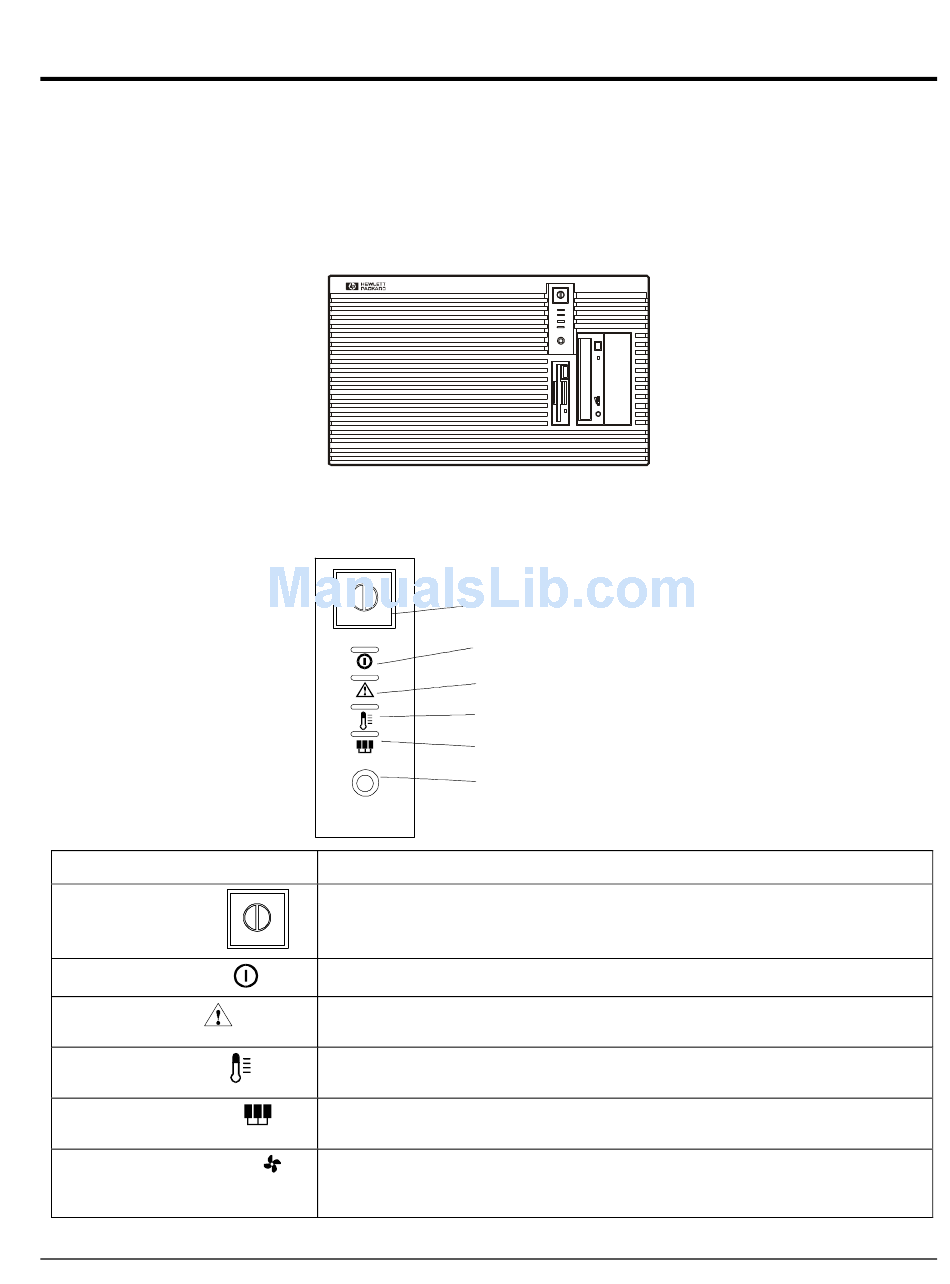

HP NetServer LXr Pro

System Views

Front View

Controls and Indicators
Control
DC Power Switch
Power Status LED
Warning LED
Temperature LED
Power Supply LED
Fan LED (not shown)
DC Power Switch
Power Status
System Warning
Temperature Status
Power Supply Status
Reset Switch
Reset
Turns the NetServer on and off. Push once to turn on, again to turn off.
(To disconnect the NetServer from AC power, turn off the AC power
switch on the unit' s rear panel.)
Lights green when the NetServer is on.
Normally off. Lights yellow when there is a problem with the processor
board, power supplies, or fans.
Lights green when all fans are operating normally. When not lit,
indicates problems with the fan module or processor fans.
Lights green when power supplies are functioning normally. If not green,
a power p has failed.
Normally off. Lights yellow if a fan in the fan module fails. (If more than
one fan fails, the system shuts down.) This indicator is not visible unless
the front bezel is removed, when you will find it underneath the Power
