HP NetServer LXr 8500
System Views
Front View

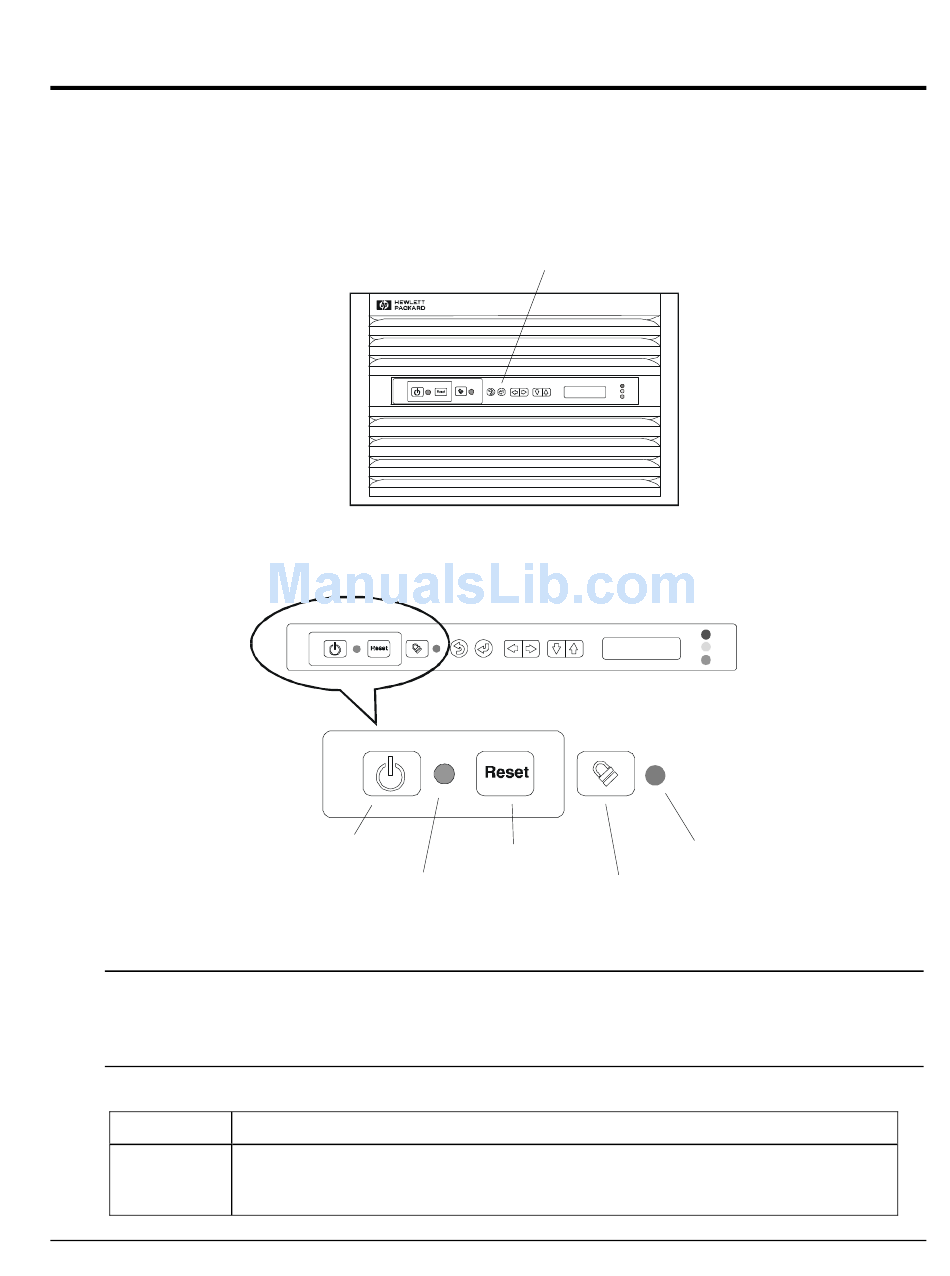

Front Control Panel
NOTE
Power, Reset, and Control Buttons and LEDs
Control
Power
On/Off/
Sleep
Power Button
Power LED
Power, Reset, and Secure Mode Buttons and LEDs
A small protective cover is provided on the HP NetServer's control panel to cover the
Power and Reset buttons. This cover prevents an accidental resetting or powering
down of the HP NetServer during normal operation. It can also be easily opened for
access to the Power and Reset buttons.
This button turns the HP NetServer's power On or Off, and if available, also
transitions the HP NetServer between Power On, various sleep states, and
Power Off.
Control Panel
Secure Mode LED
Reset Button
Secure Mode Button
Description
49
