3. Remove the WWAN module (3) by pulling the module away from the slot at an angle.
NOTE:
WWAN module slot.
Reverse this procedure to install the WWAN module.

Switch cover

Description
Switch cover (includes power button board and cable and LED board and cable)
Before removing the switch cover, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC Adapter from the computer.
4. Remove the battery (see
5. Remove the keyboard (see
Remove the switch cover:
1. Release the ZIF connector to which the LED board cable (1) is attached, and disconnect the LED
board cable from the system board.
2. Lift the left and right sides of the switch cover (2) until it detaches from the computer.
3. Release the switch cover (3) as far as the power button board cable allows.

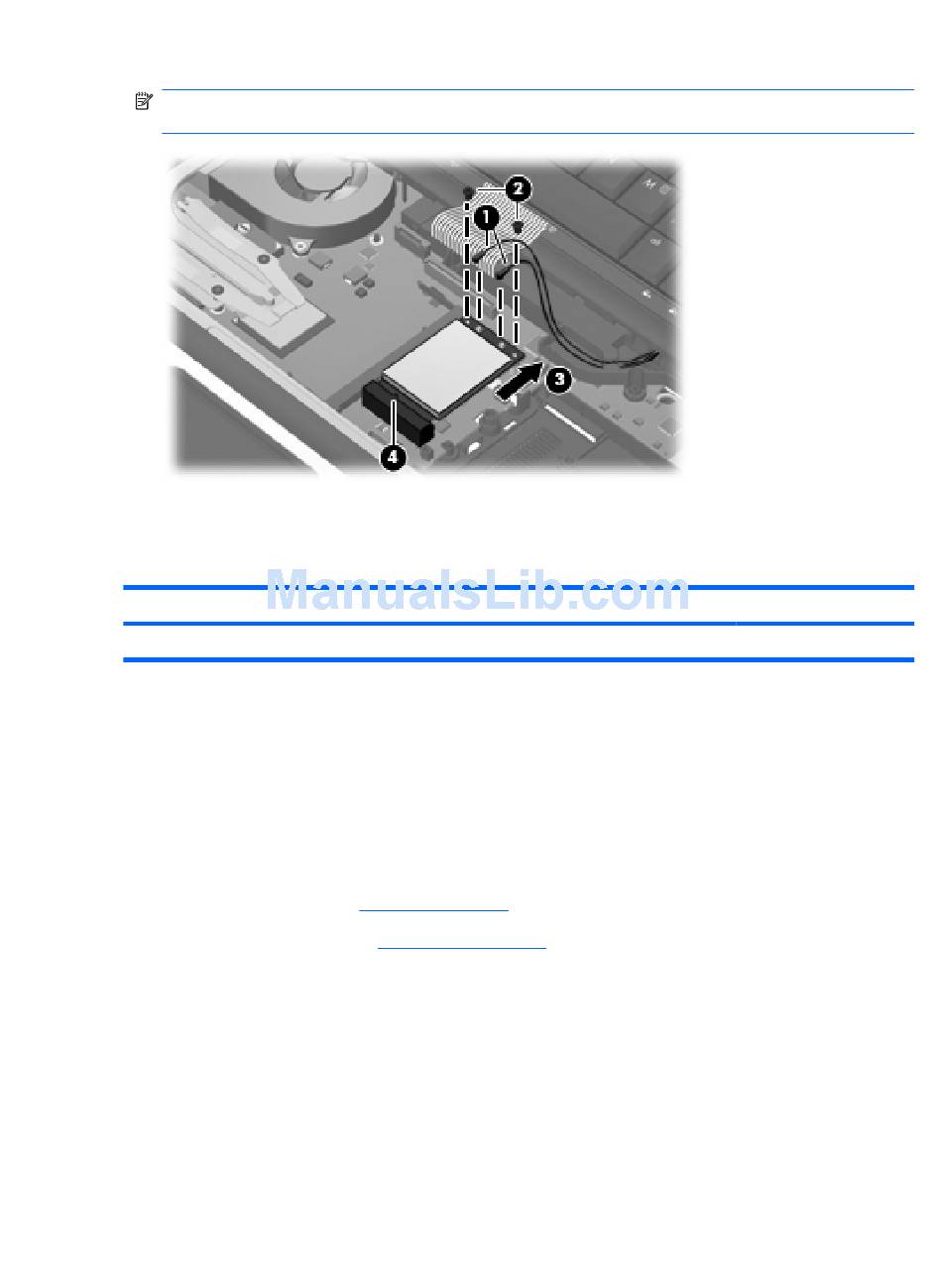

WWAN modules are designed with a notch (4) to prevent incorrect insertion into the
Battery on page
Keyboard on page
48).
63).
Component replacement procedures
Spare part number
486282-001
67
