Microphone extension cable

NOTE: The microphone extension cable is included in the Cable Kit, spare part number 486281-001.
Before removing the microphone extension cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC Adapter from the computer.
4. Remove the battery (see
5. Remove the following:
a.
b.
c.
d.
e.
f.
g.
h.
i.
Remove the microphone extension cable:

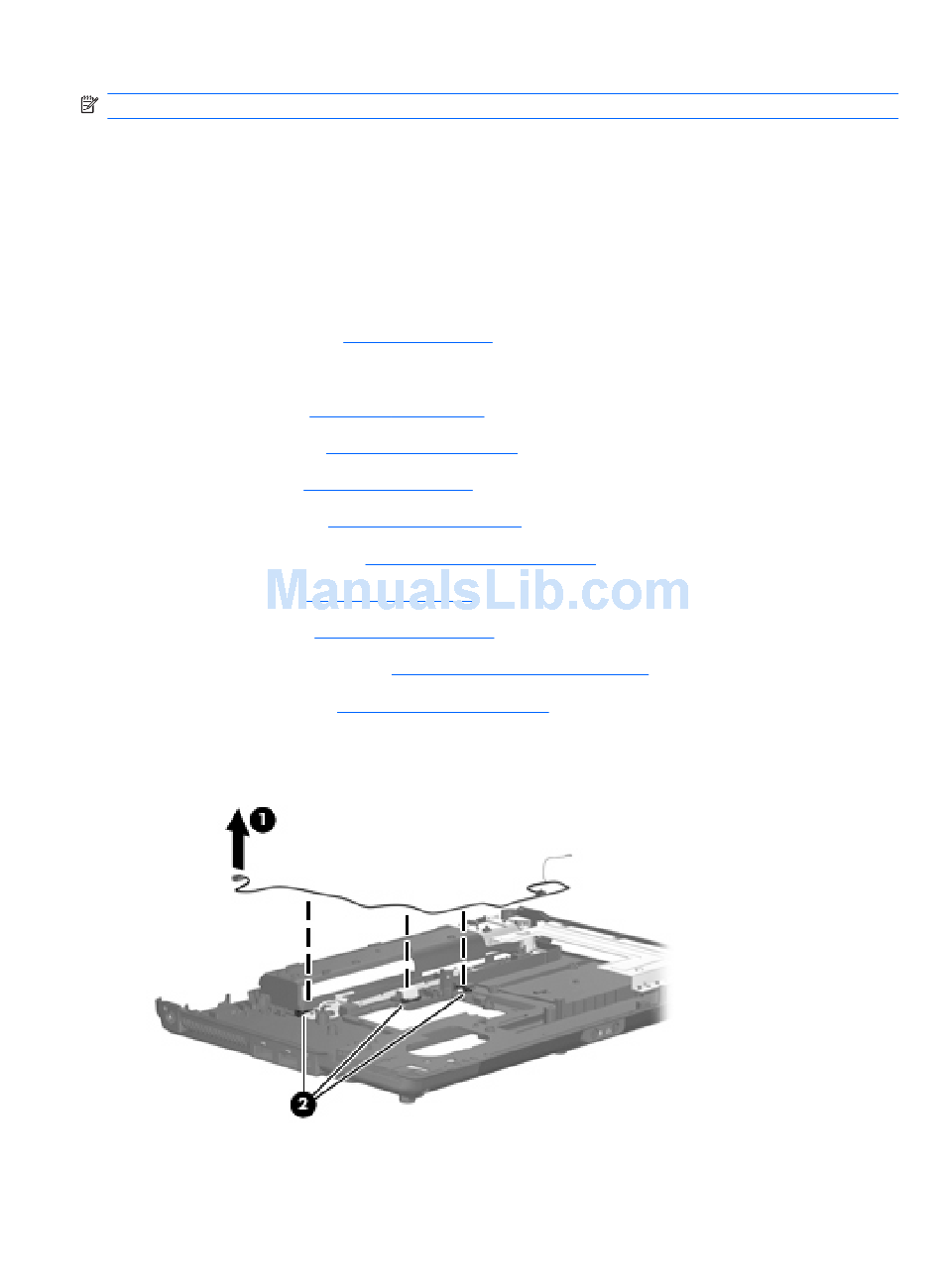

Remove the microphone extension cable (1) from the clips (2) built into the base enclosure.
Reverse this procedure to install the microphone extension cable.
