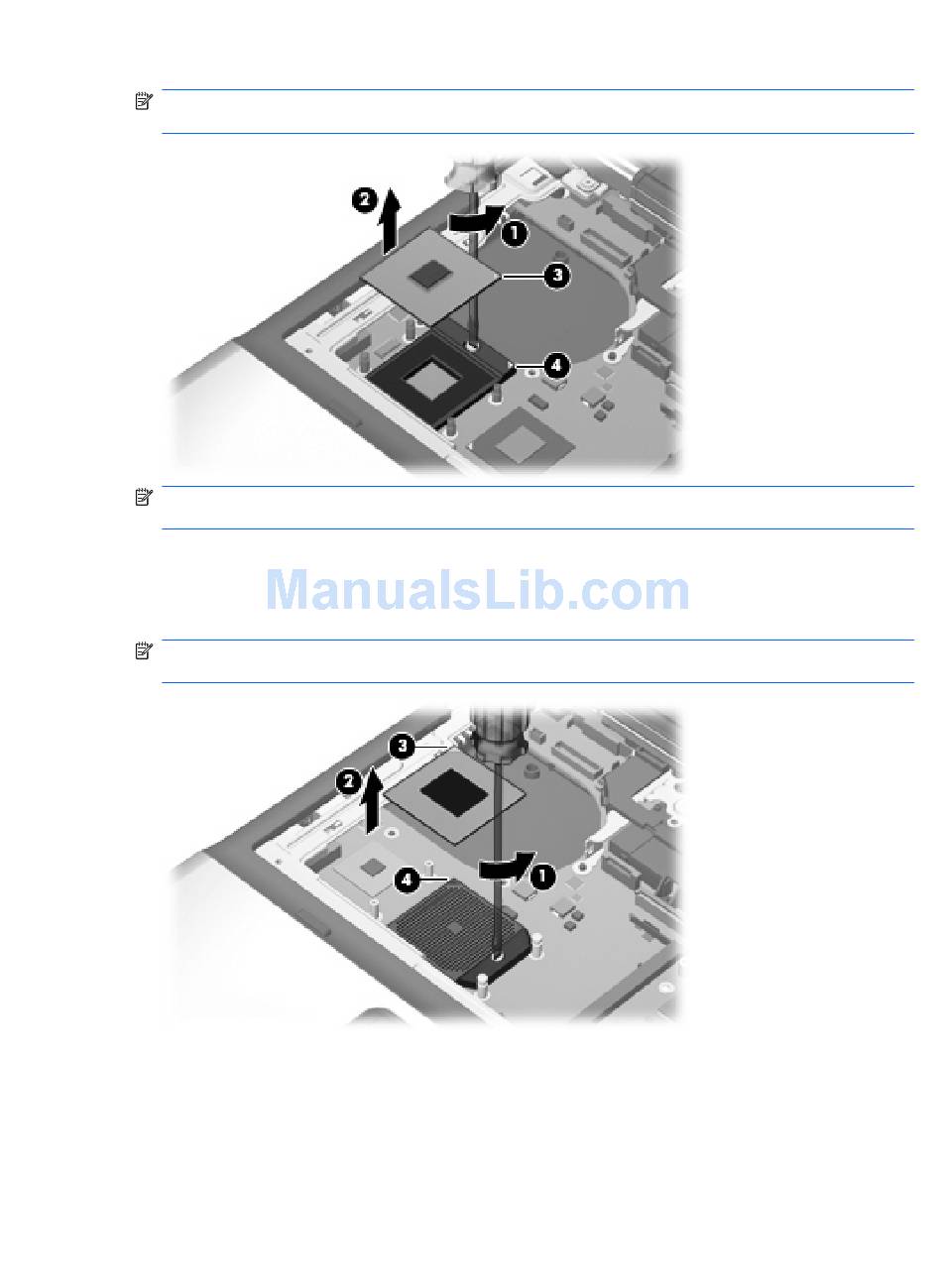

2. Lift the processor (2) straight up and remove it.
NOTE: When you install the processor, the gold triangle (3) on the processor must be aligned
with the triangle (4) embossed on the processor slot.
NOTE: Steps 3 and 4 apply only to HP Compaq 6535b computer models. See steps 1 and 2 for
instructions on removing the processor on HP Compaq 6530b computer models.
3. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn counterclockwise
until you hear a click.
4. Lift the processor (2) straight up and remove it.
NOTE: When you install the processor, the gold triangle (3) on the processor must be aligned
with the triangle (4) embossed on the processor slot.
Reverse this procedure to install the processor.
Component replacement procedures 75
