Page 1 HP Compaq 6530b Notebook PC and HP Compaq 6535b Notebook PC Maintenance and Service Guide...
Page 2 © Copyright 2008 Hewlett-Packard Development Company, L.P. AMD Athlon, AMD Sempron, and AMD Turion are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel and Core are trademarks of Intel Corporation in the U.S.
Page 3 MSG revision history Revision Publication date Description November 2009 The AC adapter descriptions and part numbers have been updated to 463958-001 for the 65-W HP Smart AC adapter for use in all countries and regions except India and 577170-001 for the 65-W HP Smart AC adapter for use in India. The information was updated in the following locations: Product description on page Miscellaneous parts on page...
Page 4 MSG revision history...
Page 5 Safety warning notice WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow.
Page 6 Safety warning notice...
Page 7: Table Of Contents
Table of contents 1 Product description 2 External component identification Top components ........................... 9 Display components ......................9 Buttons, switches, and fingerprint reader ................10 Keys ........................... 12 TouchPad .......................... 13 Front components ..........................14 Right-side components ........................15 Left-side components ......................... 16 Rear components ..........................
Page 8 Workstation guidelines ..............43 Equipment guidelines ............... 44 Unknown user password ....................45 Component replacement procedures ....................46 Service tag ......................... 46 Computer feet ........................47 Battery ..........................48 SIM ............................ 49 Display inverter ........................50 Bluetooth module ....................... 52 Hard drive ..........................
Page 9 File menu ......................... 107 Security menu ........................107 Diagnostics menu ......................108 System Configuration menu .................... 108 6 Specifications Computer specifications ........................111 14.1-inch, WXGA display specifications ................... 112 Hard drive specifications ........................113 DVD±RW and CD-RW Double-Layer Combo Drive specifications ..........114 DVD/CD-RW Combo Drive specifications ..................
Page 10 9 Connector pin assignments 1394 ..............................150 Audio-in (microphone) ........................150 Audio-out (headphone) ........................150 External monitor ..........................151 RJ-11 (modem) ..........................152 RJ-45 (network) ..........................153 S-Video-out ............................154 Serial port ............................155 Universal Serial Bus ......................... 155 10 Power cord set requirements Requirements for all countries and regions ..................
Page 11: Product Description
6535b 6535b Notebook Notebook PC Notebook PC Notebook PC PC without with WWAN without WWAN with WWAN WWAN Product Name HP Compaq 6530b √ √ Notebook PC HP Compaq 6535b √ √ Notebook PC ● Processors Intel® Core™ 2 Duo √...
Page 12 Category Description HP Compaq HP Compaq HP Compaq HP Compaq 6530b 6530b 6535b 6535b Notebook Notebook PC Notebook PC Notebook PC PC without with WWAN without WWAN with WWAN WWAN ● AMD Turion X2 Ultra √ √ Dual Core ZM-80 2.10-GHz processor,...
Page 13 Category Description HP Compaq HP Compaq HP Compaq HP Compaq 6530b 6530b 6535b 6535b Notebook Notebook PC Notebook PC Notebook PC PC without with WWAN without WWAN with WWAN WWAN Supports dual-channel √ √ √ √ memory Supports up to 4 GB of √...
Page 14 Category Description HP Compaq HP Compaq HP Compaq HP Compaq 6530b 6530b 6535b 6535b Notebook Notebook PC Notebook PC Notebook PC PC without with WWAN without WWAN with WWAN WWAN Supports the following √ √ √ √ drives: ● 250-GB, 5400-rpm ●...
Page 15 Category Description HP Compaq HP Compaq HP Compaq HP Compaq 6530b 6530b 6535b 6535b Notebook Notebook PC Notebook PC Notebook PC PC without with WWAN without WWAN with WWAN WWAN 56K V.92 1.5-inch data/ √ √ √ √ fax modem with digital line...
Page 16 Category Description HP Compaq HP Compaq HP Compaq HP Compaq 6530b 6530b 6535b 6535b Notebook Notebook PC Notebook PC Notebook PC PC without with WWAN without WWAN with WWAN WWAN Media Card Reader √ √ √ √ supporting Memory Stick,...
Page 17 Category Description HP Compaq HP Compaq HP Compaq HP Compaq 6530b 6530b 6535b 6535b Notebook Notebook PC Notebook PC Notebook PC PC without with WWAN without WWAN with WWAN WWAN Touch-sensitive controls √ √ √ √ Spill-resistant √ √ √...
Page 18 Category Description HP Compaq HP Compaq HP Compaq HP Compaq 6530b 6530b 6535b 6535b Notebook Notebook PC Notebook PC Notebook PC PC without with WWAN without WWAN with WWAN WWAN Restore media: √ √ √ √ ● Windows Vista 32 Home Basic ●...
Page 19: External Component Identification
External component identification Top components Display components Item Component Function WLAN antenna locations Send and receive signals from one or more WLAN devices. These antennae are not visible from the outside of the computer. Internal microphones (2) (select models only) Record sound.
Page 20: Buttons, Switches, And Fingerprint Reader
Item Component Function Webcam light (select models only) On: The integrated camera is in use. HP Webcam (select models only) Records audio and video and captures still photographs. Buttons, switches, and fingerprint reader Item Component Function Fingerprint reader (select models only) Allows a fingerprint logon to Windows, instead of a password logon.
Page 21 Item Component Function Info button Launches Info Center, which provides shortcuts, such as the following: ● HP 3D DriveGuard—Controls settings for software that protects the hard drive by parking the drive when the computer is dropped or moved. ● HP Software Setup—Installs preloaded programs to make them accessible to the user.
Page 22: Keys
Keys Item Component Function Displays system information when pressed in combination with key. Executes frequently used system functions when pressed in combination with a function key or the key. Windows logo key Displays the Windows Start menu. Windows applications key Displays a shortcut menu for items beneath the pointer.
Page 23: Touchpad
TouchPad Item Component Function TouchPad* Moves the pointer and selects or activates items on the screen. Left TouchPad button* Functions like the left button on an external mouse. Fingerprint reader (select models only) Allows a fingerprint logon to Windows, instead of a password logon.
Page 24: Front Components
Front components Item Component Function ● Wireless light Blue: An integrated wireless device, such as a wireless local area network (WLAN) device, an HP Broadband Wireless Module, and/or a Bluetooth device, is on. ● Amber: All wireless devices are off. ●...
Page 25: Right-Side Components
Right-side components NOTE: Refer to the illustration that most closely matches your computer. Item Component Function Media Card Reader (select models only) Supports the following optional digital card formats: ● Memory Stick ● Memory Stick Pro ● MultiMediaCard ● MultiMediaCard Plus ●...
Page 26: Left-Side Components
Item Component Function Media Card Reader (select models only) Supports the following optional digital card formats: ● Memory Stick ● Memory Stick Pro ● MultiMediaCard ● MultiMediaCard Plus ● Secure Digital Memory Card ● Secure Digital High Capacity Memory Card ●...
Page 27: Rear Components
Rear components NOTE: Refer to the illustration that most closely matches your computer. Item Component Function Security cable slot Attaches an optional security cable to the computer. NOTE: The security cable is designed to act as a deterrent, but it may not prevent the computer from being mishandled or stolen.
Page 28: Bottom Components
Bottom components Item Component Function Battery bay Holds the battery. Battery release latch Releases the battery from the battery bay. SIM slot (select models only) Contains a WWAN SIM. The SIM slot is located inside the battery bay. Accessory battery connector Connects an optional accessory battery.
Page 29: Illustrated Parts Catalog
Illustrated parts catalog Service tag The service tag, affixed to the bottom of the computer, provides information that may be needed when troubleshooting system problems. The service tag provides the following information: (1) Product name: This is the product name affixed to the front of the computer. (2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.
Page 30 Chapter 3 Illustrated parts catalog...
Page 31: Computer Major Components
Spare part number 14.1-inch display assemblies (include 2 WLAN antenna transceivers and cables) For use only with HP Compaq 6535b computer models equipped with both WLAN and WWAN modules: ● WXGA BrightView display assembly with 2 microphones and webcam 492169-001...
Page 32 WXGA display assembly with 2 microphones and webcam 492161-001 ● WXGA display assembly with 1 microphone 492162-001 For use only with HP Compaq 6535b computer models equipped with a WLAN module and no WWAN module: ● WXGA BrightView display assembly with 2 microphones and webcam 492171-001 ●...
Page 33 Item Description Spare part number For use only with HP Compaq 6535b computer models 495086-001 For use only with HP Compaq 6530b computer models 486773-001 Display panel cable 486776-001 Wireless antenna sets (include 2 transceivers and cables) WLAN antenna set...
Page 34 System boards (include system board bracket, system board, and replacement thermal material): (8a) System board bracket (8b) System board For use only with HP Compaq 6535b computer models equipped with both WLAN and WWAN 488193-001 modules Chapter 3 Illustrated parts catalog...
Page 35 Item Description Spare part number For use only with HP Compaq 6535b computer models equipped with a WLAN module and no 488194-001 WWAN module For use only with HP Compaq 6530b computer models equipped with both WLAN and WWAN 486247-001...
Page 36 Item Description Spare part number (20) SIM connector board 486252-001 (21) Base enclosures (include rubber feet) For use only with computer models equipped with a WWAN module (includes SIM slot opening) 486284-001 For use only with computer models not equipped with a WWAN module (does not include SIM 486285-001 slot opening) Rubber Kit (not illustrated, contains 7 computer feet)
Page 37 Item Description Spare part number ● For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, 487330-002 Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,...
Page 38 The Bluetooth module spare part kits do not include a Bluetooth module cable. The Bluetooth module cable is included in the Cable Kit, spare part number 486281-001. For use only with HP Compaq 6535b computer models in all countries and regions except 398393-002...
Page 39: Plastics Kit
Plastics Kit Item Description Spare part number Plastics Kit: 486292-001 PC Card slot bezel Hard drive bay cover (includes 2 captive screws, secured by C-clips) Memory/WLAN module compartment cover (includes one captive screw, secured by a C-clip) Bluetooth module compartment cover (includes one captive screw, secured by a C-clip) Plastics Kit...
Page 40: Cable Kit
Cable Kit Item Description Spare part number Cable Kit: 486281-001 Bluetooth module cable Microphone extension cable Modem module cable (includes RJ-11 connector) Chapter 3 Illustrated parts catalog...
Page 41: Mass Storage Devices
Mass storage devices Item Description Spare part number Hard drives (include hard drive bracket) 250-GB, 5400-rpm 486261-001 160-GB, 5400-rpm 486260-001 120-GB, 7200-rpm 486259-001 120-GB, 5400-rpm 486782-001 Optical drives (include bezel and bracket) DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 486262-001 DVD/CD-RW Combo Drive 486263-001 DVD-ROM Drive...
Page 42: Miscellaneous Parts
Miscellaneous parts Description Spare part number AC adapters 65-W PFC HP Smart AC Adapter for use in all countries and regions except India 463958-001 65-W non-PFC HP Smart AC Adapter for use only in India 577170-001 Power cords: For use in Australia 246959-011 For use in Brazil 246959-201...
Page 43: Sequential Part Number Listing
246959-BB1 Power cord for use in Israel 398393-002 Bluetooth module for use only on HP Compaq 6535b computer models in all countries and regions except in Japan and Asia-Pacific countries and regions NOTE: The Bluetooth module spare part kits do not include a Bluetooth module cable. The Bluetooth module cable is included in the Cable Kit, spare part number 486281-001.
Page 44 Description number 486256-001 Intel Core2 Duo T9400 2.53-GHz processor for use only with HP Compaq 6530b computer models (6-MB L2 cache, 800-MHz FSB; includes replacement thermal material) 486257-001 Intel Core2 Duo T9600 2.80-GHz processor for use only with HP Compaq 6530b computer models (6-MB L2 cache, 800-MHz FSB;...
Page 45 Spare part Description number 486279-051 Keyboard for use in France 486279-061 Keyboard for use in Italy 486279-071 Keyboard for use in Spain 486279-081 Keyboard for use in Denmark 486279-091 Keyboard for use in Norway 486279-121 Keyboard for use in French Canada 486279-131 Keyboard for use in Portugal 486279-141...
Page 46 486286-001 Display enclosure 486287-001 Display hinge covers (includes left and right hinge covers) 486288-001 486289-001 Heat sink for use only with HP Compaq 6530b computer models (includes replacement thermal material) 486290-001 Display Logo Kit 486291-001 Rear cover 486292-001 Plastics Kit (see...
Page 47 System board for use only with HP Compaq 6535b computer models equipped with both WLAN and WWAN modules (includes replacement thermal material) 488194-001 System board for use only with HP Compaq 6535b computer models equipped with a WLAN module and no WWAN module 488195-001 AMD Turion 64 ZM-80 2.10-GHz processor for use only with HP Compaq 6535b computer models (includes...
Page 48 The modem module spare part kits do not include a modem module cable. The modem module cable is included in the Cable Kit, spare part number 486281-001. 492161-001 14.1-inch WXGA display assembly with 2 microphones and webcam for use only with HP Compaq 6535b computer models equipped with both WLAN and WWAN modules 492162-001 14.1-inch WXGA display assembly with 1 microphone for use only with HP Compaq 6535b computer models...
Page 49 HP Compaq 6535b computer models equipped with a WLAN module and no WWAN module 492172-001 14.1-inch WXGA BrightView display assembly with 1 microphone for use only with HP Compaq 6535b computer models equipped with a WLAN module and no WWAN module...
Page 50: Removal And Replacement Procedures
Removal and replacement procedures Preliminary replacement requirements Tools required You will need the following tools to complete the removal and replacement procedures: ● Flat-bladed screwdriver ● Magnetic screwdriver ● Phillips P0 and P1 screwdrivers ● Torx T8 screwdriver ● 5.0-mm (3/16-inch) nut driver Service considerations The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.
Page 51: Cables And Connectors
Cables and connectors CAUTION: When servicing the computer, be sure that cables are placed in their proper locations during the reassembly process. Improper cable placement can damage the computer. Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion.
Page 52: Grounding Guidelines
Grounding guidelines Electrostatic discharge damage Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions. A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry.
Page 53: Packaging And Transporting Guidelines
Packaging and transporting guidelines Follow these grounding guidelines when packaging and transporting equipment: ● To avoid hand contact, transport products in static-safe tubes, bags, or boxes. ● Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging. ● Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
Page 54: Equipment Guidelines
Equipment guidelines Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation. ● When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times.
Page 55: Unknown User Password
Unknown user password If the computer you are servicing has an unknown user password, follow these steps to clear the password: NOTE: These steps also clear CMOS. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
Page 56: Component Replacement Procedures
Component replacement procedures This chapter provides removal and replacement procedures. There are as many as 94 screws and screw locks, in 15 different sizes, that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw and screw lock size and location during removal and replacement.
Page 57: Computer Feet
Computer feet The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Kit, spare part number 486293001. There are 7 rubber feet that attach to the base enclosure in the locations illustrated below. Component replacement procedures...
Page 58: Battery
Battery Description Spare part number 6-cell, 55-Wh Li-ion battery 486296-001 6-cell, 47-Wh Li-ion battery 486295-001 Before disassembling the computer, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
Page 59: Sim
NOTE: This section applies only to computer models with WWAN capability. If there is a SIM inserted in the SIM slot, it should be removed before disassembling the computer. Be sure the SIM is reinserted in the SIM slot after reassembling the computer. Before removing the SIM, follow these steps: Shut down the computer.
Page 60: Display Inverter
Display inverter Description Spare part number For use only with HP Compaq 6535b computer models 495086-001 For use only with HP Compaq 6530b computer models 486773-001 Before removing the display inverter, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
Page 61 Release the bottom edge of the display bezel (3) from the display assembly. Release the inverter (1) from the display enclosure as far as the display panel cable and backlight cable allow. Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter. Remove the display inverter.
Page 62: Bluetooth Module
Cable Kit, spare part number 486281-001. Description Spare part number For use only with HP Compaq 6535b computer models in all countries and regions except Japan 398393-002 and Asia-Pacific countries and regions For use only with HP Compaq 6535b computer models in Japan and Asia-Pacific countries...
Page 63 Disconnect the Bluetooth module cable (2) from the Bluetooth module. Remove the Bluetooth module. Reverse this procedure to install the Bluetooth module. Component replacement procedures...
Page 64: Hard Drive
Hard drive NOTE: All hard drive spare part kits include a hard drive bracket. Description Spare part number 250-GB, 5400-rpm hard drive 486261-001 160-GB, 5400-rpm hard drive 486260-001 120-GB, 7200-rpm hard drive 486259-001 120-GB, 5400-rpm hard drive 486782-001 Before removing the hard drive, follow these steps: Shut down the computer.
Page 65 Remove the hard drive (4) from the hard drive bay. If it is necessary to replace the hard drive bracket, remove the two Phillips PM3.0×4.0 hard drive bracket screws (1) from each side of the hard drive. Lift the bracket (2) straight up to remove it from the hard drive. Reverse this procedure to reassemble and install the hard drive.
Page 66: Rtc Battery
RTC battery NOTE: Removing the RTC battery and leaving it uninstalled for 5 or more minutes causes all passwords and CMOS settings to be cleared. Description Spare part number RTC battery 449137-001 Before removing the RTC battery, follow these steps: Shut down the computer.
Page 67: Optical Drive
Optical drive NOTE: All optical drive spare part kits include an optical drive bezel. Description Spare part number DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 486262-001 DVD/CD-RW Combo Drive 486263-001 DVD-ROM Drive 486264-001 Before removing the optical drive, follow these steps: Shut down the computer.
Page 68 Remove the optical drive bracket (2). Reverse this procedure to reassemble and install an optical drive. Chapter 4 Removal and replacement procedures...
Page 69: Wlan Module
WLAN module Description Spare part number Broadcom 4322 802.11a/b/g/n WLAN modules: ● For use in Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, 487330-001 Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States ● For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, 487330-002 Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh,...
Page 70 Before removing the WLAN module, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
Page 71: Expansion Memory Module
Remove the WLAN module (3) by pulling the module away from the slot at an angle. NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion into the WLAN module slot. Reverse this procedure to install the WLAN module. Expansion memory module Description Spare part number...
Page 72 Remove the memory module (2) by pulling the module away from the slot at an angle. NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the memory module slot. Reverse this procedure to install the expansion memory module. Chapter 4 Removal and replacement procedures...
Page 73: Keyboard
Keyboard Country or region Spare part number Country or region Spare part number Belgium 486279-181 Norway 486279-091 Brazil 486279-201 Portugal 486279-131 The Czech Republic 486279-221 Russia 486279-251 Denmark 486279-081 Saudi Arabia 486279-171 France 486279-051 Slovakia 486279-231 French Canada 486279-121 Slovenia 486279-BA1 Germany 486279-041...
Page 74 Remove the keyboard: Loosen the three Phillips PM2.5×9.0 captive screws that secure the keyboard to the computer. Turn the computer display-side up, with the front toward you. Open the computer as far as possible. Slide the four keyboard retention tabs (1) toward you. The tabs are located between the keys, between the keys, between the keys, and between the...
Page 75: Primary Memory Module
Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and disconnect the keyboard cable (2) from the system board. Remove the keyboard. Reverse this procedure to install the keyboard. Primary memory module Description Spare part number 2048-MB (PC2-6400, 667-MHz, DDR2) 483194-001 1024-MB (PC2-6400, 667-MHz, DDR2)
Page 76: Wwan Module
Remove the memory module (2) by pulling the module away from the slot at an angle. NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the memory module slot. Reverse this procedure to install the primary memory module. WWAN module Description Spare part number...
Page 77: Switch Cover
Remove the WWAN module (3) by pulling the module away from the slot at an angle. NOTE: WWAN modules are designed with a notch (4) to prevent incorrect insertion into the WWAN module slot. Reverse this procedure to install the WWAN module. Switch cover Description Spare part number...
Page 78: Fan
Disconnect the power button board cable (4) from the system board. Remove the switch cover. Reverse this procedure to install the switch cover. Description Spare part number 486288-001 Before removing the fan, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
Page 79 Remove the fan (3). Reverse this procedure to install the fan. NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-inch) clearance on the left side of the computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist.
Page 80: Heat Sink
Remove the heat sink: NOTE: Steps 1 through 4 apply only to HP Compaq 6530b computer models. See steps 5 through 8 for removing the heat sink on HP Compaq 6535b computer models. Loosen the two Phillips PM2.0×4.0 captive screws (1) that secure the heat sink clip to the heat sink.
Page 81 NOTE: Steps 5 through 8 apply only to HP Compaq 6535b computer models. See steps 1 through 4 for removing the heat sink on HP Compaq 6530b computer models.
Page 82 Remove the heat sink clips (2) by sliding them to left, and then lifting them up. Lift the right side of the heat sink (1) until it releases from the system board components. NOTE: Due to the adhesive quality of the thermal material located between the heat sink and system board components, it may be necessary to move the heat sink from side to side to detach Chapter 4 Removal and replacement procedures...
Page 83 Remove the heat sink (2) by sliding it to the right. NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink and the system board components each time the heat sink is removed. Thermal paste is used on the processor (1) and the section of the heat sink (1) that services it.
Page 84: Processor
Remove the processor: NOTE: Steps 1 and 2 apply only to HP Compaq 6530b computer models. See steps 3 and 4 for instructions on removing the processor on HP Compaq 6535b computer models. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn counterclockwise until you hear a click.
Page 85 (4) embossed on the processor slot. NOTE: Steps 3 and 4 apply only to HP Compaq 6535b computer models. See steps 1 and 2 for instructions on removing the processor on HP Compaq 6530b computer models. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn counterclockwise until you hear a click.
Page 86: Display Assembly
486265-001 14.1-inch WXGA display assembly with 1 microphone 486266-001 For use only with HP Compaq 6530b computer models equipped with a WLAN module and no WWAN module 14.1-inch WXGA BrightView display assembly with 2 microphones and webcam 486275-001 14.1-inch WXGA BrightView display assembly with 1 microphone 486276-001 14.1-inch WXGA+ display assembly with 2 microphones and webcam...
Page 87 Before removing the display assembly, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
Page 88 Disconnect the microphone extension cable (4) from the system board. Remove the Phillips PM2.5×4.0 screw (1) that secures the right hinge cover to computer. Remove the right hinge cover (2). The display hinge covers are available using spare part number 486287-001.
Page 89 Lift the display assembly straight up and remove it. If it is necessary to replace the display bezel, display panel, or display hinges, remove the following: NOTE: Display inverter on page 50 for instructions on replacing the display inverter. (1) Four beveled rubber screw covers on the display bezel top edge. (2) Two flat rubber screw covers on the display bezel bottom edge.
Page 90 Remove the display bezel (3). The display bezel is available using spare part numbers 486770-001 (for use with computer models equipped with a webcam) and 487339-001 (for use with computer models not equipped with a webcam). If it is necessary to replace the display hinges, remove the four Torx T8M2.5×6.0 screws (1) that secure the display panel to the display enclosure.
Page 91 Remove the display hinges (2). The left and right display hinges are available using spare part number 486772-001. If it is necessary to replace the WLAN antenna transceivers and cables, detach the WLAN antenna transceivers (1) from the display enclosure. The WLAN antenna transceivers are attached to the display enclosure with double-sided tape.
Page 92 Remove the WWAN antenna cables from the clips (2) built into the left and right sides of the display enclosure. Remove the WWAN antenna transceivers and cables. The WWAN antenna transceivers and cables are available using spare part number 486778-001. Reverse this procedure to reassemble and install the display assembly.
Page 93: Top Cover
Top cover Description Spare part number Top cover 486283-001 Before removing the top cover, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.
Page 94 Remove the three Phillips PM2.0×3.0 screws that secure the top cover to the computer. Turn the computer right side up, with the front toward you. Lift the rear edge of the top cover and swing it up and forward until it rests at an angle. Release the ZIF connector to which the TouchPad board cable (1) is attached, and disconnect the TouchPad board cable from the system board.
Page 95: Touchpad Board
Disconnect the fingerprint reader board cable (2) from the system board. Remove the top cover. Reverse this procedure to install the top cover. TouchPad board Description Spare part number For use only with computer models equipped with a fingerprint reader (includes a TouchPad 486278-001 bracket and a fingerprint reader board and cable) For use only with computer models not equipped with a fingerprint reader (includes a TouchPad...
Page 96 Remove the TouchPad board: Turn the top cover upside down, with the front toward you. Remove the six Phillips PM2.0×3.0 screws that secure the TouchPad bracket to the top cover. CAUTION: When removing the TouchPad bracket, be sure that the fingerprint reader board cable (1) is removed through the opening in the TouchPad bracket.
Page 97 Remove the TouchPad board (3). If it is necessary to replace the fingerprint reader board and cable, release the TouchPad button cable (1) to provide access to the fingerprint reader board. Detach the fingerprint reader board (2) from the top cover. The fingerprint reader board is attached to the top cover with double-sided tape.
Page 98: Expresscard Board
ExpressCard board Description Spare part number ExpressCard board (includes RTC battery) 486251-001 Before removing the ExpressCard board, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.
Page 99: Audio Board
Audio board Description Spare part number Audio board (includes cable) 486250-001 Before removing the audio board, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.
Page 100 Disconnect the audio board cable (4) from the system board. Release the audio board (1) by sliding it up and away from the front edge of the base enclosure. Disconnect the microphone extension cable (2) from the audio board. Disconnect the modem module cable (3) from the modem module. Remove the audio board.
Page 101: Modem Module
Modem module NOTE: The modem module spare part kits do not include a modem module cable. The modem module cable is included in the Cable Kit, spare part number 486281-001. Description Spare part number For use in all countries and regions except Australia and New Zealand 491575-001 For use only in Australia and New Zealand 491575-011...
Page 102 Lift the modem module (3) straight up to disconnect it from the audio board. Remove the modem module. Reverse this procedure to install the modem module. Chapter 4 Removal and replacement procedures...
Page 103: Speaker
Speaker Description Spare part number Speaker 486280-001 Before removing the speaker, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.
Page 104: Usb/Digital Media Board
Remove the speaker (2) from the base enclosure. Reverse this procedure to install the speaker. USB/digital media board Description Spare part number USB/digital media board (includes cable) 486249-001 Before removing the USB/digital media board, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
Page 105: Rear Cover
Remove the USB/digital media board cable: Disconnect the USB/digital media board cable (1) from the system board. Remove the three Phillips PM2.5×5.0 screws (2) that secure the USB/digital media board to the base enclosure. Remove the USB/digital media board (3). Reverse this procedure to install the USB/digital media board.
Page 106 Display assembly (see Display assembly on page Top cover (see Top cover on page Remove the rear cover: Turn the computer upside down, with the rear panel toward you. Remove the three Torx8 T8M2.5×9.0 screws that secure the rear cover to the base enclosure. Turn the computer right side up, with the front toward you.
Page 107: Sim Connector Board
Remove the rear cover (2) by lifting it straight up. Reverse this procedure to install the rear cover. SIM connector board NOTE: This section applies only to computer models equipped with a WWAN module. Description Spare part number SIM connector board 486252-001 Before removing the SIM connector board, follow these steps: Shut down the computer.
Page 108: Modem Module Cable
Remove the SIM connector board: Remove the two Phillips PM2.0×5.0 screws (1) that secure the SIM connector board to the base enclosure. Remove the SIM connector board (2) by sliding it forward, and then lifting it out of the base enclosure.
Page 109: Bluetooth Module Cable
Remove the modem module cable: Disconnect the modem module cable (1) from the system board. Remove the modem module cable (2) from the clips built into the system board bracket. Remove the RJ-11 connector (3) from the clip built into the base enclosure. Remove the modem module cable.
Page 110 Top cover (see Top cover on page Rear cover (see Rear cover on page Remove the Bluetooth module cable: Disconnect the Bluetooth module cable (1) from the system board. Remove the Bluetooth module cable (2) from the opening built into the base enclosure. Remove the Bluetooth module cable.
Page 111: System Board
For use only with HP Compaq 6535b computer models equipped with both WLAN and WWAN 488193-001 modules For use only with HP Compaq 6535b computer models equipped with a WLAN module but not a 488194-001 WWAN module For use only with HP Compaq 6530b computer models equipped with both WLAN and WWAN...
Page 112 When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board: ● RTC battery (see RTC battery on page ● WLAN module (see WLAN module on page ●...
Page 113 Remove the Phillips PM2.0×5.0 screw (3) that secures the system board to the base enclosure. Use the optical drive connector (1) to lift the right side of the system board (2) until it rests at an angle. Remove the system board (3) from the base enclosure by sliding it up and to the right. Reverse the preceding procedure to install the system board.
Page 114: Microphone Extension Cable
Microphone extension cable NOTE: The microphone extension cable is included in the Cable Kit, spare part number 486281-001. Before removing the microphone extension cable, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
Page 115: Computer Setup
Computer Setup This user guide describes features that are common to most models. Some features may not be available on your computer. Starting Computer Setup Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating system is not working or will not load.
Page 116: Restoring Factory Settings In Computer Setup
NOTE: You can use either a pointing device (TouchPad, pointing stick, or USB mouse) or the keyboard to navigate and make selections in Computer Setup. ● To select a menu or a menu item, use the keyboard arrow keys and then press enter, or use a pointing device to click the item.
Page 117: Computer Setup Menus
NOTE: Your password settings and security settings are not changed when you restore the factory settings. Computer Setup Menus The menu tables in this section provide an overview of Computer Setup options. NOTE: Some of the Computer Setup menu items listed in this chapter may not be supported by your computer.
Page 118: Diagnostics Menu
Select To do this ● TPM Embedded Security Change TPM (Trusted Platform Module) Embedded Security device state at restart. (requires an administrator The following options are available: password) ◦ Do Nothing (enabled by default) ◦ Available and Disabled ◦ Available and Enabled ◦...
Page 119 Select To do this ● Boot Options Set a Startup Menu delay (in seconds). ● Enable/disable Custom Logo (disabled by default). ● Enable/disable Display Diagnostic URL (disabled by default). ● Enable/disable CD-ROM boot (enabled by default). ● Enable/disable SD Card boot (enabled by default). ●...
Page 120 Select To do this NOTE: Availability of the options above varies by computer model. ● Enable/disable secondary battery fast charge (enabled by default). ● Enable/disable HP QuickLook 2 (enabled by default). ● Enable/disable Virtualization Technology (select models only; enabled by default). ●...
Page 121: Specifications
Specifications Computer specifications Metric U.S. Dimensions Depth 24.28 cm 9.56 in Width 33.48 cm 13.18 in Height 3.26 cm 1.28 in Weight (equipped with optical drive, hard drive, and battery) 2.41 kg 5.31 lbs Input power Operating voltage 18.5 V dc @ 3.5 A - 65 W or 19.0 V dc @ 4.74 A - 90 W Operating current 3.5 A or 4.74 A Temperature...
Page 122: 14.1-Inch, Wxga Display Specifications
Metric U.S. Nonoperating 1.50 g zero-to-peak, 10 Hz to 500 Hz, 0.5 oct/min sweep rate NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this range of temperatures. 14.1-inch, WXGA display specifications Metric U.S.
Page 123: Hard Drive Specifications
Hard drive specifications 250-GB* 160-GB* 120-GB* Dimensions Height 9.5 mm 9.5 mm 9.5 mm Width 70 mm 70 mm 70 mm Weight 101 g 101 g 101 g Interface type SATA SATA SATA Transfer rate 100 MB/sec 100 MB/sec 100 MB/sec Security ATA security ATA security...
Page 124: Dvd±Rw And Cd-Rw Double-Layer Combo Drive Specifications
DVD±RW and CD-RW Double-Layer Combo Drive specifications Applicable disc Read: Write: CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD- CD-R and CD-RW ROM, CD-ROM XA, MIXED MODE CD, CD-I, DVD+R, DVD+RW, DVD-R, DVD-RW, CD-I Bridge (Photo-CD, Video CD), DVD-RAM Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD- ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD- R, DVD-RW, DVD+R, DVD+RW, DVD-RAM...
Page 125: Dvd/Cd-Rw Combo Drive Specifications
DVD/CD-RW Combo Drive specifications Applicable disc Read: Write: CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD- CD-R and CD-RW ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD- ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD- R, DVD-RW, DVD+R, DVD+RW, DVD-RAM Access time Random...
Page 126: Dvd-Rom Drive
DVD-ROM Drive Applicable disc DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18, CD-ROM (Mode 1 and 2), CD Digital Audio, CD-XA ready (Mode 2, Form 1 and Form 2), CD-I (Mode 2, Form 1 and Form 2), CD-R, CD- RW, Photo CD (single and multisession), CD-Bridge Access time Random <...
Page 127: System Dma Specifications
System DMA specifications Hardware DMA System function DMA0 Not applicable DMA1* Not applicable DMA2* Not applicable DMA3 Not applicable DMA4 Direct memory access controller DMA5* Available for PC Card DMA6 Not assigned DMA7 Not assigned *PC Card controller can use DMA 1, 2, or 5. System DMA specifications 117...
Page 128: System Interrupt Specifications
System interrupt specifications Hardware IRQ System function IRQ0 System timer IRQ1 Standard 101-/102-Key or Microsoft® Natural Keyboard IRQ2 Cascaded IRQ3 Intel 82801DB/DBM USB2 Enhanced Host Controller—24CD IRQ4 COM1 IRQ5* Conexant AC—Link Audio Intel 82801DB/DBM SMBus Controller—24C3 Data Fax Modem with SmartCP IRQ6 Diskette drive IRQ7*...
Page 129: System I/O Address Specifications
System I/O address specifications I/O address (hex) System function (shipping configuration) 000 - 00F DMA controller no. 1 010 - 01F Unused 020 - 021 Interrupt controller no. 1 022 - 024 Opti chipset configuration registers 025 - 03F Unused 02E - 02F 87334 “Super I/O”...
Page 130 I/O address (hex) System function (shipping configuration) 220 - 22F Entertainment audio 230 - 26D Unused 26E - 26 Unused 278 - 27F Unused 280 - 2AB Unused 2A0 - 2A7 Unused 2A8 - 2E7 Unused 2E8 - 2EF Reserved serial port 2F0 - 2F7 Unused 2F8 - 2FF...
Page 131: System Memory Map Specifications
System memory map specifications Size Memory address System function 640 KB 00000000-0009FFFF Base memory 128 KB 000A0000-000BFFFF Video memory 48 KB 000C0000-000CBFFF Video BIOS 160 KB 000C8000-000E7FFF Unused 64 KB 000E8000-000FFFFF System BIOS 15 MB 00100000-00FFFFFF Extended memory 58 MB 04800000-07FFFFFF Super extended memory 58 MB...
Page 132: Screw Listing
Screw listing This section provides specification and reference information for the screws and screw locks used in the computer. All screws listed in this section are available in the Screw Kit, spare part number 486294-001, and the Display Screw Kit, spare part number 486774-001. 122 Chapter 7 Screw listing...
Page 133: Phillips Pm2.0×5.0 Captive Screw
Phillips PM2.0×5.0 captive screw Color Quantity Length Thread Head diameter Black 5.0 mm 2.0 mm 5.0 mm Where used: (1) One captive screw that secures the Bluetooth module compartment cover to the computer (screw is secured by a C-clip) (2) Two captive screws that secure the hard drive bay cover to the computer (screws are secured by C- clips) (3) One captive screw that secures the memory/WLAN module compartment cover to the computer (screw is secured by a C-clip)
Page 134: Phillips Pm2.5×10.0 Captive Screw
Phillips PM2.5×10.0 captive screw Color Quantity Length Thread Head diameter Silver 10.0 mm 2.5 mm 5.0 mm 124 Chapter 7 Screw listing...
Page 135: Phillips Pm3.0×4.0 Screw
Phillips PM3.0×4.0 screw Color Quantity Length Thread Head diameter Silver 4.0 mm 3.0 mm 5.0 mm Where used: 4 screws that secure the hard drive bracket to the hard drive Phillips PM3.0×4.0 screw 125...
Page 136: Phillips Pm2.5×9.0 Captive Screw
Phillips PM2.5×9.0 captive screw Color Quantity Length Thread Head diameter Black 9.0 mm 2.5 mm 5.0 mm Where used: (1) One captive screw that secures the optical drive to the computer (screw is secured by a C-clip) (2) Three captive screws that secure the keyboard to the computer (screws are secured by C-clips) Phillips PM2.0×3.0 screw 126 Chapter 7 Screw listing...
Page 137 Color Quantity Length Thread Head diameter Silver 3.0 mm 2.0 mm 4.5 mm Where used: 2 screws that secure the optical drive bracket to the optical drive Where used: 8 screws that secure the display hinges to the display panel Phillips PM2.0×3.0 screw 127...
Page 138 Where used: 3 screws that secure the top cover to the base enclosure Where used: 6 screws that secure the TouchPad bracket to the top cover 128 Chapter 7 Screw listing...
Page 139: Phillips Pm2.5×4.0 Screw
Phillips PM2.5×4.0 screw Color Quantity Length Thread Head diameter Silver 4.0 mm 2.5 mm 5.0 mm Where used: 2 screws that secure the WLAN module to the system board Where used: 2 screws that secure the WWAN module to the system board Phillips PM2.5×4.0 screw 129...
Page 140: Phillips Pm2.5×4.0 Screw
Phillips PM2.5×4.0 screw Color Quantity Length Thread Head diameter Black 4.0 mm 2.5 mm 5.0 mm Where used: 2 screws that secure the display hinge covers to the computer 130 Chapter 7 Screw listing...
Page 141: Phillips Pm2.0×5.0 Screw
Phillips PM2.0×5.0 screw Color Quantity Length Thread Head diameter Black 5.0 mm 2.0 mm 4.5 mm Where used: 3 screws that secure the speaker to the base enclosure Where used: 2 screws that secure the SIM connector board to the base enclosure on computer models equipped with a WWAN module Phillips PM2.0×5.0 screw 131...
Page 142 Where used: One screw that secures the system board to the base enclosure on computer models not equipped with a WWAN module 132 Chapter 7 Screw listing...
Page 143: Phillips Pm2.5×7.0 Captive Screw
Phillips PM2.5×7.0 captive screw Color Quantity Length Thread Head diameter Silver 7.0 mm 2.5 mm 5.0 mm Where used: 2 captive screws that secure the fan to the system board (screws are secured by C-clips) Phillips PM2.5×7.0 captive screw 133...
Page 144: Phillips Pm2.0×4.0 Captive Screw
Head diameter Black 4.0 mm 2.0 mm 4.5 mm Where used: 2 captive screws that secure the heat sink clip to the system board on HP Compaq 6530b computer models (screws are secured by C-clips) 134 Chapter 7 Screw listing...
Page 145 Where used: 2 captive screws that secure the heat sink clip to the system board on HP Compaq 6535b computer models (screws are secured by C-clips) Phillips PM2.0×4.0 captive screw 135...
Page 146: Torx8 T8M2.5×9.0 Screw
Torx8 T8M2.5×9.0 screw Color Quantity Length Thread Head diameter Black 9.0 mm 2.5 mm 5.0 mm Where used: 5 screws that secure the display assembly to the computer Where used: 7 screws that secure the top cover to the base enclosure 136 Chapter 7 Screw listing...
Page 147 Where used: 3 screws that secure the rear cover to the base enclosure Torx8 T8M2.5×9.0 screw 137...
Page 148: Torx8 T8M2.5×6.0 Screw
Torx8 T8M2.5×6.0 screw Color Quantity Length Thread Head diameter Silver 6.0 mm 2.5 mm 5.0 mm Where used: 6 screws that secure the display bezel to the display enclosure Where used: 4 screws that secure the display panel to the display enclosure 138 Chapter 7 Screw listing...
Page 149: Phillips Pm2.5×3.0 Broad-Head Screw
Phillips PM2.5×3.0 broad-head screw Color Quantity Length Thread Head diameter Silver 3.0 mm 2.5 mm 7.0 mm Where used: 2 screws that secure the ExpressCard board to the system board Where used: 3 screws that secure the rear cover to the base enclosure Phillips PM2.5×3.0 broad-head screw 139...
Page 150 Where used: 4 screws that secure the system board bracket to the base enclosure 140 Chapter 7 Screw listing...
Page 151: Phillips Pm2.5×5.0 Screw
Phillips PM2.5×5.0 screw Color Quantity Length Thread Head diameter Black 5.0 mm 2.5 mm 5.0 mm Where used: 3 screws that secure the audio board to the base enclosure Where used: 3 screws that secure the USB/digital media board to the base enclosure Phillips PM2.5×5.0 screw 141...
Page 152 Where used: 2 screws that secure the rear cover to the base enclosure 142 Chapter 7 Screw listing...
Page 153: Phillips Pm2.5×3.0 Screw
Phillips PM2.5×3.0 screw Color Quantity Length Thread Head diameter Black 3.0 mm 2.5 mm 5.0 mm Where used: 2 screws that secure the modem module to the audio board Phillips PM2.5×3.0 screw 143...
Page 154: Hex Hm5.0×9.0 Screw Lock
Hex HM5.0×9.0 screw lock Color Quantity Length Thread Head diameter Silver 9.0 mm 2.5 mm 5.0 mm Where used: 2 screw locks that secure the system board bracket to the base enclosure 144 Chapter 7 Screw listing...
Page 155: Backup And Recovery
Backup and recovery Overview To protect your information, use the Backup and Restore Center to back up individual files and folders, back up your entire hard drive (select models only), or create system restore points. In case of system failure, you can use the backup files to restore the contents of your computer. Windows Vista®...
Page 156: Backing Up
Backing up Backup tips ● Connect the computer to AC power during the backup process. ● Store personal files in the Documents folder and back them up regularly. ● Back up templates that are stored in their associated programs. ● Save customized settings that appear in a window, toolbar, or menu bar by taking a screen shot of your settings.
Page 157: Performing A Recovery
Performing a recovery In case of system failure, use the recovery tool to recover your original hard drive image. The image includes the Windows operating system and software programs installed at the factory. NOTE: Windows Vista provides additional recovery tools through the operating system. For additional information, go to Help and Support.
Page 158: Recovering Information Using A Windows Vista Operating System Dvd (Purchased Separately)
Recovering information using a Windows Vista operating system DVD (purchased separately) If you are unable to boot (start up) your computer, you must purchase a Windows Vista operating system DVD to reboot the computer and repair the operating system. Make sure that your most recent backup (stored on discs or on an external drive) is easily accessible.
Page 159: Connector Pin Assignments
Connector pin assignments...
Page 160: Audio-In (Microphone)
1394 Assignment Power Ground TPB- TPB+ TPA- TPA+ Audio-in (microphone) Signal Audio signal in Audio signal in Ground Audio-out (headphone) Signal Audio out, left channel Audio out, right channel Ground 150 Chapter 9 Connector pin assignments...
Page 161: External Monitor
External monitor Signal Red analog Green analog Blue analog Not connected Ground Ground analog Ground analog Ground analog +5 VDC Ground Monitor detect DDC 2B data Horizontal sync Vertical sync DDC 2B clock External monitor 151...
Page 162: Modem)
RJ-11 (modem) Signal Unused Ring Unused Unused Unused 152 Chapter 9 Connector pin assignments...
Page 163: Network)
RJ-45 (network) Signal Transmit + Transmit - Receive + Unused Unused Receive - Unused Unused RJ-45 (network) 153...
Page 164: S-Video-Out
S-Video-out Signal Ground (Y) Ground (C) Y intensity (luminance) C color (Chrominance 154 Chapter 9 Connector pin assignments...
Page 165: Serial Port
Serial port Signal Data carrier detect Received data Transmitted data Data terminal ready Signal ground Data set ready Request to send Clear to send Ring indicator Universal Serial Bus Signal +5 VDC Data - Data + Ground Serial port 155...
Page 166: 10 Power Cord Set Requirements
10 Power cord set requirements The wide range input feature of the computer permits it to operate from any line voltage from 100 to 120 volts AC or from 220 to 240 volts AC. The 3-conductor power cord set included with the computer meets the requirements for use in the country or region where the equipment is purchased.
Page 167: Requirements For Specific Countries And Regions
Requirements for specific countries and regions Country/region Accredited agency Applicable note number Australia EANSW Austria Belgium CEBC Canada Denmark DEMKO Finland FIMKO France Germany Italy Japan METI The Netherlands KEMA Norway NEMKO The People's Republic of China South Korea Sweden SEMKO Switzerland Taiwan...
Page 168: 11 Recycling
11 Recycling Battery When a battery has reached the end of its useful life, do not dispose of the battery in general household waste. Follow the local laws and regulations in your area for computer battery disposal. Display WARNING! The backlight contains mercury. Exercise caution when removing and handling the backlight to avoid damaging this component and causing exposure to the mercury.
Page 169 Perform the following steps to disassemble the display assembly: Remove all screw covers (1) and screws (2) that secure the display bezel to the display assembly. Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of the display bezel until the bezel disengages from the display assembly.
Page 170 Disconnect all display panel cables (1) from the display inverter and remove the inverter (2). Remove all screws (1) that secure the display panel assembly to the display enclosure. Remove the display panel assembly (2) from the display enclosure. Turn the display panel assembly upside down. Remove all screws that secure the display panel frame to the display panel.
Page 171 Remove the display panel frame (2) from the display panel. Remove the screws (1) that secure the backlight cover to the display panel. Lift the top edge of the backlight cover (2) and swing it outward. Remove the backlight cover. Turn the display panel right-side up.
Page 172 Remove the backlight cables (1) from the clip (2) in the display panel. Turn the display panel upside down. WARNING! The backlight contains mercury. Exercise caution when removing and handling the backlight to avoid damaging this component and causing exposure to the mercury. Remove the backlight frame from the display panel.
Page 173 Remove the backlight from the backlight frame. Disconnect the display panel cable (1) from the LCD panel. Remove the screws (2) that secure the LCD panel to the display rear panel. Release the LCD panel (3) from the display rear panel. Release the tape (4) that secures the LCD panel to the display rear panel.
Page 174: Index
Index Symbols/Numerics Bluetooth compartment 18 chipset, product description 2 1394 port Bluetooth module CMOS clearing 45 location 16 removal 52 components pin assignments 150 spare part numbers 28, 33, bottom 18 37, 52 buttons 10 Bluetooth module cable display 9 AC adapter, spare part illustrated 30 fingerprint reader 10...
Page 175 diskette drive spare part number 26, 31, precautions 41 34, 57 graphics, product description 2 product description 4 specifications 116 grounding equipment and display assembly DVD/CD-RW Combo Drive methods 44 removal 76 precautions 41 spare part numbers 21, 34, removal 57 hard disk test 108 38, 76 spare part number 26, 31,...
Page 176 RJ-45 17 microphone jack modem jack 152 S-Video-out 17 location 14 monitor port 151 pin assignments 150 network jack 153 microphones 9 RJ-11 152 key components 12 model name 1 RJ-45 jack 153 keyboard modem jack S-Video-out jack 154 product description 6 location 17 serial port 155 removal 63...
Page 177 Ethernet 5 specifications external media cards 5 S-Video-out jack computer 111 graphics 2 location 17 display 112 hard drives 3 pin assignments 154 DVD-ROM Drive 116 keyboard 6 SATA (Serial Advanced DVD/CD-RW Combo memory module 2 Technology Attachment) device Drive 115 modem module 4 AHCI (Advanced Host Controller DVD±RW and CD-RW Combo...
Page 178 TouchPad board WWAN module removal 85 removal 66 spare part numbers 85 spare part number 25, 33, TouchPad button 13 TouchPad components 13 TouchPad scroll zone 13 transporting guidelines 43 Trusted Platform Module Embedded Security 108 TXT (Intel Trusted Execution Technology) 110 Unified Extensible Firmware Interface (UEFI) 109...

This manual is also suitable for:

Compaq 6535b Ks186ut - smart buy 6530b p8600 notebook

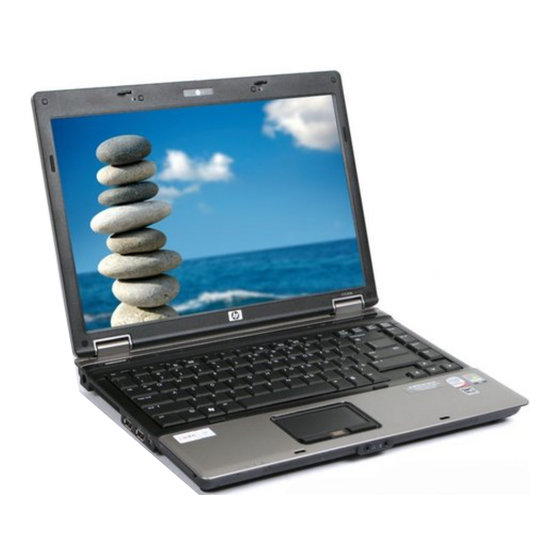

Compaq 6530b - Notebook PC Maintenance And Service Manual

1 Product Description

2 External Component Identification

3 Illustrated Parts Catalog

4 Removal and Replacement Procedures

5 Computer Setup

6 Specifications

7 Screw Listing

8 Backup and Recovery

9 Connector Pin Assignments

10 Power Cord Set Requirements

11 Recycling

Index

Quick Links

Related Manuals for Compaq 6530b - Notebook PC

Summary of Contents for Compaq 6530b - Notebook PC

This manual is also suitable for:

Table of Contents
