Compaq 6530b - Notebook PC Maintenance And Service Manual page 106

e.
f.

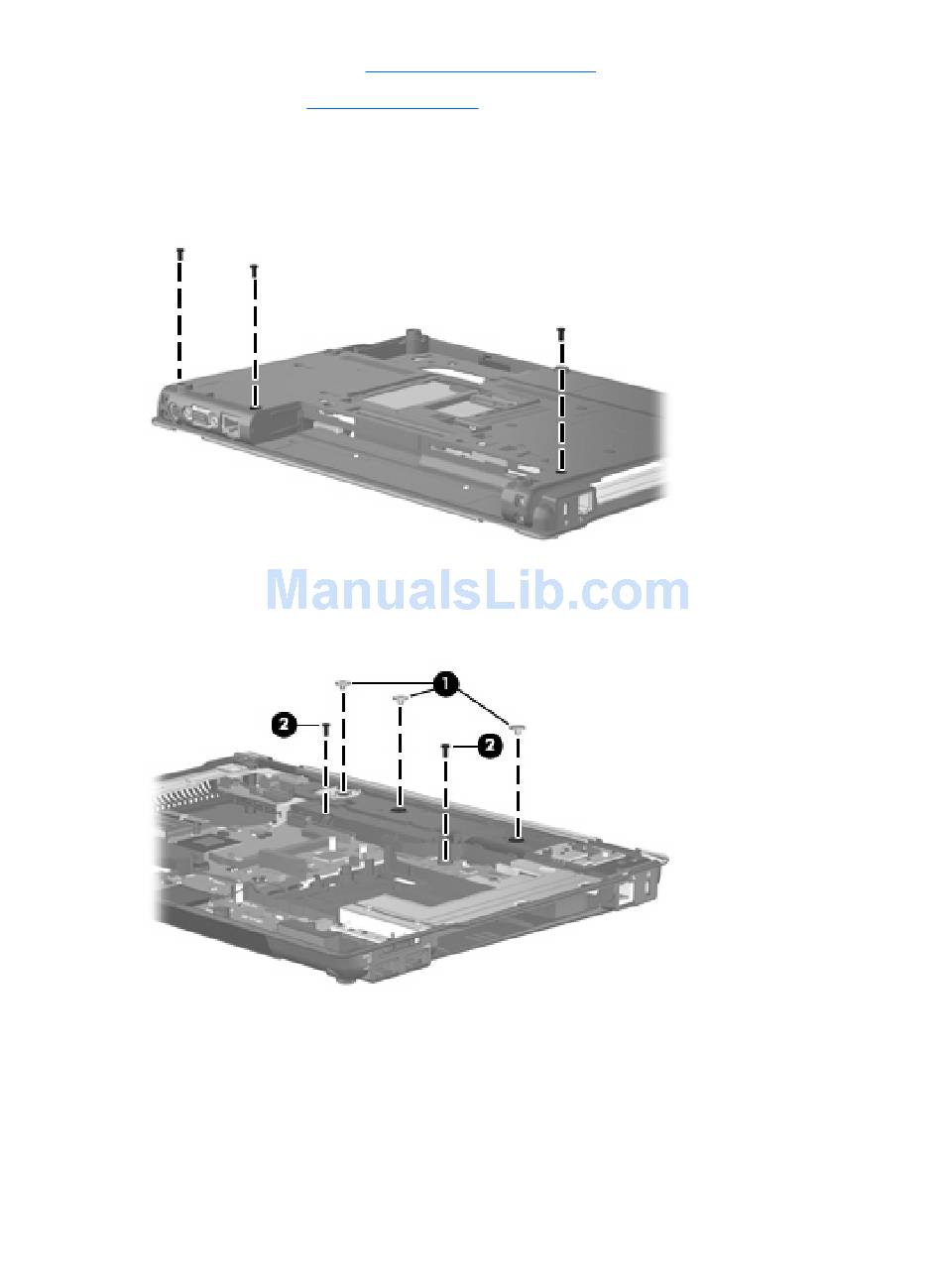

Remove the rear cover:
1. Turn the computer upside down, with the rear panel toward you.
2. Remove the three Torx8 T8M2.5×9.0 screws that secure the rear cover to the base enclosure.
3. Turn the computer right side up, with the front toward you.
4. Remove the three Phillips PM2.5×3.0 broad-head screws (1) and the two Phillips PM2.5×5.0
screws (2) that secure the rear cover to the base enclosure.
5. Lift the rear edge of the rear cover (1) until it disengages from the base enclosure.
96 Chapter 4 Removal and replacement procedures
Display assembly (see
Top cover (see Top cover on page
Display assembly on page
83)
76)
