Left-Side Components - Compaq 6530b - Notebook PC Maintenance And Service Manual

Item
(1)
(2)
(3)
(4)`
(5)

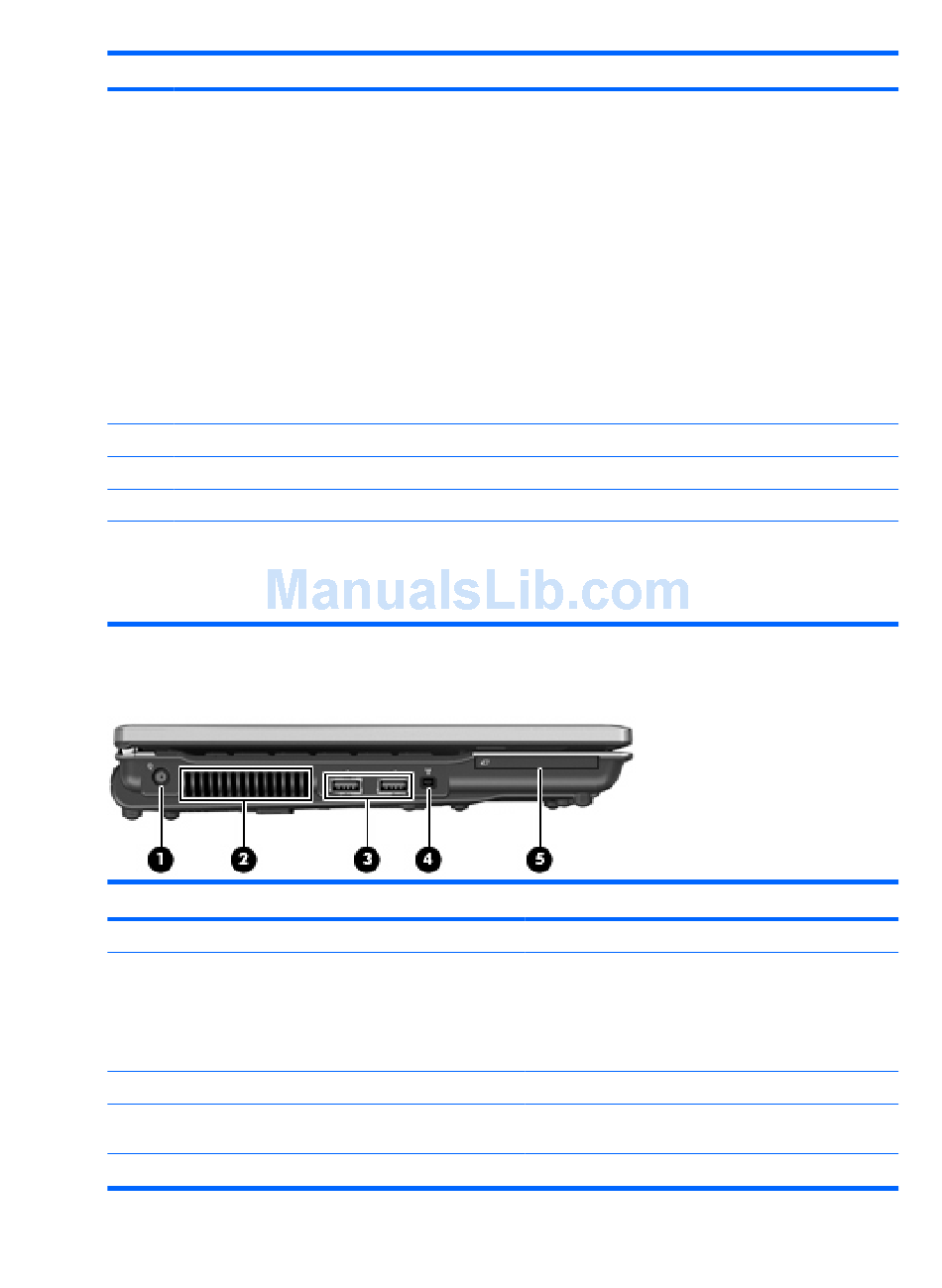

Left-side components

Item Component
(1) Power connector
(2) Vent
(3) USB ports (2)
(4) 1394 port (select models only)
(5) ExpressCard slot
16 Chapter 2 External component identification
Component
Media Card Reader (select models only)
USB ports (2) (select models only)
Optical drive
RJ-11 (modem) jack
Security cable slot
Function
Supports the following optional digital card formats:
●
Memory Stick
●
Memory Stick Pro
● MultiMediaCard
●
MultiMediaCard Plus
●
Secure Digital Memory Card
● Secure Digital High Capacity Memory Card
●
xD-Picture Card
●
xD-Picture Card Type H
●
xD-Picture Card Type M
Connect optional USB devices.
Reads an optical disc.
Connects a modem cable.
Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent,
but it may not prevent the computer from being mishandled or
stolen.
Function
Connects an AC adapter.
Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
Connect optional USB devices.
Connects an optional IEEE 1394 or 1394a device, such as
a camcorder.
Supports optional ExpressCards.
