6. Attach new Pick roller.

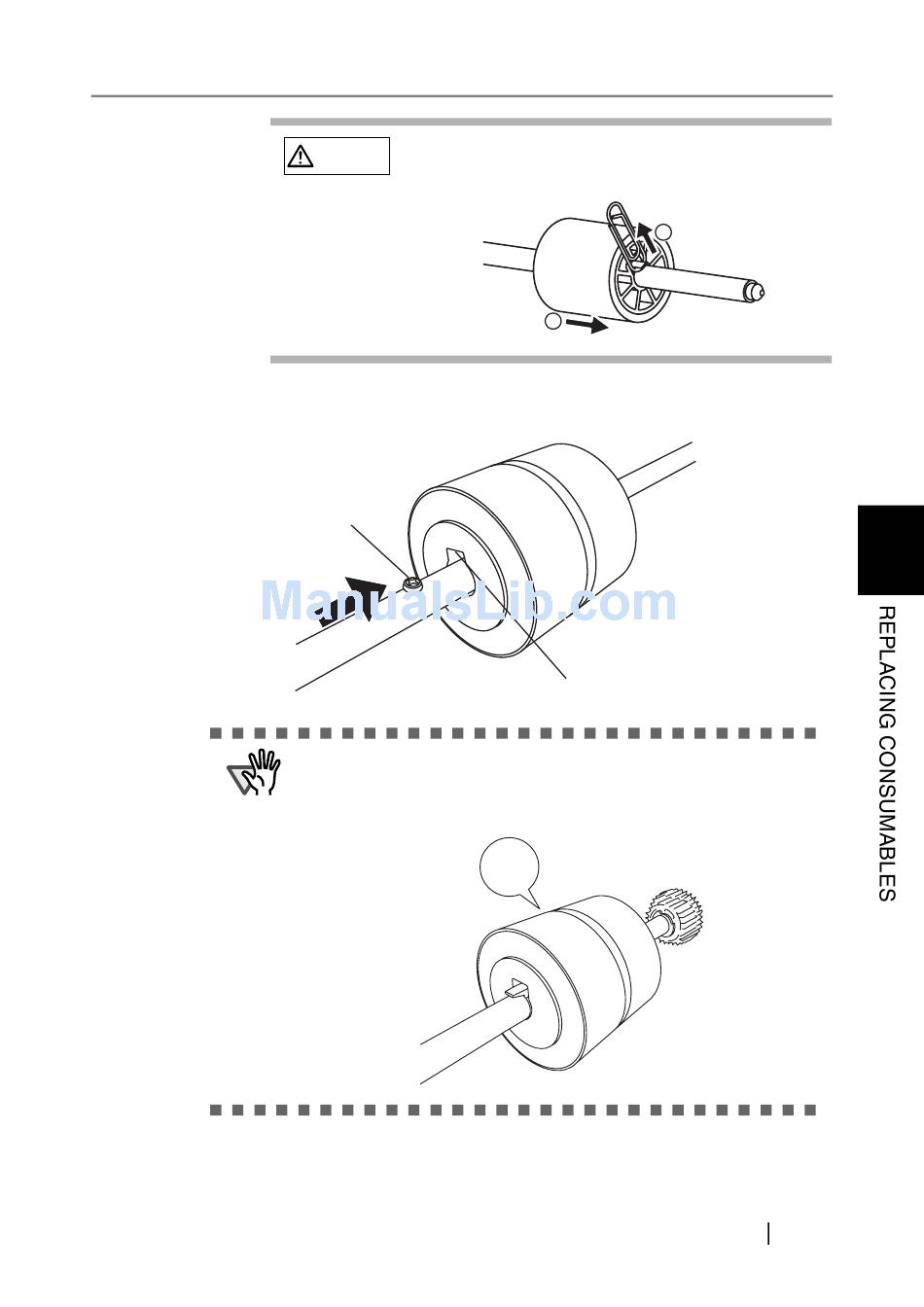

Insert new Pick roller aligning the screw on the shaft with the slot in the Pick roller.
Screw
Make sure that the Pick roller is correctly attached. The incompletely-
ATTENTION
attached Pick roller might cause document jams or other feed errors.
When attaching the Pick roller to the shaft, make sure that the roller's tab
clicks in to place.
If you lift the pick roller tab with your fingernail, it may
hurt your fingernail. Use a paper clip to lift the pick
roller tab if you cannot do it with your finger.
2
Slot
"Click"
fi-5530C Image Scanner Operator's Guide
4.3 Replacing the Pick Roller
