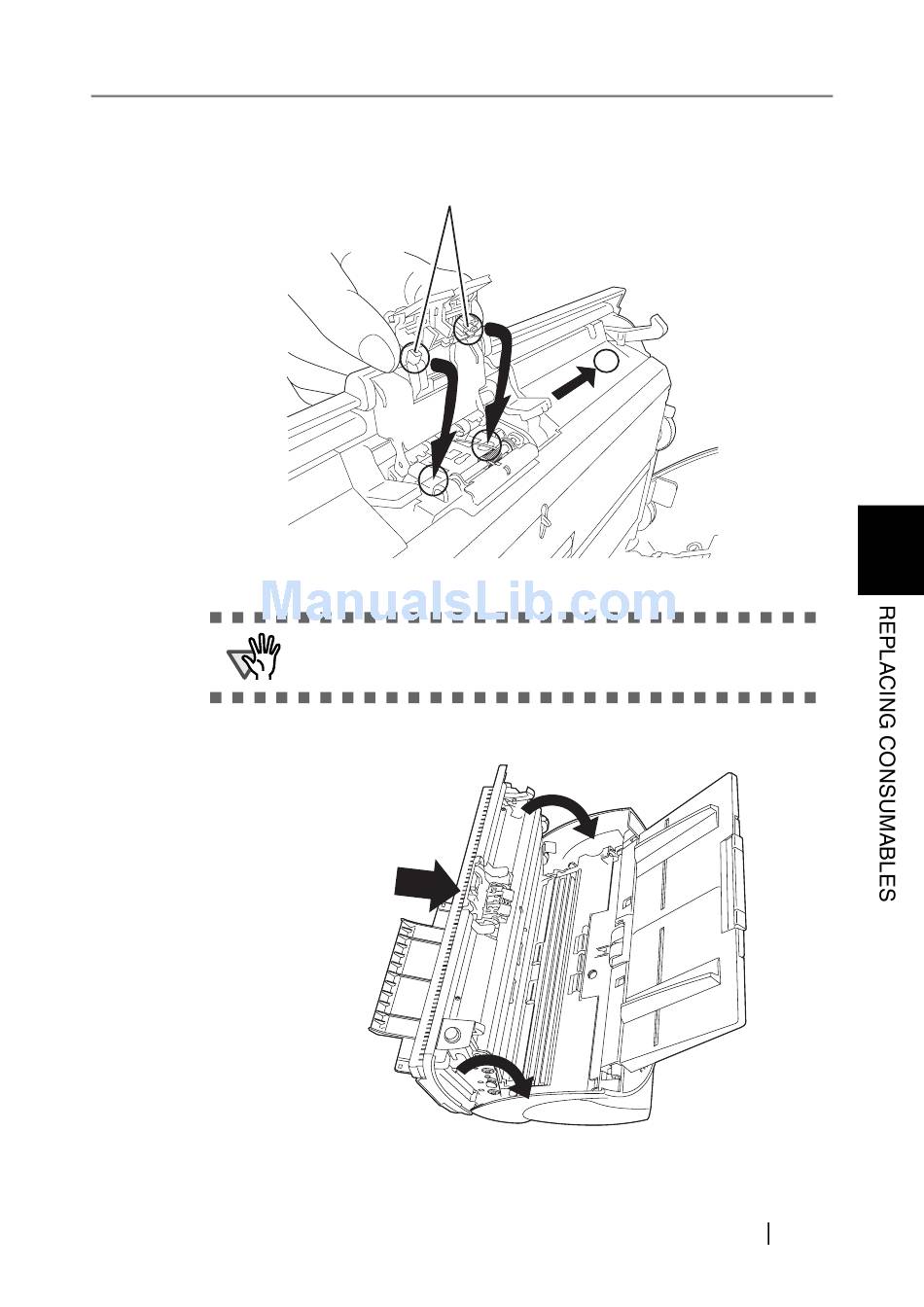

4. Attach new Pad ASSY.
Insert the claws of the Pad ASSY into the holes on the ADF.
Pressing down the Pad ASSY and slide it to direction "A" as shown in the illustration above.
Make sure that the Pad ASSY is firmly attached. When the Pad ASSY is
ATTENTION
not correctly attached, document jams or other feeding errors may occur.
5. Push in the center of the ADF to close it until the ADF button is locked.
Press the center of the ADF
Claws
fi-5530C Image Scanner Operator's Guide
4.2 Replacing the Pad ASSY
