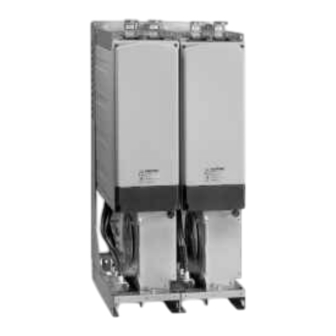

SPI9000 Inverter Unit FI9 – FI14
User Manual
September 2006
Supersedes April 2006
MN04004002E
For more information visit: www.EatonElectrical.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cutler-Hammer SPI9000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton Cutler-Hammer SPI9000

Summary of Contents for Eaton Cutler-Hammer SPI9000

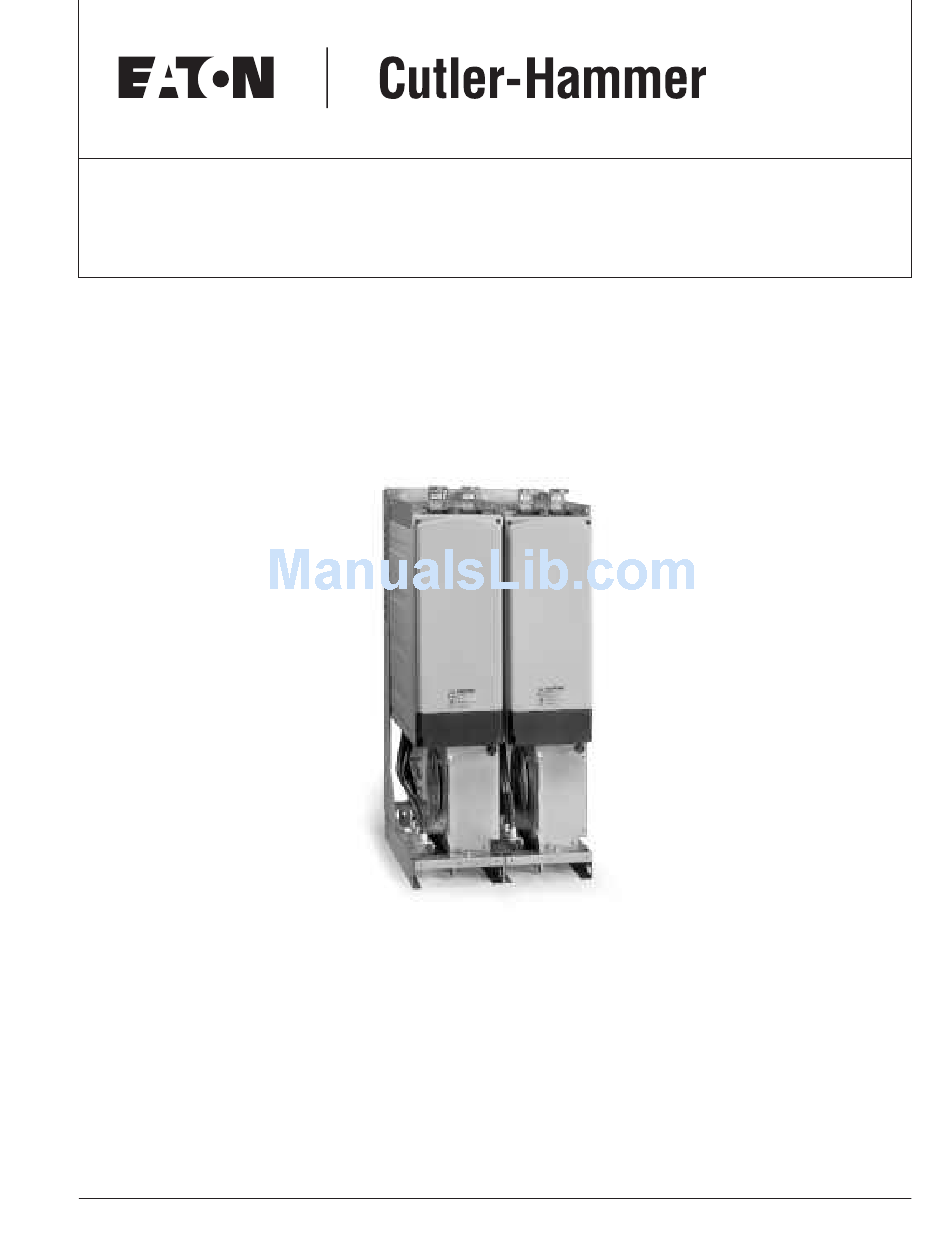

  • Page 1 SPI9000 Inverter Unit FI9 – FI14 User Manual September 2006 Supersedes April 2006 MN04004002E For more information visit: www.EatonElectrical.com...
  • Page 3 The product discussed in this literature is subject to terms and conditions outlined in Eaton Electrical Inc. selling policies. The sole source governing the rights and remedies of any purchaser of this equipment is the relevant Eaton Electrical Inc. selling policy. NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF FITNESS FOR A...

  • Page 4: Table Of Contents

    SPI9000 Inverter Unit FI9 – FI14 User Manual Table of Contents LIST OF FIGURES ............

  • Page 5: List Of Figures

    Figure 2-2: SPI9000 FI10 Inverter Dimensions ........
  • Page 6 Table 2-2: SPI9000 FI10 Inverter Dimensions ........

  • Page 7: Safety

    Disconnect power before checking equipment is properly grounded. Wear safety glasses whenever working on electronic controllers or rotating machinery. MN04004002E WARNING WARNING WARNING CAUTION WARNING controllers performing For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual maintenance. sure...

  • Page 8: Warnings, Cautions And Notices

    The components of the power unit of the inverter are live when the SPI9000 inverter is connected to DC supply. Coming into contact with this voltage is extremely dangerous and may cause death or severe injury. The control unit is isolated from mains potential.
  • Page 9 September 2006 Cautions The SPI9000 inverter is meant for fixed installations only. Do not perform any measurements when the inverter is connected to the DC supply. After having disconnected the inverter from the DC supply, wait until the fan stops and the indicators on the keypad go out (if no keypad is attached see the indicator through the keypad base).
  • Page 10 SPI9000 Inverter Unit FI9 – FI14 User Manual Grounding and ground fault protection The SPI9000 inverter must always be grounded with a ground conductor connected to the ground terminal. The ground fault protection inside the inverter only protects the inverter against ground faults in the motor or the motor cable.

  • Page 11: Table 1-1: Fi9 – Fi14 Inverter Unit Catalog Numbering System

    ® Cutler-Hammer SPI9000 Inverter Units from Eaton’s electrical business have undergone scrupulous tests and quality checks at the factory before they are delivered to the customer. However, after unpacking the product, check that no sign of transportation damage is to be found on the product and that the delivery is complete (compare the type designation of the product to the code below, see Table 1-1 ).

  • Page 12: Storage

    It may also be necessary to check the tightening torques of terminals at certain intervals. Technical Data Figure 1-1 presents the block diagram of the SPI9000 inverter. The inverter mechanically consists of two units, the Power Unit and the Control Unit.

  • Page 13: Figure 1-1: Spi9000 Inverter Unit Block Diagram

    Measurements Supply Control Module RS-232 Slot A Slot B Figure 1-1: SPI9000 Inverter Unit Block Diagram For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual IGBT Bridge Driver ASIC Control Slot C Slot D Slot E...

  • Page 14: Table 1-2: 380 – 500V Ac, 50/60 Hz, Three-Phase Inverters Ratings

    SPI9000 Inverter Unit FI9 – FI14 User Manual Power Ratings Supply Voltage 465 – 800V DC, Motor Voltage 380 – 500V AC High overload = Maximum current IS, 2 sec./20 sec., 150% overloadability, 1 min./10 min. Following continuous operation at rated output current, 150% rated output current (I 1 min, followed by a period of load current less than rated current, and of such duration that the r.m.s output current, over the duty cycle, does not exceed rated output current (I...

  • Page 15: Table 1-3: 525 – 690V Ac, 50/60 Hz, Three-Phase Inverters Ratings

    2340 1500 2250 2700 1800 2782 3335 2000 For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Over- load Dimensions and Weight 50°C W x H x D/Wt. in P (kW) Frame in./lbs. (mm/kg) 9.4 x 40.6 x 14.6/143...

  • Page 16: Table 1-4: Technical Information

    SPI9000 Inverter Unit FI9 – FI14 User Manual Table 1-4: Technical Information Description Supply Connection Input Voltage V Input Current I DC Bank Capacitance Starting Delay Motor Connection Output Voltage Continuous Output Current Starting Torque Peak Current Output Frequency Frequency Resolution...
  • Page 17 500V inverters: 333V DC; 690V inverters: 460V DC In case of ground fault in motor or motor cable, only the inverter is protected. Trips if any of the output phases are missing. For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual...

  • Page 18: Table 1-6: Dc Currents For 640 – 1100V Dc Supply Voltage

    SPI9000 Inverter Unit FI9 – FI14 User Manual Table 1-5: DC Currents for 465 – 800V DC Supply Voltage Structure FI10 FI12 FI13 FI14 Table 1-6: DC Currents for 640 – 1100V DC Supply Voltage Structure FI10 FI13 FI14 Inom (Output)

  • Page 19: Chapter 2 - Mounting

    Approximate Dimensions in Inches (mm) 3.94 40.63 37.40 2.46 (239) (100) (1032) (950) (62.5) For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Dia. 1 Dia. 2 15.20 2.12 5.51 6.03 (386) (53.9) (140) (153.1) (4.6)

  • Page 20: Figure 2-2: Spi9000 Fi10 Inverter Dimensions

    SPI9000 Inverter Unit FI9 – FI14 User Manual Table 2-2: SPI9000 FI10 Inverter Dimensions Inverters Voltage SPI208 – 325 480V/575V Side Front Dia. Bottom Figure 2-2: SPI9000 FI10 Inverter Dimensions Approximate Dimensions in Inches (mm) 41.3 37.5 (239) (200) (1050) (952) For more information visit: www.EatonElectrical.com...

  • Page 21: Figure 2-3: Spi9000 Fi12 Inverter Dimensions

    Bottom Figure 2-3: SPI9000 FI12 Inverter Dimensions Approximate Dimensions in Inches (mm) 18.8 41.3 (478) (200) (28) (1050) For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Front 37.5 22.3 (952) (60.5) (566) (230) (41) Dia.

  • Page 22: Fan Cooling

    SPI9000 Inverter Unit FI9 – FI14 User Manual Dia. Figure 2-4: SPI9000 FI13 Inverter Dimensions (FI14 Is a Double FI13) Table 2-4: SPI9000 FI13 Inverter Dimensions (FI14 Is a Double FI13) Inverters Voltage SPI820 – H10 480V Fan Cooling Frames FI9 to FI14 Enough free space must be left around the inverter to ensure sufficient air circulation and...

  • Page 23: Figure 2-5: Installation Space

    September 2006 MN04004002E FI9/FI10 FI12 FI13 Figure 2-5: Installation Space For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual...

  • Page 24: Table 2-5: Mounting Space Requirements

    SPI9000 Inverter Unit FI9 – FI14 User Manual Table 2-5: Mounting Space Requirements Frame FI10 FI12 FI13 FI14 A = free space above the inverter B = distance between inverter and cabinet wall = distance between two inverters C = free space underneath of the inverter...

  • Page 25: Chapter 3 - Power Wiring

    The following wiring diagrams show the supply and motor connections. MN04004002E DC + DC – B – FI 9/10 Controller H1...H7 Figure 3-1: FI9/FI10 Basic Wiring Diagram with Charging For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual External Supply...

  • Page 26: Figure 3-2: Fi9/Fi10 Basic Wiring Diagram Without Charging

    SPI9000 Inverter Unit FI9 – FI14 User Manual September 2006 DC + DC – B – FI 9/10 Controller H1...H7 Figure 3-2: FI9/FI10 Basic Wiring Diagram without Charging For more information visit: www.EatonElectrical.com MN04004002E...

  • Page 27: Figure 3-3: Fi12 Basic Wiring Diagram With Charging

    FI 10 Module 1 Controller Note: Min. Cable Length (131.2í ) 40m Figure 3-3: FI12 Basic Wiring Diagram with Charging For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual DC + DC – External Supply B –...

  • Page 28: Figure 3-4: Fi12 Basic Wiring Diagram Without Charging

    SPI9000 Inverter Unit FI9 – FI14 User Manual DC + DC – B – FI 10 Module 1 Controller Note: Min. Cable Length (131.2’) 40m Figure 3-4: FI12 Basic Wiring Diagram without Charging For more information visit: www.EatonElectrical.com September 2006 DC + DC –...

  • Page 29: Figure 3-5: Fi13 Basic Wiring Diagram With Charging

    SPI9000 Inverter Unit FI9 – FI14 User Manual September 2006 DC + DC – DC + DC – DC + DC – External Supply B – B – B – FI 10 Module U FI 10 Module V FI 10 Module W...

  • Page 30: Figure 3-6: Fi13 Basic Wiring Diagram Without Charging

    SPI9000 Inverter Unit FI9 – FI14 User Manual September 2006 DC + DC – DC + DC – DC + DC – B – B – B – FI 10 Module U FI 10 Module V FI 10 Module W...

  • Page 31: Figure 3-7: Fi14 Basic Wiring Diagram With Charging

    SPI9000 Inverter Unit FI9 – FI14 User Manual September 2006 DC + DC – DC + DC – DC + DC – DC + DC – DC + DC – DC + DC – External External Supply Supply B –...

  • Page 32: Figure 3-8: Fi14 Basic Wiring Diagram Without Charging

    SPI9000 Inverter Unit FI9 – FI14 User Manual September 2006 DC + DC – DC + DC – DC + DC – DC + DC – DC + DC – DC + DC – B – B – B –...

  • Page 33: Table 3-2: Fuses Used In 465 – 800V Dc Inverters

    3SHT 170M8547 3SHT 170M8547 3SHT 170M8547 3SHT 170M8547 3SHT 170M8547 3SHT For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Fuse U Fuse I No. of Fuses 1250 1250 1250 1250 1250 1250 1250 1250 1250...

  • Page 34: Table 3-3: Fuses Used In 640 – 1100V Dc Inverters

    SPI9000 Inverter Unit FI9 – FI14 User Manual Fuses, 640 – 1100V DC Inverters Table 3-3: Fuses Used in 640 – 1100V DC Inverters Nominal Current Frame FI10 FI10 FI10 FI10 FI12 FI12 FI12 FI12 FI12 FI12 FI13 FI13 1030...

  • Page 35: Table 3-4: Cable Sizes For 380 – 500V Ac

    5x40 1450 6x40 1770 5x40 2150 5x40 2700 6x40 For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Motor Cable Cu: 3x95+50 Al: 3x120+70 Cu: 3x150+70 Al: 3x240Al+72Cu Cu: 3x185+95 Al: 2x(3x120+70) Cu: 2x(3x120+70) Al: 2x(3x185Al+57Cu)

  • Page 36: Table 3-5: Terminal Sizes For 380 – 500V Ac

    SPI9000 Inverter Unit FI9 – FI14 User Manual Terminal Sizes — 380 – 500V AC Table 3-5: Terminal Sizes for 380 – 500V AC Nominal Current Frame FI10 FI12 1030 FI13 1150 1300 3-12 Approximate Dimensions in Inches (mm) DC Supply Terminal...

  • Page 37: Table 3-6: Cable Sizes For 525 – 690V Ac

    5x40 1180 5x40 1500 5x40 1900 5x40 2250 5x40 For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Motor Cable Cu: 3x95+50 Al: 3x120+70 Cu: 3x95+50 Al: 3x120+70 Cu: 3x95+50 Al: 3x120+70 Cu: 3150+70 Al: 3x240Al+72Cu...

  • Page 38: Table 3-7: Terminal Sizes For 525 – 690V Ac

    SPI9000 Inverter Unit FI9 – FI14 User Manual Terminal Sizes — 525 – 690V AC Table 3-7: Terminal Sizes for 525 – 690V AC Nominal Current Frame FI10 FI12 FI13 1030 3-14 Approximate Dimensions in Inches (mm) DC Supply Terminal (16) 1.38...

  • Page 39: Installation Instructions

    – Ensure that the control cables or the cables of the unit are not trapped between the frame and the protection plate. MN04004002E Shielded Cable in Feet (m) ≥ 193 (59) ≤ 656 (200) For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual 3-15...

  • Page 40: Frame Sizes

    SPI9000 Inverter Unit FI9 – FI14 User Manual September 2006 Frame Sizes Inverter Frame FI9, Protection Class IP00 Inverter Frame FI10, Protection Class IP00 Inverter Frame FI12, Protection Class IP00 Inverter Frame FI13, Protection Class IP00 3-16 For more information visit: www.EatonElectrical.com...

  • Page 41: Cable Installation And The Ul Standards

    380 – 500V FI13 525 – 690V 380 – 500V FI14 525 – 690V For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Tightening Torque in in-lb (Nm) 340 (40) 340 (40) 340 (40) 340 (40)
  • Page 42 SPI9000 Inverter Unit FI9 – FI14 User Manual September 2006 3-18 For more information visit: www.EatonElectrical.com MN04004002E...

  • Page 43: Chapter 4 - Control Wiring

    D connector (1). MN04004002E Figure 4-1: Control Board Figure 4-2: Basic and Option Board Connections of the Control Board For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual...

  • Page 44: Control Wiring Details

    SPI9000 Inverter Unit FI9 – FI14 User Manual When the inverter is delivered from the factory, the control unit usually includes two basic boards (I/O board and relay board), which are normally installed in slots A and B. On the next pages you will find the arrangement of the control I/O and the relay terminals of the two basic...

  • Page 45: Figure 4-5: Option Board A9 Wiring Diagram

    RO1/1 RO1/2 RO1/3 RO2/1 RO2/2 RO2/3 Figure 4-6: Option Board A2 Wiring Diagram For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Input Reference (Voltage) Input Reference (Current) Control Voltage Output 0 (4)/20 mA RL<500 Ω...

  • Page 46: Control Cables

    SPI9000 Inverter Unit FI9 – FI14 User Manual Basic Relay Board A3 Control Cables The control cables shall be at least 20 AWG screened multicore cables, see Table 4-1. The maximum terminal wire size is 14 AWG for the relay terminals and 16 AWG for other terminals.

  • Page 47: Figure 4-8: Galvanic Isolation Barriers

    Control to Ground Control Panel Digital Input Group A Digital Input Group A Control Analog Board Output Digital Output Figure 4-8: Galvanic Isolation Barriers For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Gate Drivers Power Board...

  • Page 48: Table 4-2: Control I/O Terminal Signals On Option Board A9

    SPI9000 Inverter Unit FI9 – FI14 User Manual Table 4-2: Control I/O Terminal Signals on Option Board A9 Terminal +10 Vref AI1+ GND/AI1– AI2+ GND/AI2– 24 Vout (bidirectional) DIN1 DIN2 DIN3 24 Vout (bidirectional) DIN4 DIN5 DIN6 AO1+ AO1- Signal...

  • Page 49: Digital Input Signal Inversions

    Min. switching load Thermistor input Ground DIN1 DIN2 DIN3 Figure 4-9: Positive/Negative Logic For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual 24V DC/8A 250V AC/8A 125V DC/0.4A 5V/10 mA 24V DC/8A 250V AC/8A 125V DC/0.4A...

  • Page 50: Jumper Selections On Option Board A9

    SPI9000 Inverter Unit FI9 – FI14 User Manual Jumper Selections on Option Board A9 The user can customize the functions of the inverter to better suit his needs by selecting certain positions for the jumpers on the OPTA9 board. The positions of the jumpers determine the signal type of analogue and digital inputs.

  • Page 51: Figure 4-11: Jumper Selection For Option Board A9

    A B C D = Factory Default Figure 4-11: Jumper Selection for Option Board A9 CAUTION For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Jumper Block X2: AI2 Mode A B C D AI2 Mode: 0...20mA; Current Input A B C D AI2 Mode: Voltage Input;...
  • Page 52 SPI9000 Inverter Unit FI9 – FI14 User Manual September 2006 4-10 For more information visit: www.EatonElectrical.com MN04004002E...

  • Page 53: Chapter 5 - Menu Information

    Chapter 5 — Menu Information Keypad Operation The control keypad is the link between the SPI9000 inverter and the user. The control keypad features an alphanumeric display with seven indicators for the Run status (RUN, counter- clockwise, clockwise, READY, STOP, ALARM, FAULT) and three indicators for the control place (I/O term/Keypad/BusComm).

  • Page 54: Table 5-2: Control Place Indicators

    SPI9000 Inverter Unit FI9 – FI14 User Manual Drive Status Indicators The drive status symbols tell the user the status of the motor and the inverter. In addition, they tell about possible irregularities detected by the motor control software in motor or inverter functions.

  • Page 55: Table 5-3: Status Leds (Green – Green – Red)

    Description line: Displays the description of the menu, value or fault. Value line: Displays the numerical and textual values of references, parameters, etc. and the number of submenus available in each menu. Figure 5-2: Keypad Pushbuttons For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual...

  • Page 56: Table 5-5: Button Descriptions

    SPI9000 Inverter Unit FI9 – FI14 User Manual Table 5-5: Button Descriptions Indicator Description This button is used to reset active faults (see Page 5-11, Active Faults Menu). This button is used to switch between the two latest displays. This may be useful when you want to see how the changed (new) value influences some...

  • Page 57: Menu Navigation

    You will find more detailed descriptions of the menus later in this chapter. MN04004002E Monitor Figure 5-3: Keypad Display Data For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual...

  • Page 58: Figure 5-4: Keypad Navigation Chart

    SPI9000 Inverter Unit FI9 – FI14 User Manual Expander boards System Menu Fault history Active faults Keypad control Parameters Monitor A : OPTA1 A : Parameters Language Browse English 11 Output phase Operation days 11 Output phase Operation days Control Place...

  • Page 59: Figure 5-5: Monitoring Menu

    This menu is meant only for signal checking. The values cannot be altered here. For changing values of parameters, see Page 5-8. MN04004002E FreqReference Monitor Output frequency Figure 5-5: Monitoring Menu For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual 13.95 Hz 13.95 Hz...

  • Page 60: Table 5-6: Monitored Signals

    SPI9000 Inverter Unit FI9 – FI14 User Manual Table 5-6: Monitored Signals Code Signal Name V7.1 Output frequency V7.2 Frequency reference Hz V7.3 Motor speed V7.4 Motor current V7.5 Motor torque V7.6 Motor power V7.7 Motor voltage V7.8 DC-link voltage V7.9...

  • Page 61: Figure 5-6: Parameter Value Change Procedure

    Note: If you are in any other menu than menu M3, these functions will not work. MN04004002E Input signals Basic parameters Min Frequency 14.45 Hz Figure 5-6: Parameter Value Change Procedure For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Min Frequency 13.95 Hz...

  • Page 62: Figure 5-7: Selection Of Control Place

    SPI9000 Inverter Unit FI9 – FI14 User Manual If you are in some other menu than menu M3 and try to start the motor by pressing the START button when the keypad is not selected as the active control place, you will get an error message: Keypad Control NOT ACTIVE.

  • Page 63: Figure 5-8: Normal State, No Faults

    The inverter has four types of faults. These types differ from each other on the basis of the subsequent behavior of the drive. See Table 5-7. MN04004002E Active faults Figure 5-8: Normal State, No Faults For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual 5-11...

  • Page 64: Figure 5-9: Fault Display

    SPI9000 Inverter Unit FI9 – FI14 User Manual Table 5-7: Fault Types Fault Type Symbol A (Alarm) F (Fault) AR (Fault Autoreset) FT (Fault Trip) Note: Fault Codes are listed in Appendix A. Fault Time Data Record When a fault occurs, the information described in Figure 5-8 is displayed. By pressing Menu Button Right, you will enter the Fault time data record menu indicated by T.1➔T.#.

  • Page 65: Table 5-8: Fault Time Recorded Data

    Motor current Motor voltage Motor power Motor torque DC bus voltage Unit temperature Run status Direction Warnings Zero speed Description Counted operation days Counted operation hours For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual 5-13...

  • Page 66: Figure 5-10: Fault History Menu

    SPI9000 Inverter Unit FI9 – FI14 User Manual Fault history System Menu (M6) You can enter the System menu from the Main menu by pressing Menu Button Right when the location indication M6 is visible on the first line of the keypad display.

  • Page 67: Table 5-10: System Menu Functions

    Not used Change Enabled Change Enabled 65535 Always 65535 Connected Continuous 5000 For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Cust Selections English Deutsch Suomi Svenska Italiano Basic Application Standard Application Local/Remote control Appl. Multi-Step Application PID Control Application Multi-Purpose Control Appl.
  • Page 68 SPI9000 Inverter Unit FI9 – FI14 User Manual Table 5-10: System Menu Functions, continued Code Function S6.8 System information S6.8.1 Total counters C6.8.10.1. MWh counter C6.8.10.2. Operation day counter C6.8.1.3. Operation hour counter S6.8.2 Trip counters T6.8.2.1 MWh counter T6.8.2.2 Clear MWh counter T6.8.2.3...

  • Page 69: Figure 5-11: Selection Of Language

    English Language Langue English Francais Figure 5-11: Selection of Language 56.2 System Menu Application Standard 56.2 56.2 Application Application Standard Multi-step Figure 5-12: Change of Application For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual 5-17...

  • Page 70: Figure 5-13: Storing And Loading Of Parameter Sets

    SPI9000 Inverter Unit FI9 – FI14 User Manual Copy Parameters The parameter copy function is used when the operator wants to copy one or all parameter groups from one drive to another. All the parameter groups are first uploaded to the keypad, then the keypad is connected to another drive and then the parameter groups are downloaded to it (or possibly back to the same drive).

  • Page 71: Figure 5-14: Parameter Copy To Keypad

    MN04004002E 56.3.2 Up to keypad Select 56.3.2 Up to keypad Figure 5-14: Parameter Copy to Keypad For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Confirm 56.3.2 Up to keypad Change Value All param. Cancel 5-19...

  • Page 72: Figure 5-15: Parameter Comparison

    SPI9000 Inverter Unit FI9 – FI14 User Manual Parameter Comparison In the Parameter Comparison submenu (S6.4), you can compare the actual parameter values to the values of your customized parameter sets and those loaded to the control keypad. You can compare the parameter by pressing Menu Button Right in the Compare Parameters submenu.

  • Page 73: Figure 5-16: Password Setting

    Note: Store the password in a safe place! No changes can be made unless a valid password is entered. MN04004002E 56.5.1 Password Figure 5-16: Password Setting For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual 56.5.1 Password 5-21...

  • Page 74: Figure 5-18: Activation Of Start-Up Wizard

    SPI9000 Inverter Unit FI9 – FI14 User Manual Parameter Lock (P6.5.2) This function allows the user to prohibit changes to the parameters. If the parameter lock is activated, the text *locked* will appear on the display if you try to edit a parameter value.

  • Page 75: Figure 5-19: Disabling The Change Of Multimonitoring Items

    Figure 5-20: Keypad Settings Submenu P6.6. P6.6. Default page Default page Figure 5-21: Default Page Function For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual 56.5.4 Multimon. items ChangeDisable Confirm Change Repeat to Set Default Submenu/Page...

  • Page 76: Figure 5-22: Timeout Time Setting

    SPI9000 Inverter Unit FI9 – FI14 User Manual Default page in the operating menu (P6.6.2) Here you can set the location (page) in the Operating menu (in special applications only) to which the display automatically moves to when the set Timeout Time (see below) has expired or the power is switched on to the keypad.

  • Page 77: Figure 5-23: Internal Brake Resistor Connection

    FR4 to FR6. System Menu P6.7. InternBrakeRes Connected MN04004002E 56.7 HW Settings P6.7. InternBrakeRes Not conn. Figure 5-23: Internal Brake Resistor Connection For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual P6.7. InternBrakeRes Connected 5-25...

  • Page 78: Figure 5-24: Fan Control Function

    SPI9000 Inverter Unit FI9 – FI14 User Manual Fan Control (P6.7.2) This function allows you to control the cooling fan of the inverter. You can set the fan to run continuously when the power is switched on or depending on the temperature of the unit. If the latter function has been selected, the fan is switched on automatically when the heatsink temperature reaches 60°C.

  • Page 79: Figure 5-25: Hmi Acknowledge Timeout

    MWh counter C6.8.10.2 Operation day counter C6.8.1.3. Operation hour counter MN04004002E P6.7.3 P6.7.3 HMI ACK timeout HMI ACK timeout 200ms 200ms Figure 5-25: HMI Acknowledge Timeout For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual 5-27...

  • Page 80: Table 5-13: Software Information Pages

    SPI9000 Inverter Unit FI9 – FI14 User Manual Trip Counters Trip counters (menu S6.8.2) are counters the values of which can be reset i.e. restored to zero. You can use the following resettable counters: Note: The trip counters run only when the motor is running.

  • Page 81: Table 5-14: Applications Information Pages

    Nominal voltage of the unit 6.8.5.3 Brake chopper 6.8.5.4 Brake resistor MN04004002E Standard R6.8.4. Basic Figure 5-27: Applications Info Submenu For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Version 2.01 R6.8.4. . Application id FIFF01 5-29...

  • Page 82: Figure 5-28: Expander Board Information Menus

    SPI9000 Inverter Unit FI9 – FI14 User Manual Expander Boards (S6.8.6) The Expander boards submenu contains information about the basic and option boards. (See Chapter Control unit) You can check the status of each board slot by entering the Expander Boards page with Menu Button Right.

  • Page 83: Further Keypad Functions

    C:OPTC1 G7.3. . Slave address Figure 5-29: Expander Board Information Menu For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Cust Selections 1 = 0 to 20 mA 2 = 4 to 20 mA 3 = 0 to 10V 4 = 2 to 10V 5 = –10 to +10 V...
  • Page 84 SPI9000 Inverter Unit FI9 – FI14 User Manual September 2006 5-32 For more information visit: www.EatonElectrical.com MN04004002E...

  • Page 85: Chapter 6 - Start-Up

    When running, the back of inverter FR6 is burning hot. Therefore it MUST NOT be mounted onto a surface which is not fireproof. For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual...

  • Page 86: Sequence Of Operation

    SPI9000 Inverter Unit FI9 – FI14 User Manual Sequence of Operation 1. Read the safety instructions in the front of this manual carefully and follow them. 2. After installation, make sure: ● Both the inverter and the motor are grounded DC supply and motor cables comply with the requirements given in Chapter 3 ●...
  • Page 87 Inform our co-workers of the tests. Before running the tests, make sure that this can be done safely. ● Repeat Test A or B in step 8. ● MN04004002E For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual...
  • Page 88 SPI9000 Inverter Unit FI9 – FI14 User Manual September 2006 For more information visit: www.EatonElectrical.com MN04004002E...

  • Page 89: Appendix A - Fault Codes

    • Component failure • Faulty operation Note: See exceptional fault data record on Page 5-12. For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Solution Check loading. Check motor. Check cables. Set the deceleration time longer.
  • Page 90 SPI9000 Inverter Unit FI9 – FI14 User Manual Table A-1: Fault Codes (Continued) Fault Code Fault Undervoltage Input Line Supervision Output phase supervision Brake Chopper Supervision Inverter Undertemperature Inverter Overtemperature Motor Stalled Motor Overtemperature Motor underload EEPROM checksum fault Counter fault...
  • Page 91 • Option board or device added • Option board of different type or drive with different power rating added For more information visit: www.EatonElectrical.com SPI9000 Inverter Unit FI9 – FI14 User Manual Solution Check loading. Check motor size. Contact your Cutler-Hammer distributor.
  • Page 92 SPI9000 Inverter Unit FI9 – FI14 User Manual Table A-1: Fault Codes (Continued) Fault Code Fault Analog Input (signal range, 4 to 20 mA) External Fault Keypad communication Fault Fieldbus Fault Slot Fault PT100 Board Temperature Fault Programmable. Possible Cause Current for analog input is <...
  • Page 93 SPI9000 Inverter Unit FI9 – FI14 User Manual September 2006 MN04004002E For more information visit: www.EatonElectrical.com...
  • Page 94 SPI9000 Inverter Unit FI9 – FI14 User Manual September 2006 For more information visit: www.EatonElectrical.com MN04004002E...
  • Page 96 Eaton has 60,000 employees and sells products to customers in more than 125 countries. For more information, visit www.eaton.com. Eaton Electrical Inc. 1000 Cherrington Parkway Moon Township, PA 15108-4312 tel: 1-800-525-2000 www.EatonElectrical.com...
