Eaton EGEN20A Technical Data

Technical Data TD00405004E
Standby Generators
Air Cooled 20kW
Features:
True Power
•
Two Line LCD Digital Controller
•
Electronic Governor
•
External Main Circuit Breaker,
•
System Status & Maintenance Interval LED's
and GFCI Duplex Outlet
Flexible Fuel Line Connector
•
Composite Mounting Pad
•
Natural Gas or LP Gas Operation
•
UL 2200 Listed
•
Effective August 2009
® Electrical Technology

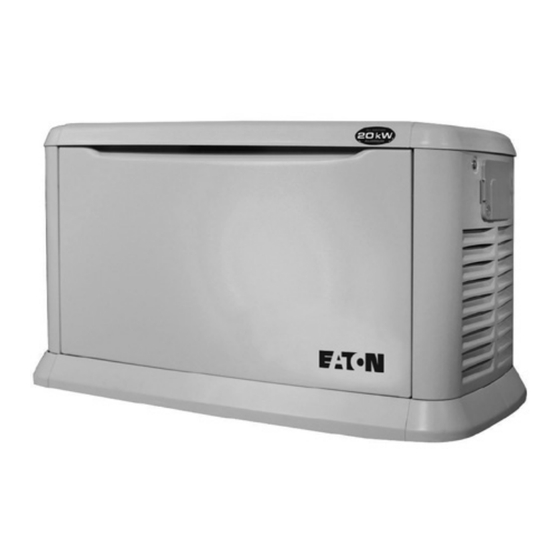

EGEN20A
Gas Engine Generator Sets
Continuous Standby Power Rating:
EGEN20A (Aluminum) - 20 kW 60Hz
•
Benefits:
Total commitment to component testing,
•
reliability, environmental, destruction and life,
plus testing to applicable CSA, NEMA, EGSA,
and other standards.
True Power ® Electrical Technology: Superior
•
harmonics and sine wave form produce less
than 5% Total Harmonic Distortion for utility
quality power. This allows confident operation of
sensitive electronic equipment and micro-chip
based appliances, such as variable speed HVAC.
Test Criteria:
•
Prototype Tested Nema Mg1-22 Evaluation
•
System Torsional Tested
•
Motor Starting Ability
•
Solid-state, frequency compensated voltage
•
regulation. This state-of-the-art power
maximizing regulation system is standard on
all Eaton models. It provides optimized fast
response to changing load conditions and maxi-
mum motor starting capability by electronically
torque-matching the surge loads to the engine.
Single source service response from the indus-
•
try's best dealer network provides parts and
service know-how for the entire unit.
