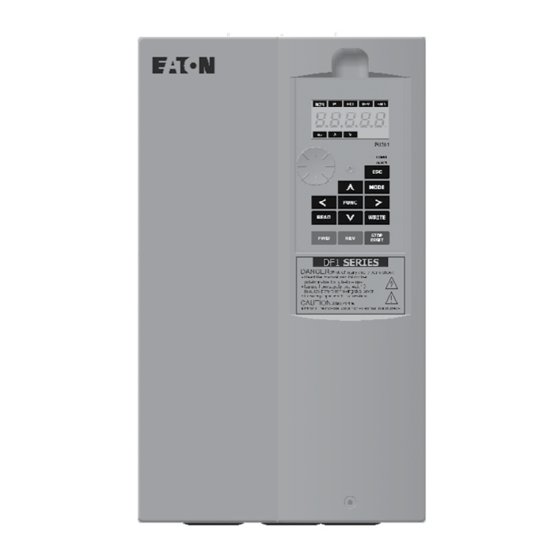

Eaton PowerXL DF1 Series User Manual
  1. Manuals
  2. Brands
  3. Eaton Manuals
  4. Inverter
  5. PowerXL DF1 Series
  6. User manual

Eaton PowerXL DF1 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

PowerXL DF1 Series VFD
User Manual
Effective February 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerXL DF1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton PowerXL DF1 Series

Summary of Contents for Eaton PowerXL DF1 Series

  • Page 1 PowerXL DF1 Series VFD User Manual Effective February 2020...
  • Page 3 4.3.9 Basic operation procedures for combined mode 5 (00-16(P .79)=8) ....... . 45 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 4 5.3.13 Display referenceat the analog output ........... . 104 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 5 5.7 .21 The latest alarm message (E1) ............160 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 6 5.8.1 Eaton protocol and Modbusprotocol ........
  • Page 7 6.4.7 BKU brake unit ............... 283 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 8 1. Manual Guide 1.1 Safety instructions Thank you for choosing Eaton inverters of DF1 series. This instruction introduces how to correctly use this inverter. Before using this inverter, always carefully read this User Manual and moreover, please understand the safety instruc- tions.
  • Page 9 • The parameter unit is used mainly for monitoring the numeric values, setting parameters and target frequency. There are a total of five working modes on the Eaton parameter unit. Please refer to Section 4.2 for details. The difference between “terminal name” and “function name”: •...
  • Page 10 C: with keypad 025：5.5kW 215：55kW 012：5.5kW 220：110kW 033：7.5kW 288：75kW 017：7.5kW 260：132kW 049：11kW 346：90kW 024：11kW 310：160kW 065：15kW 432：110kW 032：15kW 425：220kW 075：18.5kW 506：132kW 038：18.5kW 480：250kW 090：22kW 045：22kW 620：315kW 060：30kW 683：355kW 073：37kW 091：45kW Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 11 (06-00(P.9)), IGBT module over-heat protection, communication abnor- alarm function mality protection, PTC temperature protection etc, electrolytic capacitor overheat, input and output phase failure, to-earth (ground) leakage currents protection, circuit error detection... Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 12 Frame 1, 2, 3, IP20 / NEMA TYPE 1, Frame 4 and above IP00 / UL OPEN TYPE (IP20 option can be selected) The degree of environ- mental pollution Class of protection Class I International certification Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 13 3. Inverter Introduction 3.2 Appearance and dimensions 3.2.1 Frame 1 Unit:mm Model DF1-344D2FB-C20C DF1-346D0FB-C20C DF1-349D0FB-C20C DF1-34012FB-C20C DF1-34017FB-C20C 130.0 116.0 250.0 236.0 170.0 51.3 DF1-328D0FB-C20C DF1-32011FB-C20C DF1-32017FB-C20C DF1-32025FB-C20C Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 14 3. Inverter Introduction 3.2.2 Frame 2 Unit:mm Model DF1-344D2FB-C20C DF1-346D0FB-C20C DF1-349D0FB-C20C DF1-34012FB-C20C DF1-34017FB-C20C 190.0 173.0 320.0 303.0 190.0 80.5 DF1-328D0FB-C20C DF1-32011FB-C20C DF1-32017FB-C20C DF1-32025FB-C20C Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 15 3. Inverter Introduction 3.2.3 Frame 3 Unit:mm Model DF1-34045FB-C20C DF1-34060FB-C20C DF1-34073FB-C20C 250.0 231.0 400.0 381.0 210.0 89.5 DF1-32075FB-C20C DF1-32090FB-C20C Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 16 3. Inverter Introduction 3.2.4 Frame 4 Unit:mm Model DF1-34091FN-C20C DF1-34110FN-C20C DF1-34150FN-C20C DF1-34180FN-C20C 330.0 245.0 550.0 525.0 275.0 137.5 11.0 11.0 DF1-32120FN-C20C DF1-32145FN-C20C DF1-32170FN-C20C Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 17 3. Inverter Introduction 3.2.5 Frame 5 Unit:mm Model DF1-34220FN-C20C DF1-34260FN-C20C 370.0 295.0 589.0 560.0 300.0 137.5 11.0 11.0 DF1-32215FN-C20C DF1-32288FN-C20C Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 18 3. Inverter Introduction 3.2.6 Frame 6 Unit:mm Model DF1-34310FN-C20C 420.0 330.0 800.0 770.0 300.0 145.5 13.0 25.0 13.0 DF1-32346FN-C20C Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 19 3. Inverter Introduction 3.2.7 Frame 7 Unit:mm Model DF1-34340FN-C20C DF1-34425FN-C20C DF1-34480FN-C20C 500.0 180.0 870.0 850.0 360.0 150.0 13.0 25.0 13.0 DF1-34530FN-C20C DF1-32432FN-C20C DF1-32506FN-C20C Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 20 3. Inverter Introduction 3.2.8 Frame 8 Unit:mm Model DF1-34340FN-C20C DF1-34425FN-C20C DF1-34480FN-C20C 500.0 180.0 870.0 850.0 360.0 150.0 13.0 25.0 13.0 DF1-34530FN-C20C DF1-32432FN-C20C DF1-32506FN-C20C Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 21 Frame 1, 2, 3, IP20 / NEMA TYPE 1, Frame4 and above IP00 / UL OPEN TYPE (IP20 option can be selected) The degree of environmen- tal pollution Class of protection Class I Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 22 2. When it is inevitable to arrange inverters vertically to minimize space, take such measures as to provide guides since heat from the bottom inverters can increase the temperatures in the top inverters, causing inverter failures. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 23 At the same time, reducing carrier frequency can effectively reduce the conduction and radiation interference. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 24 4. The DC resistor between +/P and P1 is optional. Please short +/P and P1 when AC resistor is not used. 5.When adding DC reactors, please remove the short circuit piece between P1 and +/P . 6. Please refer to the Section 5.3.9 for wiring of DOH. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 25 4. In case there is any problem on purchasing the “brake unit, ” please feel free to contact us. • Terminal layout of the main circuit terminals • Frame 1 • Frame 2/3 • Frame 4/5/6 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 26 The built-in brake unit of Frame 1,2 and 3 corresponded inverters can have brake resistors. • Brake unit connection Break resister ote: It is only suitable for frame 1, 2 and 3 corresponded inverters. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 27 320~400 DF1-32506FN-C20C 120×2P 120×2P 120×2P 250x2P 250x2P 250x2P DF1-34530FN-C20C 150×2P 150×2P 150×2P 300x2P 300x2P 300x2P DF1-34620FN-C20C 150×2P 150×2P 150×2P 300x2P 300x2P 300x2P DF1-34683FN-C20C 95×4P 95×4P 95×4P 95×2P 4/0x4P 4/0x4P 4/0x4P Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 28 If several inverters are placed together, all inverters must be connected to the common ground. Please refer to the following diagrams and ensure that no circuit is formed between grounding terminals. Best Average Poor Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 29 The invertersof DF1 seriesare equipped with built-in RFI filters.These filters are effective in reducing electromagnetic interference. • Frame 1/2/3 Frame 1 Frame 2 Frame 3 RFI filter ON: screws fastened tightly(default status) RFI filter OFF: screws loosened Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 30 RFI filter shall be cut off if the inverter is installed on an ungrounded power system, a high resistance-grounded (over 30 ohms) power system, or a corner grounded TN system. 4. The RFI filter cannot be cut off when performing the Hi-pot tests. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 31 AC INPUT (DEFAULT) R1 S1 • To support a variety of dc power supply, suitable for uninterrupted power supply (UPS/EPS), dc bus power supply and other occasions. Power Converter Power input Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 32 The public terminal of terminal 10, -10, AI1, AI2, AI3, AO1, AO2 The public terminal of terminal DI1, DI2, DI3, DI4, DI5, Output voltage: 24VDC±20% DI6, DI7, DIH (SOURCE) Maximum current: 200mA Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 33 Source Input: the multi-function control terminal Source Input: the multi-function control terminal is connected with open-emitter PLC and external power supply terminal is shorted directly with PC is connected directly with open-emitter PLC Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 34 1. Please Use a small flathead screwdriver (tip thickness: 0.6mm, width: 3.0mm). If a flathead screwdriver with a narrow tip is used, terminal block maybe damaged. 2. Tightening torque is2.12~3.18kgf.cm, too large tightening torque can cause screw slippage, too little tightening torque can cause a short circuit or malfunction. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 35 “120Ω”, please refer to Section 5.8.1. Inserting 120Ω communicationterminal resister ote: 1. The state with “*” is the default state of switch. 2. The parts in black stand for switch handle. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 36 DF1-32120FN-C20C DF1-32145FN-C20C DF1-32170FN-C20C DF1-34220FN-C20C DF1-34260FN-C20C 137.5 DF1-32215FN-C20C Cooling wind DF1-32288FN-C20CAI2 Dimension of DF1-34310FN-C20C 145.5 the outside of DF1-32346FN-C20C the enclosure DF1-34340FN-C20C DF1-34425FN-C20C DF1-34480FN-C20C 150.0 DF1-34530FN-C20C DF1-32432FN-C20C DF1-32506FN-C20C DF1-34620FN-C20C 181.5 DF1-34683FN-C20C Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 37 Left button, Right button When setting value digit, choose the target digit. WRITE button Writes parameter value, frequency, etc. WRITE Stops the operation commands. STOP/RESET button STOP Resets the inverter for alarm. RESET Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 38 EEPROM after 30s. Alarm record Display the recent four alarm codes. (Read) Inverter version Display the version number of the inverter. (Read) Parameter unit version Display the version number of DXF-KEY-LED. (Read) Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 39 4. Primary Operation For example: From FUNC to Alarm clear menu, the operation flow chart is as follows: Pr CP Er Cl READ FUNC WRITE glitter Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 40 • The operation modes are related to the reference source of the target frequency and the signal source of the motor starting. The Eaton DF1 inverter has a total of ten kinds of operation modes,namely, “PU mode ” , “JOG mode ”...
  • Page 41 4. When in the “browsing alarm record mode, ” indicating lamp will light up, and the screen will display the current alarm code. 5. For alarm codes, please refer to Appendix 2. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 42 0 1 - 0 2 1 2 0 2 0 READ WRITE ote: Neither indicating lamp will light up under the parameter setting mode. Please Use to write the param- eter. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 43 • Turn off STF or STR to decelerate the motor until it comes to a full stop. • Indicating lamp will not turn off until the inverter stops the output voltage. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 44 • Press and the motor will begin to decelerate until it comes to a full stop. RESET • Indicating lamp will not turn off until the inverter stops the output. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 45 • In the second operation mode, the target frequency is determined by 00-17(P .97), and the operation instruction is determined by 00-18 (P .109), please refer to Section 5.1.9. Operation mode selection for related description and Section 4.3.1~4.3.5 for related operation method. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 46 03-00~03-05/P .80~P .84、P .86, 03-06 (P .126), 03-09、03-25~03-30/P .550~P .556, 03-33~03-38/P .559~P .564 for function selection and purposes of the multi-function digital input terminal. For related wiring, please refer to Section 3.3. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 47 Once the voltage is confirmed to be below the safe value, it is safe to touch the circuit inside the inverter. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 48 00-07 P.161 Multi-function display 2: Temperature rising accumulation rate of inverter (%) 3: Target pressure of the constant pressure system (%) 4: Feedback pressure of the constant pressure system (%) Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 49 Reserve Reserve Reserve Frame 1/2/3: 1~15KHz 5 kHz Frame 4/5: 1~9 kHz 4 kHz 00-11 P.72 Carrier frequency Frame 6/7: 1~9 kHz 2 kHz Frame 8: 1~3 kHz 2 kHz Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 50 00-19 P.35 instruction selection 1: Incommunication mode, operating instruction and setting frequency is set by external. 0: Speed control 00-20 P.400 Control mode selection 1: Torque control 2: Position control Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 51 1: The frequency parameter default valueis 50Hz system 0: Parameter is displayed as “group mode” 00-25 P.990 Parameter mode setting 1: Parameter is displayed as “conventional P mode” 00-26 P.125 Expansion card type Read Read Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 52 75K/90KF 3.7K/5.5KF 90K/110KF 5.5K/7.5KF 110K/132KF 7.5K/11KF 132K/160KF 11K/15KF 160K/185KF 15K/18.5KF 185K/220KF 18.5K/22KF 220K/250KF 22K/30KF 250K/280KF 30K/37KF 280K/315KF 37K/45KF 315K/350KF ote: The parameters above are for reading only, not for writing. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 53 P.124 Expansion card version 06-56 P.752 E1 alarm output frequency 13-02 P.285 Low frequency vibration inhibition factor 06-57 P.753 E1 alarm output current 13-03 P.286 High frequency vibration inhibition factor Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 54 When restoring all or some to default values, please be sure that the screen displays , which means parameters has been restored to factory values, and then execute other operations. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 55 AO2 output signal selection 04-26 P.138 Programmed operation mode speed 8 02-49 P.536 AO2 output gain 06-17 P.261 Maintenance alarm function 02-50 P.535 AO2 output bias 06-40 P.288 Alarm code query Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 56 Forward / reverse rotation prevention 00-15 P.78 selection Monitor expanded Slot 2&3 digital input 03-61 P.587 terminal state 00-16 P.79 Operation mode selection 00-26 P.125 Expansion card type Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 57 Capacitor lifetime detection level 01-00 Maximum frequency 06-41 P.289 Alarm code display 01-01 Minimum frequency 06-43 P.291 Alarm message display 06-44 P.740 Monitor noumenon digital input terminal 03-59 P.585 state 06-45 P.741 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 58 00-06 Parameter unit monitoring the output frequency. selection P.11 When the inverter starts, the screen of the parameter unit displays the target frequency. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 59 00-21 (P. 300) = 5 effective) Current target frequency PTC enter the percentage Target pressure and feedback the constant pressure sys- Motor speed Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 60 The machine speed on the screen is the theoretical value calculated proportionately by the inverter output frequency and the ote: setting value of 00-08. So there’s minute discrepancy between the displayed machine speed and the actual one. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 61 RESET Idling braking / linear braking • Idling braking (00-13=“0”) The inverter will terminate the output immediately after the stop siganl is accepted, and the motor will be “racing” Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 62 P.78 prevention selection Forward rotation is prohibited (Press the forward rotation reference to decelerate and stop the motor). ote: It is valid to all start signals. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 63 • When 00-16=3, select communication mode: 1. If 00-19=0, operating instruction and speed instruction is set by communication; 2. If 00-19=1, operating instruction and speed instruction is set by external. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 64 The second motor control 99999 P.370 mode selection Induction motor PG vector control Synchronous motor PG vector control Synchronous motor without PG vector control 99999 The second motor control mode is not selected. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 65 If setting Normal Duty (00-23=“0”), please execute the following steps. Load pattern will be switched after the steps. 1. Set 00-23=0; 2. Execute 00-02 to return to the default value; 3. Execute the reset function of 00-02. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 66 Parameter is displayed as “group mode” 00-25 Parameter mode setting P.990 Parameter is displayed as “conventional P mode” Display Parameter mode setting • “Parameter group” displaying • “Order number” displaying Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 67 SLOT1 is only for communication expansion card; SLOT2 is for PG and IO expansion card; SLOT3 is only for IO expansion card. It will display alarm if the expansion card is inserted into the wrong slot. Please refer to 6.1 Appendix 2: Alarm code list. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 68 99999 99999: invalid 0~650.00Hz 01-17 P.92 Fequency jump 1B 99999 99999: invalid 0~650.00Hz 01-18 P.93 Fequency jump 2A 99999 99999: invalid 0~650.00Hz 01-19 P.94 Fequency jump 2B 99999 99999: invalid Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 69 0~25.00s/0~250.0s S pattern time at the 01-38 P.257 99999 beginning of deceleration 99999: Not selected 0~25.00s/0~250.0s S pattern time at the end of 01-39 P.258 99999 deceleration 99999: Not selected Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 70 60Hz system (00-24=0) 0~1000.0V Set the base frequency voltage according to the motor rating. 01-04 Base frequency voltage 99999 P.19 99999 The base frequency voltage is equal to the power source voltage. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 71 11K/15KF and types above 01-08 Time increment is 0.01s Acceleration/deceleration time P.21 increments Time increment is 0.1s 01-09 50.00Hz 50Hz system setting (00-24=1) Acceleration/deceleration 1.00~650.00Hz P.20 reference frequency 60.00Hz 60Hz system setting (00-24=0) Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 72 01-06×(f2-f0)/01-09. Then if the frequency is set from f2 to f3, a second S-shape acceleration is experienced, and the time is 01-06×(f3-f2)/01-09. Time Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 73 3. RT mentioned in this section is the function name of the “multi-function digital input terminal” . Please refer to 03-00~03-06, 03-09 for function selection and purposes of the multi-function digital input terminal. For related wiring, please refer to Section 3.3. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 74 When 01-12=4, suppose that 01-04=220V, 01-26=5Hz, 01-27=10%, when the inverter is running at5Hz, the output voltage equals to 01-04×01-27=220V×10%=22V. • If RT is “on” , 01-24 “the second torque boost” is valid. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 75 Whether it is high startup torque or descending torque, When P.14 = 5, the value of A is 7.1% (Note 2). they are due to the set values (Note 1). Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 76 VF curveseparation is suitable for all kinds of variable frequency power supply occasions, but the user must be careful when ote: setting and adjusting parameters, inappropriate settings may cause damage to the machine. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 77 (P.15) rotation 01-14 (P.16 ) Reverse 01-14 Time (P.16 ) 01-03 rotation (P.15) 01-09 Press Press (P.20) ote: Please refer to Section 4.3.3 for how to enter the JOG mode. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 78 To avoid system’s mechanical resonance frequency when running the motor, the inverter provides three sets of jump frequencies, namely, 01-16 and 01-17 (the first set), 01-18 and 01-19 (the second set), 01-20 and 01-21 (the third set). Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 79 RT metioned here is the function name of “multi-function digital input terminal” . Please refer to 03-00~03-05/ P .80~P .84,P .86, 03-06(P .126), 03-09 (P .550) for the function selection of multi-function digital input terminal; please refer to Section 3.3 for related wiring. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 80 S pattern time at the begin- 0~250.0s 01-08=1 99999 P.257 ning of deceleration 99999 Not selected. 0~25.00s/ 01-08=0/ 01-39 S pattern time at the end of 0~250.0s 01-08=1 99999 P.258 deceleration 99999 Not selected. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 81 The actual acceleration timeT2 = 4.96 + (0.2 + 0.2) * (60 - 0.5) / 2 / 60 = 5.16s All calculations of acceleration/deceleration time are based on 01-09. ote: Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 82 02-54 (P.541)/02-53(P.539) 7: Output voltage, inverter rated voltage is 100% 8: Excitation current, the motor rated current is 100%. (Valid only when 00-21(P.300) or 00-22(P.370) is set to 3~6) Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 83 The bias rate of AI1 voltage 02-11 P.139 -100.0%~100.0% 0.0% signal The minimum input positive 02-12 P.192 0~10.00V 0.00V voltage of AI1 The maximum input positive 02-13 P.193 0~10.00V 10.00V voltage of AI1 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 84 The maximum input current/ 02-26 P.199 0~20.00mA 20.00mA voltage of terminal AI3 -100.0%~100.0% The percentage correspond- ing to the minimum input 02-27 P.196 0.0% current/ voltage of terminal AI3 -400.0%~400.0% (P.500= 2/14/15/16/17) Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 85 The percentage correspond- 02-41 P.522 ing toDIH input minimum 0.0% frequency -400.0%~400.0% (P.500= 2/14/15/16/17) -100.0%~100.0% The percentage correspond- 02-42 P.523 ing to DIH input maximum 100.0% frequency -400.0%~400.0% (P.500= 2/14/15/16/17) Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 86 0~500.00A: Types below Frame G Current monitoring refer- According to 02-52 P.56 enceat the analog output type 0~5000.0A: Frame G and types above 02-53 P.539 AO2 fixed output level 0~100.0% 0.0% Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 87 1. The default priority level of terminal function selection is AI1 > AI3 >AI2 > DIH, so if you want toset the terminal AI2 as fre- ote: quency reference, 02-00 and 02-01 should be set at 0. 2. The function selection of terminal DIH 02-03 is only valid in the mode of tension. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 88 0~5, 7~13: Same as 02-04. Usage of analog output terminal AM • For the voltage/current calibration of terminal AM, please refer to calibration parameter in Section 5.3.11Selection and handling of output terminal AO1. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 89 2. When the analog current/voltage signal of external terminal AI3 is taken as the proportion linkage input signal, please refer to the parameter 02-20. For the frequency range setting of external analog signal, please refer to the parameters 02-09, 02-21, 02-30, 02-20, 02-08, 02-29. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 90 3. When the analog current/voltage signal of external terminal AI3 is taken as the proportion linkage input signal, please refer to the parameter 02-20. For the frequency range setting of external analog signal, please refer to the parameters 02-09, 02-21, 02-30, 02-20, 02-08, 02-29. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 91 0.0% P.510 tive voltage of termianl AI1 -400.0%~400.0% (P.500= 2/14/15/16/17) -100.0%~100.0% The percentage correspond- 02-19 ing to the maximum nega- 0.0% P.511 tive voltage of termianl AI1 -400.0%~400.0% (P.500= 2/14/15/16/17) Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 92 The parameters above define the relationship between analog input voltage and the setting value what analog input represents. When the analog input voltage exceeds the maximum or minimum range of the setting value, the excess will be computed as the maximum or minimum input. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 93 2-5 P.512=0V, P.513=10V The minimum/maximum input negative voltage of terminal 2-5 P.139 = 0% The bias rate of 2-5 voltage signal - 5V - 10V Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 94 2-5 P.139 = 0% The bias rate of 2-5 voltage signal P.195 = P.511 = 100.0 – (1V / 10V) * 100 - 10V - 1V Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 95 2-5 P.512=0V, P.513=10V The minimum/maximum input negative voltage of terminal 2-5 - 10V P.139 = 0% The bias rate of 2-5 voltage signal voltage 30Hz Reverse rotation area 60Hz Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 96 02-00 for details. 2. The selection of range of voltage signal sampling across terminal AI1 by parameter 02-08 will affect the parameters value of AI1 terminal input signal in this part. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 97 100.0% P.197 current/voltage of terminal AI3 -400.0%~400.0% (P.501= 2/14/15/16/17) Selection and handling of input terminal AI3 • AI3 signal selection and the maximum operation frequency of terminal AI3 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 98 Operating the AI3 terminal function mentioned above, you must flip the switch SW2 to corresponding position at first and make sure it matches the setting value of parameter 02-20. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 99 1. AI2 bolt function applies only to current break line, please pay attention to parameter 02-29 (P . 531) set and the location of the switch SW1. 2. The AI2 terminals function must first toggle switch SW1 to the corresponding position and ensure that match the 02-29 set value. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 100 The frequency computing method of DIH input signal is similar to AI1 analog input, the formula is 01-00 * ((the input frequency– 02-39) *(02-42 - 02-41)/ (02-40 - 02-39) +02-41). Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 101 When 02-43=1, the output is one time of the running frequency. And the inverter can provide the output from 1~650Hz which precision is 1%. The bigger the value of 02-43 and the bigger the running frequency is, the worse the precision will be. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 102 AO1 output signal P.64 selection 0~20mA current can be output across AO1-GND. 4~20mA current can be output across AO1-GND. 02-46 AO1 output gain 3210 0~5000 P.191 02-47 AO1 output bias 0~5000 P.190 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 103 When the pointer moves to the full-scale position, the calibration is completed. When selecting the output signal of terminal AO1, please pay attention to the switch of SW3. If 4~20mA output current is ote: selected, please switch SW3 to 0~20mA. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 104 The setting frequency of 02-51 is 100%, which corresponds to the maximum output of AM/FM. • The setting frequency of 02-52 is 100%, which corresponds to the maximum output of AM/FM. The factory value of 02-52 is determined by motor types. ote: Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 105 02-58 setting the time, the output frequency of the inverter will decrease to the setting frequency of 02-57 . • When the input voltage of PT100 is larger than the setting value of 02-46, it will operate according to the setting of 06-15. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 106 02-59 downward, and the screen will display a progressively decrease of the FM correction index. Press WRITE more than 1 second and the pointer will move downward. R=18~22kΩ Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 107 STF-STR terminal) 32: REX (multi-speed set (16 levels)) 33: PO (in “external mode”, programmed operation mode is chosen) 34: RES_E (external reset become valid only when the alarm goes off.) Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 108 70: entire position control pulse input command can make 71: External torque command polarity reverse 99999: Not choose in addition of terminal function 03-01 P.84 DI2 function selection Same as 03-00 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 109 Same as 03-10 03-13 P.130 R2C-R2M function Multi-function termi- 03-14 P.87 nal digital input nega- 0~1023 tive/positive logic Multi-function terminal digital output 03-15 P.88 negative/positive 0~4095 logic (noumenon and slot 3) Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 110 (Slot 2&3) Expanded digital 03-42 P.568 output terminal A10 Same as 03-10 99999 (Slot 3) Expanded digital 03-43 P.569 output terminal A11 Same as 03-10 99999 (Slot 3) Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 111 Slot 3 Read Read output terminal state Monitor expanded 03-61 P.587 Slot 2&3 digital input Read Read terminal state Monitor expanded 03-62 P.588 Slot 2 digital output Read Read terminal state Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 112 STOP (it can be used as a three-wire mode with the RUN signal or the STF-STR terminal) REX (multi-speed set (16 levels)) PO (in “external mode”, programmed operation mode is chosen) Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 113 Single point positioning can make Multipoint positioning can make entire position control pulse input command can make External torque command polarity reverse 99999 Not choose in addition of terminal function Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 114 The operation of the inverter can be controlled by four means (“1” for terminal close, “0” for terminal open, and X = 0, 1, 2, 3, 4, 6). 1) Two-wire control mode 1 Operating Instructions STF (P.8X=0) Stop STR (P.8X=1) Run Forward Run Reverse Stop Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 115 (The PWM period within 0.9ms ~ 1100ms admissible) PWM period PWM period ON(Tr) OFF(Tr) ON(Tr) OFF(Tr) The resolution between PWM signal and frequency command ON time Frequency command （Hz）= × upper limit frequency P.1 (Hz) PWM period Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 116 ORGP origin input. When the switch of this function operates, the inverter will execute the home moving function according to 12-00, 12-01 and 12-02. • External switch zero-servo When the contact is ON, zero-servo function is valid. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 117 Through the input terminal of the on/off switch to the direction of rotation of the torque instruction. ote: The setting valve of “41” , “54” and “57” is for DIH terminal only. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 118 For multi-function relay R2O-R2C-R2M, the default setting value of 03-13 is 0 (i.e., the run function). When the value of 03-13 is revised, its function will change respectively according to the function listed in the table above. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 119 When “STF” and “STR” terminals are set as negative logic, but signal is not connected with D-C, with power on, inverter will input and drive motor operate. So it is dangerous, you must pay attention to it. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 120 When 03-18=0, make these terminal short circuit before turning on the power, and the inverter will run immediately after the power is turned on. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 121 Output signal In this paragraph, SU, FU is the function name for “multi-function digital output terminal”DO1, DO2. Please refer to 03-10 ~ ote: 03-13. For wiring, please refer to Section 3.3. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 122 Same as 03-00 Same as 03-00 P.556 terminal M15 (SLOT 3) Expanded digital input terminal SLOT3 • The function is the same as the digital input function, please refer to Section 5.4.1. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 123 P.567 (Slot 2&3) Expanded digital input terminal logic • The definiton of each 03-41 (P .567) bit is as follows: SLTO 2 expanded SLOT 3 expanded digital input digital input Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 124 Same as 03-10 Same as 03-10 P.583 terminal A17 (SLOT2) Expanded digital output terminal functionSLOT2 • The function is the same as the digital output function, please refer to Section 5.4.2. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 125 SLOT 3 output Read Read P.586 terminal state 03-61 Monitor expanded SLOT 2&3 Read Read P.587 digital input terminal state 03-62 Monitor expanded SLOT 2 Read Read P.588 digital output terminal state Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 126 Insert the expansion cardinto SLOT2;after the inverter operates to the target frequency,each bit state of 03-62 is as follows,indicating the output of A17 and A10. So 03-62=1×27 + 0×26 + 0×25 + 0×24 + 0×23 + 0×22 + 0×21 + 1×20 = 129 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 127 Programmed operation 04-24 P.136 0~650.00Hz 0.00 Hz mode speed 6 Programmed operation 04-25 P.137 0~650.00Hz 0.00 Hz mode speed 7 Programmed operation 04-26 P.138 0~650.00Hz 0.00 Hz mode speed 8 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 128 04-40 P.116 mode speed 6 Acc/Dec 0~600.00s/0~6000.0s 0.00s time Programmed operation 04-41 P.117 mode speed 7Acc/Dec 0~600.00s/0~6000.0s 0.00s time Programmed operation 04-42 P.118 mode speed 8 Acc/Dec 0~600.00s/0~6000.0s 0.00s time Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 129 99999 Same as 04-03 Same as 04-03 P.147 04-13 Speed 14 99999 Same as 04-03 Same as 04-03 P.148 04-14 Speed 15 99999 Same as 04-03 Same as 04-03 P.149 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 130 03-03=2, select the DI4 terminal to perform the RL (function).Please refer to 03-00~03-06 and 03-09 for function selection and purposes of the multi-function digital input terminal. For related wiring, please refer to Section 3.3. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 131 Programmed operation mode 0.0s 0~6000.0s P.104 speed 4 operating time 04-31 Programmed operation mode 0.0s 0~6000.0s P.105 speed 5 operating time 04-32 Programmed operation mode 0.0s 0~6000.0s P.106 speed 6 operating time Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 132 1. The calculation of runtime and acceleration/deceleration time in each section is presented in the figure below: frequency P.111 P.112 P.113 P.114 P.116 P.118 P.117 P.115 P.118 P.101 P.102 pause P.103 P.104 P.105 P.106 P.107 P.108 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 133 4. The rotation of the manual operation cycle mode is unilateralism. It has nothing to do with 04-16 or the signals of STF and STR. 5. For the setting of 04-35~04-42, please refer to 01-08 for the usage of the acceleration/deceleration time unit. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 134 According to 05-13 P.314 PM motor d-axis inductance 0~650.00mH type According to 05-14 P.315 PM motor q-axis inductance 0~650.00mH type PM motor Back-EMF According to 05-15 P.316 0~6500.0V/krpm coefficient type Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 135 0~65000mΩ: 45K/55KF and types below The second motor (PM) 05-33 P.343 0~650.00mΩ: 55K/75KF and types above 99999 stator resistance 99999 0~650.00mH The second motor (PM) 05-34 P.344 99999 d-axis inductance 99999 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 136 Induction motor parameters automatic measurement [Measurement of selection motor is not running] Synchronous motor parameter auto-tuning function Synchronous motor Phase Z position auto-tuning function Synchronous motorthe rotation inertia auto-tuningfunction. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 137 • When setting 00-21 to 5, if change the encoder or the motor UVWwiting order, please make sure to set 05-00 to 9, excuting PM motor Phase Z auto-tuning function. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 138 3 or 4, first set the motor parameters or the auto-tuning function to improve the control accuracy. 4. When 05-00=1 and the mode of close-loop V/F control (VF + PG) is selected, please make sure that the motor poles 05-02 is correct. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 139 PM motor Phase Z origin 0.0° 0~359.9° P.317 pulse compensation 0~6.5000kg.m 5.5K/7.5KF and types below 05-17 According to Rotation inertia 0~65.000kg.m 7.5K/11KF~ 90K/110KF types P.318 type 0~650.00kg. m 110K/132KF and types above Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 140 09-01 and 09-02. If there is motor vibration when tuning, please decrease the setting value of 11-00. 3. When any or many values of 05-01~05-11 are manually revised, reset the inverter to reload the new values of the parameters. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 141 55K/75KF and types above P.339 resistance 99999 Not selected 0~65000mΩ 45K/55KF and types below 05-30 The second motor (IM) rotor 99999 0~650.00mΩ 55K/75KF and types above P.340 resistance 99999 Not selected Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 142 When 00-22 ≠ 99999, RT signal is ON, the second motor parameters 05-22~05-38 are valid, please refer to Section 5.2.10 for the second function parameter. • For the usage of the second motor parameter, please refer to 05-01~05-17 motor parameter setting. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 143 X3: The fan will be turned on when the temperature of the heat sink is higher than 60ºC. When it is lower than 40ºC, the fan will be turned off. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 144 06-28 P.293 0~9999day 0day time (days) Accumulative motor power time 06-29 P.296 0~1439min 0min (minutes) Accumulative motor power time 06-30 P.297 0~9999day 0day (days) 06-40 P.288 Alarm code query 0~12 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 145 E2 alarm the inverter operation 06-76 P.772 Read Read status code 06-77 P.773 E2 alarm (years/months) Read Read 06-78 P.774 E2 alarm (days/hours) Read Read 06-79 P.775 E2 alarm(minutes/seconds) Read Read Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 146 However, if the difference between the output frequency and the motor speed is too great, the motor torque will decrease, a phenomenon known as “stall” . Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 147 1.When 00-21=3 for sensorless vector control is selected from 00-21 control method, 06-01 will be used for the torque limited horizontal operation. 2. When 06-04=2, if 01-22 is not set, acceleration time is 01-07; if 01-23 is not set, deceleration time is 01-07 . Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 148 440V type heavy duty (HD) Applicable frame below： Load (%) ： 0.75K~15K ： 18.5K~75K ： 90K~315K Carrier (KHz) 440V type normal duty (ND) Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com Applicable frame below： Load (%) 0.75K~15K ：...
  • Page 149 Applicable frame below： Load (%) ： 0.75K~11K ： 15K~37K ： 45K~75K Carrier (KHz) 220V type normal duty (ND) Applicable frame below： Load (%) 0.75K~11K ： 15K~37K ： 45K~75K ： Carrier (KHz) Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 150 03-10, 03-11 and 03-12~03-13 in Chapter 5. full load current level 100% Output current(%) P.155 Invertor display the OL2 alarm,and the output stopped,the motor stopped too . time P.156 output (Overload alarm ) Reset signal Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 151 “No fan alarm for abnormal fan, but the output alarm of the output terminal” is needed, then 06-12 should be set to ote: Proper setting for decreasing the fan operating time according to the inverter installing condition can extend the fan lifetime. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 152 Set 06-14 to 0 to cancel the output end short-circuits protection function. • Set 06-14 to1, short circuit protection function is valid; the inverter will output “SCP” alarm when detecting the SCP short circuit. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 153 It needs to set AI1/AI3/AI2 analog input function 02-00~02-02 to 11 (P .T.C. thermistor input value).It is used to set the PTC level, and the corresponding value for 100% is maxanalog input value. R=2kΩ 10kΩ PTC Electronic input wiring diagram PT100 PT100 Electronic input wiring diagram Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 154 Output phase failure protection • The inverter output phase failure protection: when 06-20=“1” , output phase failure, the inverter will display “LF”; when 06-20=“0” , the function will be canceled. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 155 Detect the percentage of the capacitor value and the factory decetion Detection percentage 100.0% 0~100.0% P.709 value. No abnoamal signal. 06-26 Capacitorlifetime Read Electrolytic capacitor abnormal. (the capacitor value is less than the 85% P.710 detection result of factory value) Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 156 1. The capacitor temperature will affects the capacity; please wait three hours or longer after turning OFF . 2. Capacitor lifetime detection can only be operated under V/F mode. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 157 When 06-42(P.290) = 9, 06-43(P.291) corresponds to the day and hour when the No.06-40(P.288)alarm goes off. When 06-42(P.290) = 10, 06-43(P.291) corresponds to the minute and second when the No.06-40(P.288)alarm goes off. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 158 Set 06-42(P .290) to 8,9,10, selecting 06-43(P .291) display alarmyear and month, day and hour, minute and second is valid only when DXF-KEY-LEDC is used as an option board. If DXF-KEY-LED is used, these thress selections are invalid. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 159 The eleventh alarm code E11 Read Read P.750 06-55 The twelve alarm code E12 Read Read P.751 Alarm code • For the alarm corresponded alarm code, please refer to Section 5.7 .19. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 160 Set 06-63(P .759)~06-65(P .761) to display the alarm year and month, day and hour, minute and secondwhich is valid only when DXF-KEY-LEDC is used as an option board in alarm. If DXF-KEY-LED is used, these thress selections are invalid. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 161 Set 06-77(P .773)~06-79(P .775) to display the alarm year and month, day and hour, minute and second which is valid only when DXF-KEY-LEDC is used as an option board in alarm. If DXF-KEY-LED is used, these thress selections are invalid. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 162 Value settings 0: Modbus protocol COM1 Communication 07-00 P.33 1: Eaton protocol protocol selection 2: PLC protocol (Effective when using the Eaton built-in PLC) COM1 Converter 07-01 P.36 0~254 stations 0: Baud rate: 4800bps 1: Baud rate: 9600bps 2: Baud rate: 19200bps...
  • Page 163 14: Error state 0: Modbus protocol PU Communication 07-25 P.810 1: Eaton protocol protocol selection 2: PLC protocol (Effective when using the Eaton built-in PLC) 07-26 P.811 PU converter stations 0~254 0: Baud rate 4800bps 1: Baud rate 9600bps 2: Baud rate 19200bps...
  • Page 164 07-53 P.838 Subnet mask 4 0~255 07-54 P.839 default gateway 1 0~255 07-55 P.840 default gateway 2 0~255 07-56 P.841 default gateway 3 0~255 07-57 P.842 default gateway 4 0~255 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 165 Actual implementation sets is determined by the wiring way and imped- 07-26 PU converter stations 0~254 ance matching.When using the Modbus protocol please its value is set P.811 to non-zero value. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 166 - error handling no alarm and keep on running Outside enlarge com- 0~999.8s set data communication timeout inspection 07-43 munication cartoon 99999 P.828 dispatch interval 99999 No timeout inspection allowable time Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 167 The DF1 inverters have two communication protocols for selection, namely, Eaton protocol and Modbus protocol. Parameter 07-02, 07-01, 07-08, 07-09 and 07-10 are suitable for both protocols. 07-03~07-06 is only suitable for the Eaton protocol, while 07-07 is only suitable for the Modbus protocol. Please refer to communication protocols for more details.
  • Page 168 Data number Format Inverter station Check code Sum End symbol E(No data error) STX*1) Data read-out Unit *4) number check*7) Inverter station Error code End symbol D(With data error) NAK*1) number Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 169 Step 1: Use the host computer to send a FA reference in Format A: Inverter station Reference code Waiting Data Check code number time H0002 Sum Check H30 H30 H46 H41 H30 H30 H30 H32 H44 H39 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 170 Step 4: Once the inverter receives and processes the data without error, the value of 02-15(P .195) will be sent tothe host computer in Format E: Inverter station number Read-out data Check code Unit H1770(60Hz) Sum Check H30 H30 H31 H37 H37 H30 H36 H31 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 171 MODBUS serial transmission can be divided into two types:ASCII(American Standard Code for Information Interchange) and RTU(Remote Terminal Unit). Response time for INV Single PC （Master） Query Msssage Response Message INV（Slave ） ASCII ：CR 、 LF RTU ：wait times >= 10ms Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 172 Changes, including the starting address, the number of the write-in or read-out registers, and the write-in data, are ④Data message set made according to the function codes. ④Error check ASCII is the check method for LRC, while RTU is the check method for CRC. message set Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 173 2. Data write-in (H06) Mode Start Address*1) Function*2) Start Address*3) Write-in data*4) Check Stop ASCII 2char 2char 4char 4char 2char 0D 0A >=10ms 8bit 8bit 2byte 2byte 2byte >=10ms Regular response Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 174 The subroutine code H00 (for inquiring the return of data) The query information Mode Start Address*1) Function*2) Subroutine *3) Data *4) Check ASCII 2char 2char 4char 4char 2char 0D 0A >=10ms 1byte 1byte 2byte 2byte 2byte >=10ms Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 175 When the inverter is receiving data, the host computer sends the next set of data before the inverter finishes Overflow error receiving the current one. Error test The LRC/CRC calculated by the inverter according to the received data is different from the received LRC/CRC. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 176 Starting Address Function Starting address Number of registers Check Stop ASCII H30 H31 H30 H33 H30H30 H30 H30 H30 H30 H30 H43 H46 H30 0D 0A >=10ms 45 CF >=10ms Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 177 00-18 of 00-17 the second operation mode. H0000~H00FF b15: during tuning b14: during inverter resetting Inverter status monitoring H1001 b13, b12: Reserve b11: inverter EO status b10: PLC operating Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 178 H9696: function of 00-02=2/P.997=1. H06/ When communicating with the host computer, resetting the Inverter reset H1101 inverter will cause the inverter to be incapable of sending data back to the host computer. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 179 (RT) b5: high speed (RH) H06/ Operation reference write-in H1001 b4: medium speed (RM) b3: low speed (RL) b2: reverse rotation (STR) b1: forward rotation (STF) b0: reserve. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 180 H000A: P.1000~P.1099 reading and H000B: P.1100~P.1199 H000C: P.1200~P.1299 writing Parameter group mode: H0064: 00-00~00-99; H0065: 01-00~01-99; H0066: 02-00~02-99; H0067: 03-00~03-99; Write H0068: 04-00~04-99; H0069: 05-00~05-99; H006A: 06-00~06-99 H006B: 07-00~07-99 H006C: 08-00~08-99 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 181 1. Communication P parameters includes 07-02(P .32), 07-00(P .33), 07-01(P .36), 07-03(P .48)~ 07-09(P .53), 00-16(P .79), 07-10(P .153) and 07-07(P .154). 2. For the table 1 and table 2, please refer to Section 5.1.2. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 182 Content Value Parameter values written by communication are written to the EEPROM and RAM. 07-11 Communication EEPROM P.34 write selection Parameter values written by communication are written to the RAM. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 183 Quick stop active state Err reaction activation state Error state Canopen protocol • Parameters07-17 and 07-18 are for read only, which are usedto monitor the state of Canopen communication expanded board. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 184 P.841 07-57 Default gateway 4 0~255 P.842 Ethernet communication Settings • At 07-45 ~ 07-57 on the number of parameters, please refer to the DXF-NET-ET EtherNet communication expansion card specifications. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 185 0:Adjust according to the feedback deviation value 1: Adjust according to the curling radius. Auto adjustment for PID param- 08-23 P.644 eters 2: Adjust according to the operation frequency 3: Adjust according to the line speed Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 186 P.727 PID enable reverse run operation 1: PID reverse run is allowed. PID in reverse direction integral 08-41 P.728 0~100.0% 0.0% limit 08-42 P.729 PID minimum output frequency 0~10.00Hz 0.00Hz Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 187 For input signal filtering of terminal AI1, terminal AI2 and terminal AI3, please refer to the instructions for 02-10. ote: When selecting the target source and feedback source, please pay attention to the setting of 08-00 and 02-00~02-02, the termi- nals’ priority are AI1 > AI3 >AI2 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 188 (in seconds) for 0.50Hz 0~10.00Hz P.183 with stable pressure stopping the machine for detection is reached, the inverter will take the 08-15 (P.183) step to reduce the frequency. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 189 It indicates that the PID target value is given by the current of terminalAI3(4~20mA). If 8mA is given by the user, the corresponding given proportion is (8-4)/ (20-4) * 100.0= 25.0 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 190 40Hz, the inverter will directly decelerate and stop. When the feedback value lower than 90% of the target feedback value, the inverter will wake up and the output frequency will again be controlled by PID. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 191 00-02 or turn down the power. 2. When selecting the target source and feedback source, please pay attention to the setting of 08-00 and 02-00~02-02, the ter- minals’ priority are AI1>AI3>AI2. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 192 The relationship between PID auto adjustment basis and PID parameters is shown as following diagram: PID Paraneters P172/P173/P174 P641/P642/P643 Auto adjustment basis for PID parameters The minimum Adjustment basis The maximum adjustment basis during the process adjustment basis Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 193 When 08-28 is set to 1, integral separated function is valid, when the deviation between PID target and PID feed- back is larger than the value of 08-29, only PID proportion and differential operate, which canhelp to reduce the PID overshoot. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 194 Two groups of PID parameters can switch automaticaccording to deviation, as the figure shows below: Group 2 of PID parameters P.641、P.642、P.643 PID deviation P.721 P.722 absolute value Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 195 PIDreverse run is not allowed, 08-41 is set to 0. • 08-42 is used to PIDcalculation minimum output frequency, when the output is smaller than the value, the inverter output stops. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 196 Phase Z DV1/DV2 alarm-enabled 1: Phase Z DV1/DV2 alarm is valid 0: Break line detection is invalid DXF-ENC-302 Hardware break line 09-16 P.386 detection 1: Break line detection is effective Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 197 Phase A is a pulse train. Phase B is a direction sign. L is reverse rotation and H is forward rotation. Phase A is a pulse train. Phase B is a direction sign. L is forward rotation and H is reverse rotation. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 198 When 00-21=5, execute the PM motor closed-loop vector control. 4. When 10-03=1, zero-speed operation is executed under the closed-loop control; DC voltage brake is executed under the V/F closed-loop control. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 199 In position mode, when 09-07 is not set to 0, the position command is the pulse input of A2/B2(target position=A2B2 pulse number*09-10);After the inverter starts, the actual rotation direction of the motor is deter- mined by the value of 09-07 , forward/reverse command and A2/B2 phases. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 200 09-08is the multiple setting for the feedback and output of PG card. If the feedback is 1024PPR and 09-08 is set to 2, the output of PG OUT (pulse output) on PG card is 512PPR. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 201 Setting Range Content Value 09-13 It is used to display the current firmware version or type of Expansion card version Read Read P.124 the inverter/Expansion card which is readable only. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 202 PhaseZDV1/DV2 alarm enable • DV1 is phaseZ pulse lose alarm，DV2 is phaseZ noise detectin alarm, When 09-15（P .364）is 0,can cancel DV1, DV2 alarm. It is valid only 00-21(P .300)=5 ote: Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 203 0~30.0s 10-09 P.57 Restart coasting time 99999 99999: No restart function. 0~60.0s: 7.5K/11KF(included)and types below. 5.0s 10-10 P.58 Restart cushion time 0~60.0s: 11K/15KF~55K/75KF types 10.0s 0~60.0s: 75K/90KF(included)and types above. 20.0s Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 204 P.234 function selection valid. 2: The triangular wave function is effective at any given time. 10-24 P.235 Maximum amplitude 0~25.0% 10.0% Amplitude compensa- 10-25 P.236 0~50.0% 10.0% tion for deceleration Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 205 1 0~360.00s/0~3600.00s: Set the Dec time starting at10-38(P.278) anddownward. Power-failure decel- 10-37 P.277 99999 eration time 2 99999: Set the Dec time to the setting frequency of 10- 38(P.278). Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 206 0~400.0% / 0~40.0% 100.0% coefficient 0: Overexcitation deceleration is invalid. Overexcitation decel- 10-51 P.264 eration 1: Overexcitation deceleration is valid. Overexcitation current 10-52 P.265 0~200.0% 150.0% level Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 207 1: Erase the PLC program, after the success of the erasure parameter value is 0 PLC Monitor choosing 10-58 P.783 0~326 component PLC Component Read 10-59 P.784 Read monitoring value Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 208 1. To achieve the optimum control characteristics, 10-01 and 10-02 should be set properly. 2. If any of 10-00, 10-01 and 10-02 is set to 0, DC injection brake will not operate, i.e., the motor will coast to stop. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 209 Avoid using zero servo to lock 100% load for long periods, as this can trigger a fault. If such loads need to be held in place for long periods, either make sure the current is less than 50% of the drive rated current during Zero Servo, or use a larger capacity drive. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 210 See the figure below: Output frequency P.13 Time P.243 braking voltage P.244 Time P.243 ote: This function is only valid under the V/F mode; i.e., it is effective when 00-21=0 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 211 Once the motor is restarted automatically, the output frequency of the inverter will be the target frequency, but the output voltage will be zero. Then the voltage will be increased gradually to the expected voltage value. The period for voltage increase is called “Restart cushion time (10-10)” . Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 212 (Hz) Inverter output voltage E (v) Coasting time Restart cushion time + Testing time P.57setting P.58 setting * The output shut off timing differs according to the load condtion Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 213 Forward rotation Acceleration Deceleration Clear 2. In the remote setting, the output frequency of the inverter is: (frequency setting by RH/RM operation + external setting frequency other than multi-speeds/PU setting frequency) Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 214 Please verify the functions of the terminals before changing the options and functions of the multi-function digital input terminal (please refer to 03-00~03-05, 03-06 and 03-09). For wiring, please refer to Section 3.3. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 215 If 10-15 is rewritten with 0, the number of retry executed is cleared. ote: The inverter will perform retry only after the retry waiting time of 10-14.Therefore when using this function, please be aware of the possible danger when operating the inverter. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 216 Please slightly prolong the deceleration time. 3.For big load purposes or machines with frequent acceleration/deceleration, the energy-saving effect may be poor. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 217 Shown as the figure below: Backlash compensation function Output frequency P.232 P.230 P.13 time P.231 P.233 ote: The setting of the backlash compensation will only prolong the acceleration/deceleration time during the period of interruption. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 218 Acc/Dec stopping function P.233 P.231 P.232 P.230 Start Three-wire control mode Stop ote: The setting of the backlash compensation will only prolong the acceleration/deceleration time during the period of interruption. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 219 2. If the amplitude compensation, i.e., 10-25 and 10-26, is too big, over-voltage will be tripped off and the stall prevention action will be executed automatically. Consequently, the setting method will not be carried out. 3. This function is only valid under the V/F mode; i.e., it is effective when 00-21=0. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 220 1. Assume that 03-03 = 37 , 03-04 = 38, 03-10 = 10 and 03-12= 9. The wiring diagram is presented below: R/L1 U/T 1 S/L2 V/T 2 T/L3 W/T3 DC24V Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 221 1. No action sequence for the automatic switchover sequence (10-31 = 99999). Power supply MC 2 MC 1 P.248 P.58 P.247 P.247 P.57 the commercial power-supply operation The motor speed Inverter Free Inverter Free stop operation operation operation operation Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 222 3. This function is only valid under the V/F mode; i.e., it is effective when 00-21=0. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 223 01-09 Acceleration/deceleration reference frequency.) 10-38 is the switch frequency between power-failure deceleration time 1 and power-failure deceleration time 2;If10- 37 is not set, the motor still decelerates for the time set to 10-36. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 224 VF complete separationindicates the time accelerates from 0 to the rated motor voltage. t1 (10-42). Voltage deceleration time of VF complete separation indicates the time decelerates from the rated motor voltage to0. t2 (10- 43). Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 225 10-49 set point (P. 271), or ance frequency gain 100.0% P.272 0~40.0% failing to reduce vibration, please reduce 10-50 set point (P. 272). coefficient Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 226 2. When a run command is entered during overexcitation deceleration, overexcitation operation is cancelled and the drive will reaccelerate to the specified speed. 3. When PM motor is used, overexcitation deceleration function is invalid. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 227 • P . 780 = 1 PLC running state P.781 External PLC_ON_STOP signal PLC state STOP • P .780 = 2 PLC running state External PLC_ON_STOP signal PLC state STOP Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 228 C0~C7 Set value M112~M127 77~84 keep M128~M143 85~92 T0~T7 Set value (word) M144~M159 93~100 keep M160~M175 101~108 C0~C7 Set value (word) M176~M191 109~116 keep M192~M207 117~164 D0~D47 M208~M223 165~326 D8000~D8161 M224~M239 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 229 0~2000.0 100.0 11-24 P.413 Zero speed integration time 0~20.00s 0.30s 11-25 P.414 Zero speed switching frequency 0~650.00Hz 5.00Hz 0~2000 The second motor speed control 11-30 P.371 proportion coefficient 1 99999 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 230 0 ~ 100 bandwidth coefficient PM Motor current loop bandwidth 11-46 P.384 0~100 coefficient at low speed PM Motor current loop bandwidth 11-47 P.385 0~100 coefficient at a high speed Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 231 2. Reduce speed control integral coefficient 11-01 or 11-04 to shorten the time required to go back to the original speed. But if the value is too small, overshoot can happen. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 232 • 11-11 is PM motor speed observerfilter time coefficient. Usually, it is not necessary to adjust. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 233 Modbuscommunication addressH100D when 11-16 is set to 2. When the Modbus commu- nication address H100D is set to -10000~10000, it represents -100%~100% of the motor rated torque. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 234 11-19~11-22 are set to 100.0%, corresponding to vector control, the inverter max output torque is the motor rated torque. , P(W) is on the basis of 05-01, ω(rad/s) can be • The motor rated torque calculating method: worked out according to the parameter05-06 (P .307): Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 235 When 00-22 ≠ 99999 and RT signal is ON, the second motor control parameter 11-30~11-36 are valid. Forthe second function parameter, please refer to Section 5.2.10. • Please refer to 05-22~05-38 for the second motor parameter. • For the parameter setting, please refer to 11-00~11-06 parameter function. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 236 Setting a PM motor SVC model (00-21 = 6), if the motor run abnormal, you can manually adjust 11-43, 11-44 , even- tually making PM motor SVC mode stable operation. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 237 Accordance with the requirements of responsive adjustment in 11-45, 46, 11-11-47 , the setting, the greater the cur- rent loop response faster, but may be volatile, low electromagnetic noise lead to the motor. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 238 Number of pulses position command 12-29 P.459 -30000~30000 Number of turns position command 12-30 P.460 -30000~30000 Number of pulses position command 12-31 P.461 -30000~30000 Number of turns position command 12-32 P.462 -30000~30000 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 239 Number of turns position command 12-46 P.476 -30000~30000 Number of pulses position command 12-47 P.477 -30000~30000 Number of turns position command 12-48 P.478 -30000~30000 Number of pulses position command 12-49 P.479 -30000~30000 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 240 Homing mode setting table(√represents setting is available,×represents setting is unavailable) √ √ × × √ √ × × √ √ √ √ • Take u=2, x=0 as example, speed of Homing corresponded position sequence Diagram: Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 241 Speed Position Z pulse ORGP SHOM 2. y=0、z=1 Speed Position Z pulse ORGP SHOM 3. y=1、z=0 Speed Position Z pulse ORGP SHOM 4. y=1、z=1 Speed Position Z pulse ORGP SHOM Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 242 7 . y=2、z=2 Speed Position Z pulse SHOM 8. y=2、z=3 Speed Position Z pulse SHOM • Origin of pulse offset: according to the motor forward direction set origin pulse offset pulse number. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 243 The difference between the motor actual position and position command is smaller than the setting value of the position attained margin12-09(P .429), which is regarded as position attained. If the function setting of multi-function digital output terminal is 21, the multi-function digits will output signals. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 244 Second command position Second command position （6000pulse） （6000pulse） ote: Please refer to 03-10~03-13 for function selection and purposes of the multi-function digital output terminal. For related wiring, please refer to Section 3.3. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 245 Frequency PG feedback DI4=68 DO1=21 Time Figure 1.1 single point positioning can make before operation Frequency PG feedback DI4=68 DO1=21 Time Figure 1.2 single point positioning can make during operation Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 246 8 12-35 Number of pulses -30000~30000 P.465 position command 8 12-36 Number of turns -30000~30000 P.466 position command 9 12-37 Number of pulses -30000~30000 P.467 position command 9 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 247 RL, RM, RH and REX here are the function names of “Multi-function digital input terminal” . Please refer to 03-00~03-06 and ote: 03-09 for function selection and purposes of the multi-function digital input terminal.For related wiring, please refer to Section 3.3. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 248 13-00 P.89 Slip compensation coefficient 0~10 13-01 P.246 Modulation coefficient 0.90~1.20 1.00 Low frequency vibration inhibition 13-02 P.285 factor High frequency vibration inhibition XX00~XX15 13-03 P.286 factor 00XX ~15XX Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 249 When the motor load is light, current flow may happen at certain specific operation frequency. This situation may cause the ote: motor to vibrate slightly. The user can neglect it if this trivial vibration has no impact on the application. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 250 1: Initial curling radius is set by the analog value. 14-16 P.614 Initial curling radius 1 1~10000mm 100mm 14-17 P.615 Initial curling radius 2 1~10000mm 100mm 14-18 P.616 Initial curling radius 3 1~10000mm 100mm Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...

  • Page 251: Table Of Contents

    0: amplitude limitingis based on the motor rated power Tension closed-loop limite 14-46 P.658 amplitude of benchmark 1: amplitude limitingis based on system real-time line speed Tension in closed-loop limite 14-47 P.659 0.0%~100.0% 0.0% amplitude of the bias Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 252 During the roll-down, the frequency for inverse take-up can be limited by setting the upper limit frequency. • 14-03 is the mechanical transmission ratio. Mechanical transmission ratio=motor rotation speed/winding shaft rota- tion speed, the mechanical transmission ratio must be correctly set during the tension control. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 253 D1 is the taper compensation correction of 14-10 set tension, and K is the tension taper. • 14-10is the taper compensation correction of tension which can relay the reduction curvature of tension. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...

  • Page 254: Maximum Thickness

    14-24 Material thickness0 0.01mm 0.01~100.00mm P.622 14-25 Material thickness1 0.01mm 0.01~100.00mm P.623 14-26 Material thickness2 0.01mm 0.01~100.00mm P.624 14-27 Material thickness3 0.01mm 0.01~100.00mm P.625 14-28 Maximum thickness 1.00mm 0.01~100.00mm P.626 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 255 4. When 14-23 =0, the system default material thickness is determined by the parameter 14-24. The different mate- rial thickness source can also be selected by the combination of digital input terminals and 14-24~14-27 , the selec- tion relationship is as follows: Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...

  • Page 256: Line Speed Inputsource

    20% of maximum line speed. • 14-32is used to display the actual line speed in real time. The current actual line speed can be known by the param- eter. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...

  • Page 257: Mechanical Inertia Compensation Coefficient

    And not in all situations can the material supply interrupt be detected effectively. If good result can not be achieved after proper effort, set 14-37 to 0. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 258 2. Torque memory signal Before replacing the roll, the torque memory signal makes the replacing lower roll inverter remember the current output torque for the use of later process. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 259 The maximum line speed 14-30(P .628) must be set correctly now. The maximum of analog value or pulse input cor- responds to the maximum line speed. • The line speed is obtained by communication mode.(14-44=“2”) It is set by the Modbuscommunication address H100B which setting range is0~6500.0m/min. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 260 Under the closed-loop speed control mode, PID regulator limiter bias is set by the 14-47 . If this parameter is set to 0, when the system is zero velocity, the controller will not work. So setting bias is appropriate, which can avoid this problem. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 261 15-15 P.915 User registered parameter16 99999 15-16 P.916 User registered parameter17 99999 15-17 P.917 User registered parameter18 99999 15-18 P.918 User registered parameter19 99999 15-19 P.919 User registered parameter20 99999 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 262 User registered parameter 15-14 99999 P.914 User registered parameter 15-15 99999 P.915 User registered parameter 15-16 99999 P.916 User registered parameter 15-17 99999 P.917 User registered parameter 15-18 99999 P.918 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 263 01-06 (P . 7), "order number", registration number parameters for p. 7 , set p. 900 = 7;In "parameter set" mode, the parameters of the registration number of 01-06, set 15-00 = 106. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 264 Overheated IGBT module Check whether the set value of 06-00(P.9) is correct or not (according to the externally Electronic thermal relay operation connected motor). Overheated motor Reduce load. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 265 Reduce motor load. Stall prevention and Over-loaded motor Increase 06-01(P.22) value. protection Check whether the inverter output has short circuit Output-end short circuit (e.g., the motor wiring). Short circuit over-current Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 266 1. Check the PG card connection with encoder PG Abnormal communication 2. Confirm whether the encoder can work normally PG cartoon - error Abnormal encoder model Check the set value of 09-02 (P.351). Abnormal encoder model Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 267 Please check whether UVWthree-phase output nor- Three- phase output abnormal mal or not. Error in hardware detection Return it to the factory for repair. Hardware detection error Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 268 Check the connection of the expansion card. result next time abnormal EbE3 Inverter automatically detects the first Expansion cardSLOT3 results are not consistent with the Check the connection of the expansion card. result next time abnormal Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 269 2、. Check if the values of P.7 and P.8 the inverter is in voltage stall mode. are too small Then the motor may not run smoothly. Twinkle Input voltage is low. Supply with the normal voltage Low voltage Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 270 • Check whether the voltage / current input signals are affected by noises. Speed variation during the opera- • Check whether the load varies. tion • Check whether the wiring length of the main circuit is too long. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 271 • DXF-NET-DN: Devicenet communication card • Devicenet ports definition Terminal Signal Description DC24V CAN- CAN+ CAN+ CAN+ Positive Signal wire SHIELD Ground wire CAN- CAN- Complex signal wire • Ordering code: Type DXF-NET-DN Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 272 Protocol CAN open Protocol • CANopen communication wiring Type: SNKCBLxxGTN2 (xxstands for1R5,3,5,10) Item No. Part No. L(mm) SNKCBL1R5GTN2 1500 SNKCBL3GTN2 3000 SNKCBL5GTN2 5000 SNKCBL10GTN2 10000 • Ordering code: Type DXF-NET-CAN Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 273 Socket Receive data - • CANopen communication wiring Type：SNKCBLxxGTN2 (xx stands 1R5,3,5,10) Item No. Part No. L(mm) SNKCBL1R5GTN2 1500 SNKCBL3GTN2 3000 SNKCBL5GTN2 5000 SNKCBL10GTN2 10000 • Ordering code: Type DXF-NET-ET Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 274 RJ45 Receive data - • CANopen communication wiring Type：SNKCBLxxGTN2 (xx stands 1R5,3,5,10) Item No. Part No. L(mm) SNKCBL1R5GTN2 1500 SNKCBL3GTN2 3000 SNKCBL5GTN2 5000 SNKCBL10GTN2 10000 • Ordering code: Type DXF-NET-ECAT Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 275 The common terminal of Terminal M10~M15 (SINK). ---- Public terminal Output voltage: 24VDC±20% The common terminal of Terminal M10~M15 Maximum current: 200mA(share with control (SOURCE). board) • Ordering code: Type DXF-EXT-6DI2RO Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 276 Maximum current: Resistive Relay outputs groups; load:5A NO A14, C3 A-C is the normally open contact. Inductive load: 2A NO A15, C3 (cosΦ=0.4) A16, C4 A17, C4 • Ordering code: Type DXF-EXT-8RO Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 277 The maximum output current is 50mA. It can switch pull-up resistors under different voltages. 12V Power Voltage: ±5% Power 5V Power Current: 200mA MAX Power grounding • Ordering code: Type DXF-ENC-301C Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 278 Maximum current: 50mA times dividing frequency. AO / BO / ZO Maximum frequency: 500KP/Sec 12V Power Voltage: ±5% Power 5V Power Current: 200mA MAX Power grounding • Ordering code: Type DXF-ENC-301L Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 279 The line-drive dividing frequency output is Output Maximum current: 50mA 1~255 times dividing frequency. AO / BO / ZO Maximum frequency: 500KP/Sec Power R1-R2 Resolver power output 7Vrms, 10KHz • Ordering code: Type DXF-ENC-302L Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 280 6. Appendix 6.4.4 Parameter unit • DXF-KEY-LED, DXF-KEY-LCD appearance DXF-KEY-LED DXF-KEY-LCD • Ordering code: Type DXF-KEY-LED DXF-KEY-LCD • Appearance and dimensions 4 × M3 10.95 92.8 114.7 26.9 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 281 Panel thickness 1.2mm 1.6mm 2.0mm 66.4 110.2 111.3 112.5 * Allowable error: ±0.15mm. * If customer cutout accuracy cannot meet the allowable error, please purchase DXF-KEY-SPR (Snap Mounting Kit) for installation. Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 282 DXV-CBL3M The data transmission line (3 m) DXV-CBL5M The data transmission line (5 m) 6.4.6 Snap mounting kit • Ordering code: Type DXF-KEY-SPR pan head screw M3×5 steel plate 136.9 Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 283 DXF-BKU34-45K DXF-BKU32-110K 233.5 193.5 DXF-BKU34-160K • Ordering code: Type Name DXF-BKU32-37K 200V 37KW Brake unit DXF-BKU32-110K 200V 110KW Brake unit DXF-BKU34-45K 400V 45KW Brake unit DXF-BKU34-160K 400V 160KW Brake unit Eaton Electric General Inverters DF1 Series UMXXXXXXXXE February 2020 www.eaton.com...
  • Page 284 175 countries. Eaton generated sales of $21.6 billion in 2018. For more information, visit Eaton.com. Eaton began operation in China more than 20 years ago. Since entering the Chinese market in 1993, Eaton’s presence has grown significantly in China.
