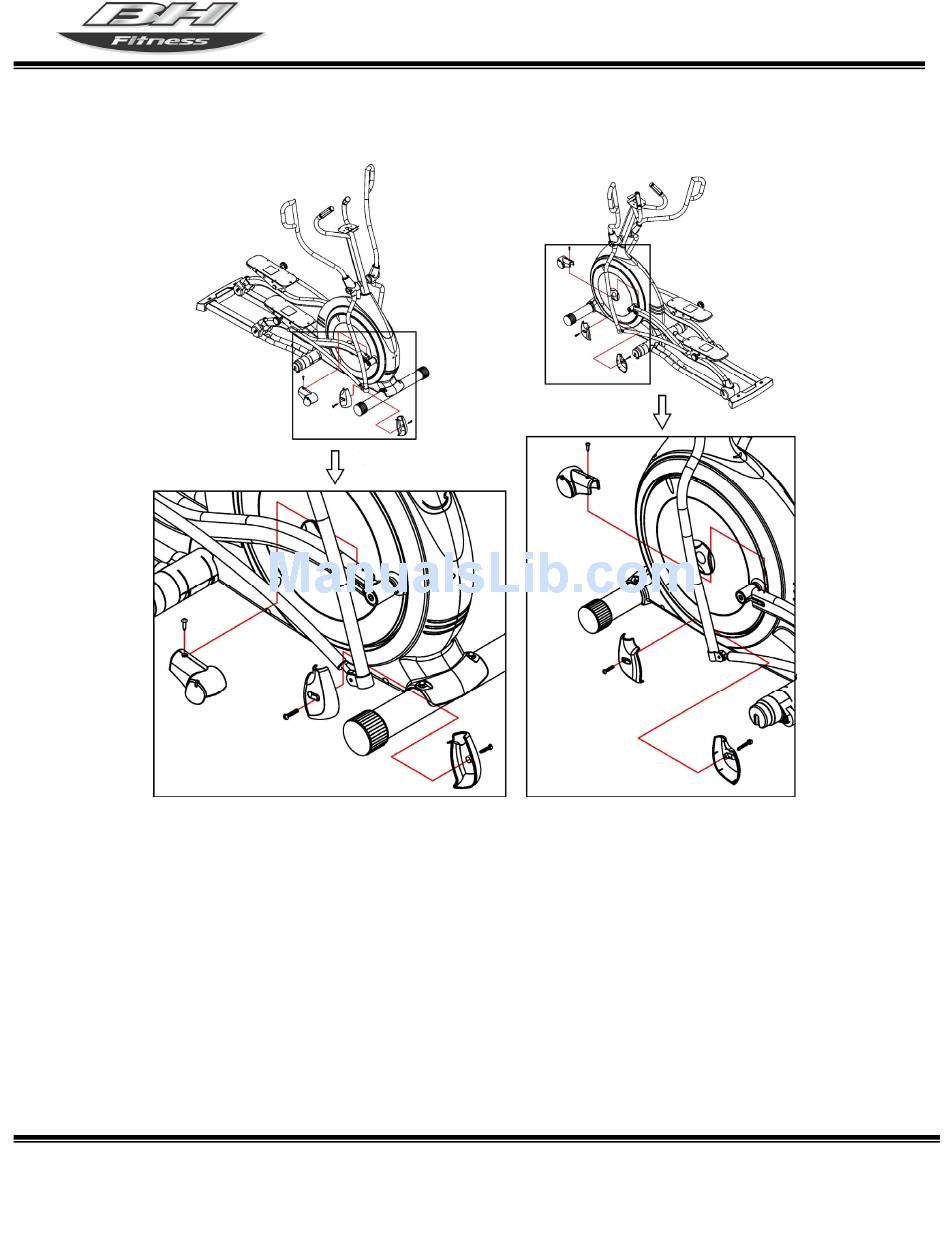

STEP 9. Assembly of handrail and pedal rods plastic covers.
1.1 Place the plastic cover on the front top of the left pedal rods, make sure the bolt hole on the
plastic and the bolt hole on the steel tube are aligned, then fasten the plastic cover with M4
bolts.
1.2 Place the left and right plastic covers on the handrail lower end, and fasten with bolts.
1.3 On the other side of the frame, place the plastic cover on the front top of the right pedal rods,
make sure the bolt hole on the plastic and the bolt hole on the steel tube are aligned, then
fasten the plastic cover with M4 bolts.
1.4 Place the left and right plastic cover on the handrail lower end, and fasten with M4 bolts.
