Step

6.1.2.

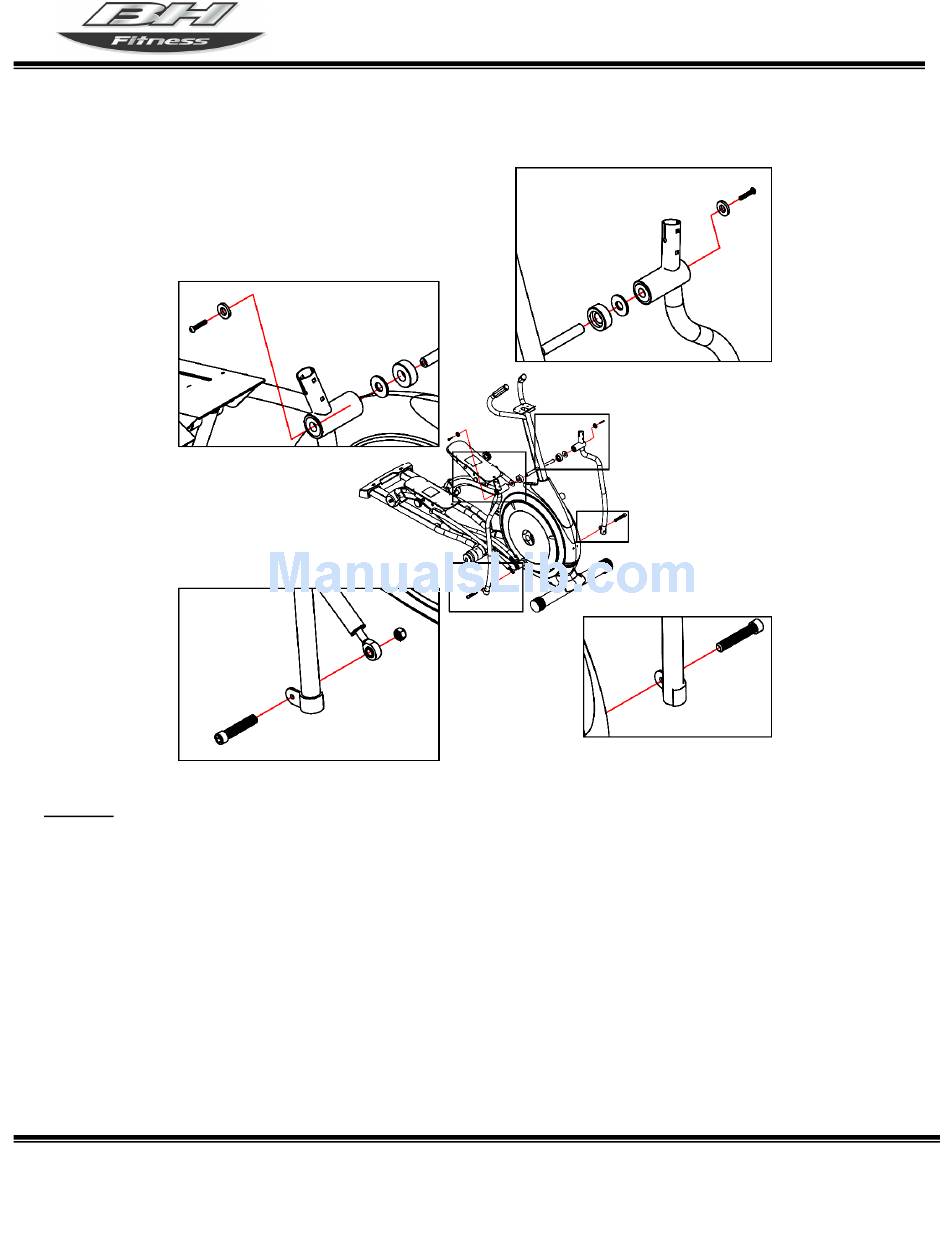

STEP 6. Assembly of lower handrails, upper control tube and pedal rods.

NOTES:

1. The left and right lower handrails are different. Look for "LEFT" or "RIGHT" labels.

Make sure to install them as shown in the illustration above.

2. During assembly, be careful not to bump into any protruding parts.

1.1 Slide a plastic spacer and a wave washer onto the left horizontal bar. Connect the upper

part of the left lower handrail with the horizontal bar on the upper control tube. Fasten with

M8 washer and M8 bolt.

1.2 Connect the left lower part of the lower handrail with the bearing at the end of the pedal rods.

Fasten with M12 nut and M12 bolt.

1.3 Repeat for right side.

BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610

www.bhnorthamerica.com • Phone 949-206-8152 • Fax 949-206-0013

ASSEMBLY INSTRUCTIONS CONTINUED

Step 6.1.1

BH X8 ELLIPTICAL
