BH X8 ELLIPTICAL
ASSEMBLY INSTRUCTIONS CONTINUED

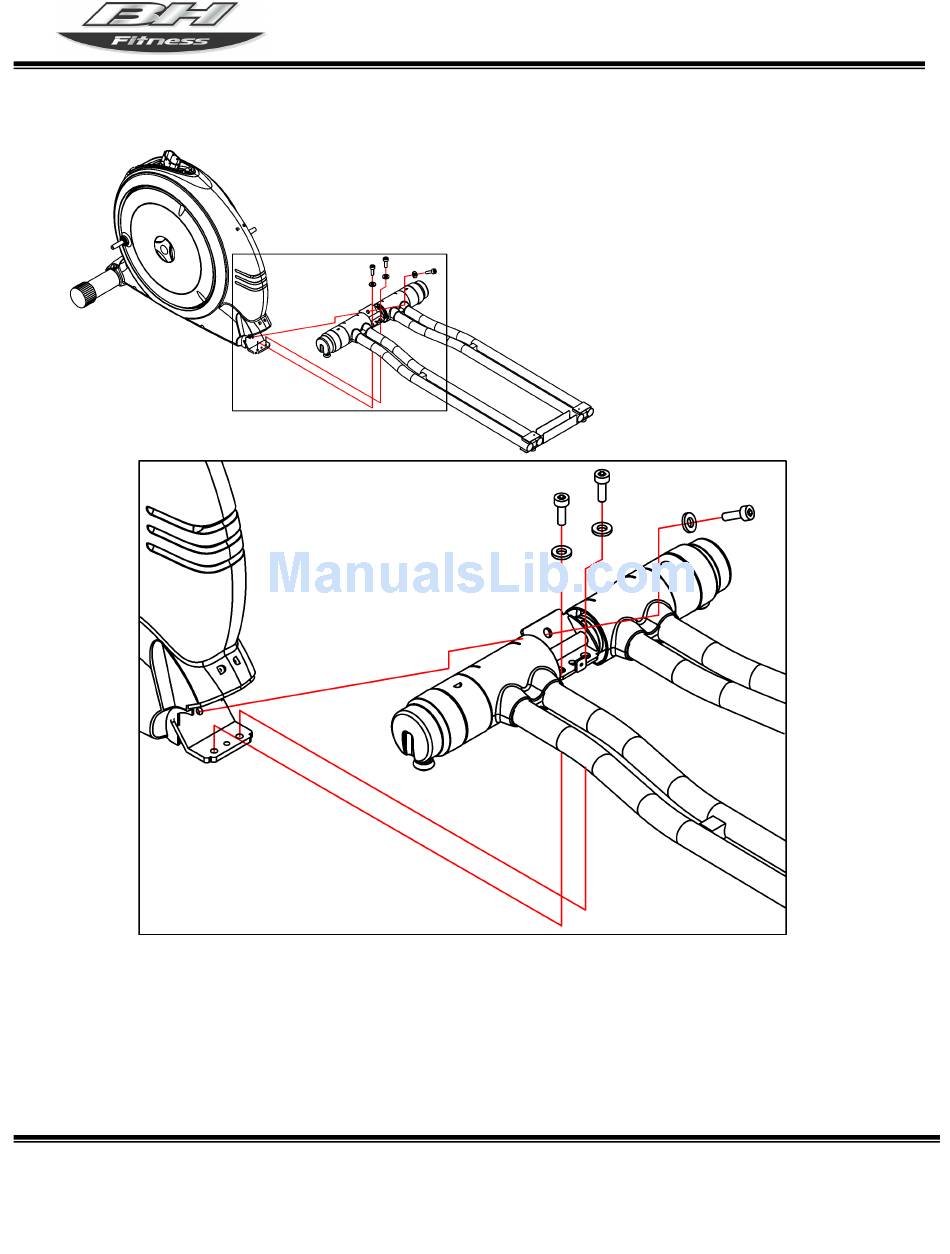

STEP 2. Assembly of frame and running leg set.
1.1 Align the holes in the steel plate of the running legs with the holes at the rear of the frame and
attach using M10 washers and M10 bolts as shown.
11
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.bhnorthamerica.com • Phone 949-206-8152 • Fax 949-206-0013
