ASSEMBLY INSTRUCTIONS CONTINUED

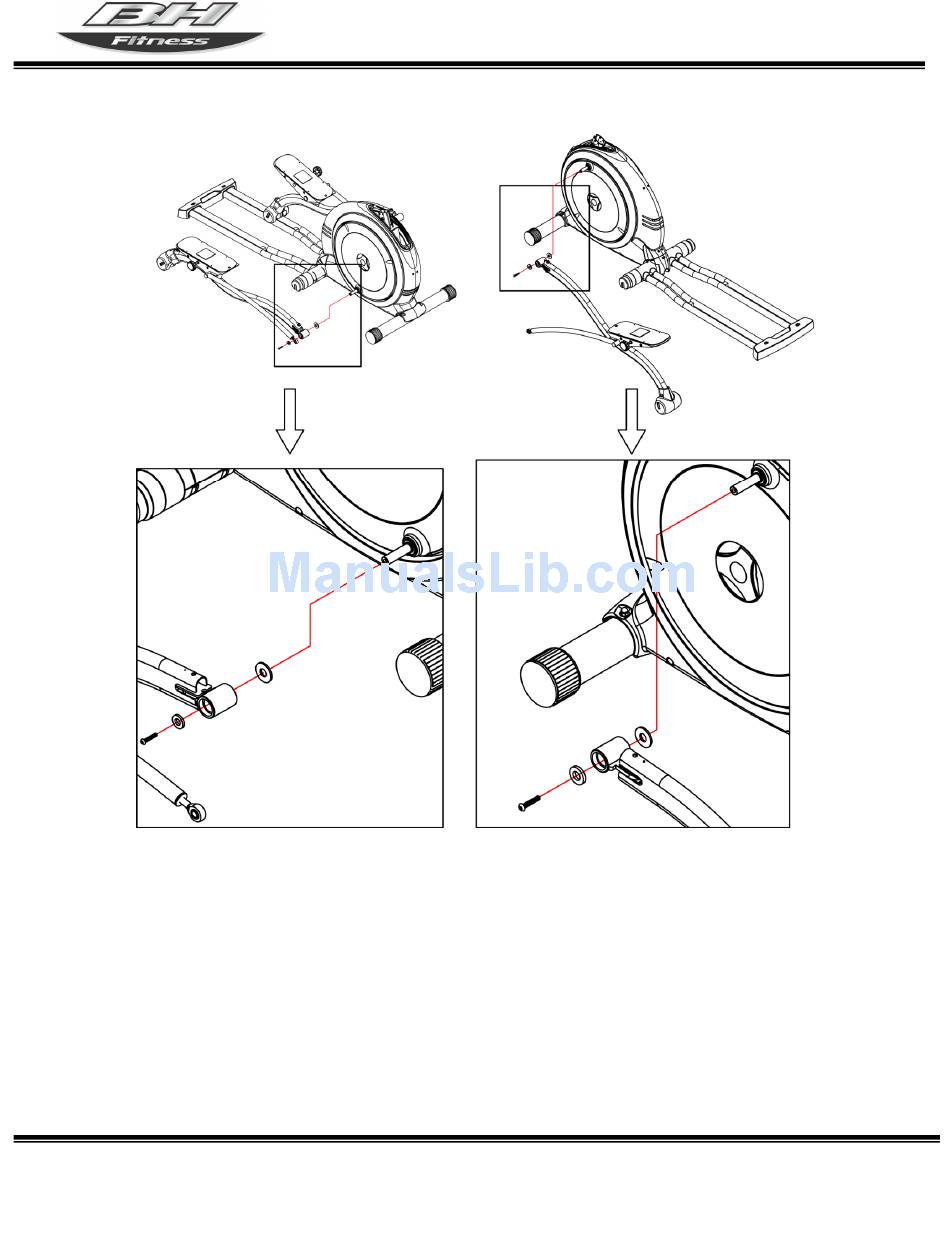

STEP 4. Assembly of pedal rods and frame.
1.1 For the left side. Slide the wave washer onto the left crankshaft of the frame.
1.2 One person should hold the left pedal rod.
1.3 A second person slide the left pedal rods steel tube onto the left crankshaft followed by the flat
washer and fasten with M8 bolt. Fasten securely to prevent the bolt from loosening.
1.4 Repeat for the right side.
