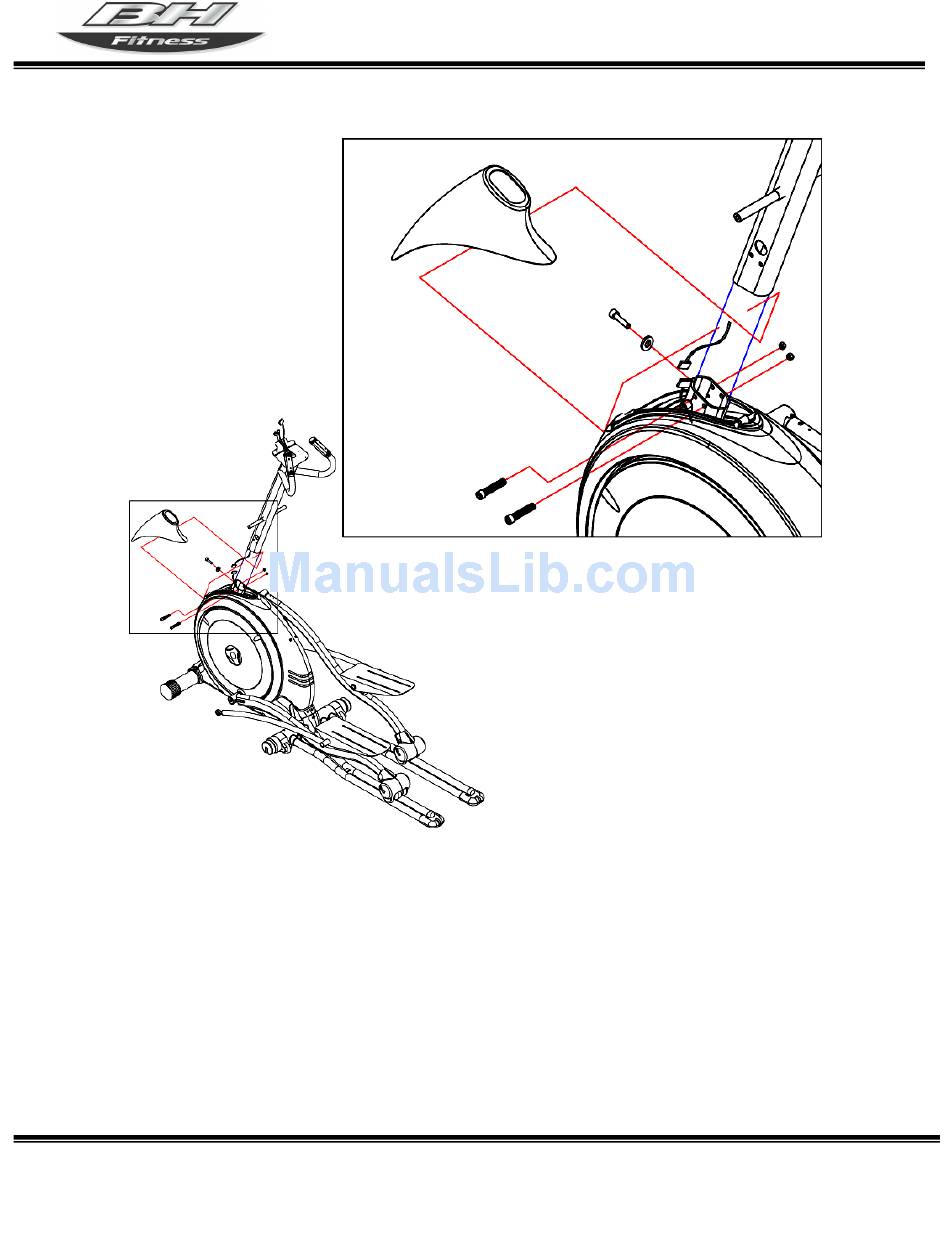

STEP 5. Assembly of upper control tube and frame.
1.1 Insert the wires and the Upper Control Tube into the Control Tube plastic cover (see photo on
next page). Insert the Control Tube into the tube of the Frame.
1.2 One person should hold the Upper Control Tube while the other person fastens the two tubes
- with two M8 bolts and nylon nuts on the side of the steel tube and
- with one M8 bolt and arc washer in the front of the steel tube.
1.3 Align the connectors in the correct direction, and then press them together.
1.4 Turn the plastic cover to the correct location and press into place (see photo on next page).
