Honeywell HM509VPIAQ - TrueSTEAM 9 GPD Humidifier PRO IAQ Owner's Manual page 11

Owners guide
Hide thumbs

Advertisement

Table of Contents
2 IN. PER FT
10 FT MAX
2 IN. PER FT
OBSTRUCTION
SUPPORTED REMOTE HOSE

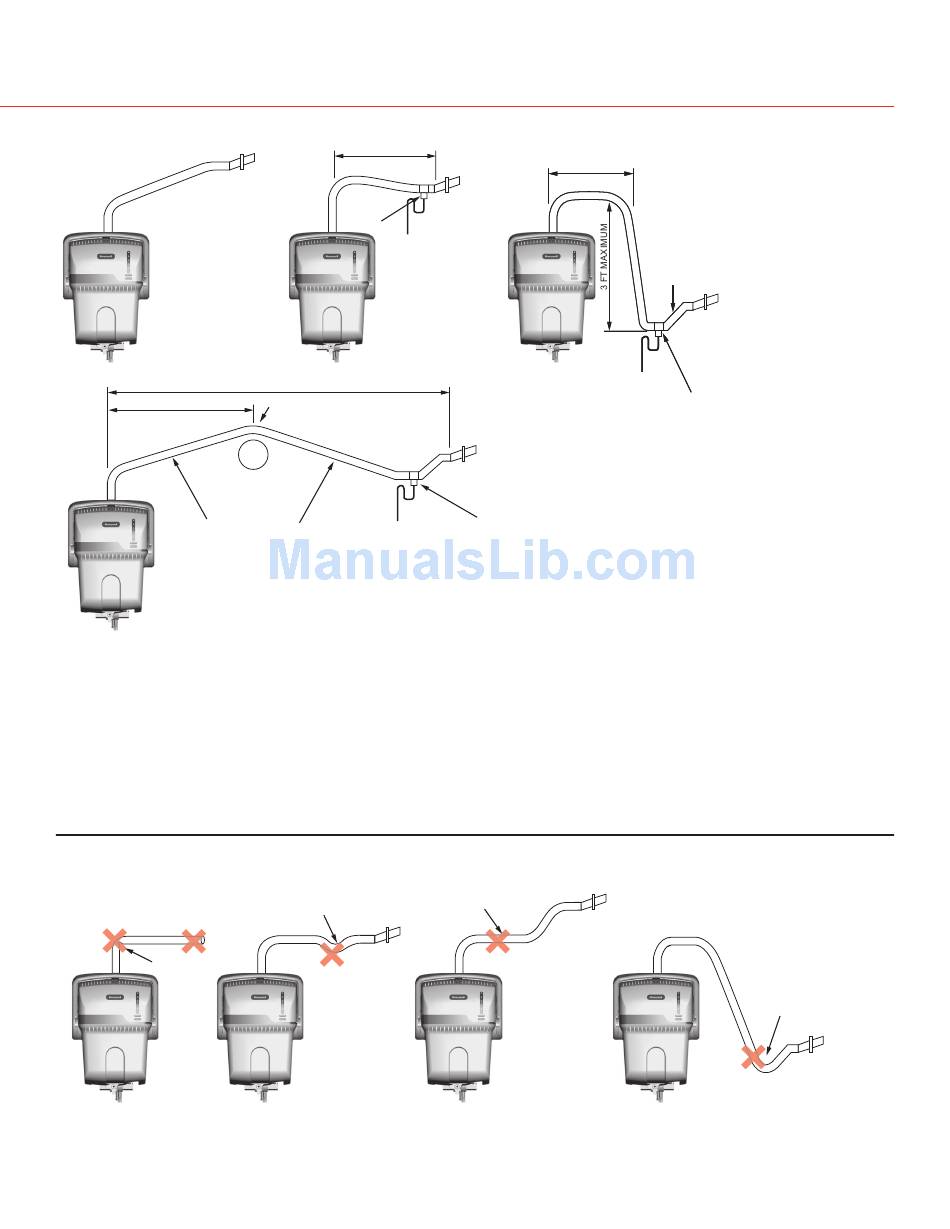

AVOID THESE INSTALLATION MISTAKES.
NO SLOPE
KINKED
20 FT MAX
WITH TRAP
P - TRAP
DRAIN
20 FT MAX
GENTLE BEND
2 IN. PER FT
DRAIN
NOTES:
• Slope hose up in direction of steam flow at 2 in. per foot;
• Slope hose down in direction of steam flow at 3/4 in. per foot;
• Maximum length of remote steam hose is 20 ft.
• Height of P-traps must be greater than the duct static pressure. (Typical
3 in. will suffice.) P-trap must also be wetted (see page 7).
• Minimize sharp bends and elbows.
• Insulating the remote hose in unconditioned spaces will sustain
efficiency better than not insulating the hose.
SAG
TrueSTEAM Humidification System
PRoPeR hose InsTalls
5 FT MAX
IF NO SLOPE
IF NO SLOPE
TYPICAL INSTALLATION
WHEN TrueSTEAM IS ABOVE
REMOTE NOZZLE
WETTED P - TRAP
NOTE: HEIGHT OF TRAP MUST BE GREATER
THAN THE DUCT STATIC PRESSURE
NO SLOPE
9
2 IN. PER FT
DRAIN
DRAIN
P - TRAP
P - TRAP
UNDRAINED
ELBOW
M24915A
