Chapter

SFS 7012 Port Statistics

The Chassis View Port Statistics area provides IB port information for all of the external and internal
ports of the SFS 7012.
Figure 3-39 IB Port Statistics
To view port statistical information, do the following:

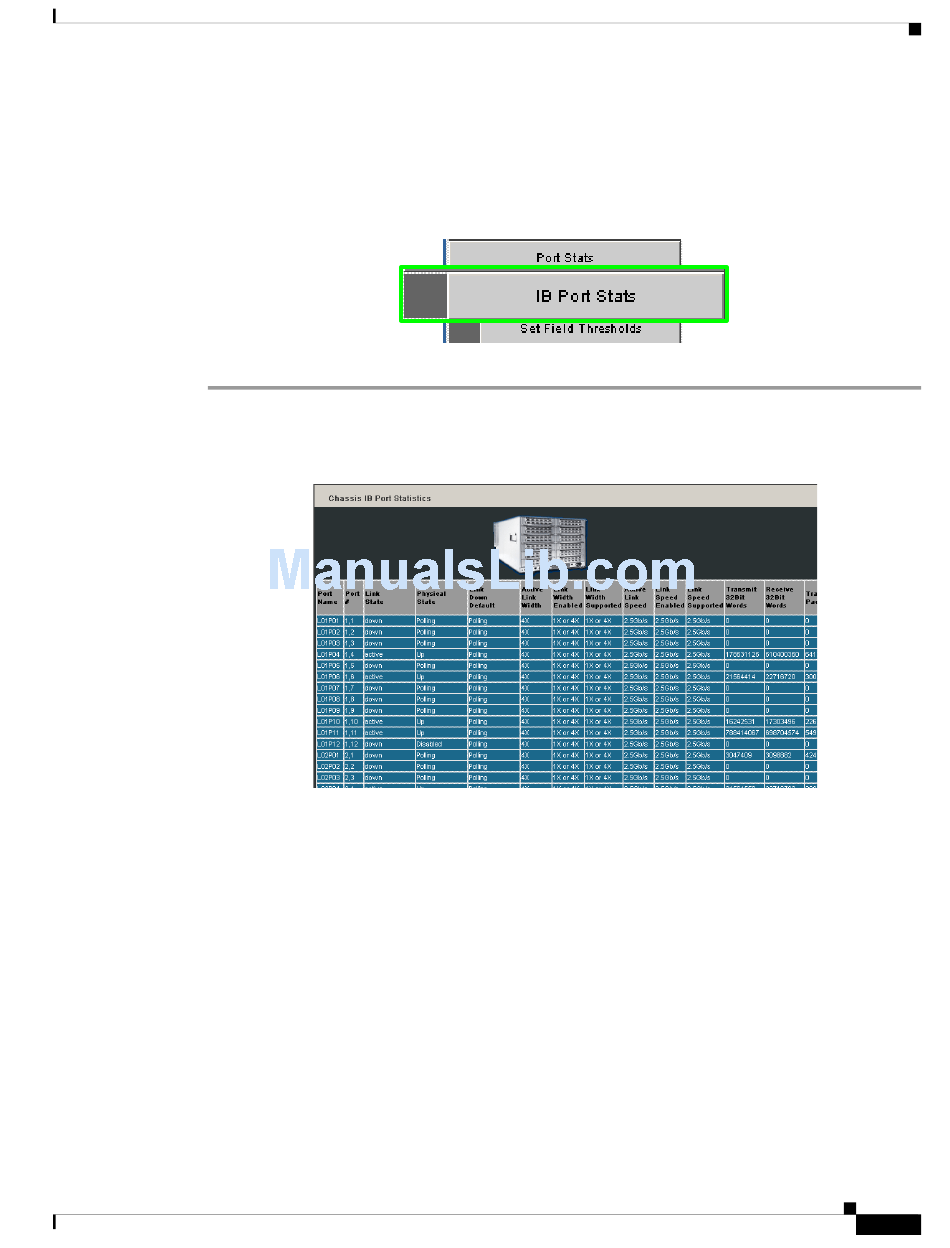

From the Chassis View Port Statistics submenu, select IB Port Stats. The IB Port Statistics window is
Step 1
displayed:
Figure 3-40 IB Port Statistics
Understanding Port Naming Conventions
Following is an explanation of the conventions used in the Port Name column.
Leaf modules/ports:
Interswitch Link (ISL) Ports:
OL-8787-04
L = Leaf module number
P = Leaf module port number
Example: L10P01 is leaf module 10 port number 1.
S = Spine module number
L = Leaf leaf module number
A = Spine module switch chip A
B = Spine module switch chip B
Example: S2AL08 is the ISL between spine module 2, switch chip A and leaf module 8.
