Figure 7
Using two screws, install the lower mounting bracket to the rail assembly and chassis as shown in
Step 6
Figure
Figure 8
Install the heyclip to the rail assembly.
Step 7
If applicable, reinstall the chassis fascia(s).
Step 8
Installing the Switch Face Plate
To install the switch face plate(s):
OL-8787-04

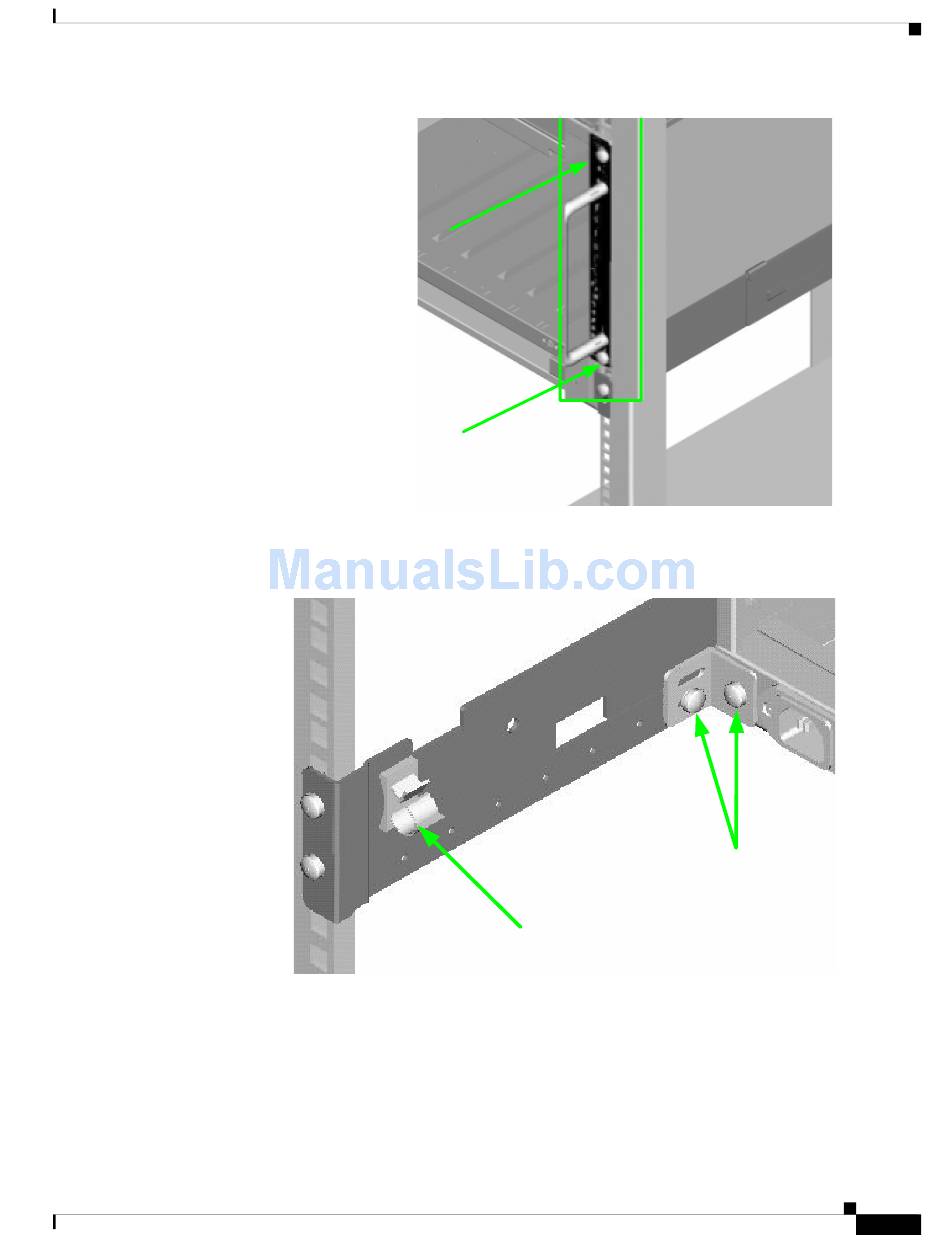

Secure Chassis to Rack
Install 1 screw and
caged nut into each
hole above and below
the handle
8.
Install the Lower Mounting Bracket and Heyclip
Install the lower rear
mounting bracket to the ra
assembly and chassis
Install the
heyclip here
Cisco SFS 7012 InfiniBand Server Switch Hardware Users Guide
25
