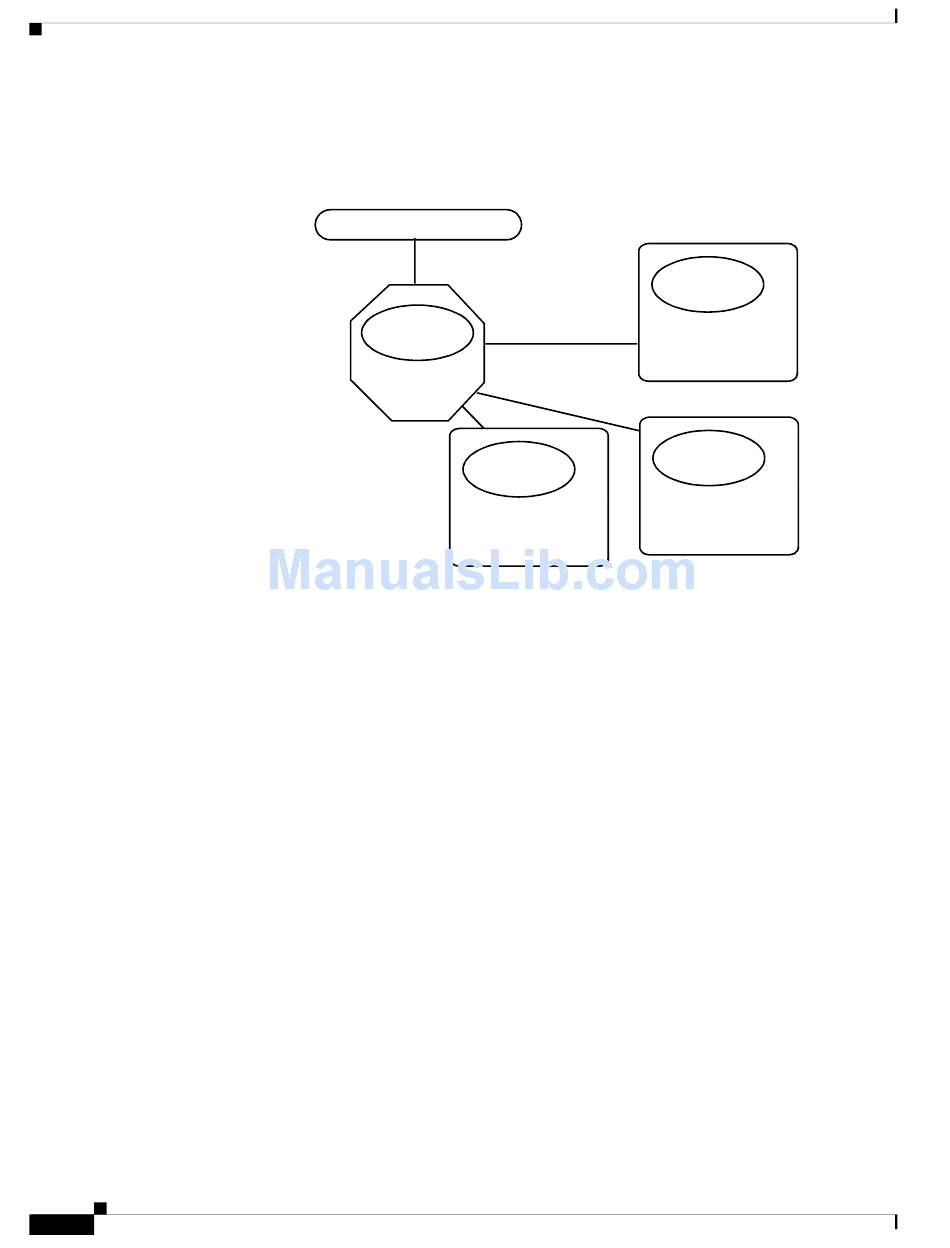

An SMA also runs on every InfiniBand-capable server that is equipped with an HCA. As shown in
Figure 1-3 the Subnet Manager interacts with these SMAs to discover information about the nodes on
the fabric.
Figure 1-3
The Subnet Manager utilizes the agent information to discover and manage connections from the SFS
7012 to the InfiniBand fabric. The Subnet Manager maintains a database tracking subnet topology
information as a result of its interaction with the SMAs.

InfiniBand General Services Managers and Agents

The InfiniBand specification defines the InfiniBand General Services Managers and their associated
agents. General Services Managers exchange messages with agents to manage and monitor the
performance and the physical environment of devices on the network.
Once the InfiniBand network is up and running, the InfiniBand General Services Managers begin to
interface with General Services Agents. The General Services Managers and Agents include:
•
•
•
•
•
Cisco SFS 7012 InfiniBand Server Switch Hardware Users Guide
6
InfiniBand Managers and Agents
Subnet Manager
Subnet
Management
SFS
Subnet Administration (SA)
SA provides InfiniBand fabric nodes with an interface to the Subnet Manager. This interface is used
by the nodes on the fabric to interact with the Master Subnet Manager and to discover information
about the fabric. Every InfiniBand fabric subnet requires a SA.
The Device Manager (DM) and Device Management Agent (DMA)
The DM and DMA discover and manage the association between hosts and devices behind the Target
Channel Adapters.
The Communications Manager (CM)
The CM establishes and manages communication channels between nodes.
The Baseboard Manager (BM) and Baseboard Management Agent (BMA)
The BM and BMA exchange messages relating to items such as temperature monitoring and
hardware control to manage hardware on the fabric.
The Performance Manager (PM) and Performance Management Agent (PMA)
Agent
7012
Subnet
Management
Agent
InfiniBand
Capable Server
