Chapter
Install the caged nuts into the 2 back holes (chassis leaf module side) and the top and bottom holes
Step 1
(chassis fan side) in the front of the rack.
Note
All holes should correspond to the rail mounting positions (i.e., the holes marked with pen or tape).

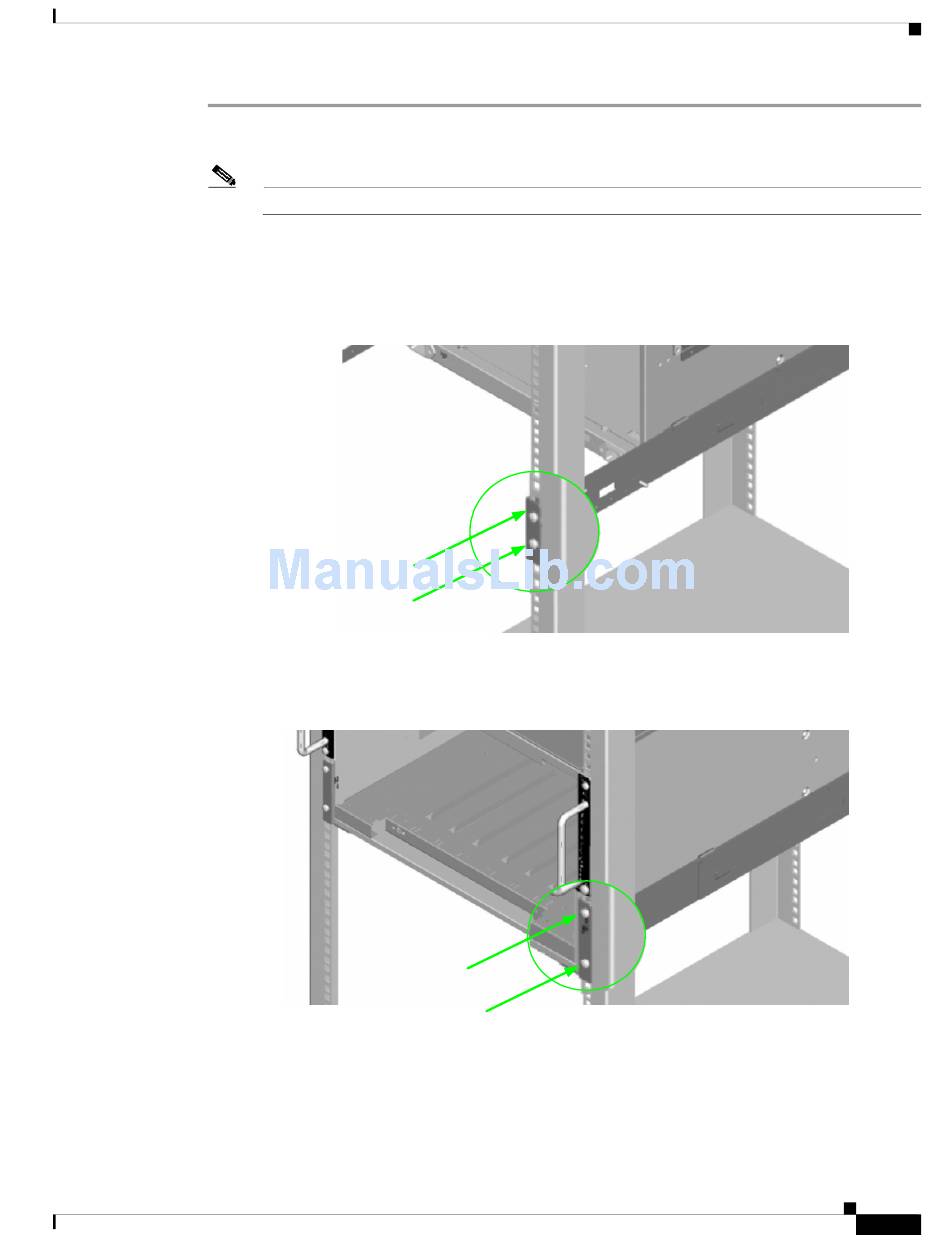

Fasten the rail back flange (chassis leaf module side) to the rack by installing two screws into the rail
Step 2
and rack.
Figure 4
Fasten the rail front flange (chassis fan side) to the rack by installing one screw into the top hole of each
Step 3
rail.
Figure 5
Install the second rail on the other side of the rack by repeating steps 1 through 3.
OL-8787-04
The 2 front holes should match up with the top and bottom holes of the rail front flange.
Rail Back Flange
Install 2 screws to
top and bottom holes
Rail Front Flange
Install 2 screws to
top and bottom holes
Cisco SFS 7012 InfiniBand Server Switch Hardware Users Guide
23
