Set Level - Cisco SFS-7012 - SFS InfiniBand Server Switch 7012 Hardware User's Manual

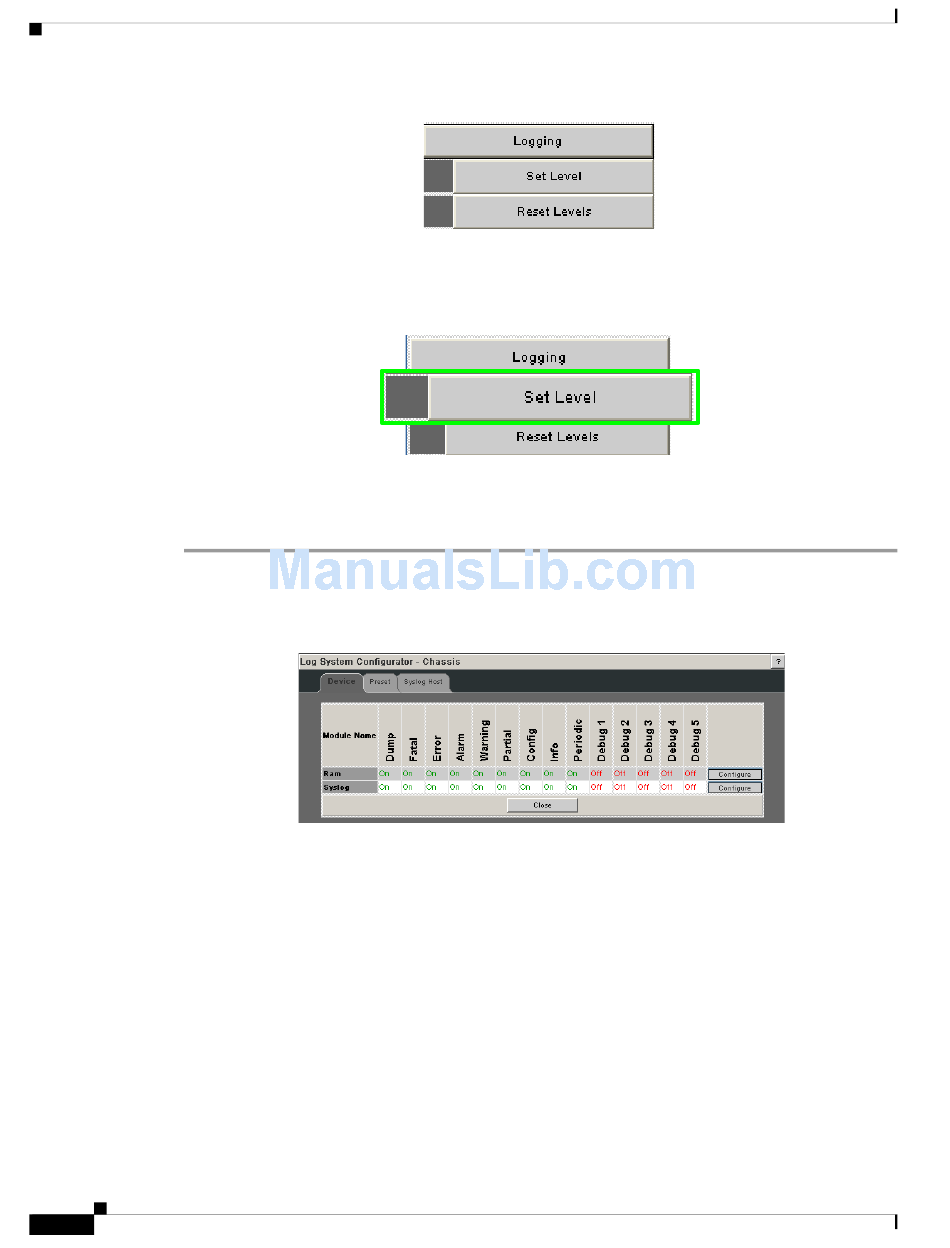

Figure 3-20 Logging Submenu

Set Level

Figure 3-21 Set Level Button
The Set Level button allows the user to set log level configuration parameters for all software modules
on the SFS 7012.
To set log levels:
From the menu, select Logging.
Step 1
From Logging, select Set Level. The Log System Configurator (Device Tab) window is displayed:
Step 2
Figure 3-22 Log System Configurator (Device Tab)
The Device tab presents current log level configuration settings for the following software modules:
From this screen, the user can change any of the log level settings for a specific software module by
clicking on the Configure hyperlink, which displays a configuration screen:
Cisco SFS 7012 InfiniBand Server Switch Hardware Users Guide
54
RAM = The circular log buffer contained in memory. To access the contents of this buffer, use
–
the Chassis Viewer View Log button
Syslog = All output messages are saved to the syslog host.
–
Chapter
OL-8787-04
