Install the SDRAM

Insert the DIMM into the DIMM connector. Make sure the DIMM clips snap to the close position.
(Supported DIMMs are 64 MB to 256 MB ECC PC133 unbuffered SDRAM memory).

Install the Intel RAID Controller SRCU31 in the Intel Server Board

Install the Intel RAID Controller SRCU31 into an available PCI slot. Refer to the board
documentation for details. The example below refers to the Intel server board STL2.
1. Shut down the computer system.
2. Turn the power off.
3. Insert the Intel RAID controller into an available PCI slot.

Attach SCSI Cables

1. Connect one end of the SCSI cable to the internal or external SCSI connector located on the
Intel RAID Controller SRCU31.
2. Connect the other end of the SCSI cable to the SCSI drives or drive enclosure.

Use StorCon to Create a RAID Volume

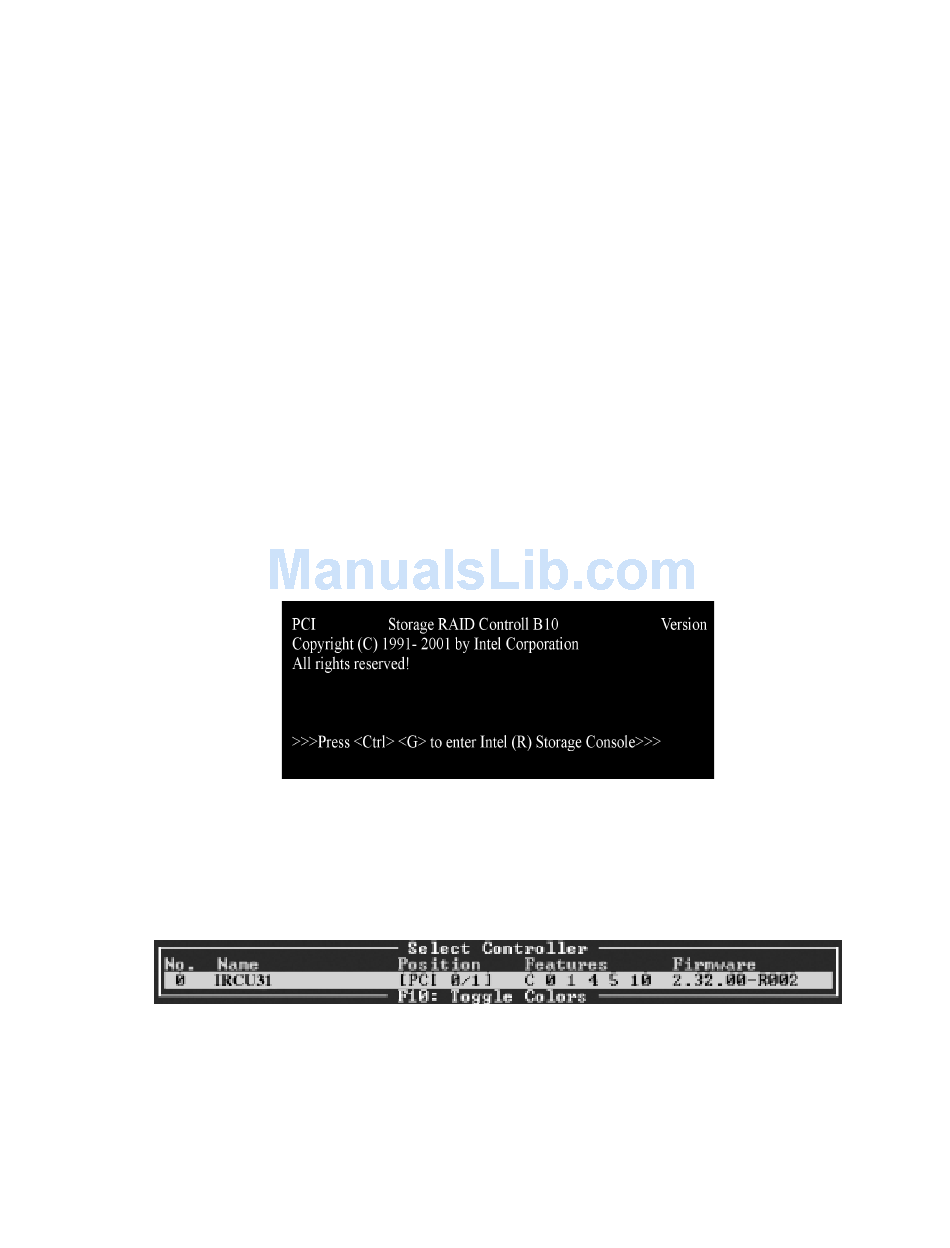

1. Power on the system and press <Ctrl> + <G> when the screen below appears.
2. The following two messages will appear at the bottom of the screen:
"Intel (R) Storage Console to start after POST"
"Please wait to start Intel (R) Storage Console..."
3. When StorCon starts, it will display the Intel RAID Controller SRCU31 installed in the system.
Press <Enter> to select this controller.
38 Intel RAID SRCU31 Users Guide
