NOTE

In the menu "Configure Controller" the logging buffer can be cleared with "Clear Log Buffer."

The log is a good source of information for analyzing complex events and problems. See

Figure 23.

Express Setup

Express Setup Configure Host Drives allows for easy installation of new host drives.

✏

NOTE

Creation of a host drive as Single Disk, RAID0, RAID1 or RAID10 is non-destructive so that the

partition table of the new drive (which could have conceivably been used on another SCSI HBA)

could have valid data. To prevent this from occurring, run a surface check on each disk before

creating hosts.

✏

NOTE

Apart from minor differences, this menu option is identical to menu option Configure Host Drives

in Advanced Setup, Chapter 7. In Express Setup, the user may not select a stripe size (defaults to

128 KB) or use the Split/Merge functions.

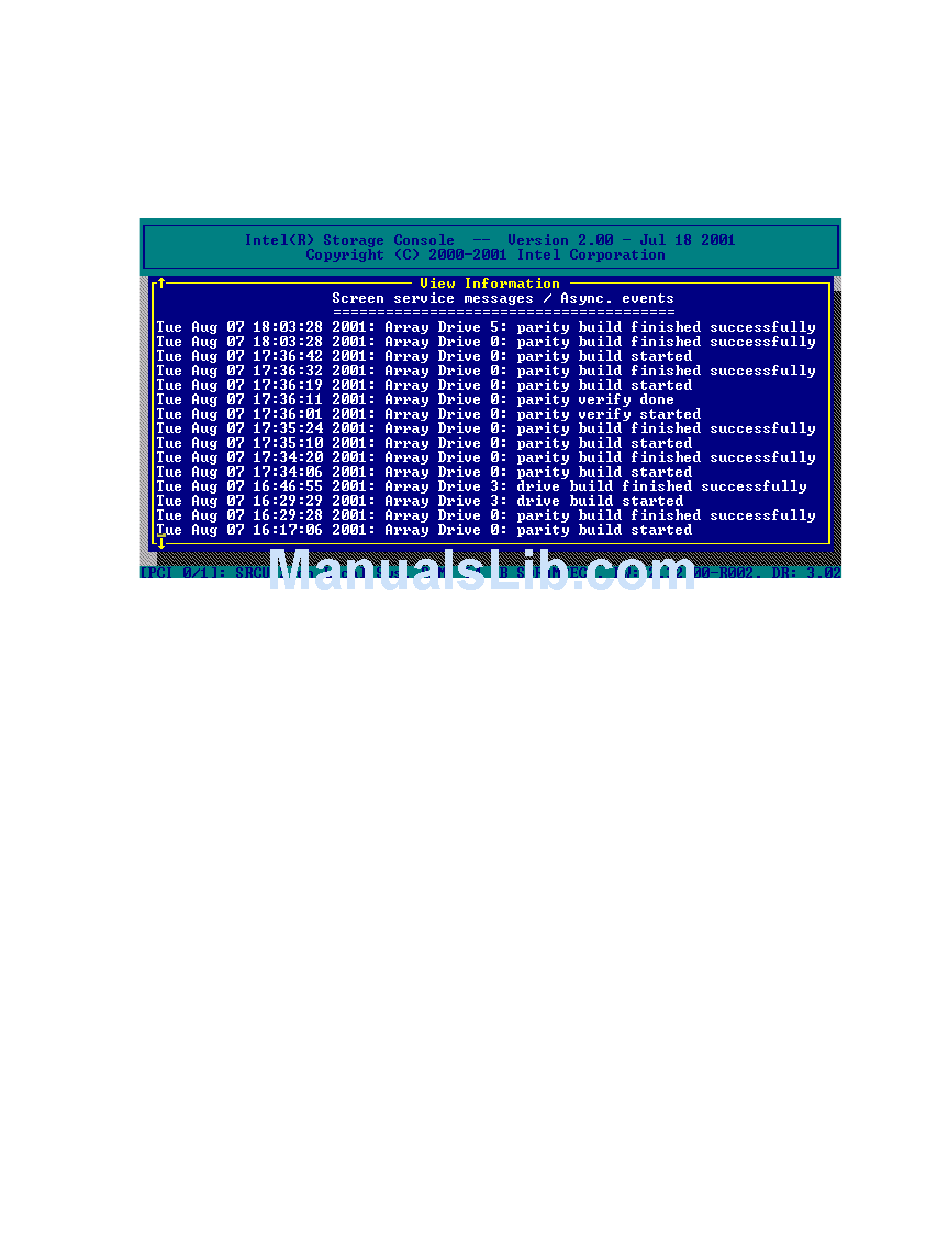

Figure 23. Screen Service Messages and Async. Events
