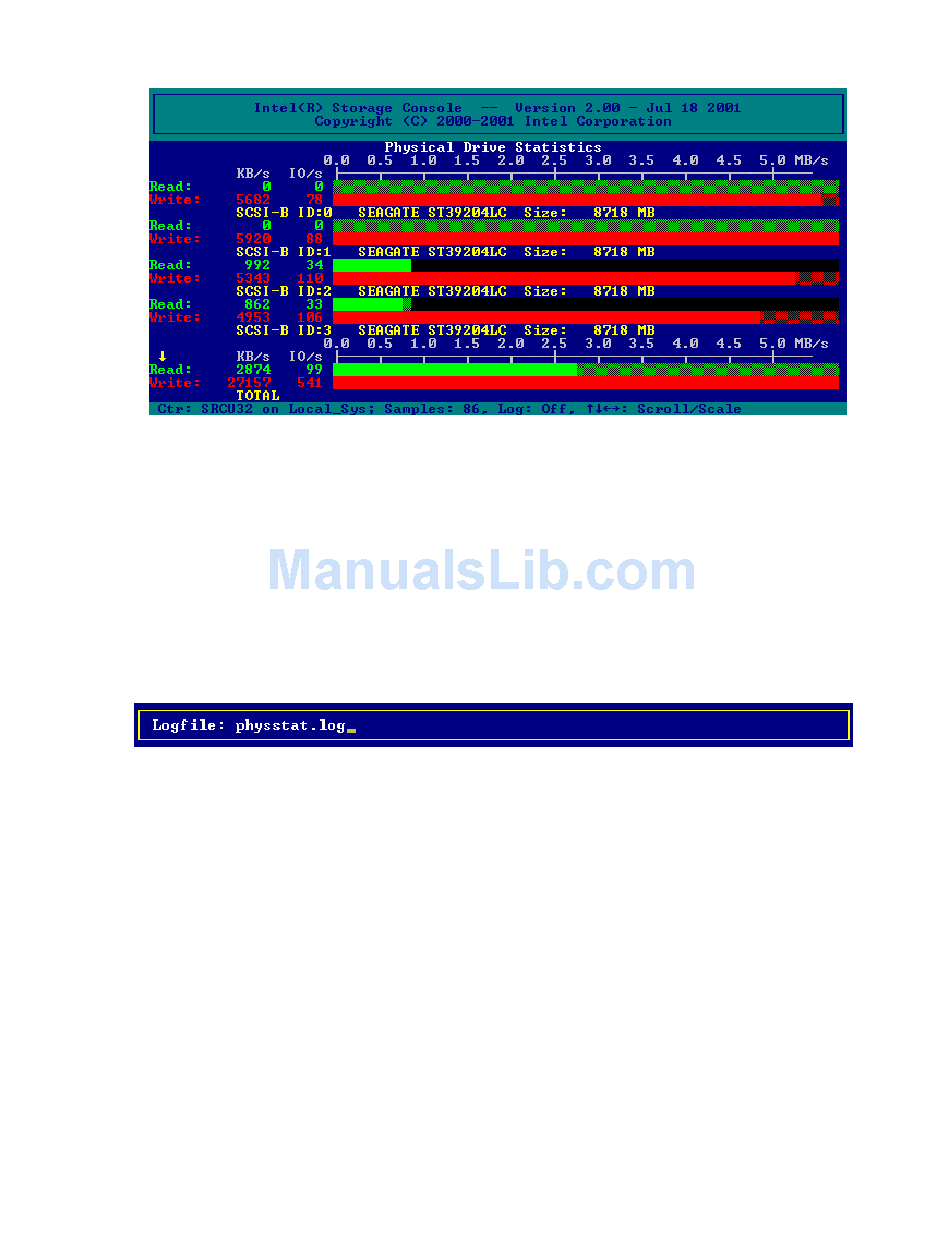

Figure 17. Physical Drive Statistics
Use "Cache Statistics" to view the utilization of the Intel RAID Controller SRCU31's caches (read
cache and write cache). This menu also displays the size of the cache in KB and the settings of
both caches (on or off). The figures for "cache hits" show how often requests can be serviced out
of the cache, for example, without triggering an immediate disk I/O.
Use "Sample Rate," to choose the interval at which the Intel RAID Controller SRCU31 delivers
new measurements. Depending on the operating system used, the sampling rate can be set to a
maximum of 60 seconds. The default setting is 1 second.
Use "Logging On/Off," to create a log file which records all the statistical values over a longer
period. If you choose On, StorCon asks for the path/name of the log file. See Figure 18.
Figure 18. Logfile Name
88 Intel RAID SRCU31 Users Guide
