Monitor and Express / Advanced Setup

StorCon offers two fundamentally different operating modes, Monitor with monitoring functions
and Express Setup/Advanced Setup with configuration functions. See Figure 15.

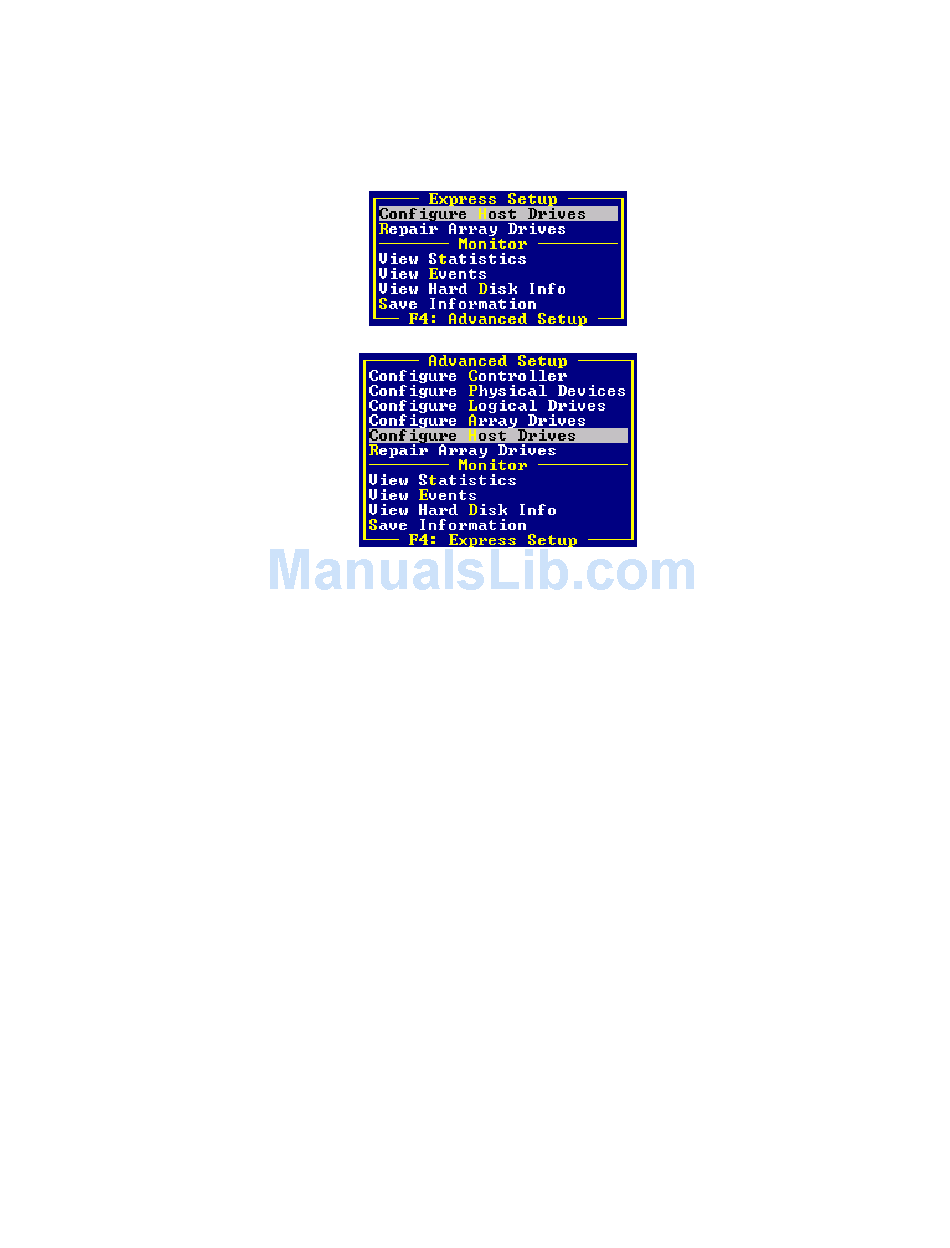

Figure 15. Monitor and Express Setup / Advanced Setup Menu
Menu options can be selected either with the cursor up/down keys, or by pressing the highlighted
character. Press <F4> to switch between the Advanced Setup and Express Setup modes.

Monitor Menu

The monitor menu has the following menu options. See Figure 15.
•
Use View Statistics to supervise the performance of the different components of the RAID
subsystem.
•
View Events is an enhanced event recorder for RAID and controller-specific events.
Use View Hard Disk Drive Info to view detailed information on the connected devices (important
are the retries, reassigns, grown defects, and last status information).
Use Save Information to create a complete protocol file of the current RAID subsystem including
all settings of the Intel RAID Controller SRCU31 and the drives. This file can be used for remote
diagnosis.
