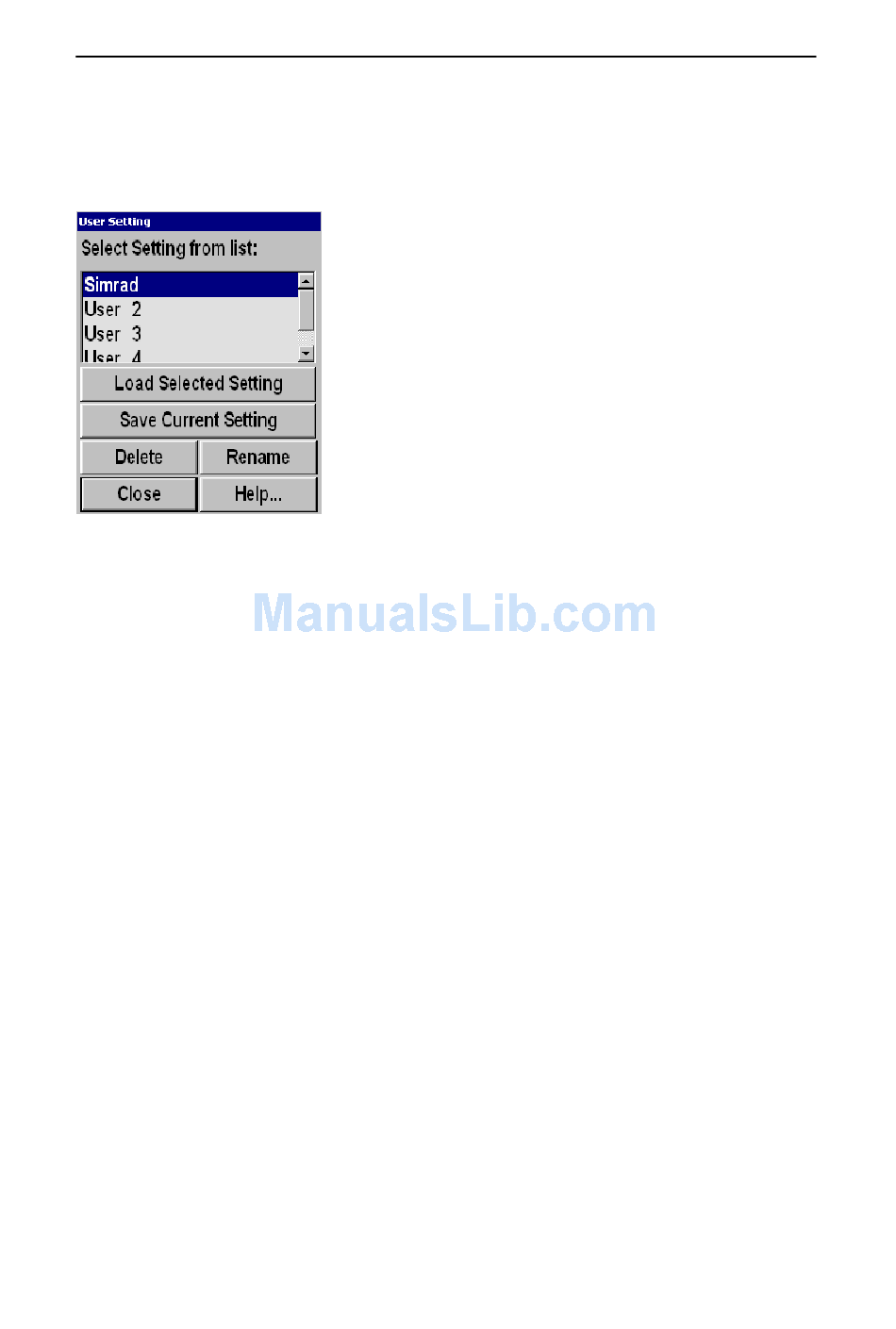

User Setting

User Setting is accessed from the Setup menu.

The User Setting is used to store the parameter settings

for different type of fisheries, or individual user related

settings. The stored settings can easily be loaded back

into the operative menus using the Mode buttons on the

Sonar Operating Panel.

Load Selected Setting

Use this option to retrieve the previously stored setting.

Click on the chosen setting in the dialogue to highlight

it, and then click this button to retrieve it.

Save Current Settings

Use this option to save all the currently used parameter

settings. You will always save your current setting as a

"new user". By default the setting will be named User

N, and "N" is simply the next available number.

Delete

Click to select one of the settings in the dialogue, then click this

button to delete it.

Rename

This option provides an on-screen keyboard to rename the

stored user setting. Click on a setting to select it, then click this

button. Enter the new name using the on-screen keyboard.

Select users

Using the four Mode buttons on the Sonar Operating Panel, you

can select the four top users on the list. The list of users is sorted

alphabetically, and you can rename the users and thus control

which Mode button to recall which user.
