Range (Catch View)

The Range (Catch View) button is located in the Catch View
menu.
The CatchView menu is activated by pressing the View button
on The Sonar Operating Panel (or the middle mouse button),
while the cursor is located in the Catch view, and then selecting
View menu on the View pop-up menu.

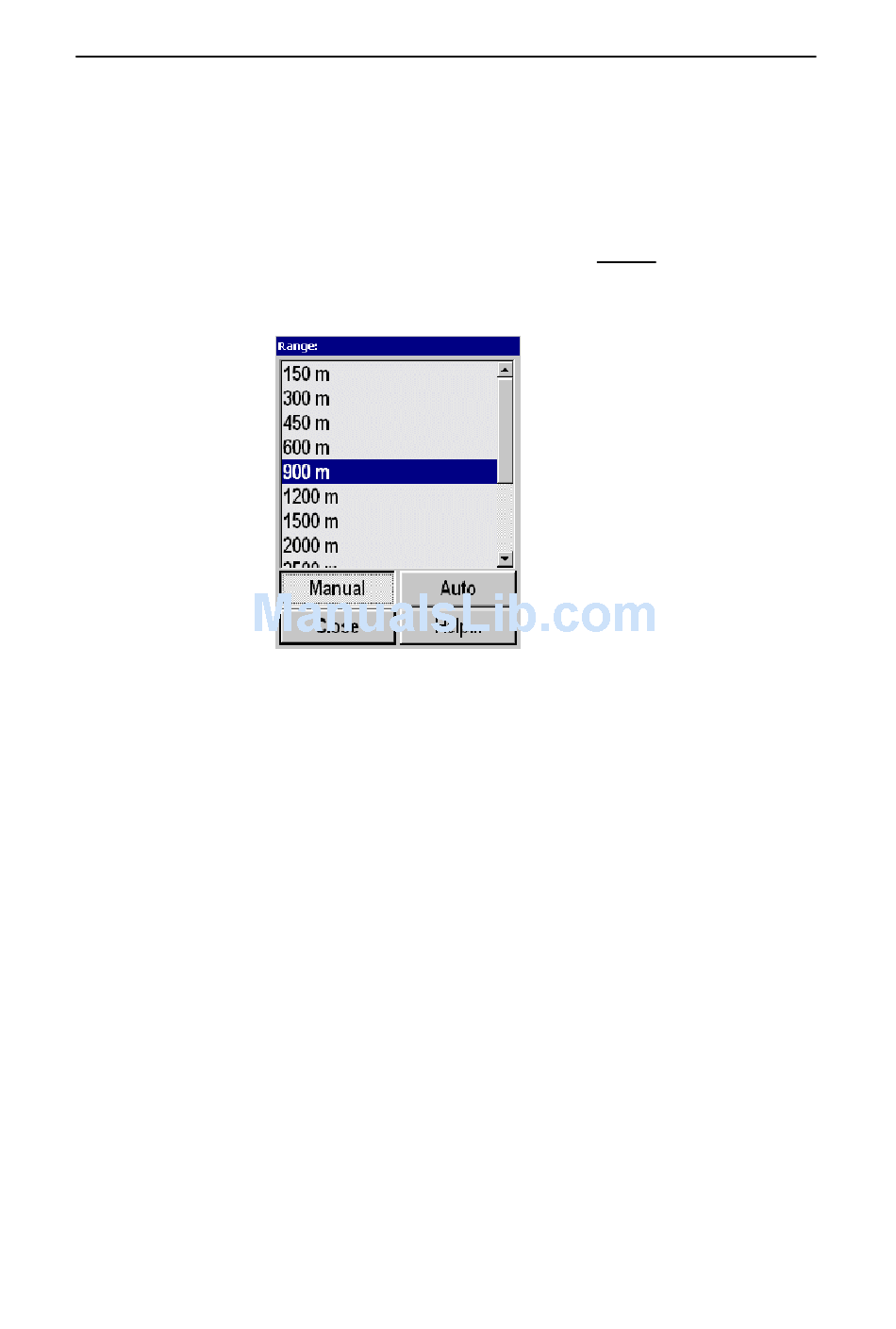

The Range in the CatchView may be selected manually or
automatically.
In Manual, the range scale can be selected from the list in the
dialogue.
In Auto, the CatchView range will automatically follow the
range selected in the Vertical view.
Related topics
→
Sonar Operating Panel; View, page 32
