850-164186 / Rev.D

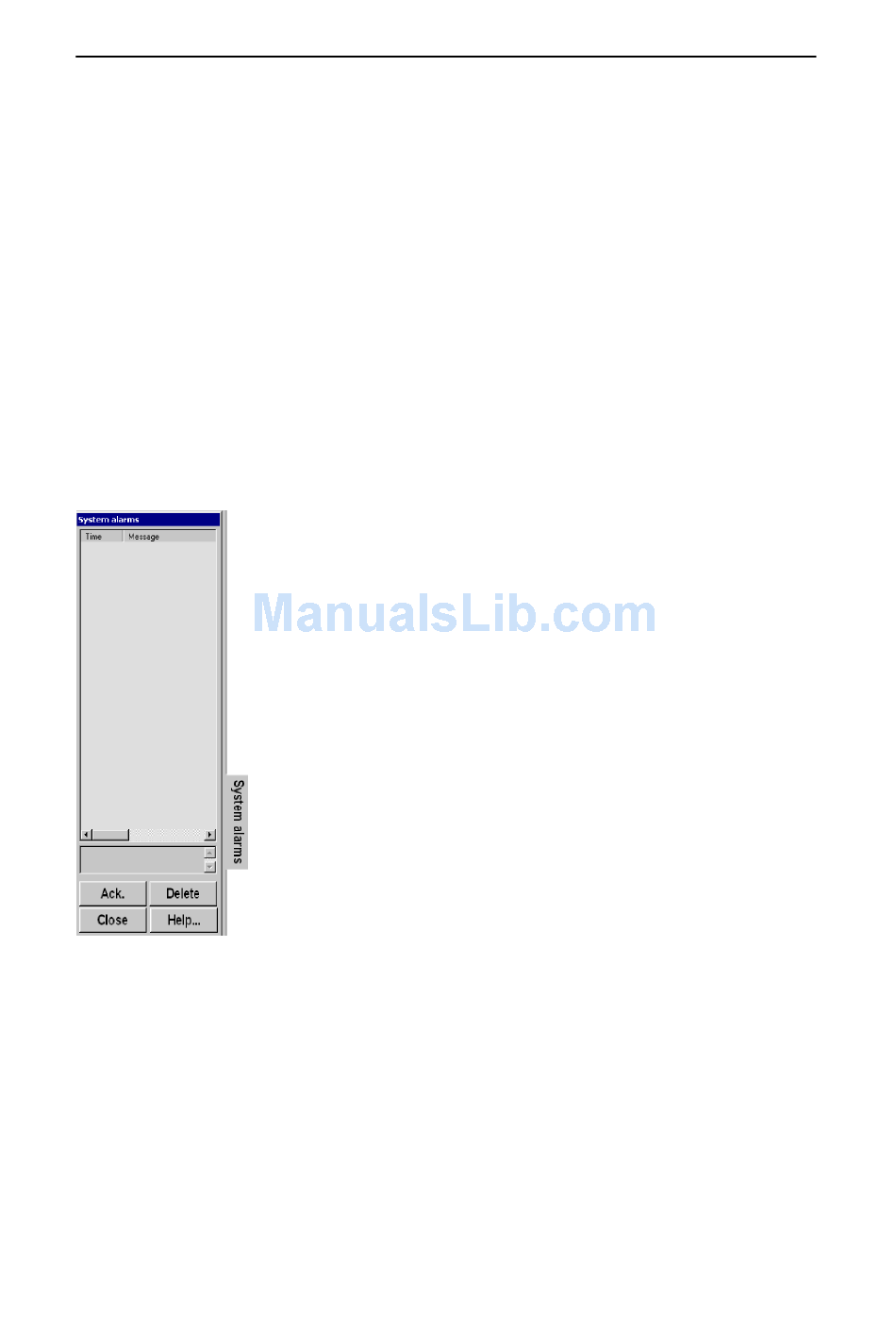

System alarms

The System alarms dialogue is activated from the Sys.Alarms
button in the Message bar.
The System alarms dialogue displays the alarms issued by the
sonar. Each alarm message is identified with time of issue and a
heading. Additional information is found in the small text field
below the message list.
The top of the message list with the most recent messages is
always displayed when the dialogue is opened. Acknowledged
messages are displayed in grey. Use the trackball and select
individual messages with the Select button on the Sonar
Operating Panel.
System Alarm parameters
Ack(knowledge) - Press this button to acknowledge the selected
message.
Delete - Press this button to delete the selected message.
The Close button closes the dialogue. The Help button opens
the on-line help.
Related topics
Message Bar, page 126
Trackball and Select button, page 37
Menu description
93
