Transducer

The Transducer button is located in the Status dialogue at the
bottom of the menus.
The Transducer position is normally selected from the Sonar
Operating Panel, and in addition to the LED indicators on the
panel, the transducer position will be indicated in the Status
dialogue.

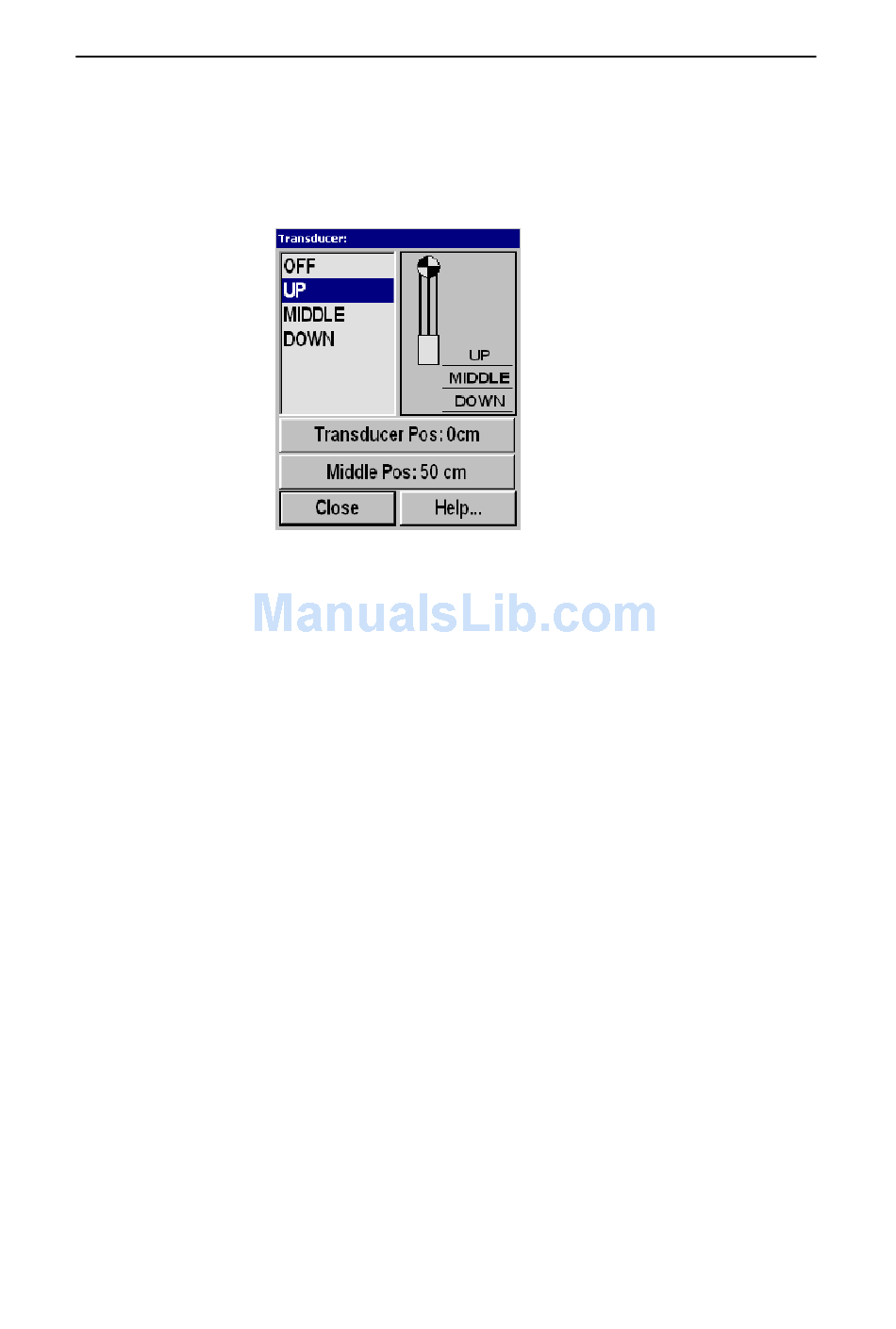

The Off, Up, Middle and Down controls in the Transducer
dialogue correspond to their respective buttons on the Sonar
Operating Panel and makes it possible to make the selections by
the trackball.
The Middle position button allows you to define the vertical
location of the transducer when Middle is selected.
