Simrad SP70

Messages

90

Message categories

When necessary, the sonar will provide you (or your service
engineer) with operational and technical messages. These
messages are sorted into four categories; Warnings, Operator
alarms, System alarms and Errors.
In order to access the messages, the Message bar must be
enabled. This function can be set to activate itself when

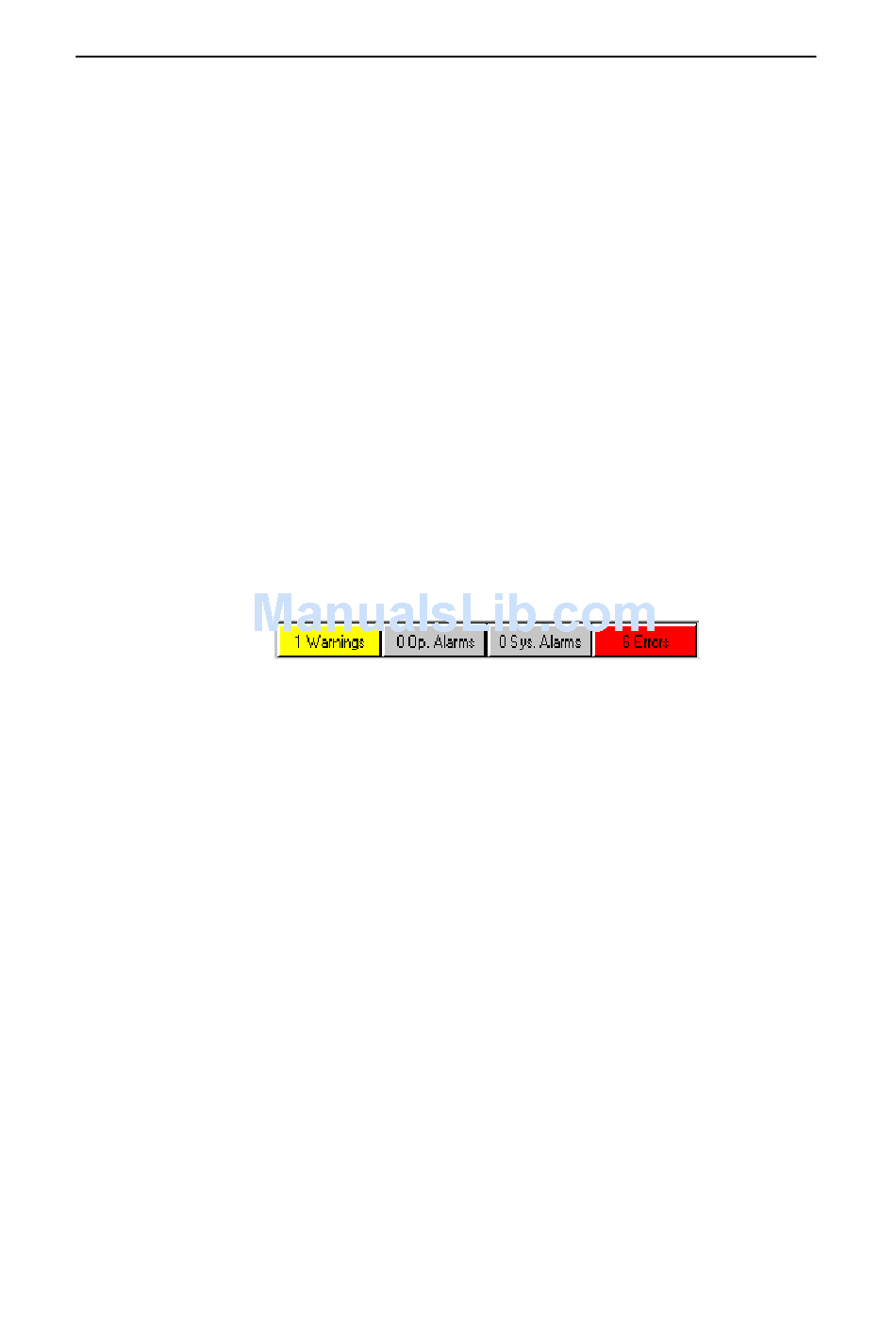

necessary. The Message Bar is located at the bottom of the
display, and it contains four buttons, one for each category of
messages. These buttons give an overview of the number of
unread messages currently in the system. Each of the four
buttons gives access to a dialogue where each message can be
read, acknowledged and deleted.
present, the four buttons are grey.
messages exists, the Warning and Operational Alarm buttons
are yellow, while the System Alarm and Error buttons are red.
Message categories
→
Warnings, page 91
→
Operator alarms, page 92
→
System alarms, page 93
→
Errors, page 94
Related topics
→
Message Bar, page 126
When no messages are
When one or more unread
