Intel
Server System SC5650BCDP TPS
Peripheral and Hard Drive Support

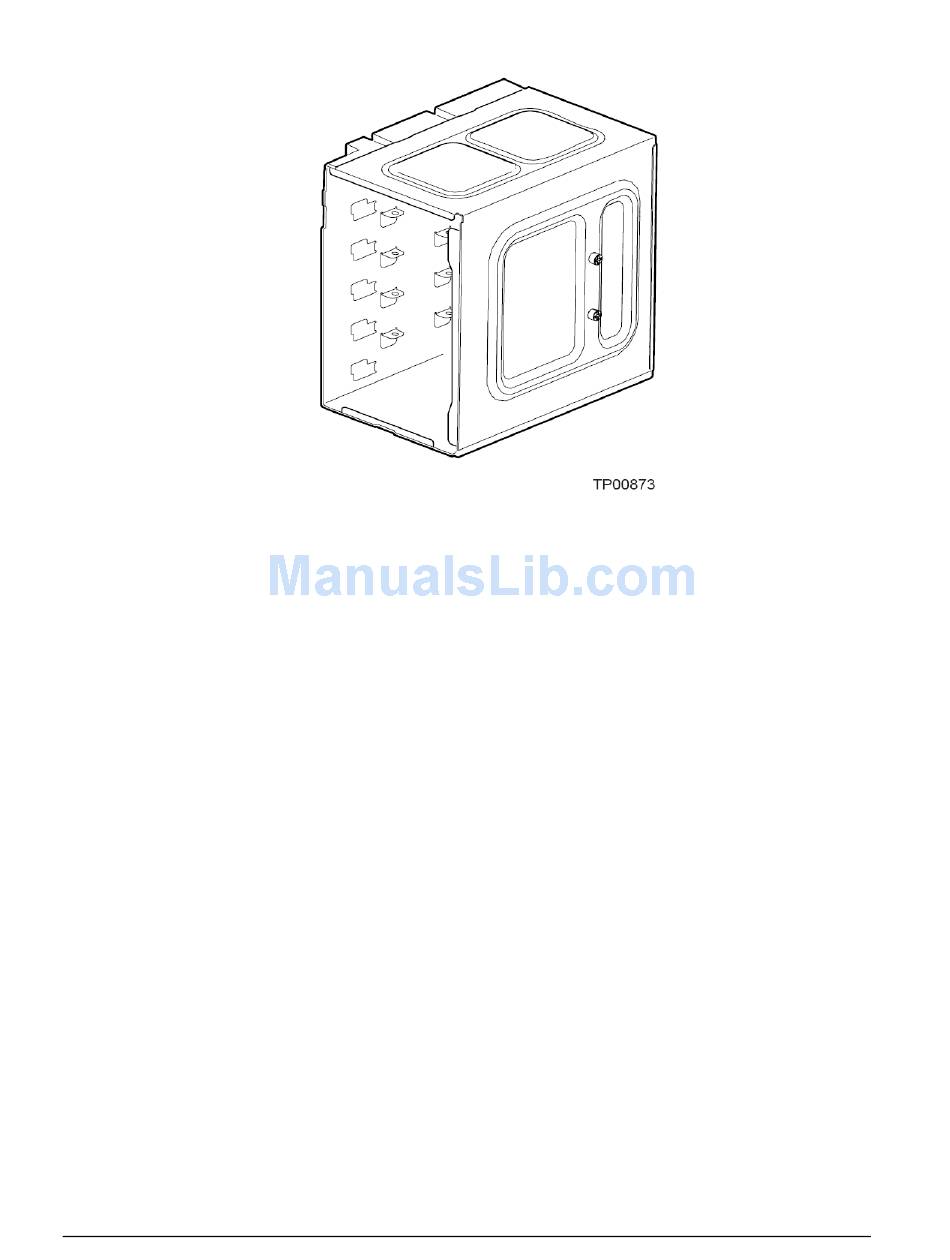

Figure 14: Fixed Hard Drive Bay
®
Intel
Server System SC5650BCDP is capable of accepting a single SAS/SATA hot swap
backplane hard drive enclosure in place of the fixed drive bay. Both backplanes (expanded and
non-expanded) have a connector to accommodate a SAF-TE controller on an add-in card. Each
backplane type supports up to six 1-in hot swap drives when mounted in the docking drive
carrier.
Revision 1.5
Intel order number: E80367-002
35
