Power Sub-System
Intel
Server System SC5650BCDP TPS

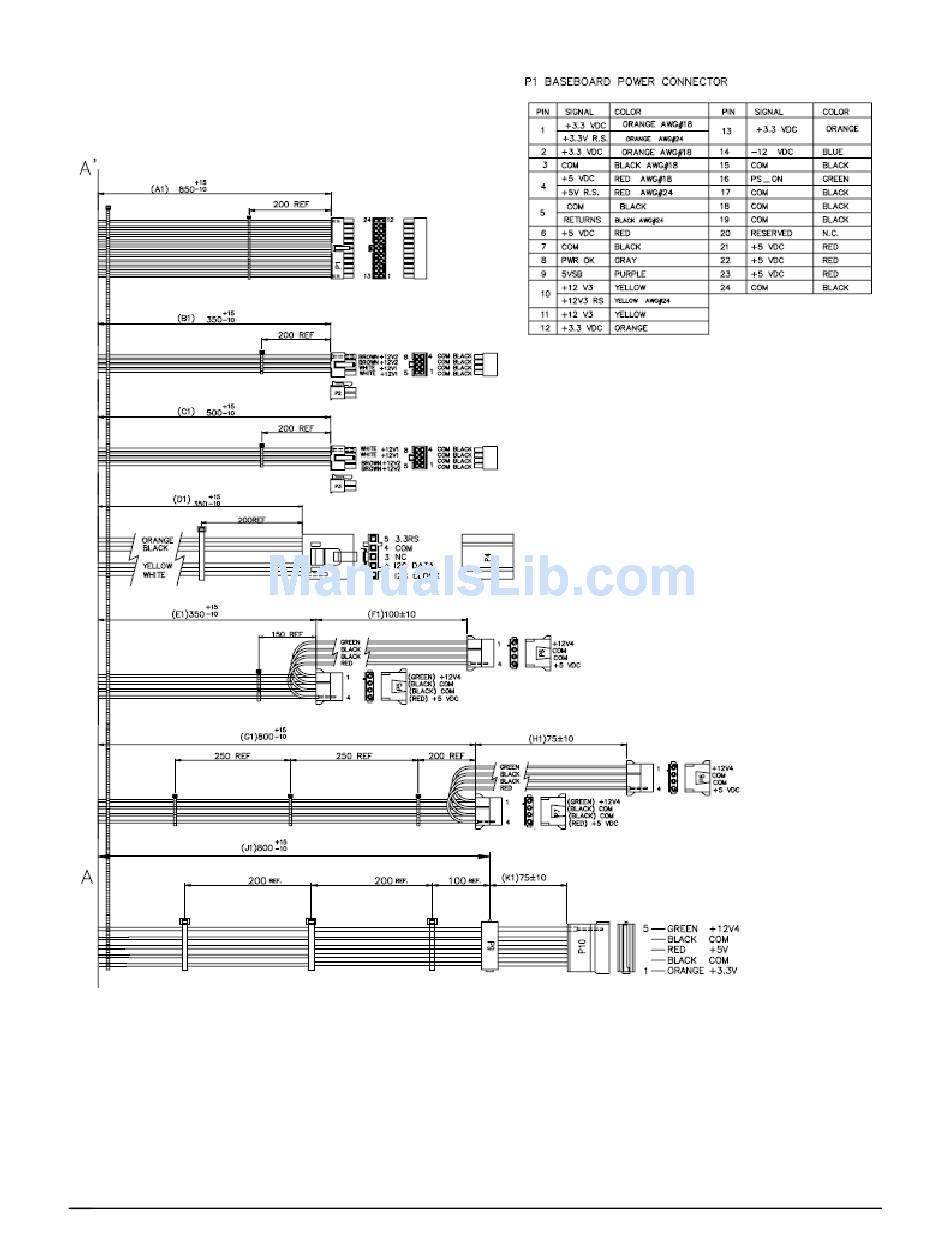

Figure 8. Output Cable Harness for 600-W Power Supply
NOTES:
1. ALL DIMENSIONS ARE IN MM
2. ALL TOLERANCES ARE +10 MM / -0 MM
3. INSTALL 1 TIE WRAP WITHIN 12MM OF THE PSU CAGE
4. MARK REFERENCE DESIGNATOR ON EACH CONNECTOR
5. TIE WRAP EACH HARNESS AT APPROX. MID POINT
6. TIE WRAP P1 WITH 2 TIES AT APPROXIMATELY 15M SPACING.
14
Intel order number: E80367-002
Revision 1.5
