2. Connect the Support Bar to the
Cisco IP Phone 7960
To connect the support bar to the Cisco IP Phone 7960, follow
these steps.

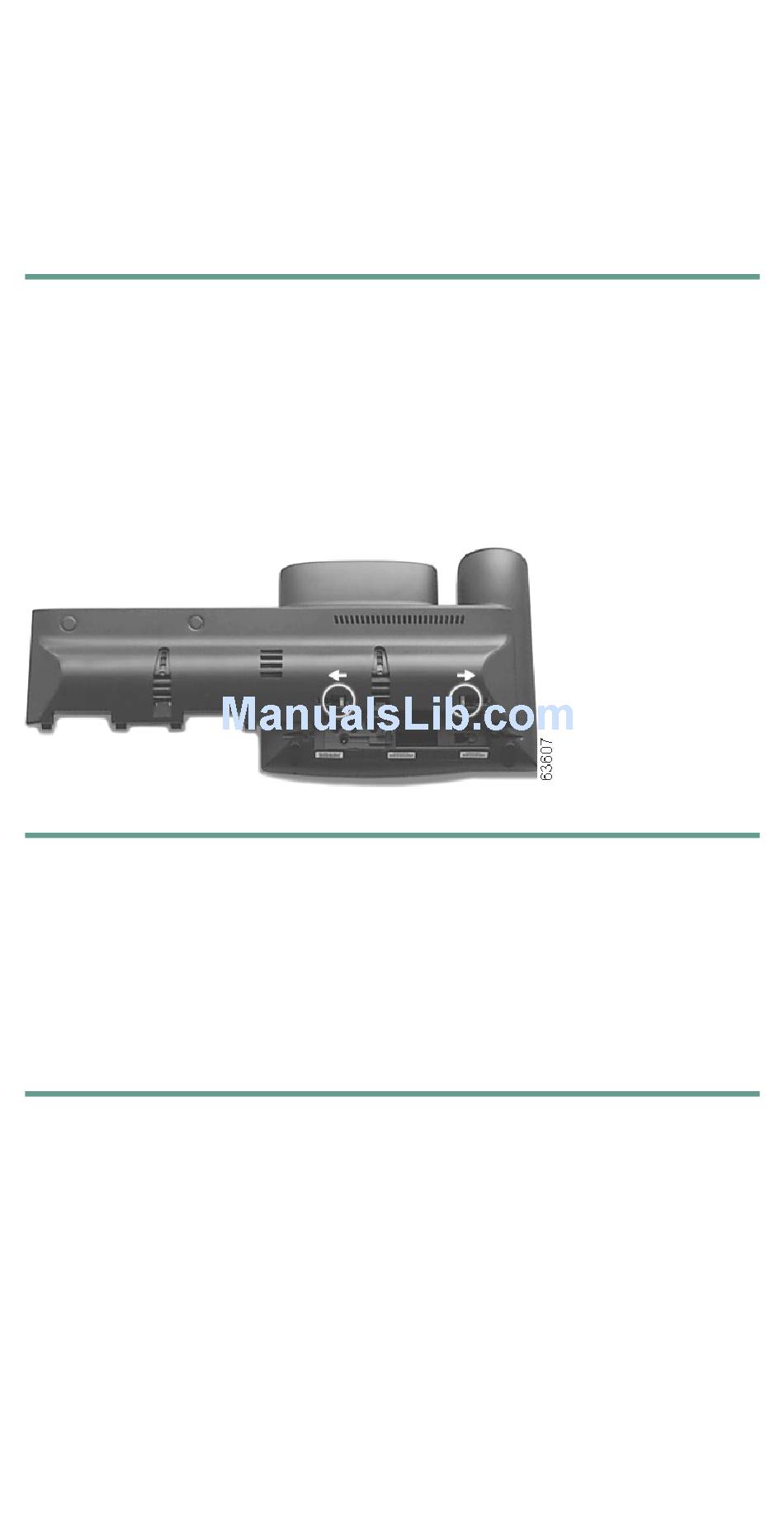

Position the support bar on the back of the IP Phone so
Step 1
that it fits flush with the phone.
Locate the two connector pins.
Step 2
Using a flat head screwdriver, carefully push each of the
Step 3
connector pins so that the support bar is firmly fastened
to the IP Phone.
3. Connect the 7914 Expansion Module to the
Support Bar
To connect the Expansion Module to the support bar, follow
these steps.
Position the phone so that the front of the phone is
Step 1
facing up.
Line up the two open slots on the bottom of the
Step 2
7914 Expansion Module with the two hooks on the
support bar. Insert the hooks into the slots and then
rotate the top of the 7914 Expansion Module into the
support bar so that it rests flush with the bar.
Tighten the thumb screw on the back of the
Step 3
7914 Expansion Module.
8
