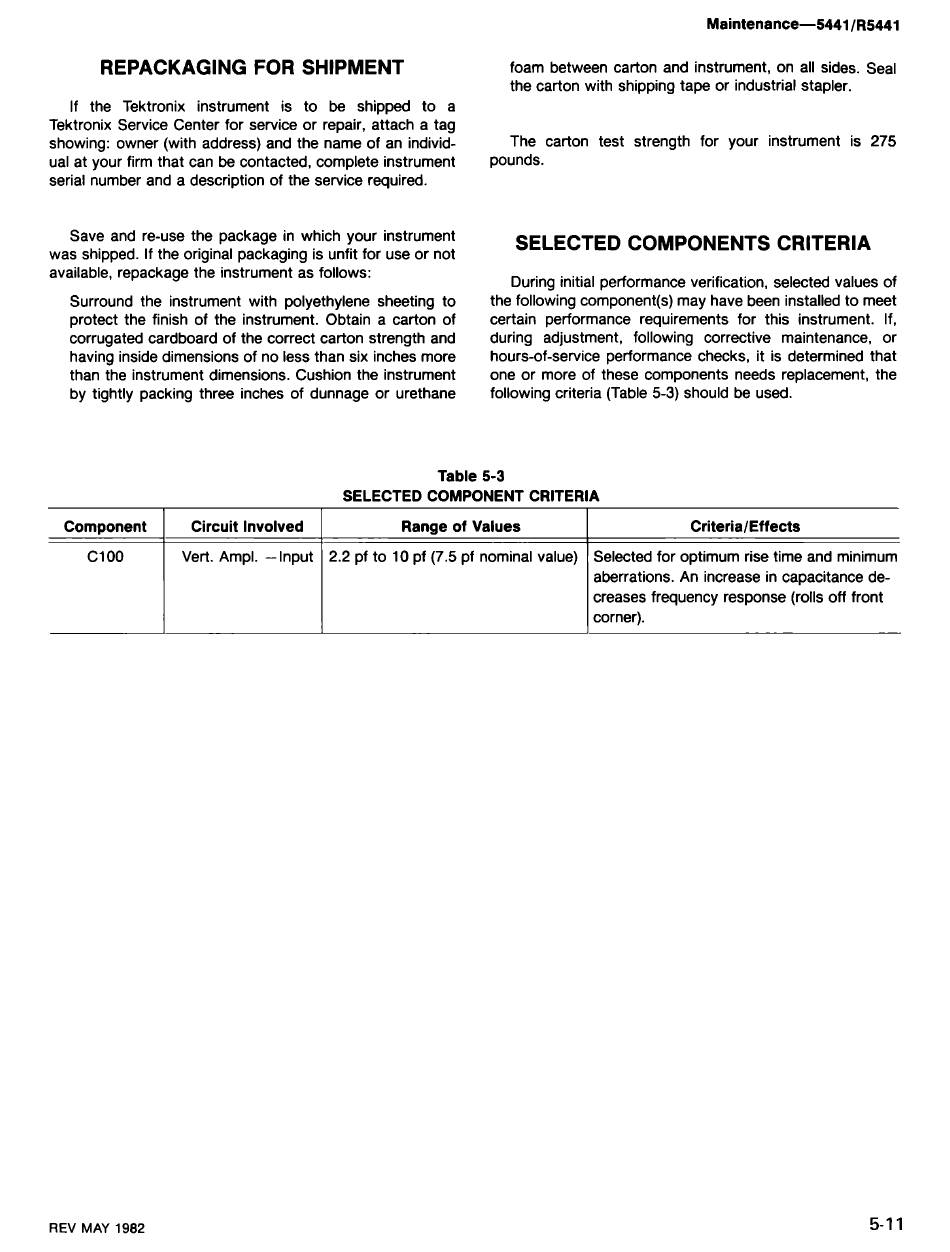

Tektronix 5441 Instruction Manual page 98

REPACKAGING FOR SHIPMENT
foam between carton and instrument, on all sides. Seal
the carton with shipping tape or industrial stapler.
If the Tektronix instrument is to be shipped to a
Tektronix Service Center for service or repair, attach a tag
showing: owner (with address) and the name of an individ-
The carton test strength for your instrument is 275
ual at your firm that can be contacted, complete instrument
pounds.
serial number and a description of the service required.
Save and re-use the package in which your instrument
was shipped. If the original packaging is unfit for use or not
available, repackage the instrument as follows:
Surround the instrument with polyethylene sheeting to
protect the finish of the instrument. Obtain a carton of
corrugated cardboard of the correct carton strength and
having inside dimensions of no less than six inches more
than the instrument dimensions. Cushion the instrument
by tightly packing three inches of dunnage or urethane
SELECTED COMPONENTS CRITERIA
During initial performance verification, selected values of
the following component(s) may have been installed to meet
certain performance requirements for this instrument. If,
during adjustment, following corrective maintenance, or
hours-of-service performance checks, it is determined that
one or more of these components needs replacement, the
following criteria (Table 5-3) should be used.
Table 5-3
SELECTED COMPONENT CRITERIA
REV MAY 1982
Component
C100
Circuit Involved
Vert. Ampl. -Input
Range of Values
2.2 pf to 10 pf (7.5 pf nominal value)
CriteriaIEffects
Selected for optimum rise time and minimum
aberrations. An increase in capacitance de-
creases frequency response (rolls off front
corner).
