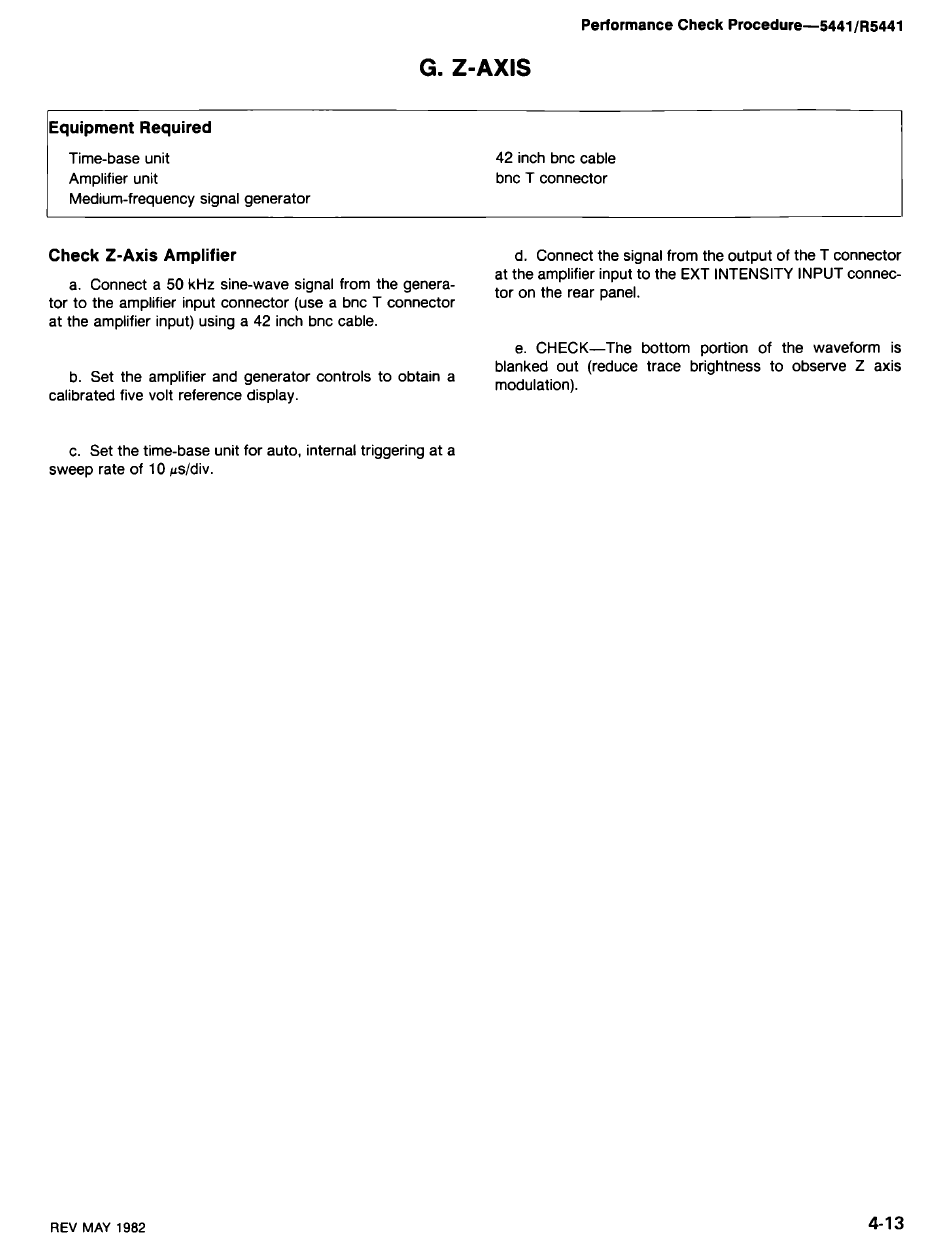

Performance Check Procedure-5441/~5441
G. Z-AXIS
Equipment Required
Time-base unit
42 inch bnc cable
Amplifier unit bnc T connector
Medium-frequency signal generator
Check Z-Axis Amplifier
d. Connect the signal from the output of the T connector
at the amplifier inputio the EXT INTENSITY INPUT connec-
a. Connect a 50 kHz sine-wave signal from the genera-
tor
on the rear panel.
tor to the amplifier input connector (use a bnc T connector
at the amplifier input) using a 42 inch bnc cable.
e. CHECK-The bottom portion of the waveform is
blanked out (reduce trace brightness to observe Z axis
b. Set the amplifier and generator controls to obtain a
modulation).
calibrated five volt reference display.
c. Set the time-base unit for auto, internal triggering at a
sweep rate of 10 psldiv.
REV MAY 1982
